PR1002 — DualBoost II USB Dual Interface Reader
Contactless Readers

PR1002

DualBoost II USB Dual Interface Reader

Dual-interface USB reader with a built-in Secure Access Module (SAM) slot

Manufacturer reference: ACS — ACR1281U-C1 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • ISO 14443
  • ISO 7816
  • USB Full Speed
  • PC/SC
  • CCID
  • Microsoft® WHQL
  • CE
  • FCC
  • RoHS
  • REACH

Primary Applications

  • e-Government
  • Banking & Payment
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1002

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1002 DualBoost II is the second generation of ACS's ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. PR1002 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards in automated fare collection systems. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.

The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, PR1002 DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Contactless Smart Card Reader: Read/write speed of up to 848 kbps; Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type); Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series; Built-in anti-collision feature (only one tag is accessed at any time); Supports extended APDU (max. 64 kbytes)
  • Contact Smart Card Reader: Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V); Supports CAC (Common Access Card); Supports PIV (Personal Identity Verification Card); Supports microprocessor cards with T=0 or T=1 protocol; Supports memory cards; ISO 7816-compliant SAM slot
  • Application Programming Interface: Supports PC/SC; Supports CT-API (through wrapper on top of PC/SC)
  • Built-in Peripherals: Two user-controllable LEDs; User-controllable buzzer
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics
Dimensions (mm) 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight (g) 140 g
USB Interface
Connector Type Standard Type A
Protocol USB CCID
Speed USB Full Speed (12 Mbps)
Power Source From USB port
Cable Length 2.0 m, Fixed
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1
Contactless Smart Card Interface
Standard ISO 14443 A & B Parts 1-4
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL
SAM Card Interface
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A (5 V)
Protocol T=0; T=1
Built-in Peripherals
LED 2 single-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance ISO 14443; ISO 7816; USB Full Speed; PC/SC; CCID; Microsoft® WHQL; CE; FCC; RoHS; REACH
Device Driver Operating System Support
Device Driver Operating System Support Windows®; Linux®; MAC OS®; Solaris; Android™

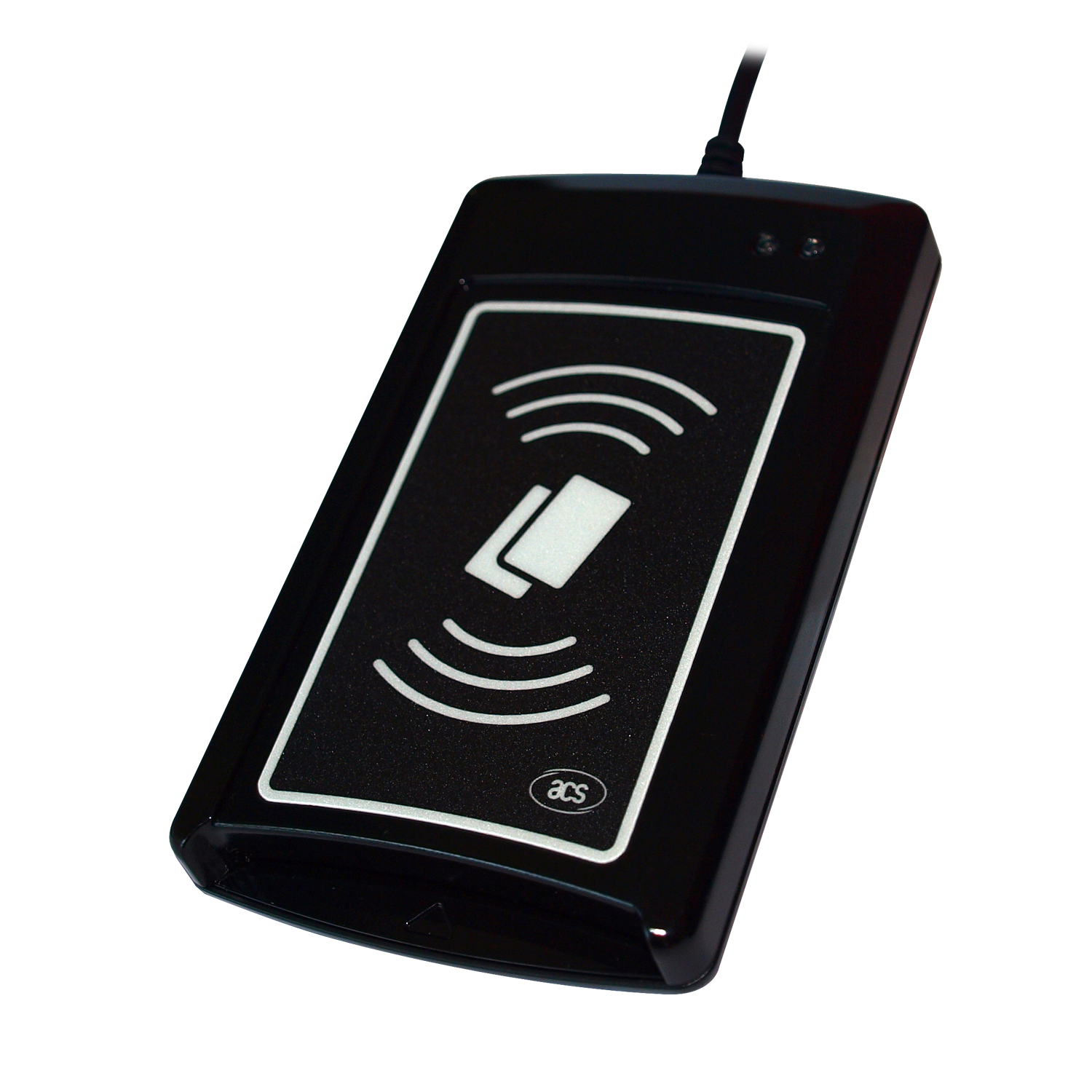

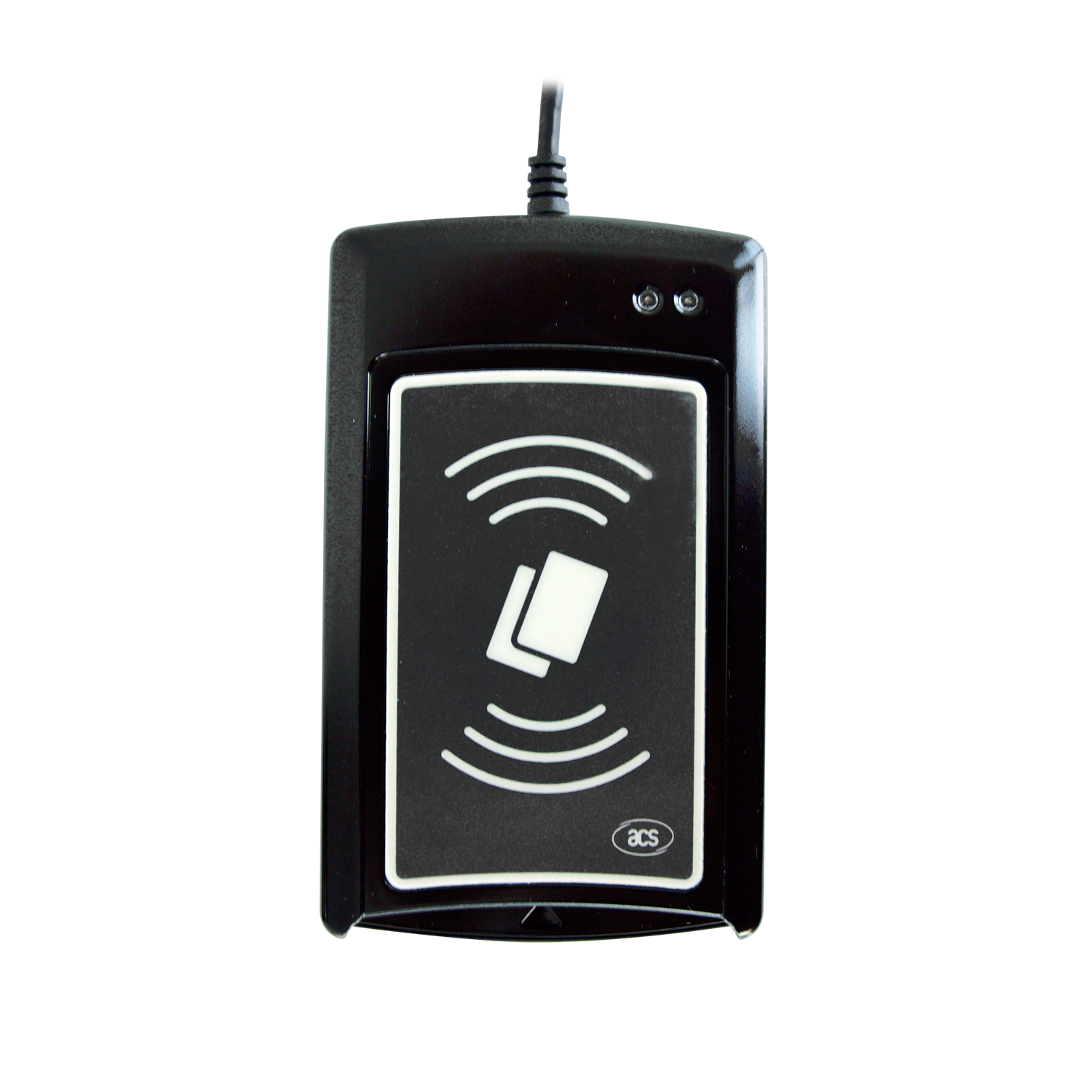

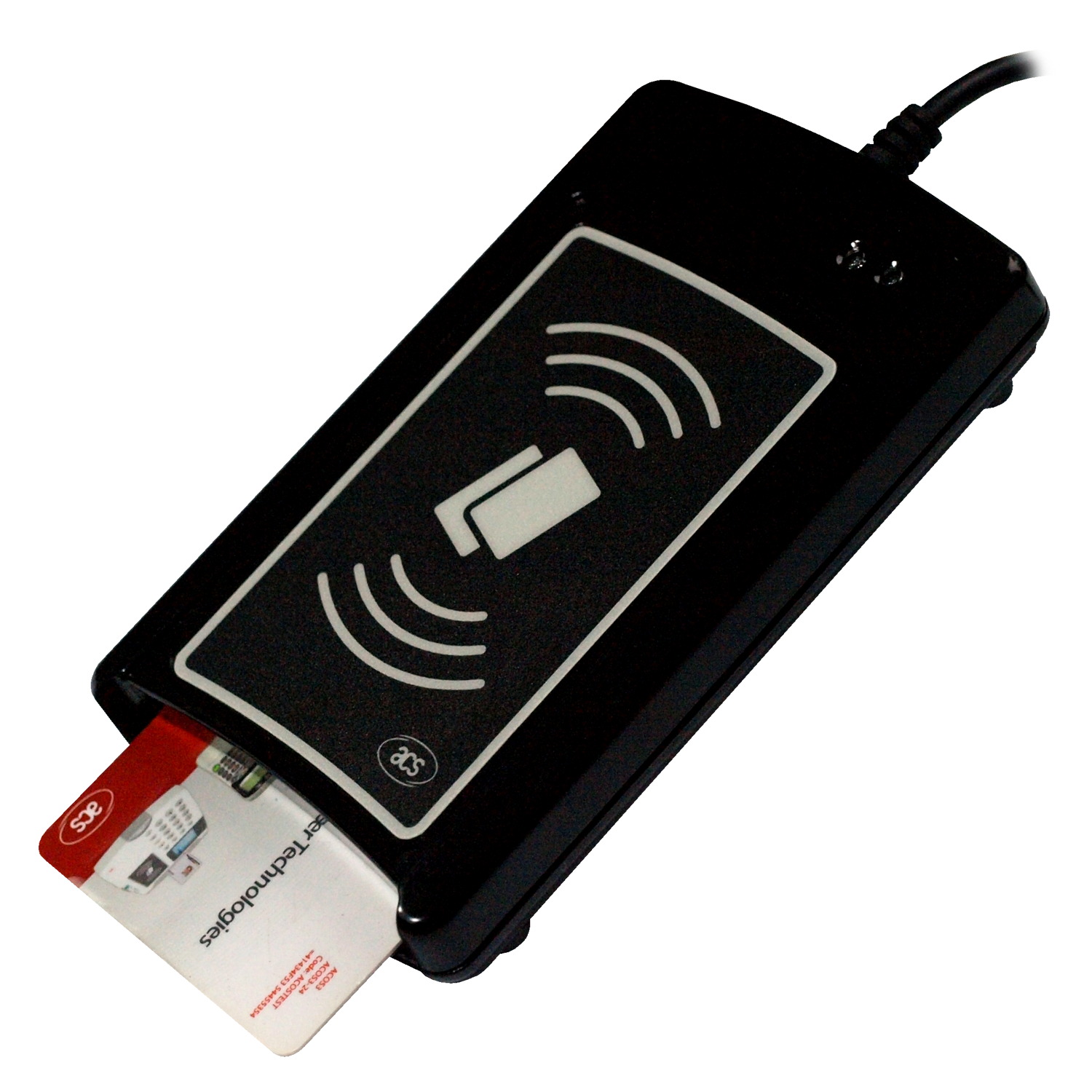

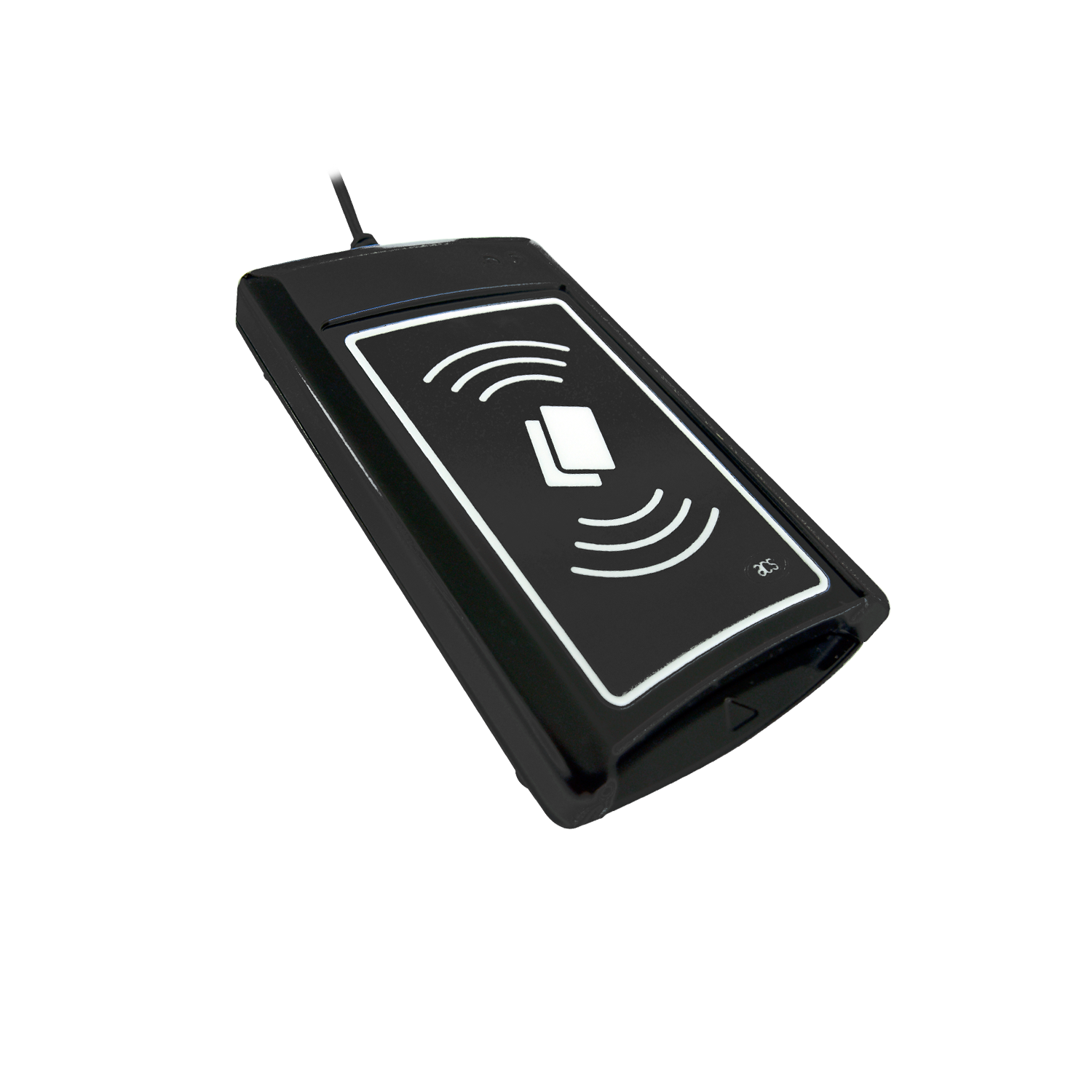

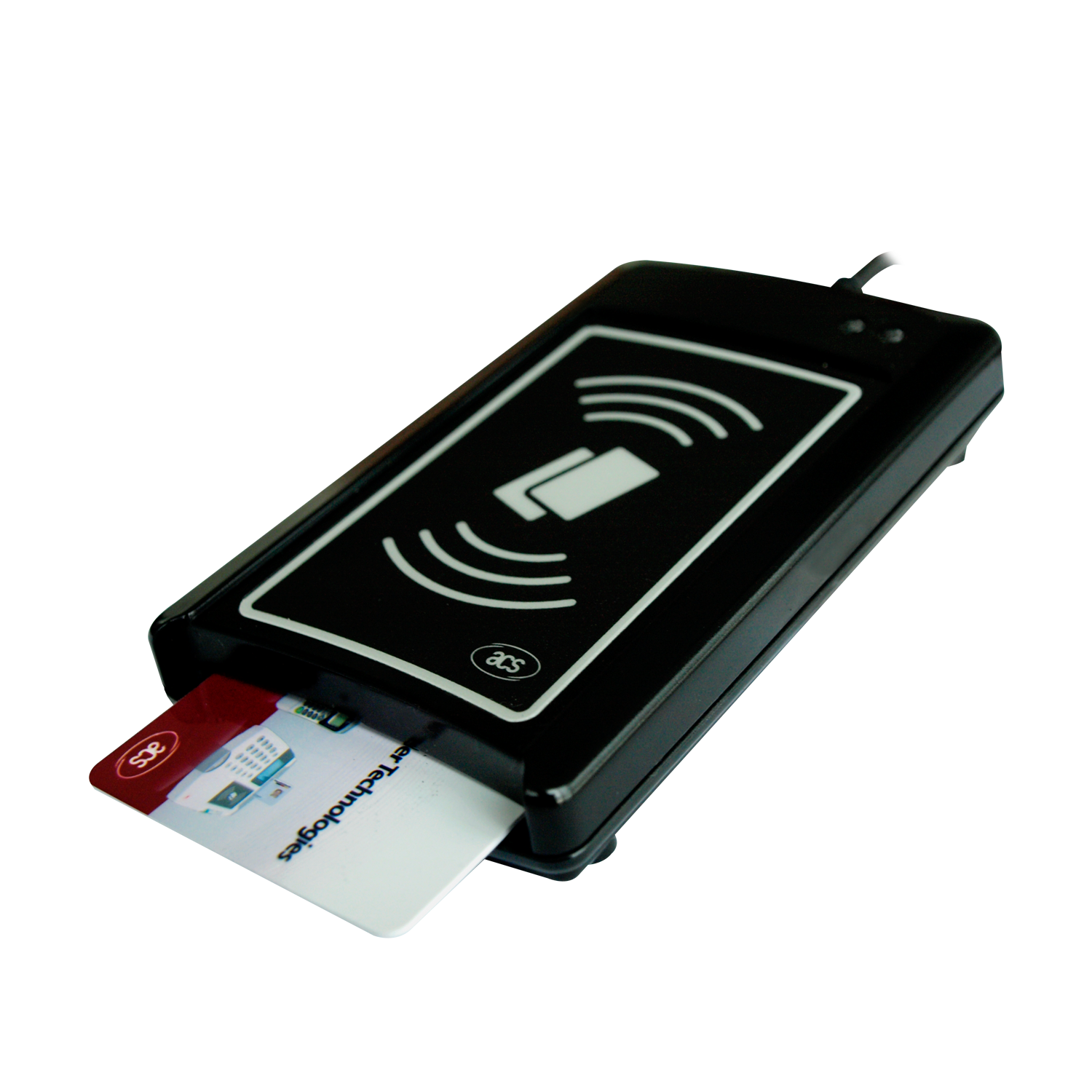

Images
