PR1046 — USB NFC Reader IV Software Development Kit
Software Development Kits

PR1046

USB NFC Reader IV Software Development Kit

Comprehensive SDK for developing NFC applications highlighting Card-Emulation and Keyboard Emulation mode supported by PR1043

Manufacturer reference: ACS — ACR1552U SDK ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

PR1046

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

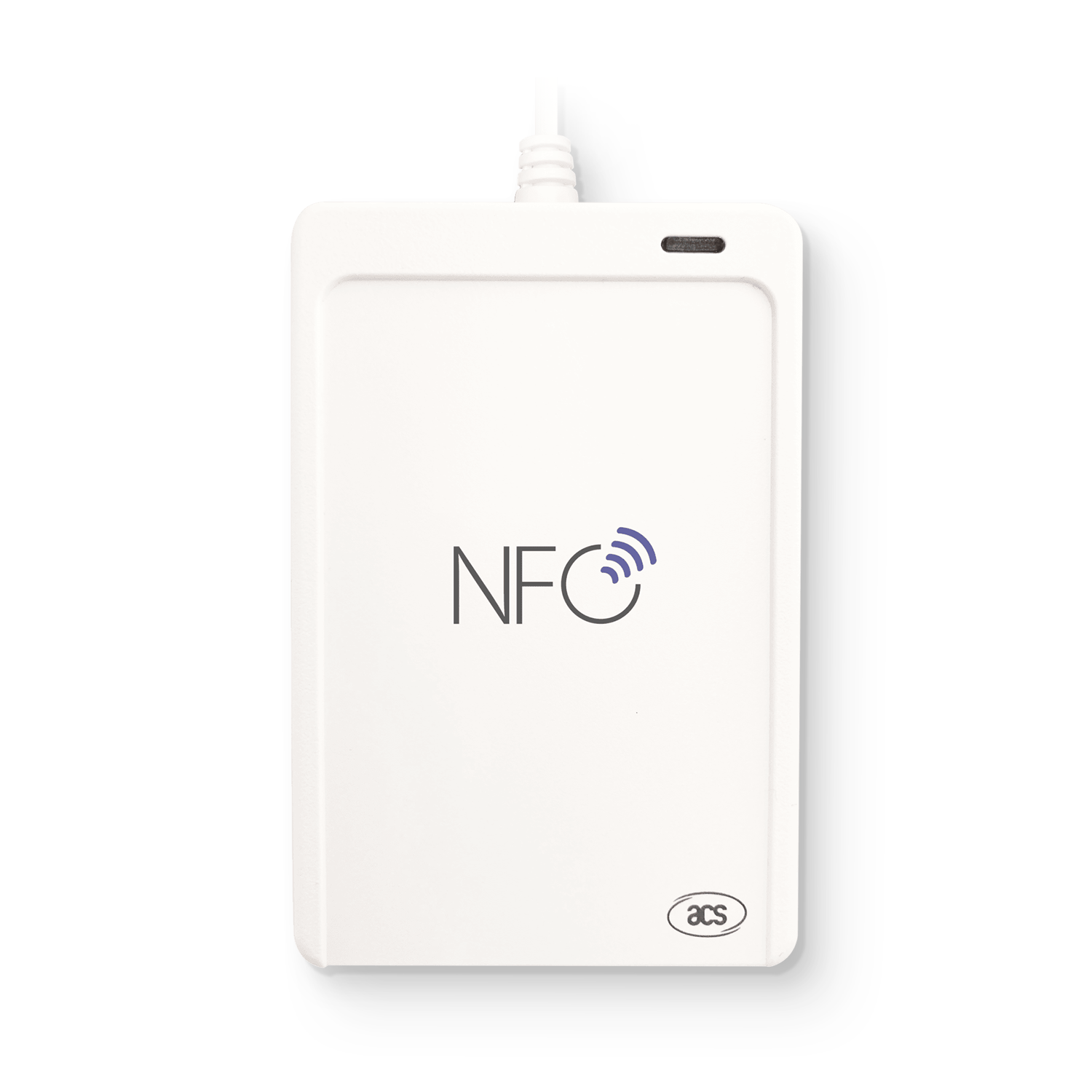

Utilizing 13.56 MHz contactless technology, the PR1043 USB NFC Reader IV offers support for various card types, including ISO 14443 Type A and B, MIFARE®, and FeliCa cards, ISO 18092-compliant NFC tags and ISO 15693 cards. It supports three NFC modes: card reader/writer, card emulation, and keyboard emulation. The PR1043 also features a Secure Access Module (SAM), which serves the purpose of key diversification and mutual authentication. This SAM feature ensures a high level of security in contactless transactions.

Comprehensive SDK—The PR1046 is a collection of PC/SC-compliant sample codes, for device and contactless card programming. The SDK is designed to help software developers with the necessary tools and guidance to streamline their development process and create applications that effectively utilize the PR1043 USB NFC Reader IV.

Card Emulation and Keyboard Emulation Capability—The Smart Card and Reader Tool in this SDK includes NFC and NDEF tools to demonstrate the NFC capability of the PR1043. The card emulation function enables the card reader to simulate the behavior of a contactless smart card, while the keyboard emulation function allows card readers to work with a wide range of software applications that accept keyboard input.

Technical Specifications

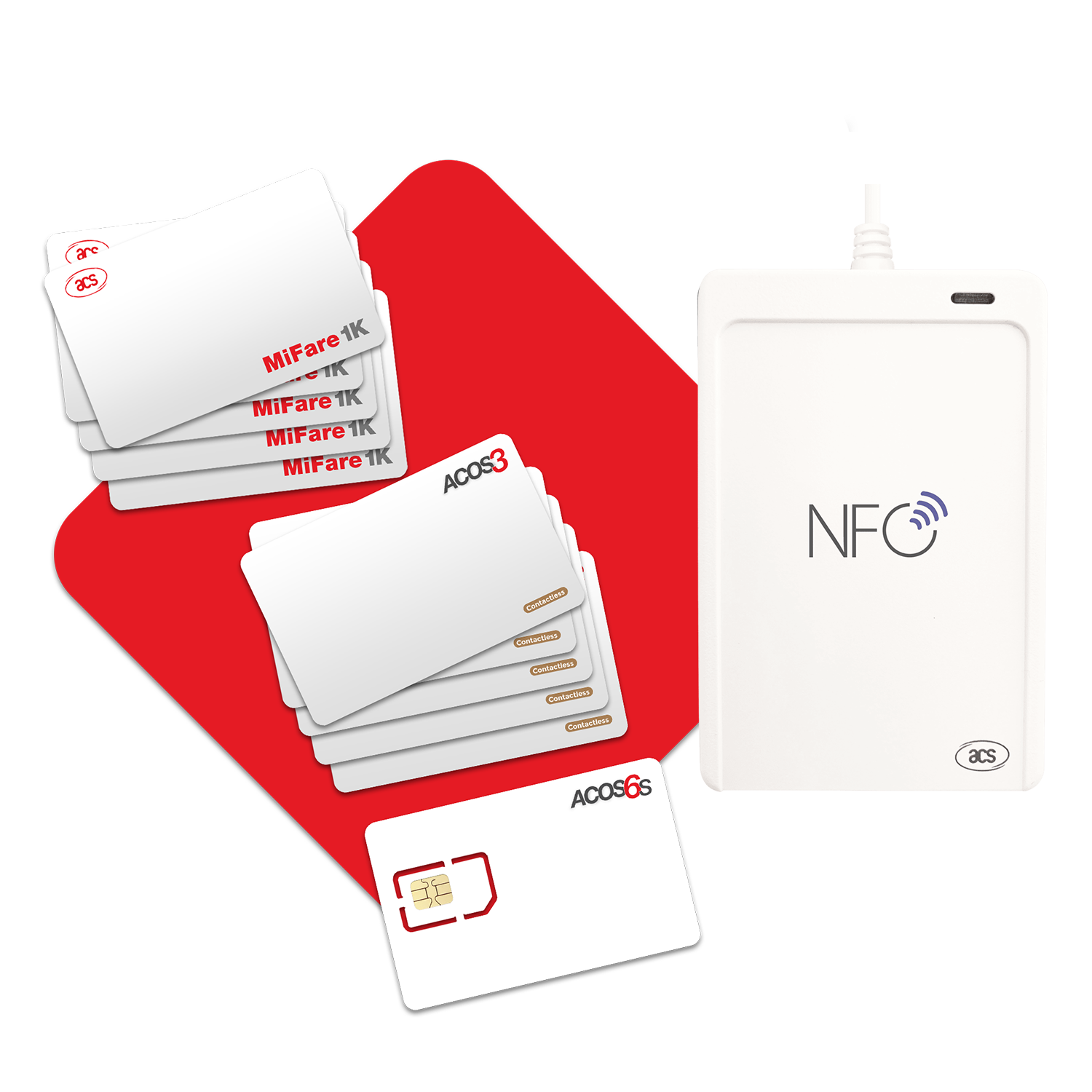

PR1046 Software Development Kit Contents

Item Details
Smart Card Reader(s) 1 x PR1043 USB NFC Reader IV
Test Card(s)/ Token(s) 5 x MIFARE 1K Cards; 5 x PR1024 Contactless Smart Cards; 1 x PR1029 Secure Access Module Card
Software Installer Reference Manual(s); Tools and Utilities: QuickView 2.13, Script Tool 5.02, Smart Card and Reader Tool, Keyboard Configuration Tool V100, ACS CCID PC/SC Driver; Sample Codes: Demonstrates basic commands used to communicate with the cards and readers. Available in Java (JDK8), MS Visual Basic (.NET framework 4.7.2), MS Visual C# (.NET framework 4.7.2), MS Visual C++ (.NET framework 4.7.2)
SDK Operating System Support Windows® 10, Windows® 11
