PR1015 — Secure Bluetooth® NFC Reader · USB
Mobile Card Readers

PR1015

Secure Bluetooth® NFC Reader · USB

PR1015 lists BLE 4.0, USB Mini-B and reader/writer support for ISO 14443 cards and ISO 18092 NFC.

Manufacturer reference: ACS — ACR1255U-J1 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1015

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

Confirm the quotation scope

Use this checklist to specify what you want quoted. Manufacturer specifications describe the product; compatibility with your setup still requires evaluation.

BLE or USB
Specify mobile BLE integration or USB Mini-B PC/SC. Check the library and cable required for that connection.
Reader or development kit
Keep the PR1015 reader and PR1038 SDK separate in the request. Confirm included hardware, cards, software and licences.
Migration checks
Provide the existing app and library version. Evaluate card commands and reconnects before approving a replacement reader.

Questions to resolve before ordering

  • Which existing BLE application and phone or tablet must you test with PR1015, including reconnects and errors?
  • Which ISO 14443 card commands or ISO/IEC 18092 NFC tag operations must the application perform?
  • Do you also need USB Mini-B / PC/SC access, and which host driver and API will you evaluate?

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗
From enquiry to evaluation and order

Use these checkpoints to confirm the configuration and evaluation scope before ordering in volume.

  1. Define the requirement

    Describe the task the product must perform and identify any requirements that still need clarification.

  2. Check the quotation scope

    Match the PR code to the manufacturer variant. Check the quoted hardware, accessories, software and licence terms.

  3. Agree the sample evaluation

    Before arranging evaluation units, agree the test setup and acceptance criteria. Record results and unresolved issues.

  4. Confirm the volume order

    Recheck the configuration and version against the evaluated unit, then confirm the quantity and delivery terms.

Manufacturer specifications describe the product; they do not confirm that your card, host and application have been tested together.

Bluetooth reader specifications at a glance

Check the hardware interface and card operation first, then evaluate the exact host, card and software package for this model.

Bluetooth host interface
Bluetooth Low Energy (BLE) / Bluetooth 4.0.
USB host interface
USB Mini-B; USB CCID and PC/SC.
Listed contactless card standards
ISO 14443 Type A and B; ISO/IEC 18092 NFC; MIFARE; FeliCa. ISO 15693 is not listed in the cited specification; confirm that requirement separately.
Listed card operation and keyboard modes
Reader/writer. Bluetooth HID and card emulation are not listed in the cited feature list; confirm the required operation before selection.
SAM interface
The cited specification does not list a SAM interface; confirm your SAM requirement with the exact reader configuration.
Card-command integration
Use this model's Android/iOS BLE libraries for card commands. For USB, check the PC/SC driver and API documentation.

Listed features do not establish complete application compatibility. Check the selected library's operating-system requirements and test card commands, keys and reconnect behaviour. USB PC/SC, BLE card commands and HID keyboard output are distinct integration routes.

Overview

PR1015 ACS Secure Bluetooth® NFC Reader is designed to facilitate on-the-go smart card and NFC applications. It combines the latest 13.56 MHz contactless technology with Bluetooth® connectivity.

PR1015 supports ISO 14443 Type A and B smart cards, MIFARE®, FeliCa®, and most NFC tags and devices compliant with ISO 18092 standard. This makes PR1015 ideal for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. PR1015 has two interfaces: Bluetooth (also known as Bluetooth Low Energy or BLE) for pairing with mobile devices, and USB Full Speed for PC-linked operation. Additionally, it can read/write at a speed of up to 424 Kbps for contactless smart card and NFC device access.

With a compact design and a rechargeable Lithium-ion battery for power, PR1015 is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets.

To save valuable cost and time, the firmware of PR1015 could conveniently be upgraded on the field. This enables users to cope with the fast-changing technology for their applications, and suit different scenarios.

With Bluetooth® technology and AES-128 encyrption, PR1015 connects securely and wirelessly to any device running on Android™ 4.3 and later, iOS 8.0 and later, Windows® 7 and later, and Mac OS® 10.7 and later.

For PC-linked operation, PR1015 could easily be installed for use with any personal computer running on Windows® operating system because it is PC/SC and CCID-compliant. Its drivers are also compatible with Linux® and Mac OS®.

With its numerous features, the PR1015 is the perfect reader for your smart card solution.

Should you wish to try out the demo apps for PR1015, please download the app from Google Play and App Store.

Key Attributes: Mobile, PC-Linked, USB, Bluetooth, Battery Powered, Contactless Reader, NFC Reader, Firmware Upgradeable

Features

  • Bluetooth® Interface
  • USB 2.0 Full Speed Interface
  • Power Source: - Battery-Powered (incorporates a Litium-ion battery rechargeable through USB Mini-B port) - USB-Powered (through PC-linked mode)
  • CCID Compliance
  • Smart Card Reader: - Contactless Interface: - Read/write speed up to 424 kbps - Built-in Antenna for contactless tag access, with card reading distance of up to 60 mm (depending on tag type) - Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags - Built-in anti-collision feature (only 1 tag is accessed at any time) - NFC Support - Card Reader/Writer Mode
  • Built-in Peripherals: - Two user-controllable bi-color LEDs - User-controllable buzzer
  • Application Programming Interface: - Supports PC/SC - Supports CT-API (through wrapper on top of PC/SC)
  • USB Firmware Upgradeability
  • Supports Android™ 4.3 and later
  • Supports iOS 8.0 and later

Technical Specifications

Physical Characteristics
Dimensions (mm) 85 mm (L) × 54 mm (W) × 10 mm (H)
Weight (g) 37.5 g (74.1 g with cable ± 5 g tolerance)
Bluetooth Interface
Protocol Bluetooth® (Bluetooth Low Energy / Bluetooth 4.0)
Power Source Rechargeable Lithium-ion Battery (charging through USB)
Speed 1 Mbps
USB Interface
Connector Type USB Mini-B
Protocol USB CCID
Speed USB Full Speed (12 Mbps)
Power Source From USB Port
Cable Length 1 m, Detachable
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE Classic Card, T=CL; ISO 18092, NFC Tags; FeliCa
Built-in Peripherals
LED 2 Bi-colors: Red and Blue, Red and Green
Buzzer Monotone
Other Features
Encryption In-device AES encryption algorithm
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950, ISO 18092, ISO 14443, USB Full Speed, Bluetooth®, PC/SC, CCID, CE, FCC, RoHS, REACH, VCCI (Japan), BIS (India), Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, MAC OS® 10.7 and later, Android™ 4.3 and later, iOS 8.0 and later

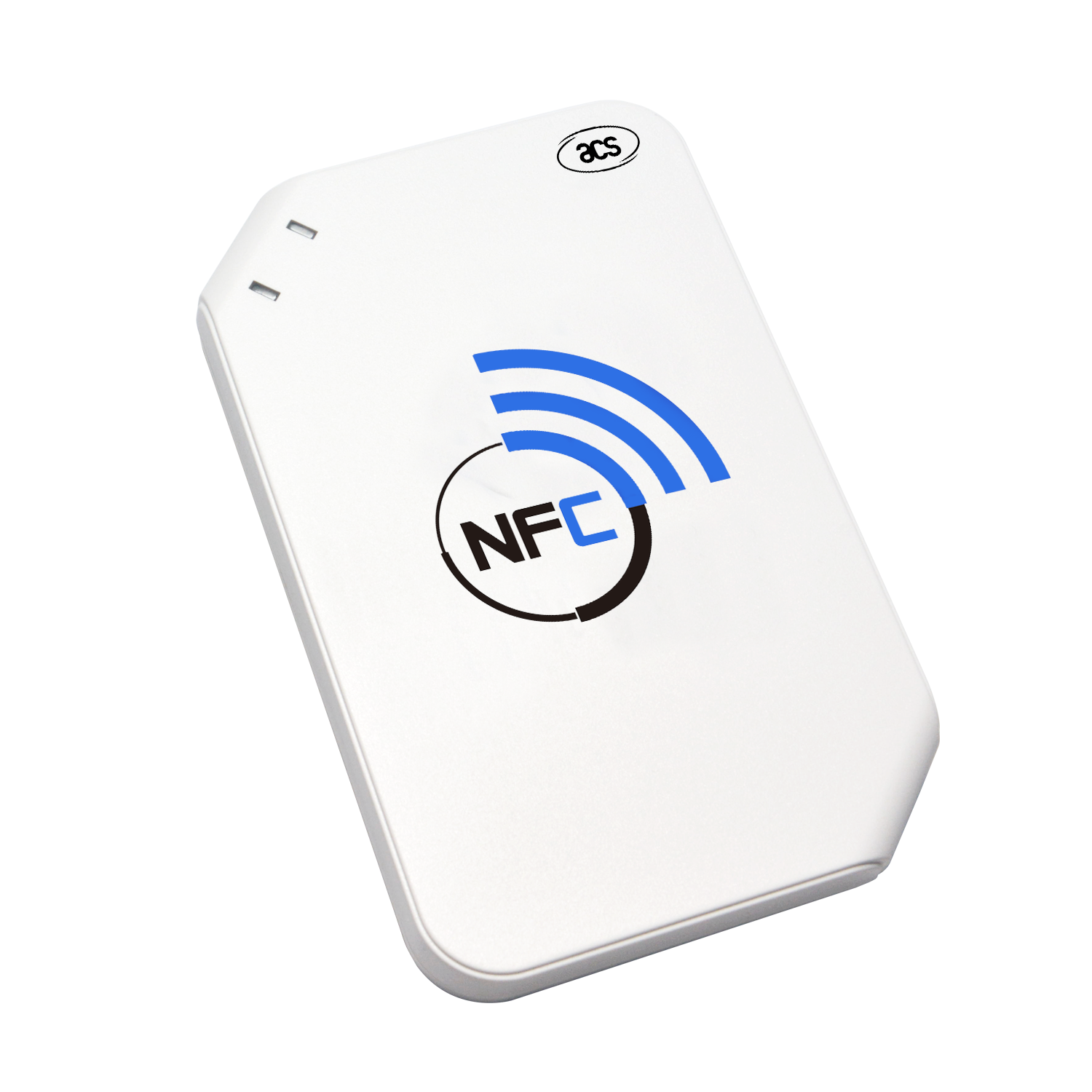

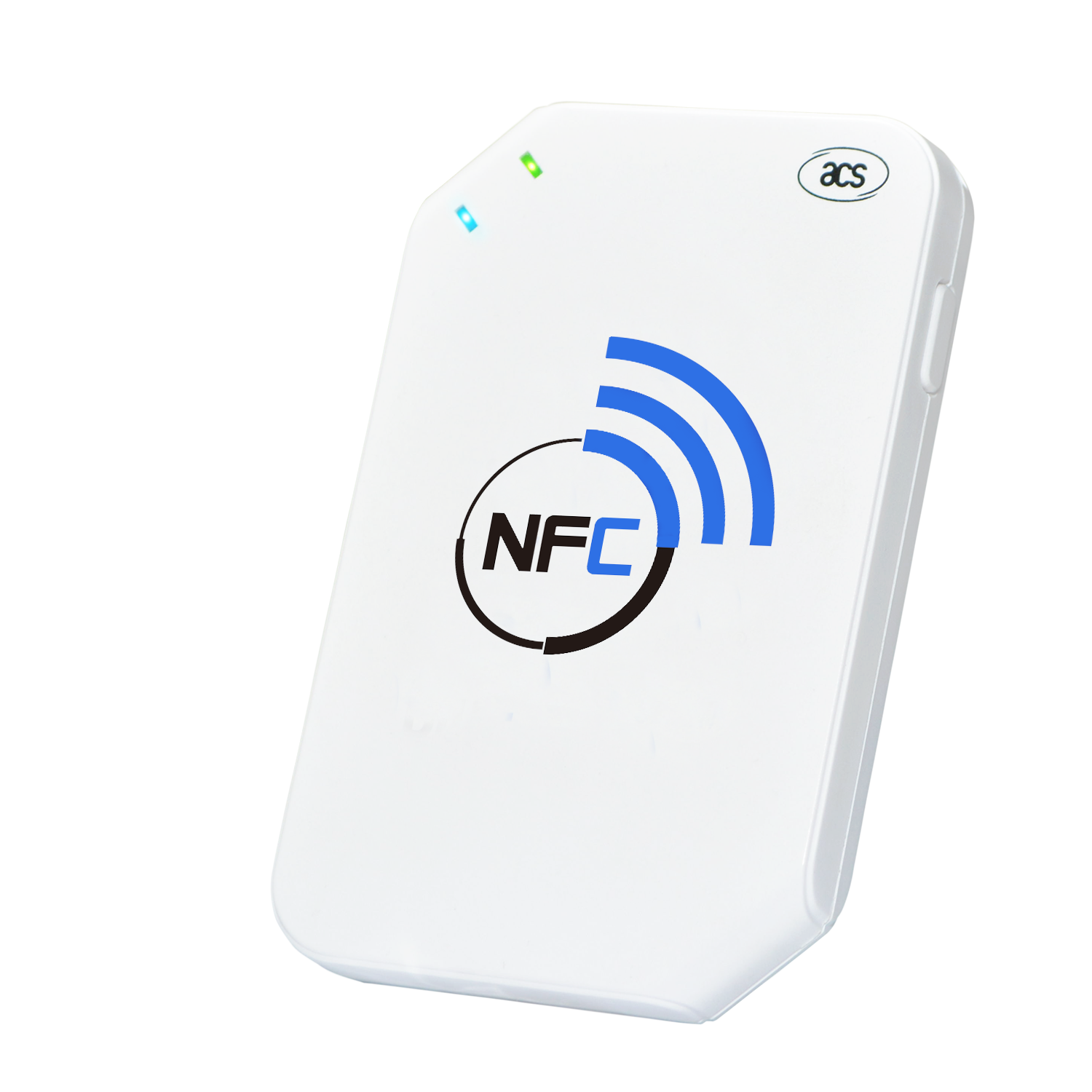

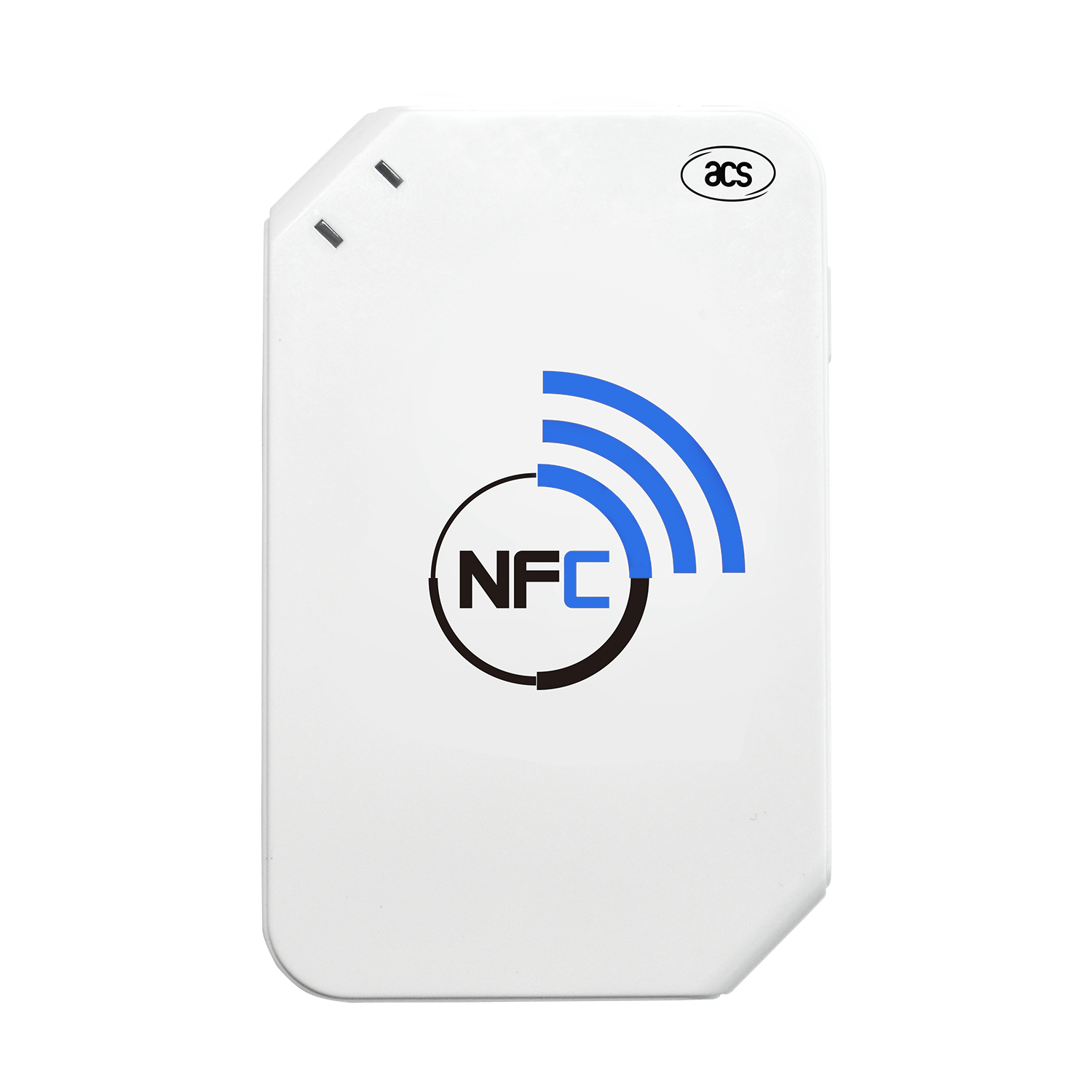

Images

Need pricing, samples or integration support for PR1015? Contact our sales teamorask about distribution.
