Overview

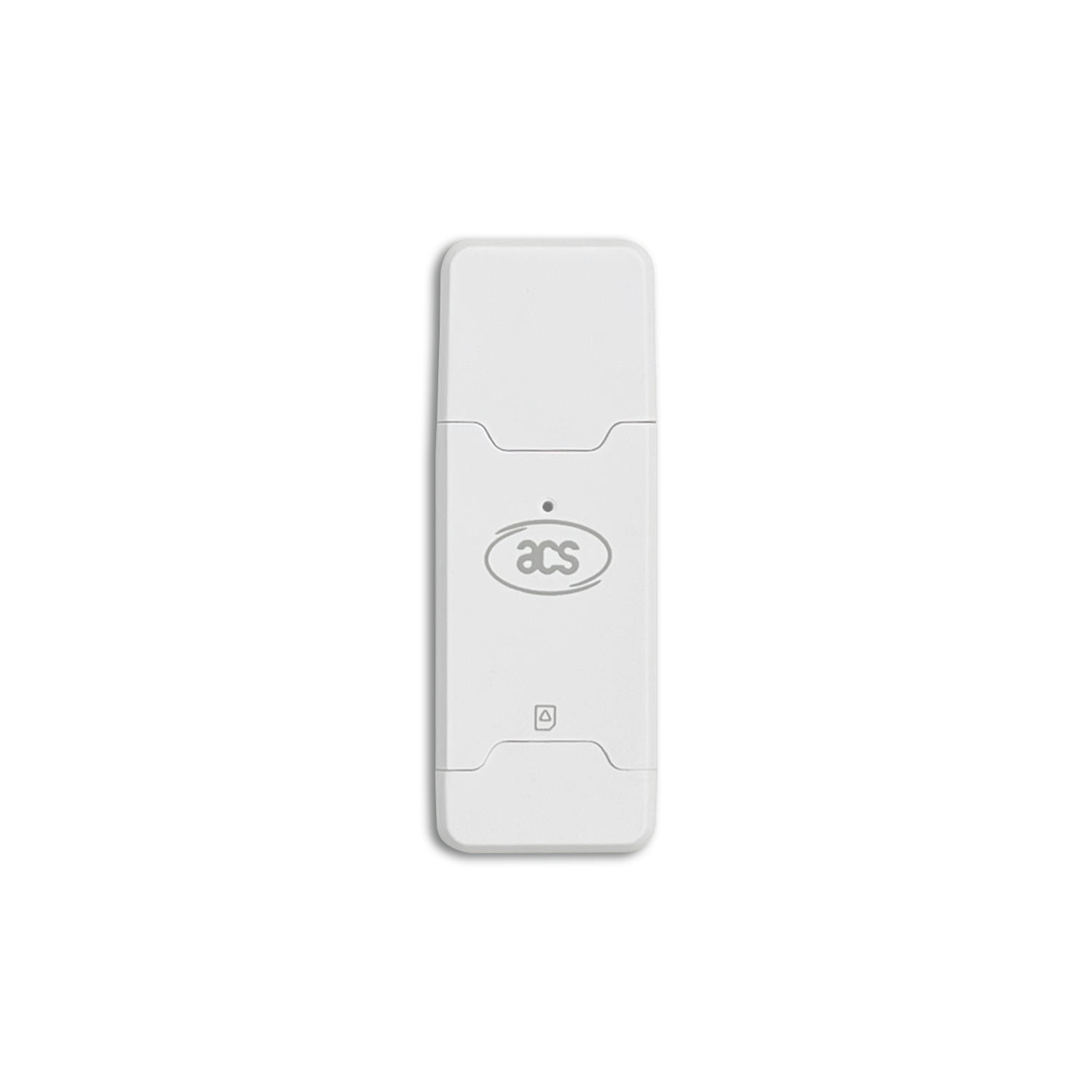

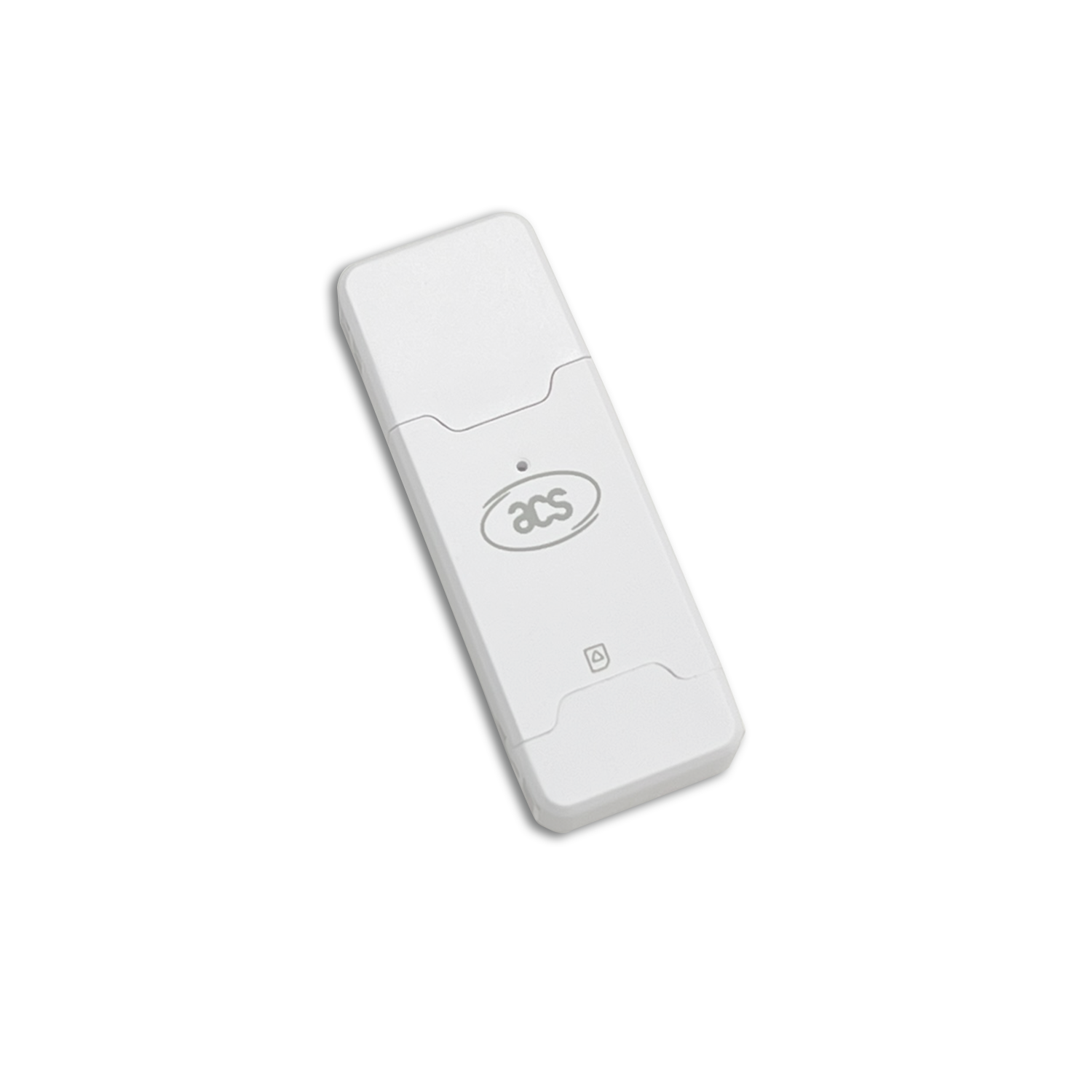

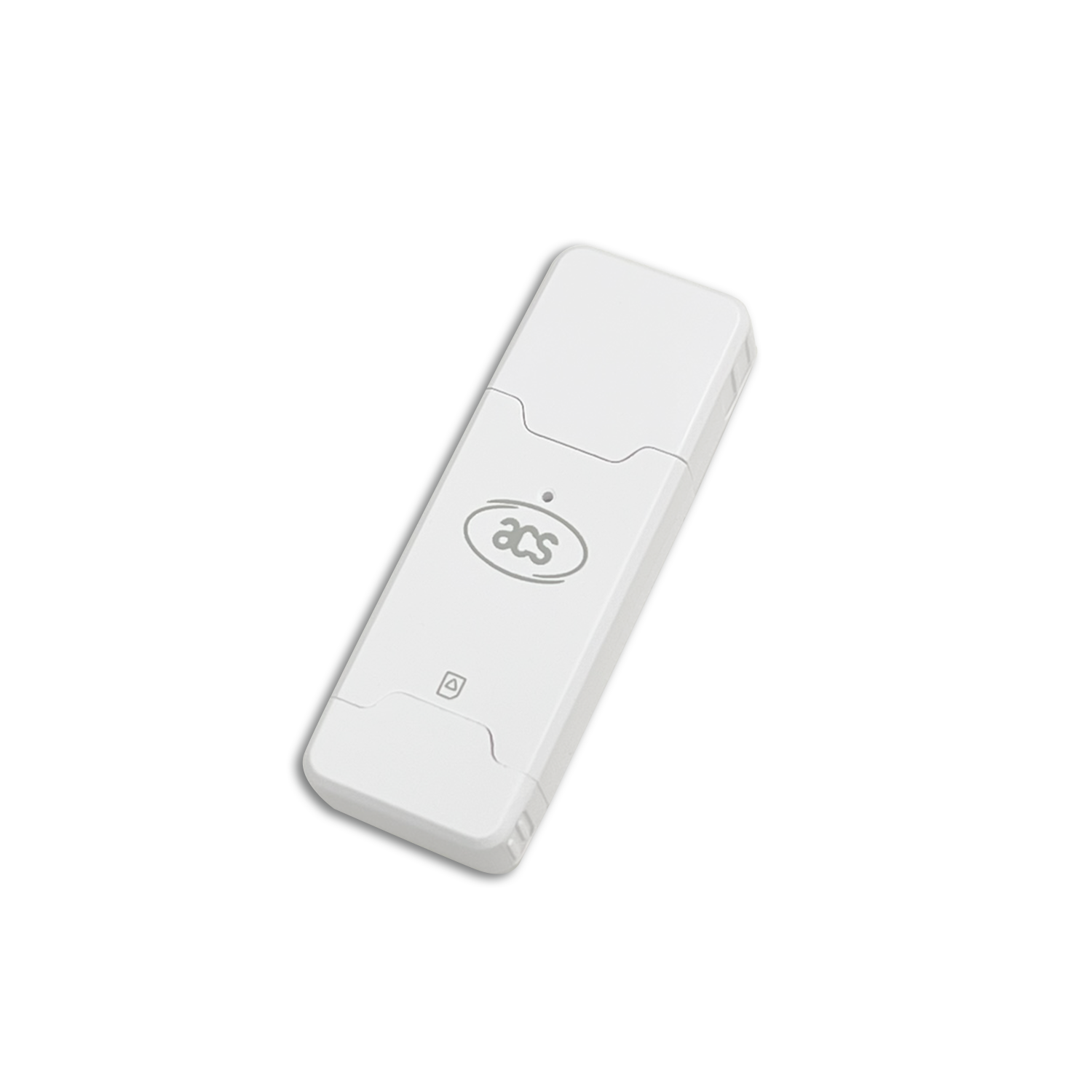

PR1044 / PR1045 is ACS's newest compact high-speed USB contact SIM-sized smart card reader. It supports firmware upgrade, as well as ISO 7816 Class A, B and C smart cards (5 V, 3 V, 1.8 V), microprocessor cards with the T=0, T=1 protocol, and a wide variety of memory cards in the market.

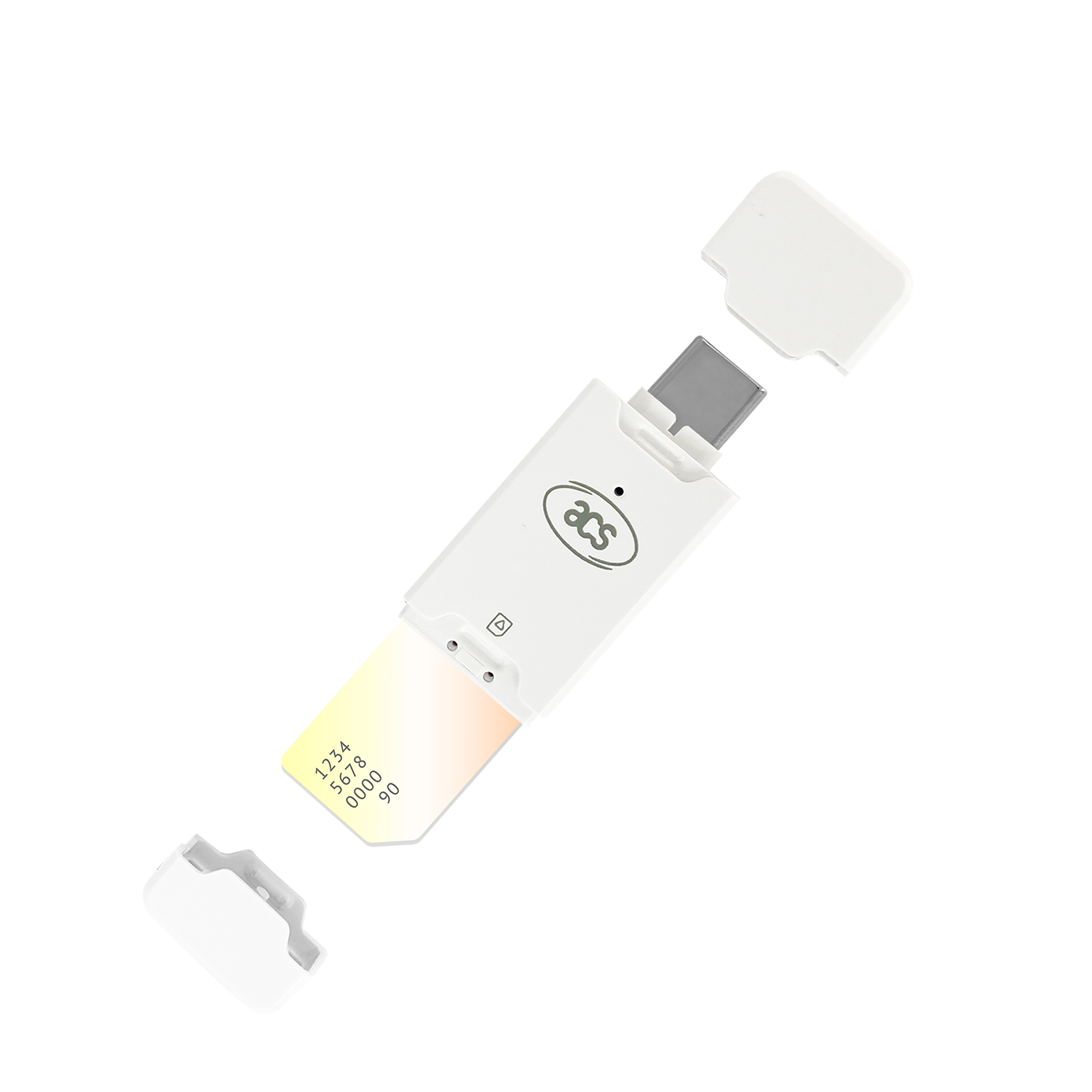

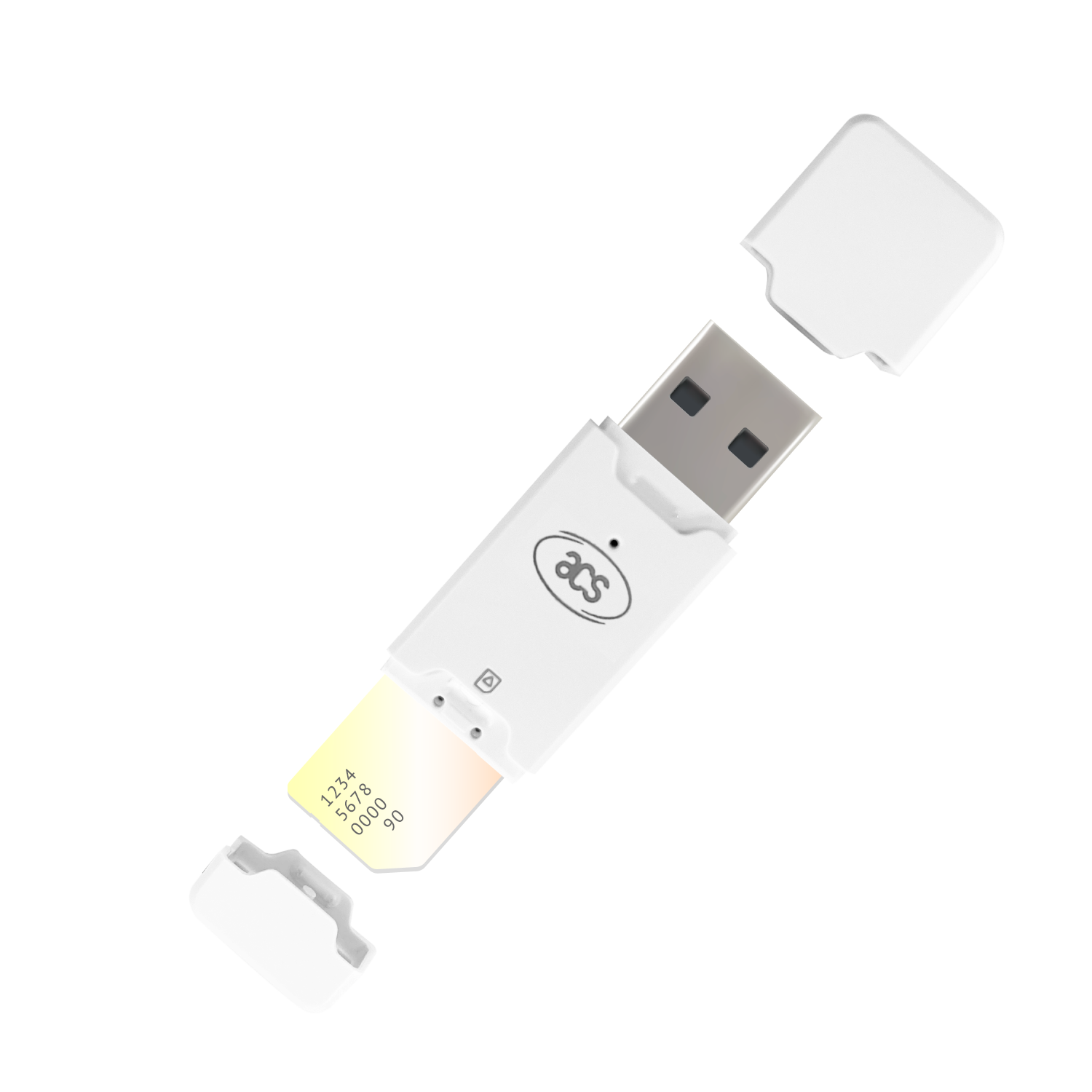

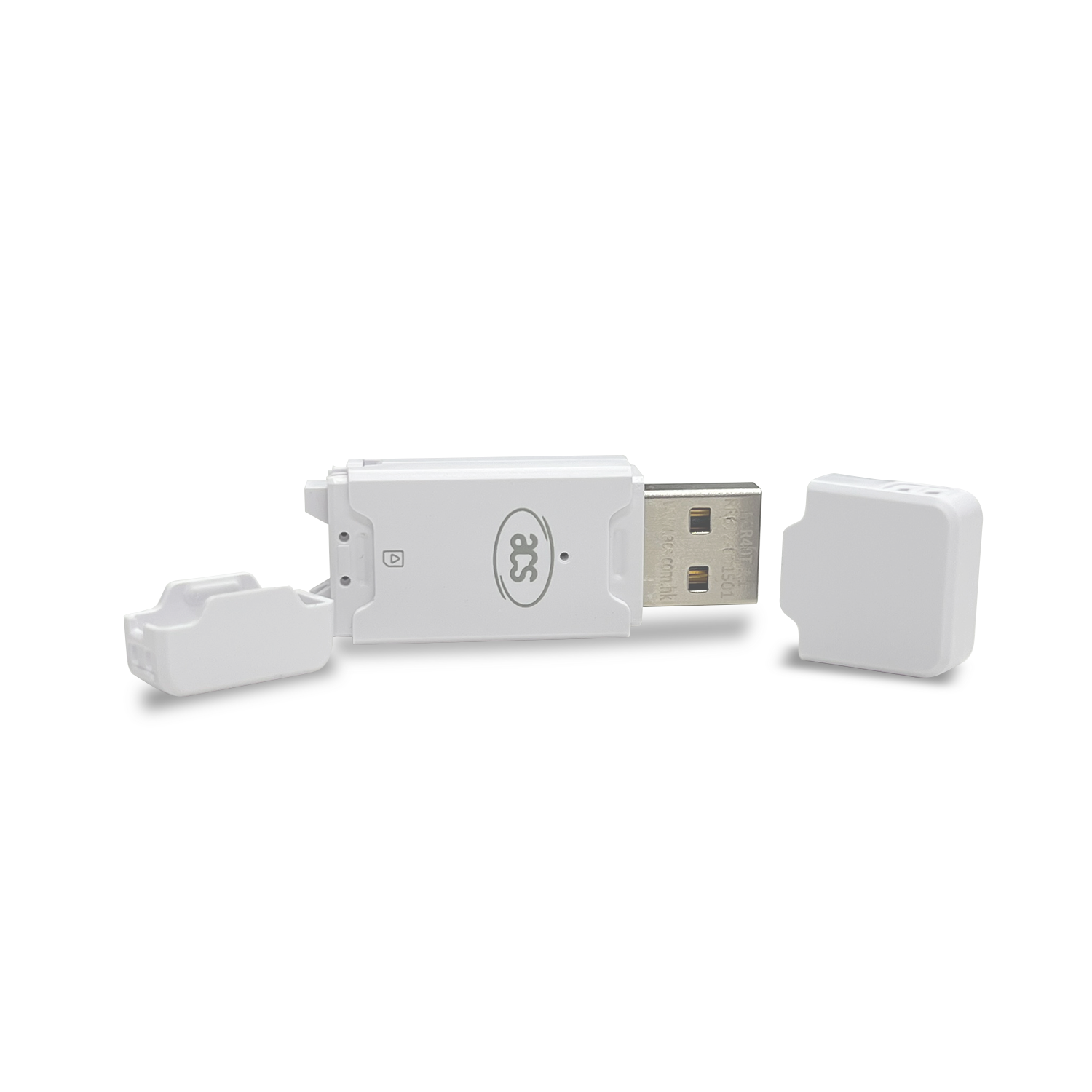

Combining sophisticated and ground-breaking modern technology, the competitive advantage of PR1044 / PR1045 lies in its compact size and sliding smart card entry slot, allowing for hassle-free application.
Compliant with both CCID and PC/SC as well as Microsoft® WHQL, PR1044 / PR1045 is also compatible with various operating systems such as Windows®, Linux®, macOS, Android™, and is able to connect with both USB Type-A and USB Type-C respectively.
Features
- Supports Various Types of Contact Cards: ISO 7816 Class A, B and C (5V, 3V and 1.8V)
- Microprocessor Card (T=0, T=1)
- Memory Card support
- Features Short Circuit Protection
- Application Programming Interface: Supports PC/SC
- Built-in Peripherals: 1 x Programmable LED (Green)
Technical Specifications
| Category | Details |
|---|---|
| Physical Characteristics | |
| Dimensions (mm) | PR1044-A1: 48.9 x 17.7 x 8.0 mm; PR1044-A5: 44.7 x 17.7 x 8.0 mm |
| Weight (g) | PR1044-A1: 6.8 g ± 1.0 g; PR1044-A5: 5.3 g ± 1.0 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-A; USB Type-C |
| Power Source | USB Port |
| Speed | USB Full Speed (12 Mbps); Compatible with USB 3.0 |
| Contact Smart Card Interface | |
| Number of Slots | 1 SIM-Sized Card Slot (2FF) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
| LED | Green |
| Other Features | |
| Other Features | Supports Firmware Upgrade |
| Certifications/Compliance | |
| Certifications/Compliance | Standards: USB CCID, PC/SC, Microsoft® WHQL, TAA. Regulatory/Environmental: UL 62368, CE, UKCA, FCC, RoHS, REACH, VCCI, WEEE |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, macOS, iOS, iPadOS, Android™ |
