PR1043 — USB NFC Reader IV
Contactless Readers

PR1043

USB NFC Reader IV

PR1043 supports reader/writer, card emulation and keyboard emulation. Its listed card standards include ISO 15693.

Manufacturer reference: ACS — ACR1552U ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1043

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

Confirm the quotation scope

Use this checklist to specify what you want quoted. Manufacturer specifications describe the product; compatibility with your setup still requires evaluation.

Connector and cable
Specify USB Type-A or Type-C and check the fixed 1 m cable against the host and installation.
Reader or development kit
Request the PR1043 reader, the separate PR1046 SDK, or both. Confirm sample cards, SAM and software licence terms item by item.
Operating mode
Specify PC/SC commands, UID keyboard output or card emulation. Record the card, firmware and host software used for evaluation.

Questions to resolve before ordering

  • Which connector variant is needed: PR1043-M1 (USB Type-A) or PR1043-MF (USB Type-C)? Include the host device, OS version and application.
  • Do you need PC/SC card commands, UID keyboard output or card emulation? Specify the card standard, operations and output format; confirm the firmware and configuration tool for the selected mode.
  • Will the project use the Class A (5 V) SAM slot? Describe the SAM operations, and specify whether the quotation should cover the reader, a separate SDK or both; confirm included items and licence terms.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗
From enquiry to evaluation and order

Use these checkpoints to confirm the configuration and evaluation scope before ordering in volume.

  1. Define the requirement

    Describe the task the product must perform and identify any requirements that still need clarification.

  2. Check the quotation scope

    Match the PR code to the manufacturer variant. Check the quoted hardware, accessories, software and licence terms.

  3. Agree the sample evaluation

    Before arranging evaluation units, agree the test setup and acceptance criteria. Record results and unresolved issues.

  4. Confirm the volume order

    Recheck the configuration and version against the evaluated unit, then confirm the quantity and delivery terms.

Manufacturer specifications describe the product; they do not confirm that your card, host and application have been tested together.

Model specifications at a glance

Based on manufacturer documentation. Confirm the exact model variant and evaluate it with your project before ordering.

USB connector and variant
USB Type-A: PR1043-M1; USB Type-C: PR1043-MF.
Listed contactless standards
ISO 14443 Type A and B; ISO 15693; ISO/IEC 18092 NFC; MIFARE; FeliCa.
Maximum card communication rate
Up to 848 kbps for ISO 14443; up to 26 kbps for ISO 15693. Actual results depend on the card and operation.
Listed NFC operating modes
Reader/writer; card emulation; keyboard emulation.
SAM interface
1 SAM slot; ISO 7816 Class A (5 V).
Software and configuration
USB CCID and PC/SC. The listed Windows configuration tool is for UID keyboard emulation only.

Listed standards and modes do not guarantee that a complete card application will work. Evaluate the intended card, commands, keys, middleware and host software before ordering. The quoted maximum card communication rates are not measured application throughput.

Overview

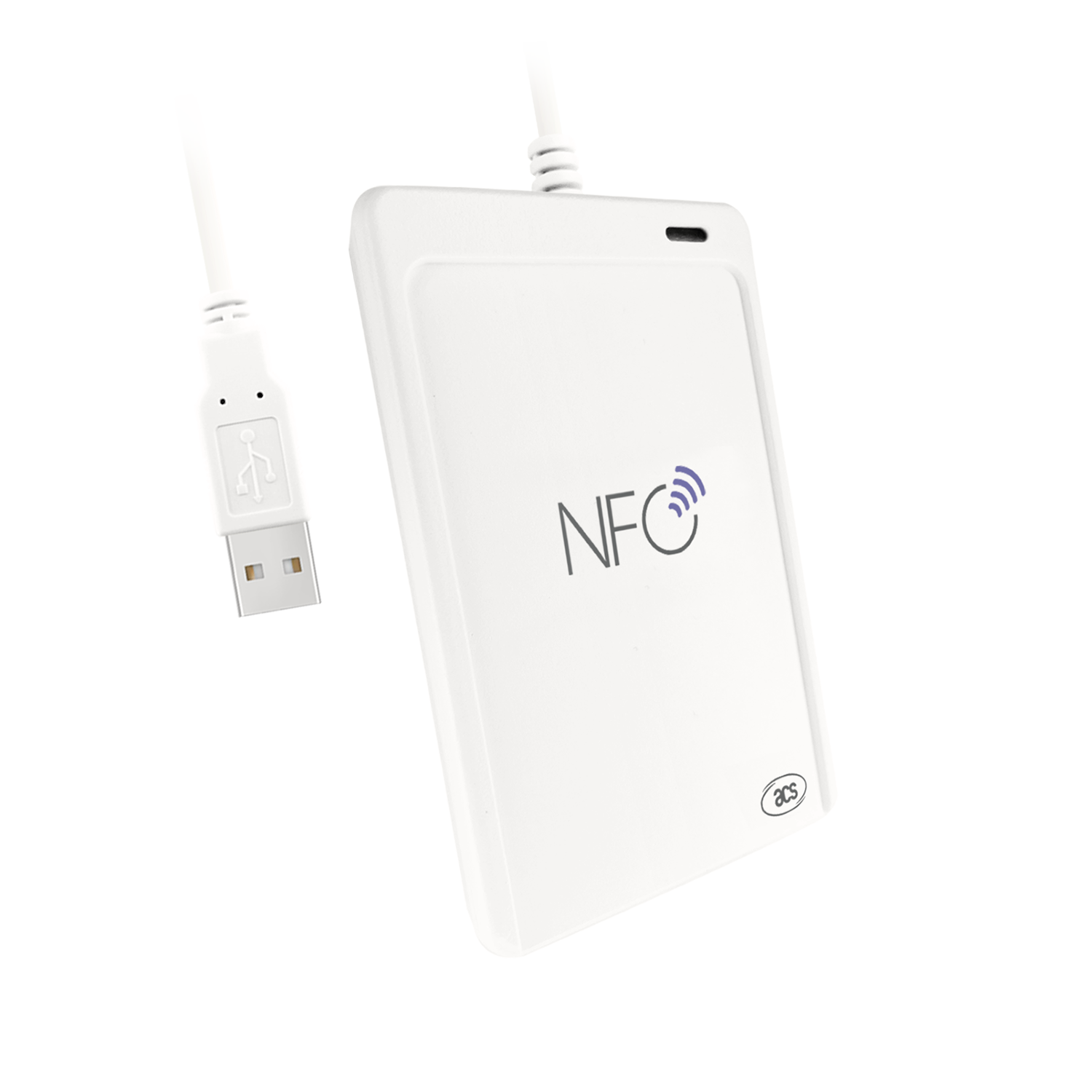

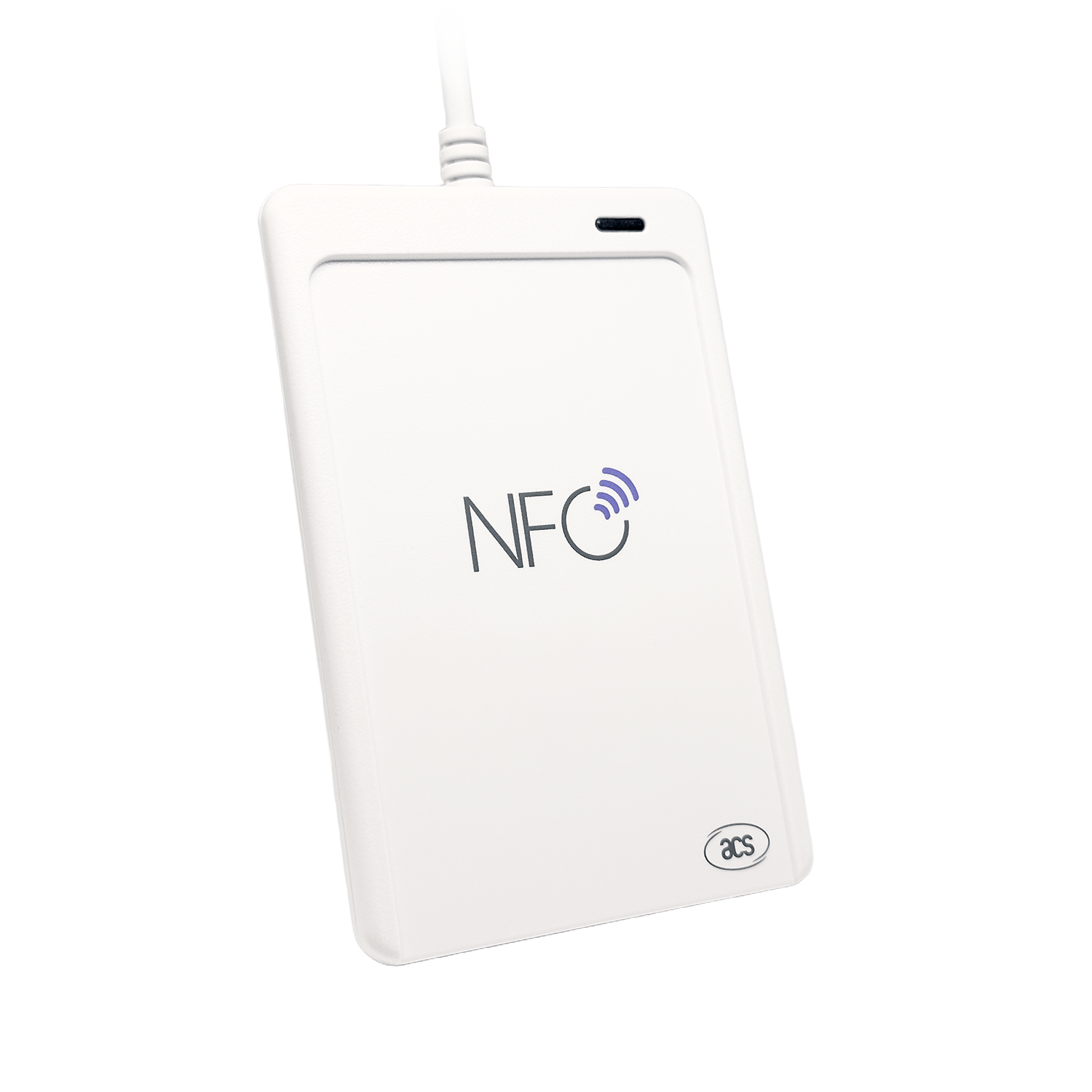

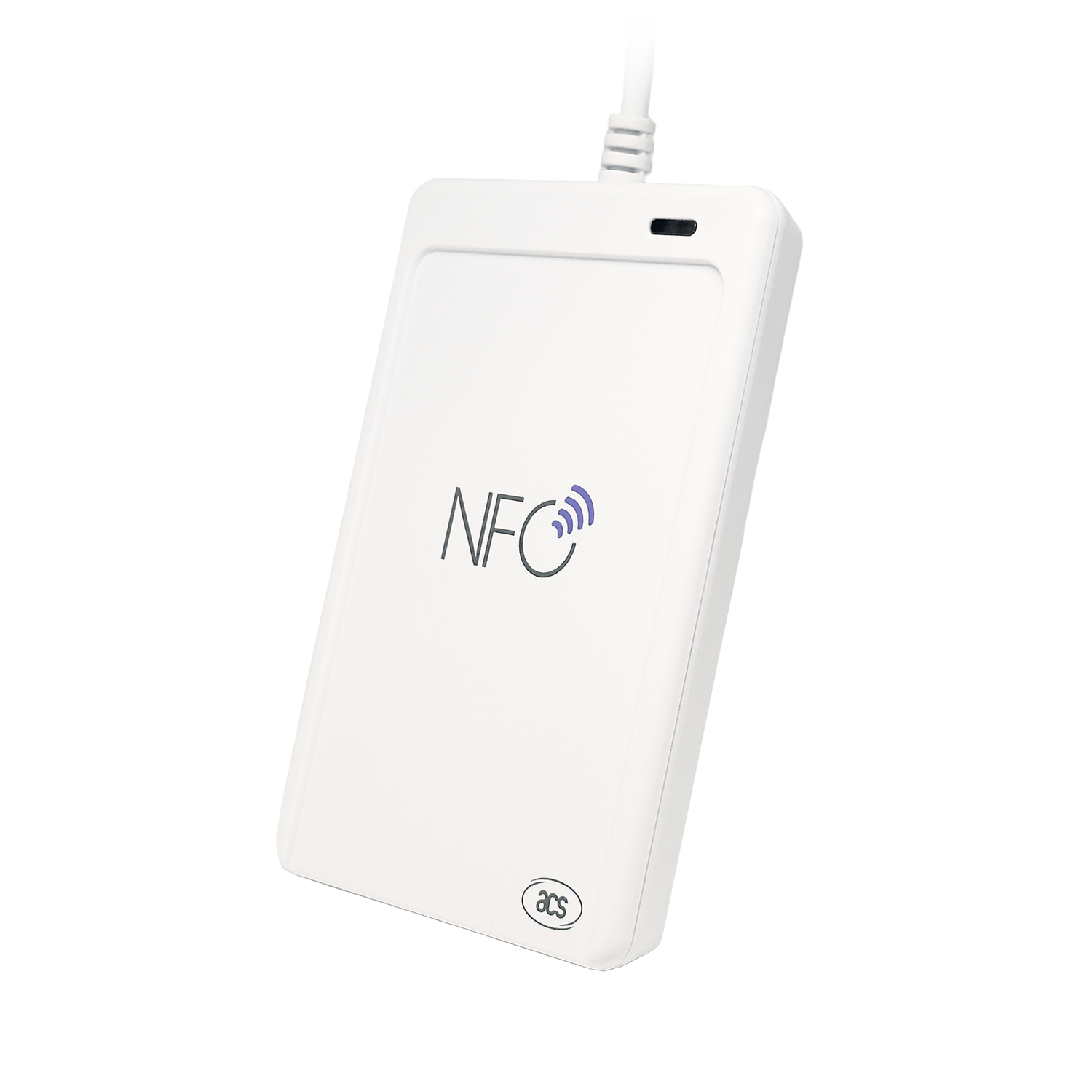

The PR1043 USB NFC Reader IV is a CCID & PC/SC compliant smart card reader, developed based on 13.56MHz contactless technology. This plug-and-play NFC reader is equipped with a high-speed communication capability of up to 848 kbps and a built-in SAM slot, providing key diversification and mutual authentication to enhance the security of contactless transactions.

One of the feature highlights of the PR1043 is extensive support for various types of smart cards, including ISO 14443 Type A and B Contactless Cards, MIFARE® Cards, FeliCa, ISO 18092 NFC, and ISO 15693 Cards. The reader has USB firmware upgradability and extended APDU support, making it versatile and cost-effective hardware for various industries, such as finance, healthcare, and government.

It also offers intelligent support for three modes of NFC including:

  • Smart Card reader/writer mode
  • Card emulation mode
  • Keyboard emulation mode (Config tool on download page)

NFC technology not only supports payment functions but can also be used for a variety of applications such as access control systems, transportation ticketing, loyalty programs, etc. The flexibility of NFC readers allows for a wide range of potential applications and benefits.

Compatible with major operating systems such as Windows®, Linux®, macOS and Android™, the PR1043 USB NFC Reader IV is powerful and adaptable. It is equipped with a wide range of advanced features and functionality to meet smart card applications that demand high levels of security and reliability.

FIDO Support

The PR1043 USB NFC Reader IV also supports FIDO (Fast IDentity Online) authentication protocols, making it compatible with FIDO-enabled devices such as PR1042, ID-One Key and YubiKey. This enables secure, passwordless login and strong 2FA authentication for online services. By leveraging the NFC capabilities of the PR1043, users can conveniently authenticate themselves by simply tapping their FIDO-enabled NFC device on the reader.

Integrating FIDO support enhances the security of online transactions and access control systems, making the PR1043 an ideal choice for e-Government, banking, e-healthcare, network security, and other applications requiring high-level security.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Read/Write speed up to 848 kbps
  • Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
  • Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
  • Supports MIFARE® (T=CL), FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
  • Built-in anti-collision feature
  • Supports extended APDU (max. 64 kbytes)
  • One ISO7816-compliant SAM slot (Class A)
  • NFC Support: Smart Card Reader/Writer Mode, Card Emulation Mode, Keyboard Emulation Mode
  • Application Programming Interface: Supports PC/SC and CT-API (through wrapper on top of PC/SC)
  • Peripherals: user-controllable bi-color LED (Blue & Green), user-controllable buzzer (Monotone), one SAM slot
  • USB Firmware Upgradability

Technical Specifications

Category Details
Physical Characteristics
Dimensions (mm) Main Body: 98 x 65 x 12.8 mm; Antenna size: 50 x 40 mm
Weight (g) 89 g
USB Interface
Protocol USB CCID
Connector Type USB Type-A (PR1043-M1), USB Type-C (PR1043-MF)
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1 m, Non-detachable
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card (T=CL); MIFARE® Classic Card (T=CL); ISO 15693; ISO 18092 NFC Tags; FeliCa
SAM Card Interface
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A (5V)
Protocol T=0; T=1
Built-in Peripherals
LED 1 bi-color: Blue and Green
Buzzer Yes
Other Features
Other Features Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card. NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance Certifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, KC, J-LIS, RoHS, REACH, WEEE, Microsoft® WHQL. Compliance: USB CCID, PC/SC
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, Android™, iOS/iPadOS (16 or above)

SDK

Utilizing 13.56 MHz contactless technology, the PR1043 USB NFC Reader IV offers support for various card types, including ISO 14443 Type A and B, MIFARE®, and FeliCa cards, ISO 18092-compliant NFC tags and ISO 15693 cards. It supports three NFC modes: card reader/writer, card emulation, and keyboard emulation. The PR1043 also features a Secure Access Module (SAM), which serves the purpose of key diversification and mutual authentication. This SAM feature ensures a high level of security in contactless transactions.

Comprehensive SDK — The PR1046 is a collection of PC/SC-compliant sample codes for device and contactless card programming, designed to help software developers streamline their development process.

Card Emulation and Keyboard Emulation Capability — The Smart Card and Reader Tool in this SDK includes NFC and NDEF tools to demonstrate the NFC capability of the PR1043. The card emulation function enables the card reader to simulate the behavior of a contactless smart card, while the keyboard emulation function allows card readers to work with a wide range of software applications that accept keyboard input.

SDK Contents
Smart Card Reader(s) 1 x PR1043 USB NFC Reader IV
Test Card(s)/Token(s) 5 x MIFARE 1K Cards; 5 x PR1024 Contactless Smart Cards; 1 x PR1029 Secure Access Module Card
Software Installer Reference Manual(s); Tools and Utilities: QuickView 2.13, Script Tool 5.02, Smart Card and Reader Tool, Keyboard Configuration Tool V100, ACS CCID PC/SC Driver; Sample Codes in Java (JDK8), MS Visual Basic (.NET 4.7.2), MS Visual C# (.NET 4.7.2), MS Visual C++ (.NET 4.7.2)
SDK Operating System Support Windows® 10, Windows® 11

Images

Downloads

TypeTitleSizeUpdated
SoftwareConfiguration Tool (Keyboard Emulation, UID)567.78 KB27-Oct-2025
ManualACS ApduTool (iOS) Application Note118.31 KB23-Feb-2024
DriverPC/SC Driver Installer (Windows®)5.83 MB12-Dec-2025
DriverPC/SC Driver Installer (Linux®)4.30 MB20-Nov-2025
DriverPC/SC Driver Installer (macOS®)281.65 KB17-Nov-2025
SoftwareAndroid EVK1.46 MB25-Nov-2025
DatasheetTechnical Specification of ACR1552U USB NFC Reader IV——
ManualReference Manual of ACR1552U USB NFC Reader IV1.24 MB28-Jul-2026
