Overview

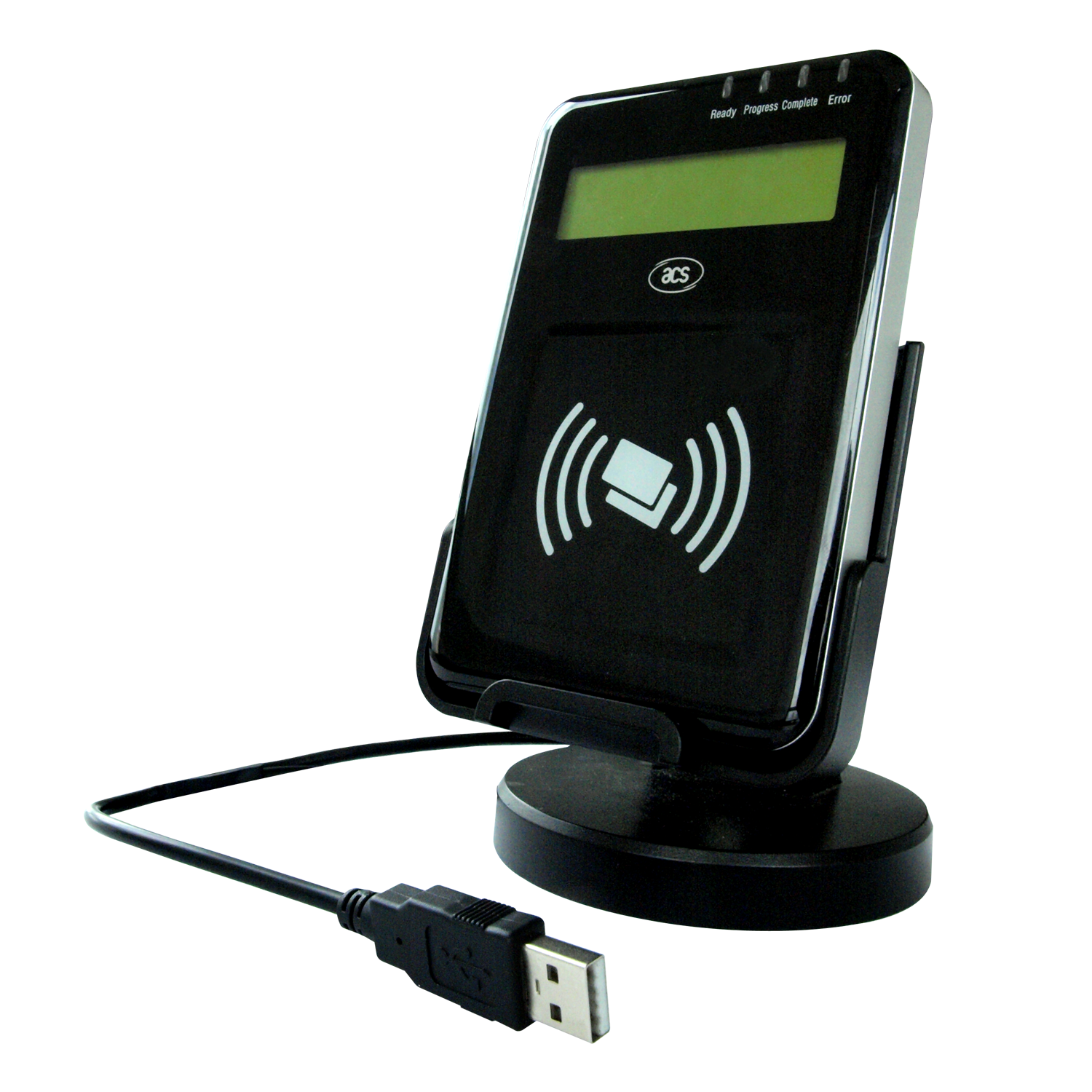

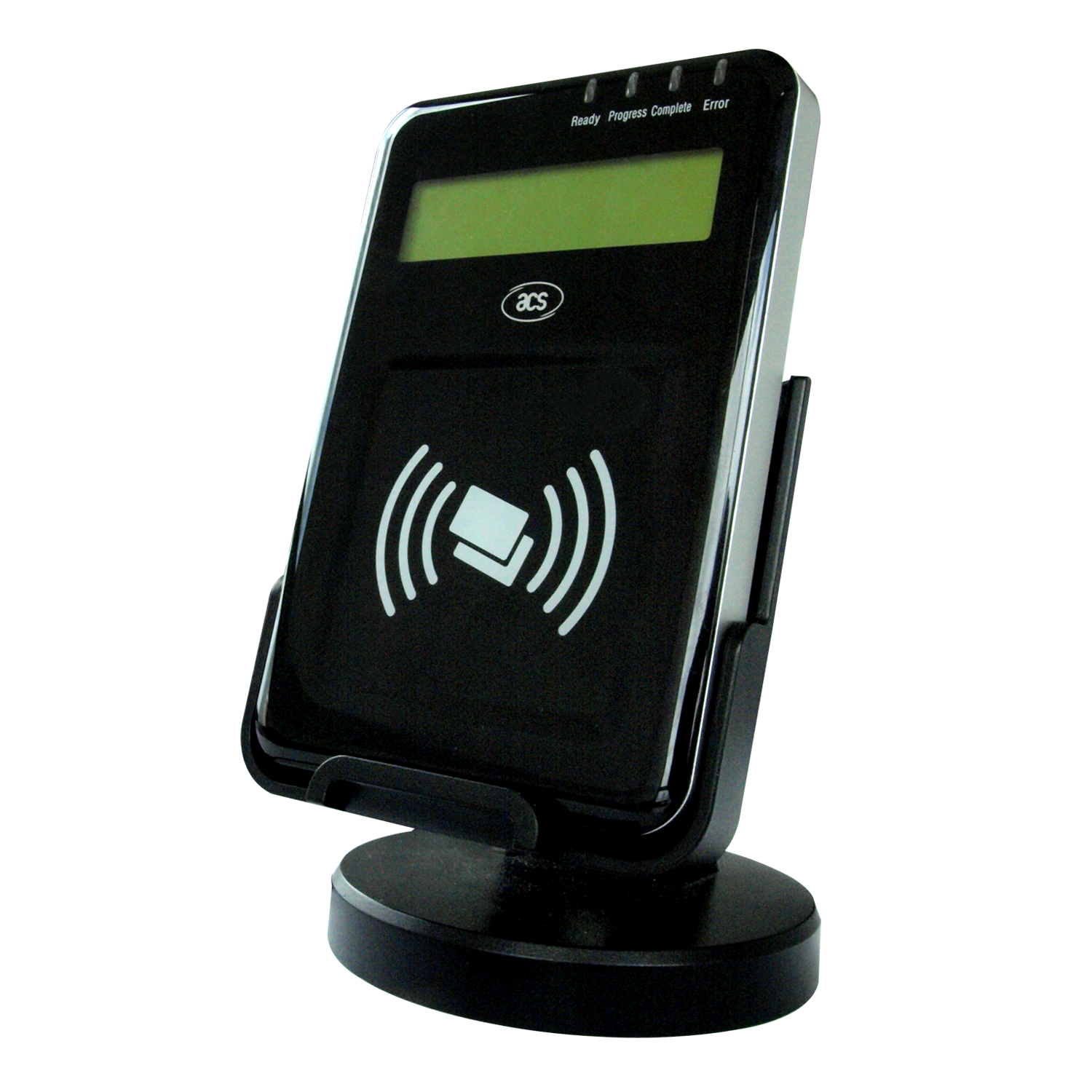

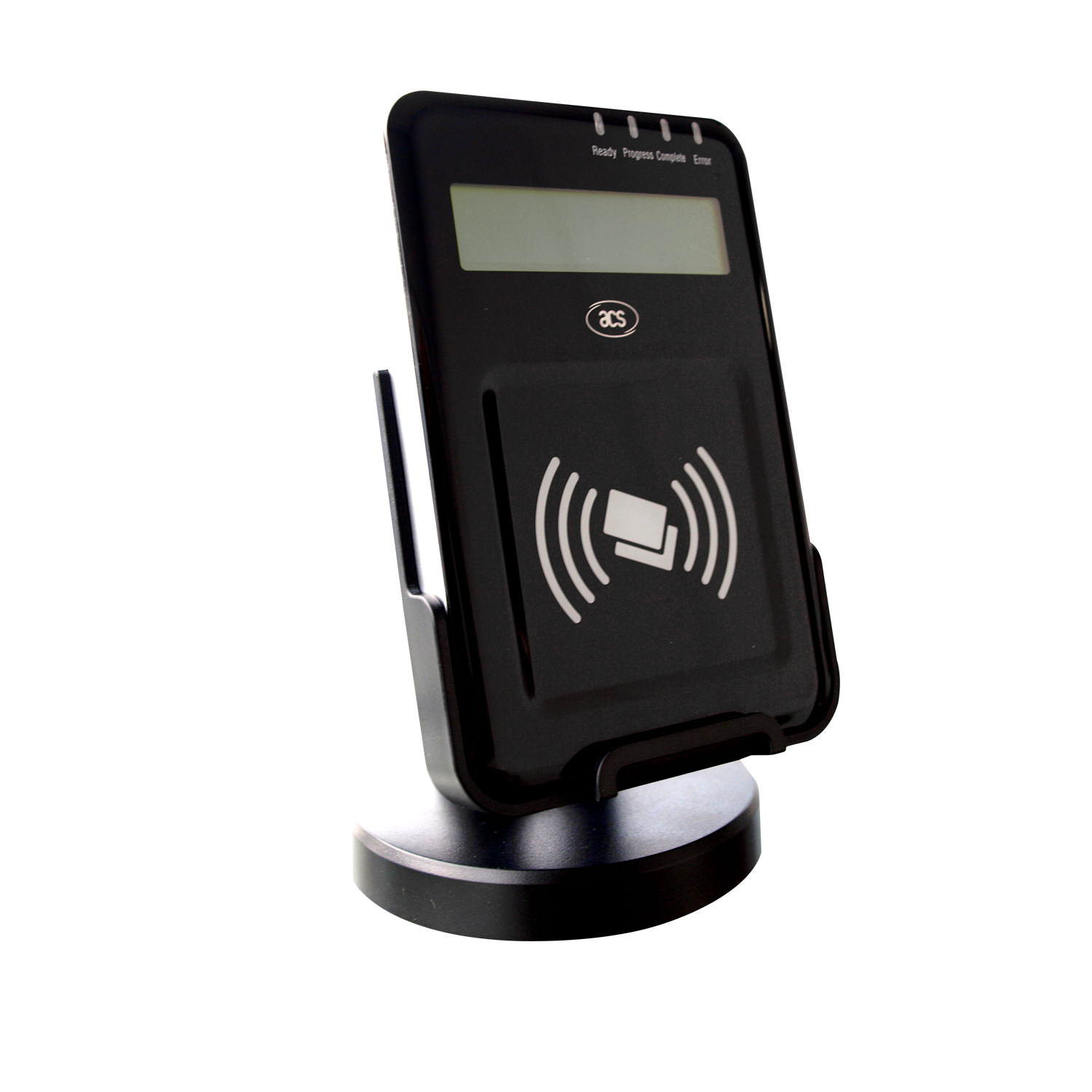

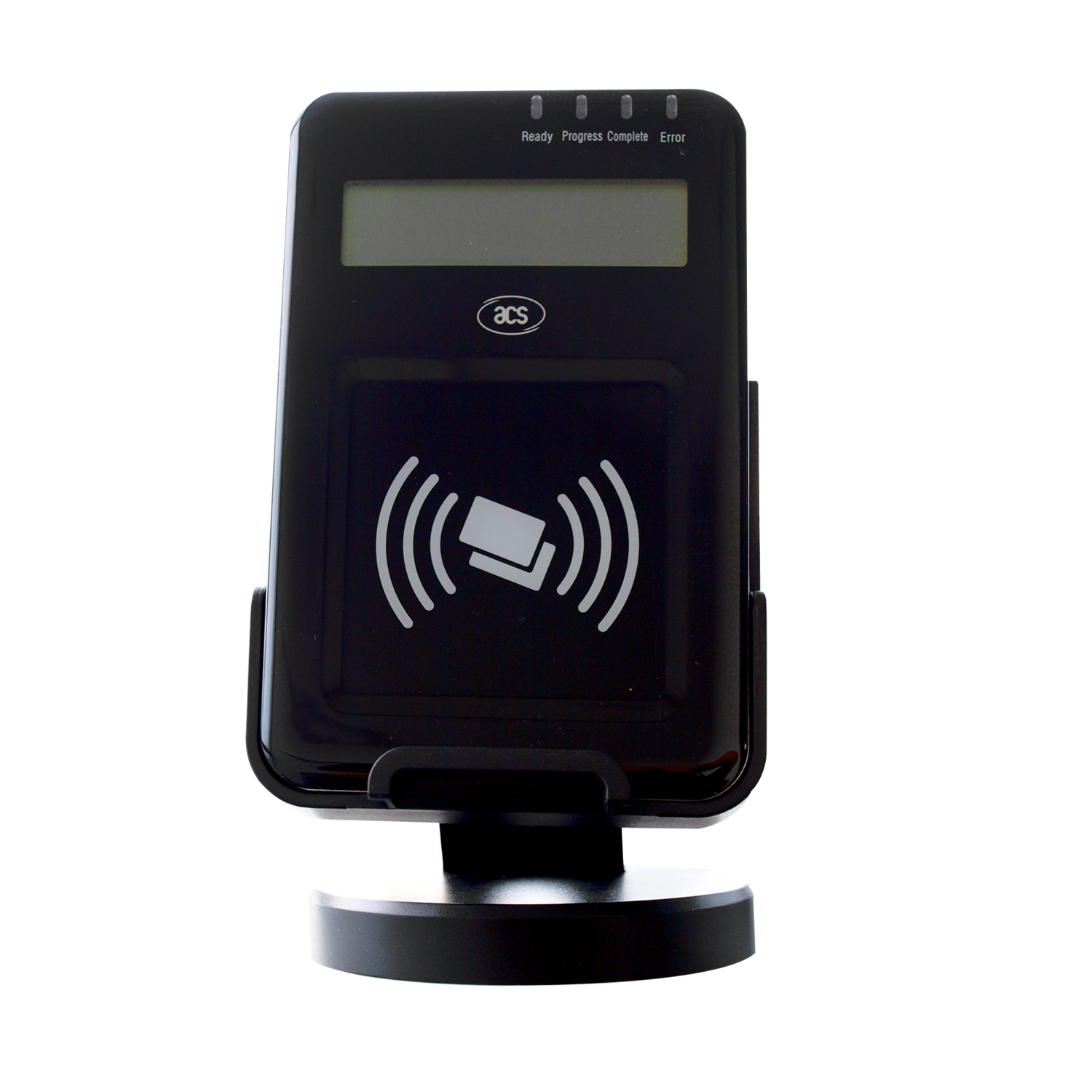

PR1003 is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. PR1003 can support ISO14443 Type A and B cards, MIFARE, FeliCa and all 4 types of NFC tags.
With its PC/SC compliance, PR1003 ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. The LCD allows interactive operation such as scrolling up and down, left and right, etc. The device's three built-in SAM slots provide enhanced security during contactless operations.
Typical applications of PR1003 include e-payment, loyalty programs and access control.
Features
- USB 2.0 Full Speed Interface
- CCID Compliance
- Smart Card Reader:
- Read/Write speed of up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature (only one tag is accessed at any time)
- Three ISO 7816-compliant SAM slots
- Built-in Peripherals:
- Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages)
- Four user-controllable LEDs
- User-controllable buzzer
- USB Firmware Upgradability
Technical Specifications
| Physical Characteristics | |
|---|---|
| Dimensions (mm) | Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H); With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H) |
| Weight (g) | Main Body: 173 g; With Stand: 415 g |
| USB Interface | |
|---|---|
| Connector Type | Standard Type A |
| Protocol | USB CCID |
| Speed | USB Full Speed (12 Mbps) |
| Power Source | From USB Port |
| Cable Length | 1.5 m, Fixed |
| Contactless Smart Card Interface | |
|---|---|
| Standard | ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa |
| Protocol | ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO18092, NFC Tags; FeliCa |
| SAM Card Interface | |
|---|---|
| Number of Slots | 3 Standard SIM-sized Card Slots |
| Standard | ISO 7816 Class A (5 V) |
| Protocol | T=0; T=1 |
| Built-in Peripherals | |
|---|---|
| LCD | Graphical LCD with Yellow-Green Backlight; Resolution: 128 x 32 pixels; Number of Characters: 16 characters x 2 lines |
| LED | 4 single-color: Green, Blue, Orange and Red |
| Buzzer | Monotone |
| Other Features | |
|---|---|
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
|---|---|
| Certifications/Compliance | ISO 18092, ISO 14443, ISO 7816 (SAM Slot), USB Full Speed, PC/SC, CCID, VCCI (Japan), KC (Korea), Microsoft® WHQL, CE, FCC, RoHS, REACH |
| Device Driver Operating System Support | |
|---|---|
| Device Driver Operating System Support | Windows®, Linux®, MAC OS®, Solaris, Android™ |
