PR1028 — Multi-application & Purse Card
Smart Cards & Smart Card OS

PR1028

Multi-application & Purse Card

All-in-one, multi-application contact card especially suited for e-purse applications

Manufacturer reference: ACS — ACOS6 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

PR1028

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1028 Multi-application & Purse Card (MAP Card) is a high speed and flexible smart card offering cost effective solutions. It is specifically designed to address the requirements of multiple applications and multiple e-purses with secure access hierarchy of multiple levels.

PR1028 allows for multiple secure e-purses, which are suitable for a wide range of applications in government services, payment applications, online top-up, loyalty programs and more.

PR1028 provides a secure environment for each independent application. This function makes it the most suitable for incorporating various independent applications into only one card, thus providing cost effective solutions to developers, and a convenient platform to end users.

Security provided by PR1028 can further be enhanced by the PR1029 (Security Access Module) card that enables mutual authentication, secure messaging and key diversification.

Features

  • Memory: - Capacity: 64 KB
  • Contact Smart Card Interface: - Compliant with ISO 7816 Parts 1, 2, 3 and 4 - Supports T=0 Protocol - Supports baud up to 223.2 kbps
  • Cryptographic Features: - DES, 2K3DES - Random Number Generation: FIPS 140-2 compliant hardware based RNG
  • File Security: - Mutual authentication with session key generation - Secure Messaging function for confidential and authenticated data transfers - Multiple secure e-Purse available for payment applications - Multi-level secured access hierarchy - Anti-tearing done on file headers and PIN commands

PR1028 Software Development Kit

The PR1028 Multi-Application & Purse Smart Card Software Development Kit (PR1001) is designed for professional developers who are interested in developing applications on PR1028 and PR1029. It contains tools allowing one to learn the ISO7816-4's file structure on PR1028, as well as a personalization scripting tool, the Scripting Tool Plus, enabling one to personalize a smart card. Further, development of applications is facilitated through the unique ACS Card Tool, which allows users to send direct commands to any PC/SC-compliant smart card readers and cards. With these useful tools and a user-friendly interface, the development kit can reduce the time and cost that users invest into R&D and Marketing.

SDK Contents

Item Details
Smart Card Reader(s) 1 x PR1002 Dual Interface Smart Card Reader
Test Card(s)/ Token(s) 5 x PR1028 Multi-Application Smart Cards, 5 x PR1029 Secure Access Module Smart Cards, 5 x PR1024 Microprocessor Smart Cards
Software Installer Reference Manual(s); Tools and Utilities: PCSC Learning Tool, QuickView, Script Tool 5, Smart Card and Reader Tool; Sample Codes available in Java, MS Visual Basic.NET 2013, MS Visual C#.NET 2013, MS Visual C++.NET 2013
SDK Operating System Support Windows® 7, Windows® 8.1, Windows® 10

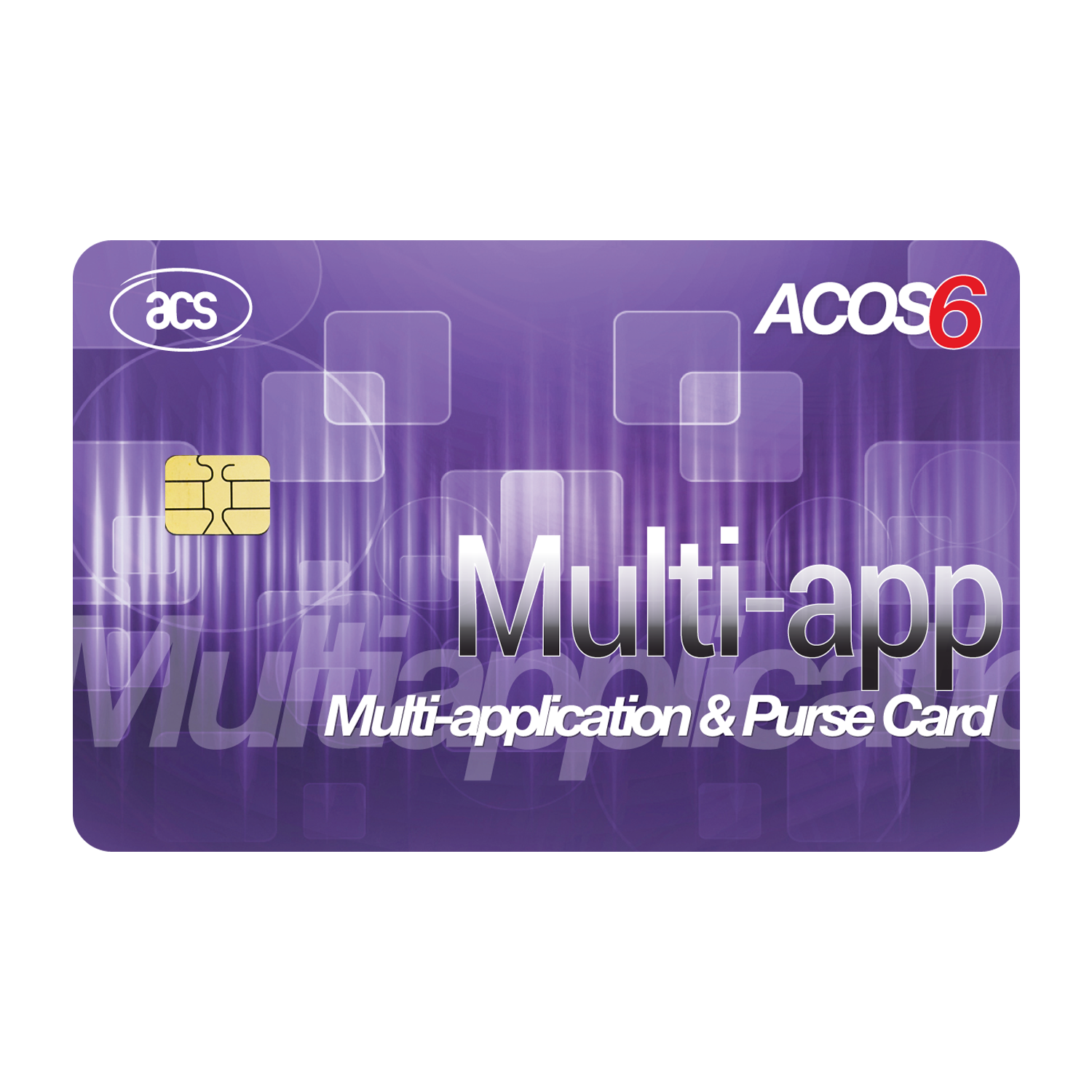

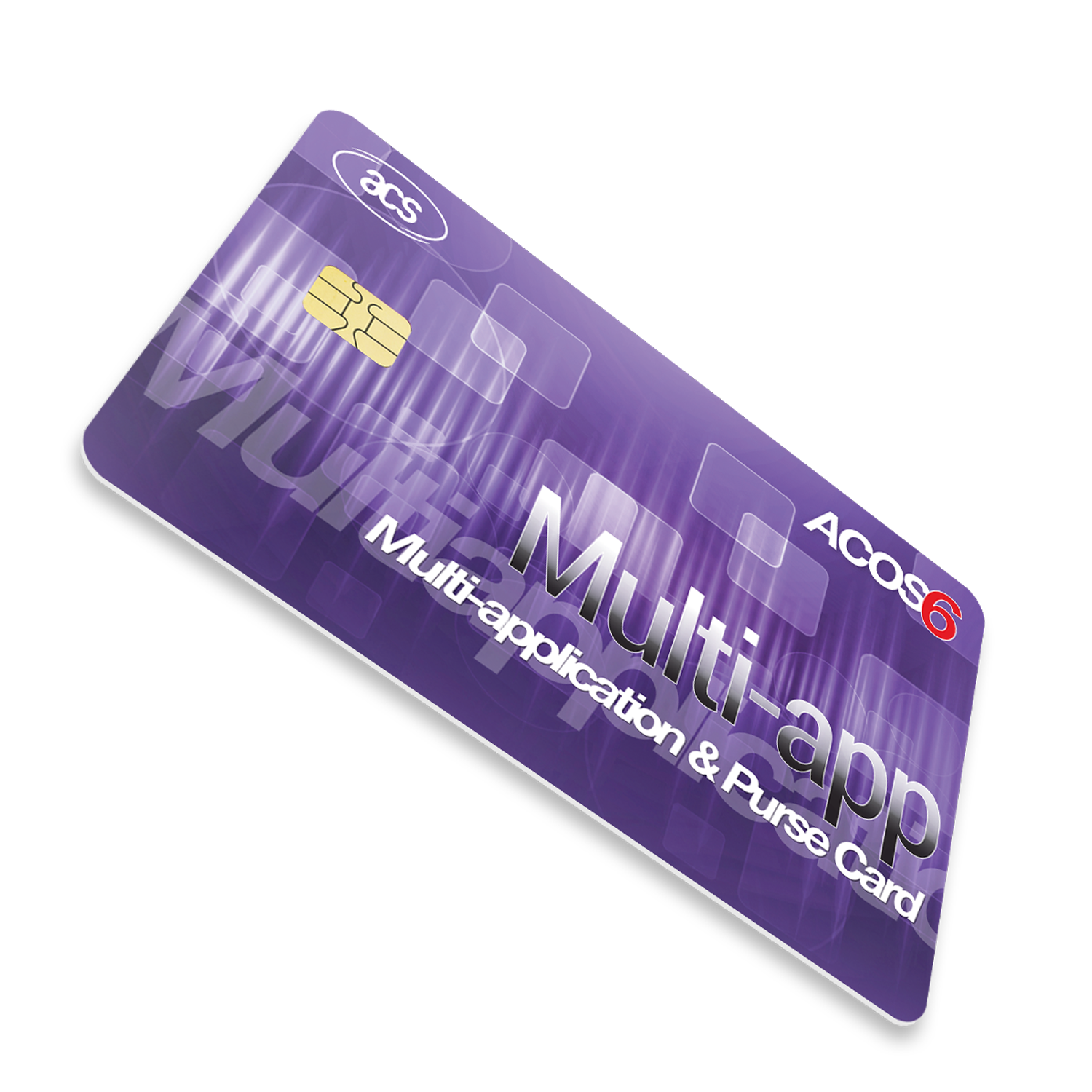

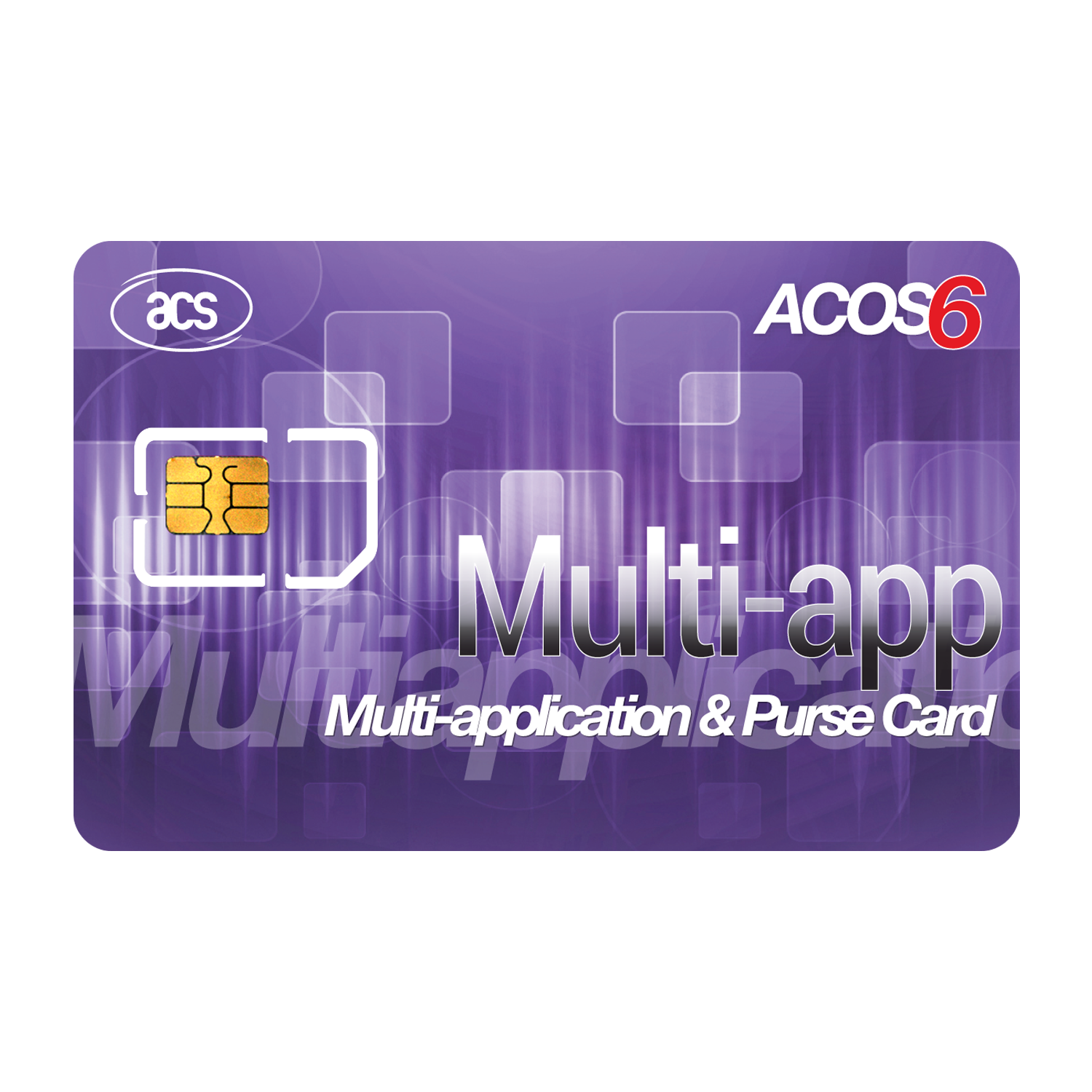

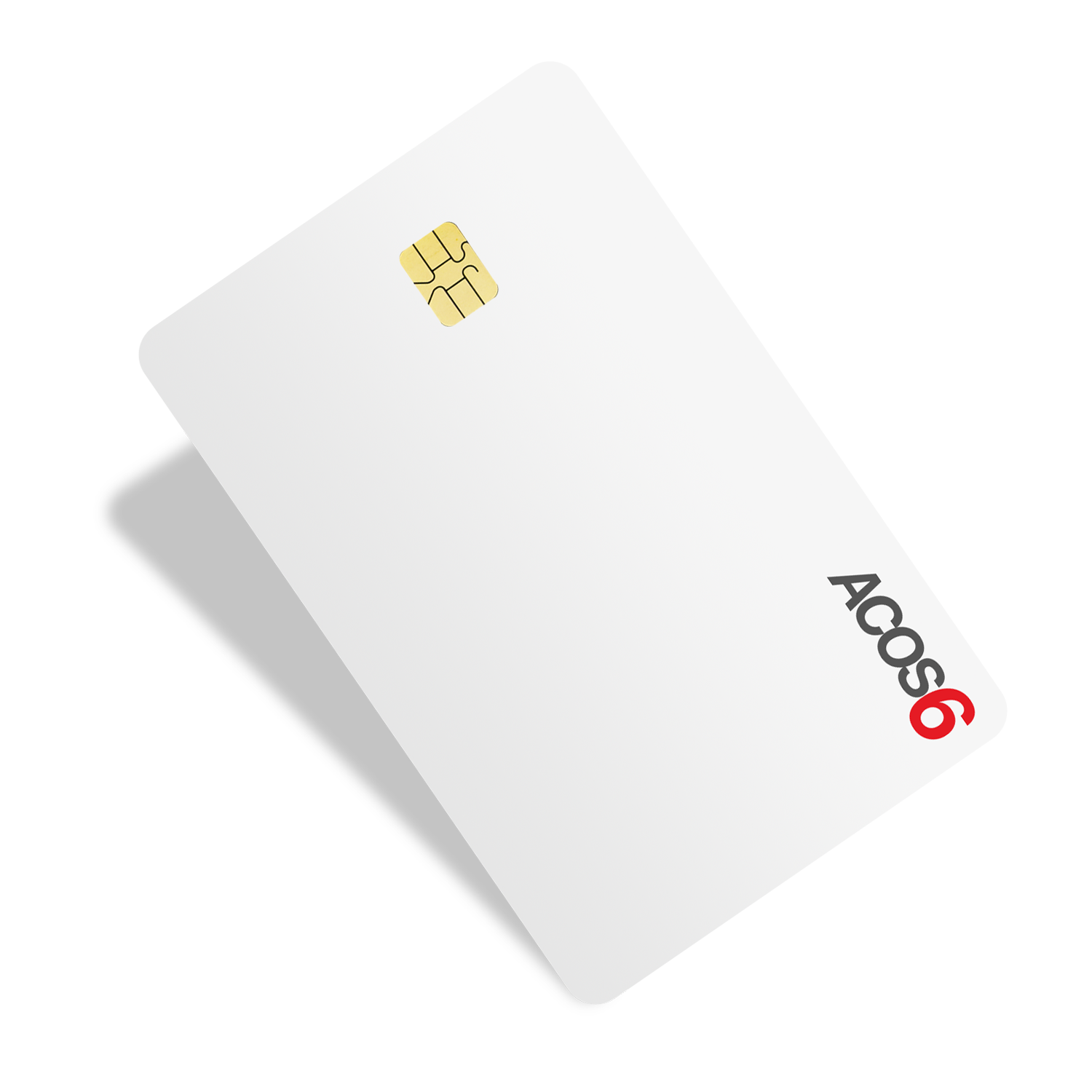

Images

Downloads

TypeTitleSizeUpdated
BrochureProduct Presentation of ACOS6 Multi-application & Purse Card (Contact)——
BrochureProduct Brochure of ACOS6 Multi-application & Purse Card (Contact)——
DatasheetFunctional Specification of ACOS6 Multi-application & Purse Card (Contact)——
ManualReference Manual of ACOS6 Multi-application & Purse Card (Contact)available on request——
Need pricing, samples or integration support for PR1028? Contact our sales teamorask about distribution.
