PR1045 — SIM-Sized Smart Card Reader with Button · USB
Contact Smart Card Readers

PR1045

SIM-Sized Smart Card Reader with Button · USB

Compact USB contact reader with a button for SIM-sized smart cards, available with USB Type-A and Type-C connectors

Manufacturer reference: ACS — ACR40T (Premium) ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • Network Security
  • Public Key Infrastructure

PR1045

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1044 / PR1045 is ACS's newest compact high-speed USB contact SIM-sized smart card reader. It supports firmware upgrade, as well as ISO 7816 Class A, B and C smart cards (5 V, 3 V, 1.8 V), microprocessor cards with the T=0, T=1 protocol, and a wide variety of memory cards in the market.

Combining sophisticated and ground-breaking modern technology, the competitive advantage of PR1044 / PR1045 lies in its compact size and sliding smart card entry slot, allowing for hassle-free application.

PR1045-A6/A7 is built of premium configuration, providing users with a built-in button for specific application usage. This function is also essential for acknowledging user presence as it ensures that the user is physically present in order to interact with the application.

Compliant with both CCID and PC/SC as well as Microsoft® WHQL, PR1044 / PR1045 is also compatible with various operating systems such as Windows®, Linux®, macOS, Android™ and is able to connect with both USB Type-A and USB Type-C respectively.

Key Attributes: PC-Linked, USB, SIM Card Slot, Firmware Upgradeable

Features

  • Supports Various Types of Contact Cards: - ISO 7816 Class A, B and C (5 V, 3 V and 1.8 V) - Microprocessor Card (T=0, T=1) - Memory Card - Features Short Circuit Protection
  • Application Programming Interface: - Supports PC/SC
  • Built-in Peripherals: - 1 x Programmable LED (Green) - 1 x Built-in Button

Technical Specifications

Physical Characteristics
Dimensions (mm) PR1045-A6: 49.5mm (L) × 17.7mm (W) × 8.0mm (H)
PR1045-A7: 45.9mm (L) × 17.7mm (W) × 8.0mm (H)
Weight (g) PR1045-A6: 8.1 g ± 1.0 g
PR1045-A7: 6.2 g ± 1.0 g
USB Interface
Protocol USB CCID
Connector Type USB Type-A
USB Type-C
Power Source USB Port
Speed USB Full Speed (12Mbps)
Compatible with USB 3.0
Contact Smart Card Interface
Number of Slots 1 SIM-Sized Card Slot (2FF)
Protocol T=0; T=1
Built-in Peripherals
Buttons 1
LED Green
Other Features
Other Features Supports Firmware Upgrade
Certifications/Compliance
Certifications/Compliance Standards: USB CCID, PC/SC, Microsoft® WHQL, TAA. Regulatory/Environmental: UL 62368, CE, UKCA, FCC, RoHS, REACH, VCCI, WEEE
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, iOS, iPadOS, Android™

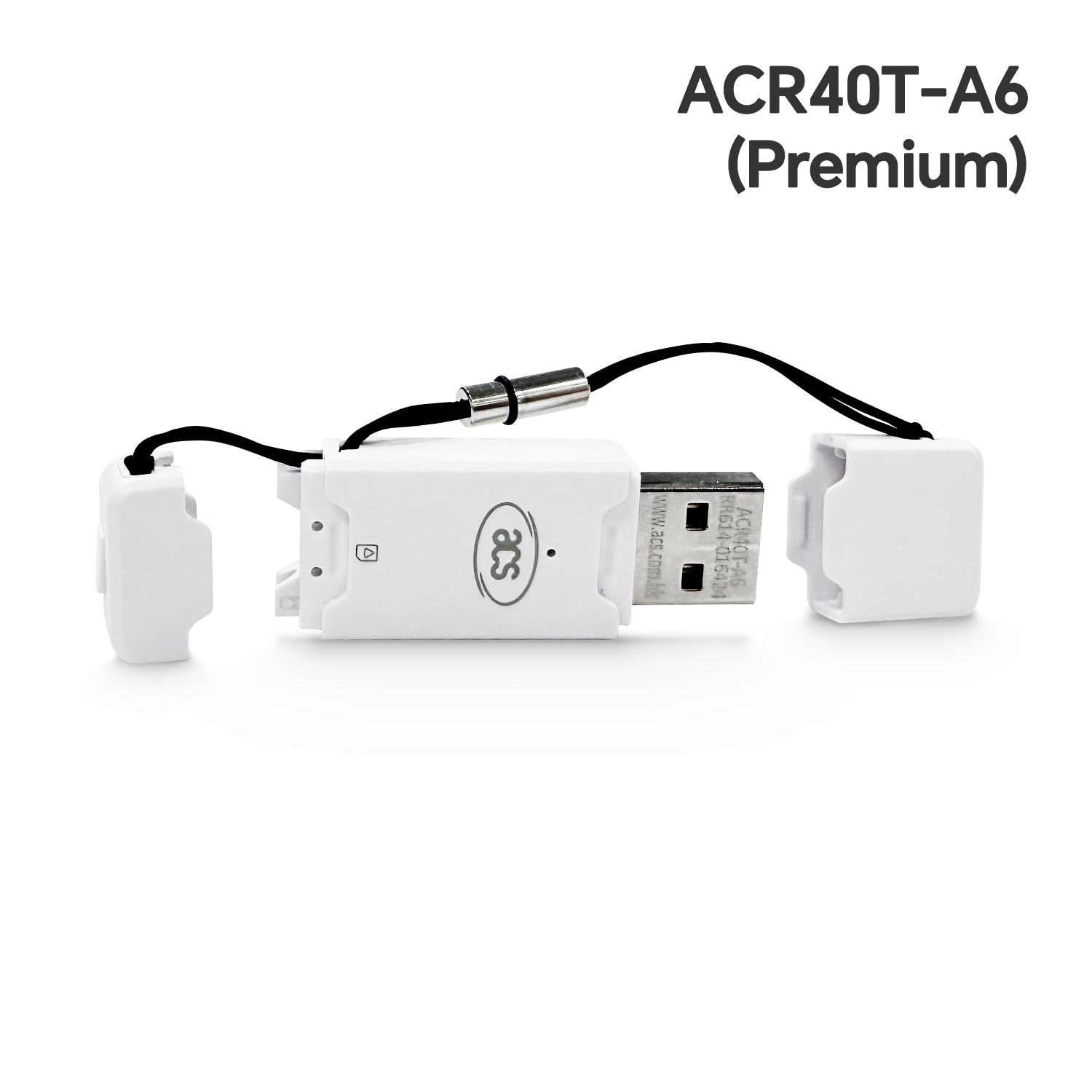

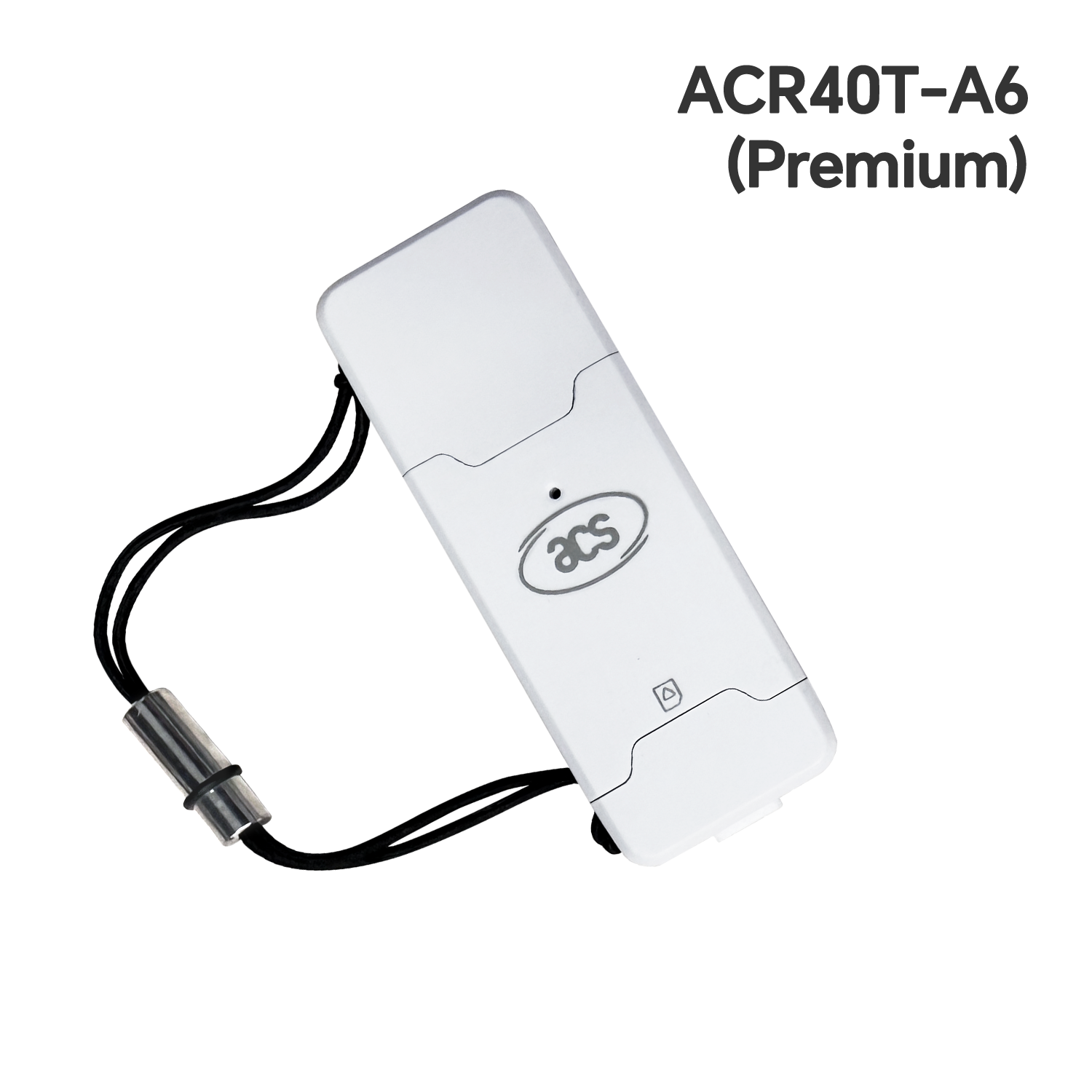

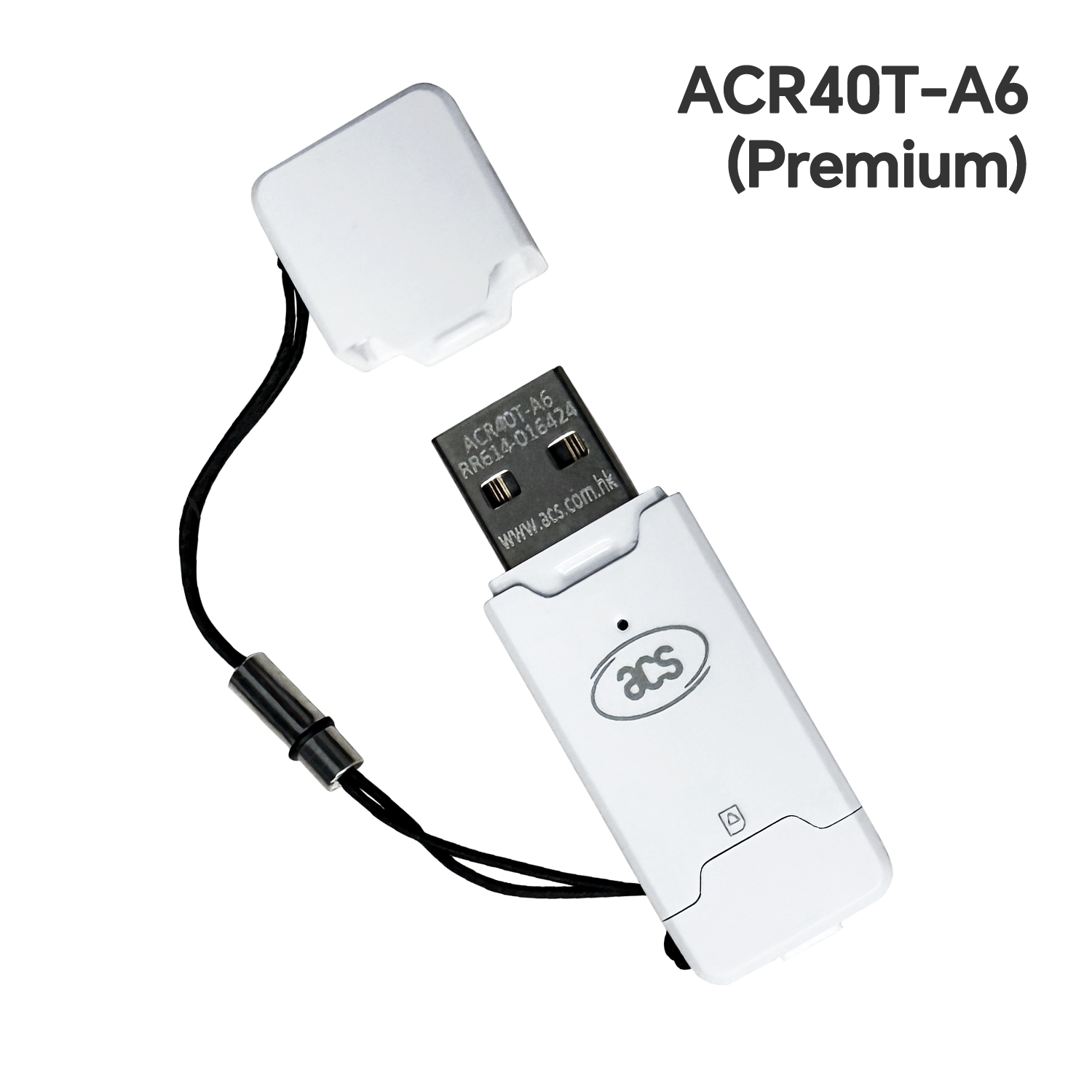

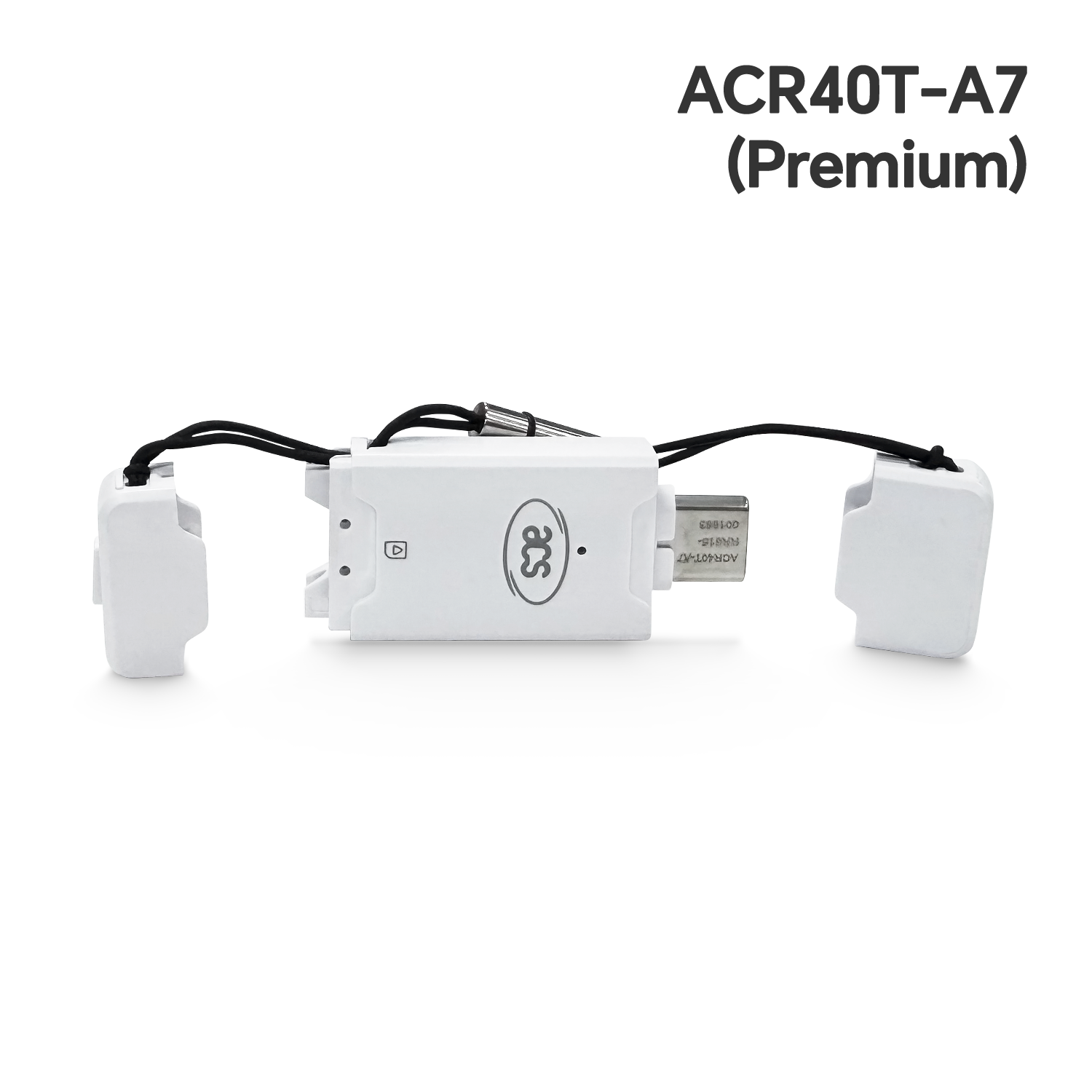

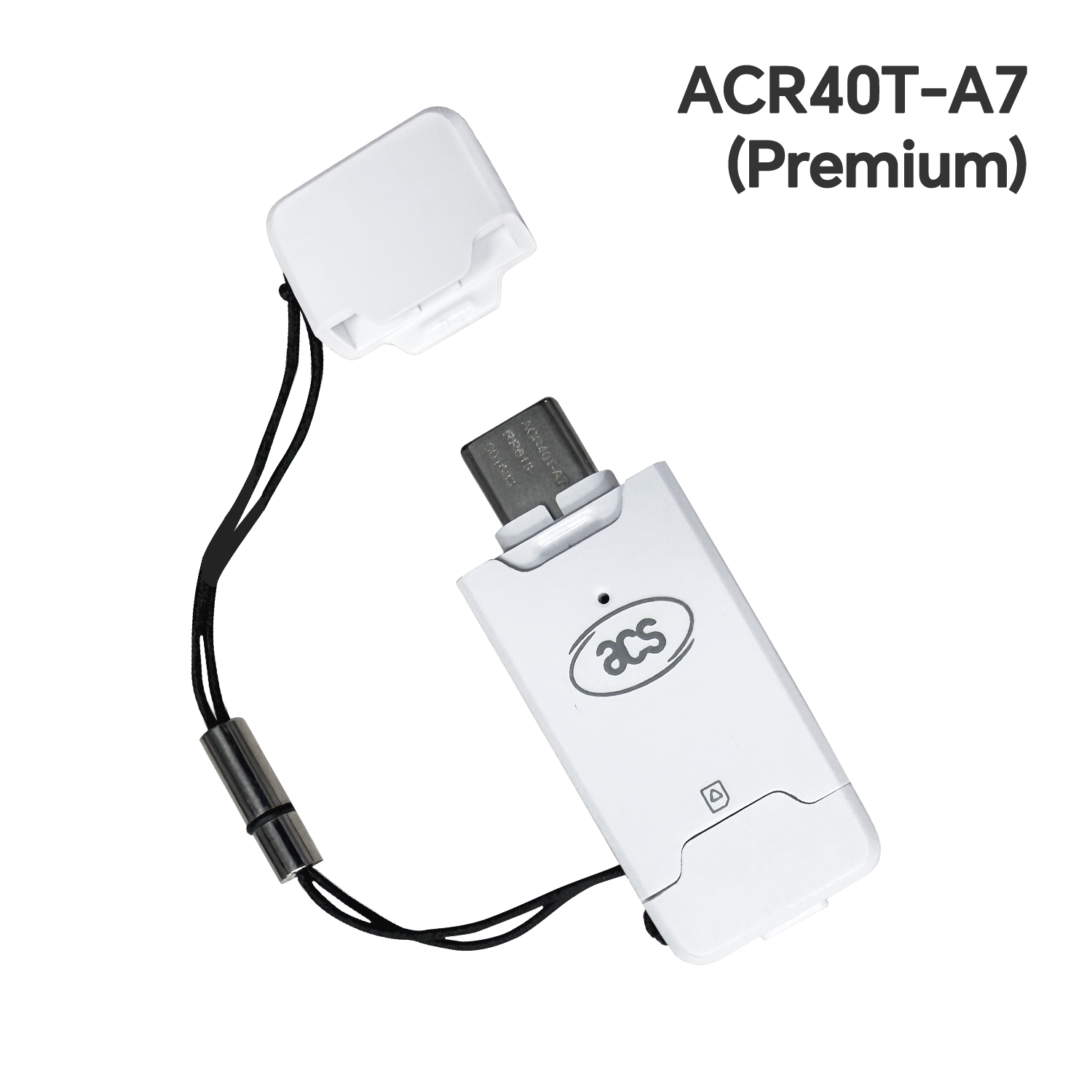

Images
