PR1025 — PKI Smart Card
Smart Cards & Smart Card OS

PR1025

PKI Smart Card

PKI Smart Card supporting ECC and RSA with extended APDU support. Available in Contact, Contactless and Combi Interface

Manufacturer reference: ACS — ACOS5-EVO ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • Common Criteria EAL5+ (Chip Level)
  • FIPS 140-2 Level 3

PR1025

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1025, is the latest addition to the ACOS5 Series, that provides additional features such as support for ECC and RSA algorithms and extended APDU. It also supports DES, 3DES, AES, CMAC and SHA (up to 512bits).

It is compliant with international standards for PKI smart cards such as FIPS 140-2 (US Federal Information Processing Standards) Level 3 and CC EAL 5+ (chip level) making it ideal for public-key based applications such as digital signing, email security, online log-on, network log-in, blockchain applications, and others.

It is available in contact, combi and contactless interface.

Features

  • Cryptographic Features: ECC Curves P-224/P-256/P-384/P-521; RSA up to 4096 bits; AES 128/192/256-bits (ECB, CBC); DES/3DES 56/112/168-bits (ECB, CBC); Hash SHA1, SHA224, SHA256, SHA384, SHA512; MAC CBC-MAC (DES/3DES, AES), CMAC (3DES, AES); Random Number Generation: Deterministic RNG, Non-deterministic RNG
  • File Security: Private and secret key file read access can be set to "Never"
  • File Security: File access condition capability with ISO 7816–compliant Secure Attribute-Compact. File access is only allowed if the proper security conditions are met (e.g. PIN submission)
  • File Security: Command execution condition capability per Dedicated File (DF) with ISO 7816–compliant Secure Attribute-Extended. Commands are allowed only if the proper security conditions are met (e.g., PIN submission)
  • File Security: Secure Messaging function for confidential and authenticated data transfers
  • File Security: Mutual authentication (terminal-to-card and card-to-terminal) using Triple DES with session key generation for encryption and MAC
  • File Security: Anti-tearing Function Support
  • Certifications: Common Criteria EAL5+ (Chip Level)
  • ACS Middleware Support: Windows® Minidriver, PKCS #11(*), Microsoft® CryptoAPI(*), Microsoft® CryptoAPI Next Generation(*) — (*) Please refer to EVO PKI Kit

Technical Specifications

Contact Interface

  • Memory: Capacity 192 KB
  • Contact Smart Card Interface: Compliant with ISO 7816 Parts 1, 2, 3, 4, 8 and 9; Supports T=1 (Default) and T=0 Protocol; Supports baud up to 446.4 kbps

Contactless Interface

  • Memory: Capacity 192 KB
  • Contactless Smart Card Interface: Compliant with ISO 14443 Parts 1, 2, 3 and 4 (Type A); Supports T=CL Protocol; Supports baud up to 424 kbps

Combi Interface

  • Memory: Capacity 192 KB
  • Contact Smart Card Interface: Compliant with ISO 7816 Parts 1, 2, 3, 4, 8 and 9; Supports T=1 (Default) and T=0 Protocol; Supports baud up to 446.4 kbps
  • Contactless Smart Card Interface: Compliant with ISO 14443 Parts 1, 2, 3 and 4 (Type A); Supports T=CL Protocol; Supports baud up to 424 kbps

(Cryptographic Features, File Security, Certifications and ACS Middleware Support are identical across all three interface variants — see Features.)

PR1033

The PR1033 is a complete software solution to manage your digital certificates using a smart card. The PR1033 is available as a complete package with the software installer and the devices including the smart card, token and smart card reader.

Featuring the necessary token management application, drivers, and reference materials, this kit familiarizes you with using the PR1025 and PR1032 for Public Key Infrastructure (PKI)-based applications.

Two types of software installers are provided. The Admin Package is intended for administrators who prepare and initialize the smart card/token for PKI use. Once the card/token has been initialized, the token can be distributed to end users. The User Package on the other hand is intended for end users who will use the initialized card/token with PKI applications, such as requesting for a digital certificate and using it to sign documents.

Item Details
Test Card(s)/ Token(s) 5 x PR1025 Combi Cards; 1 x PR1032 Token; 1 x ACR1281U Smart Card Reader
Software Installer Admin Package: EVO Initialization Manager, EVO Certificate Manager, ACS Unified Driver, ACS Middleware (PKCS, CNG, CSP), Reference Manuals. User Package: EVO Certificate Manager, ACS Unified Driver, ACS Middleware (PKCS, CNG, CSP), Reference Manuals
Kit Features ACS Middlewares comply with: PKCS #11, Microsoft® CryptoAPI, Microsoft® CryptoAPI Next Generation. Cryptographic Algorithm supported for Asymmetric Key Generation: ECC, RSA. Third Party Applications Supported: Internet Explorer, Mozilla Firefox, Google Chrome, Microsoft® Office, Microsoft® Outlook, Windows Log-On, Thunderbird, Open Office, Adobe Acrobat Reader
Kit Operating System Support Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2016

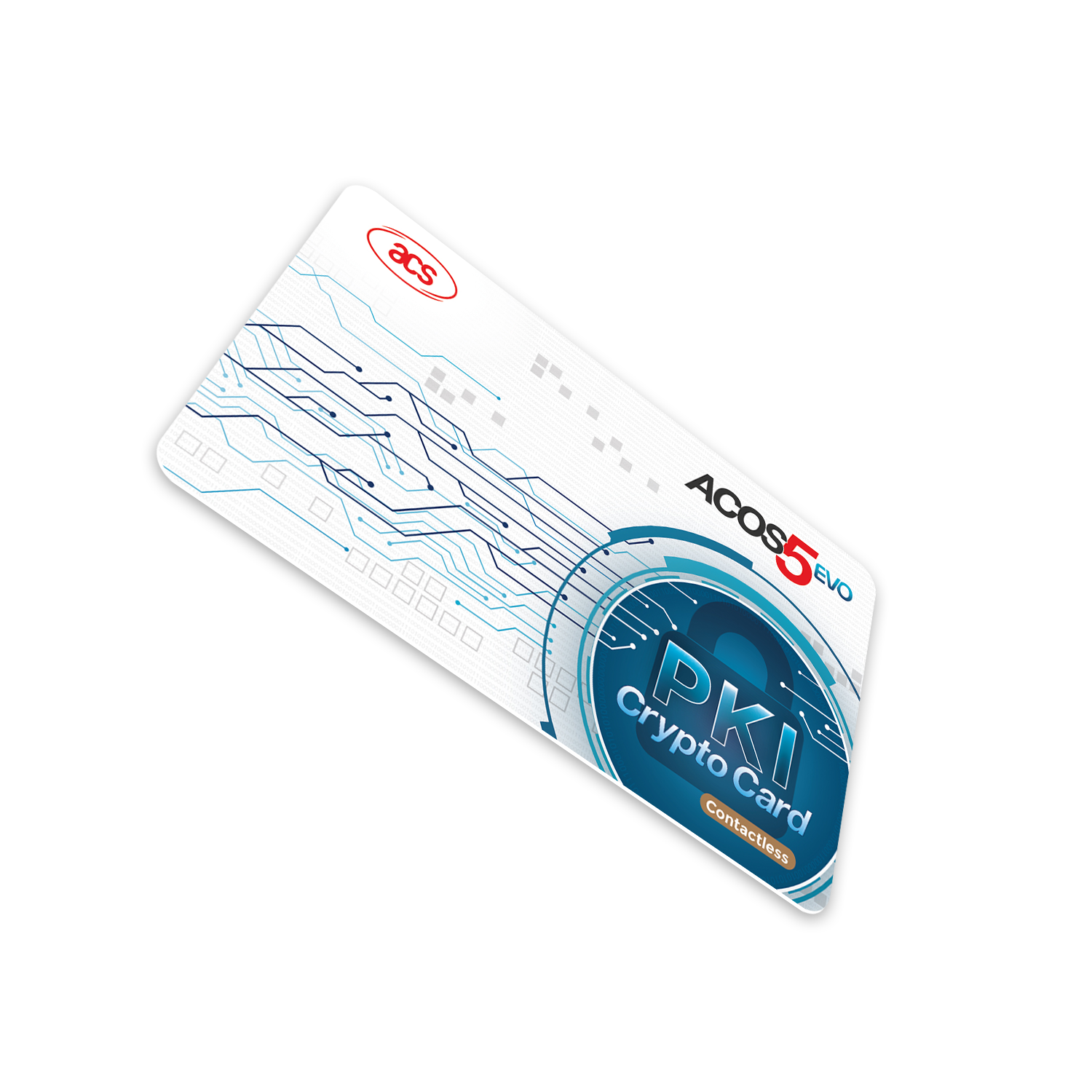

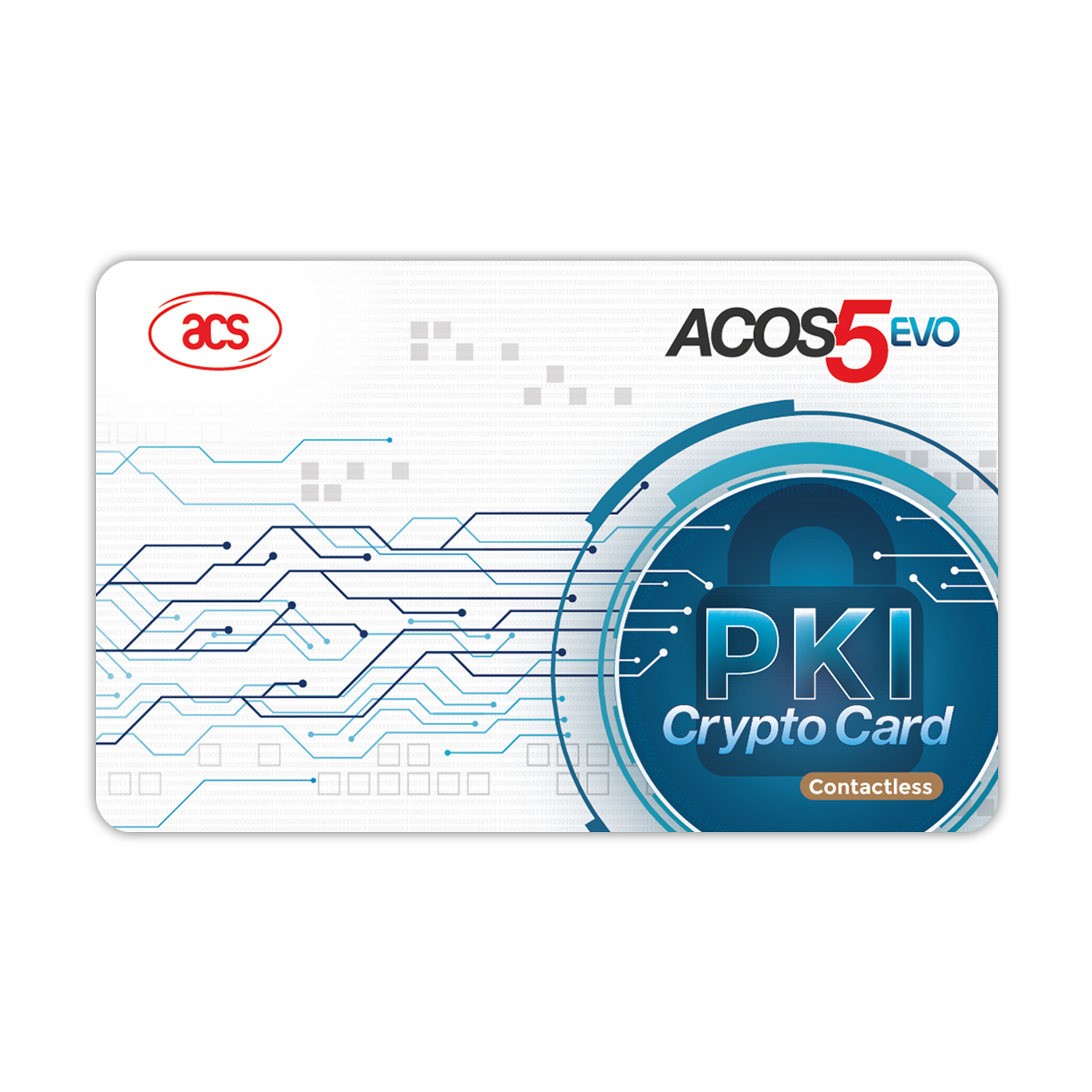

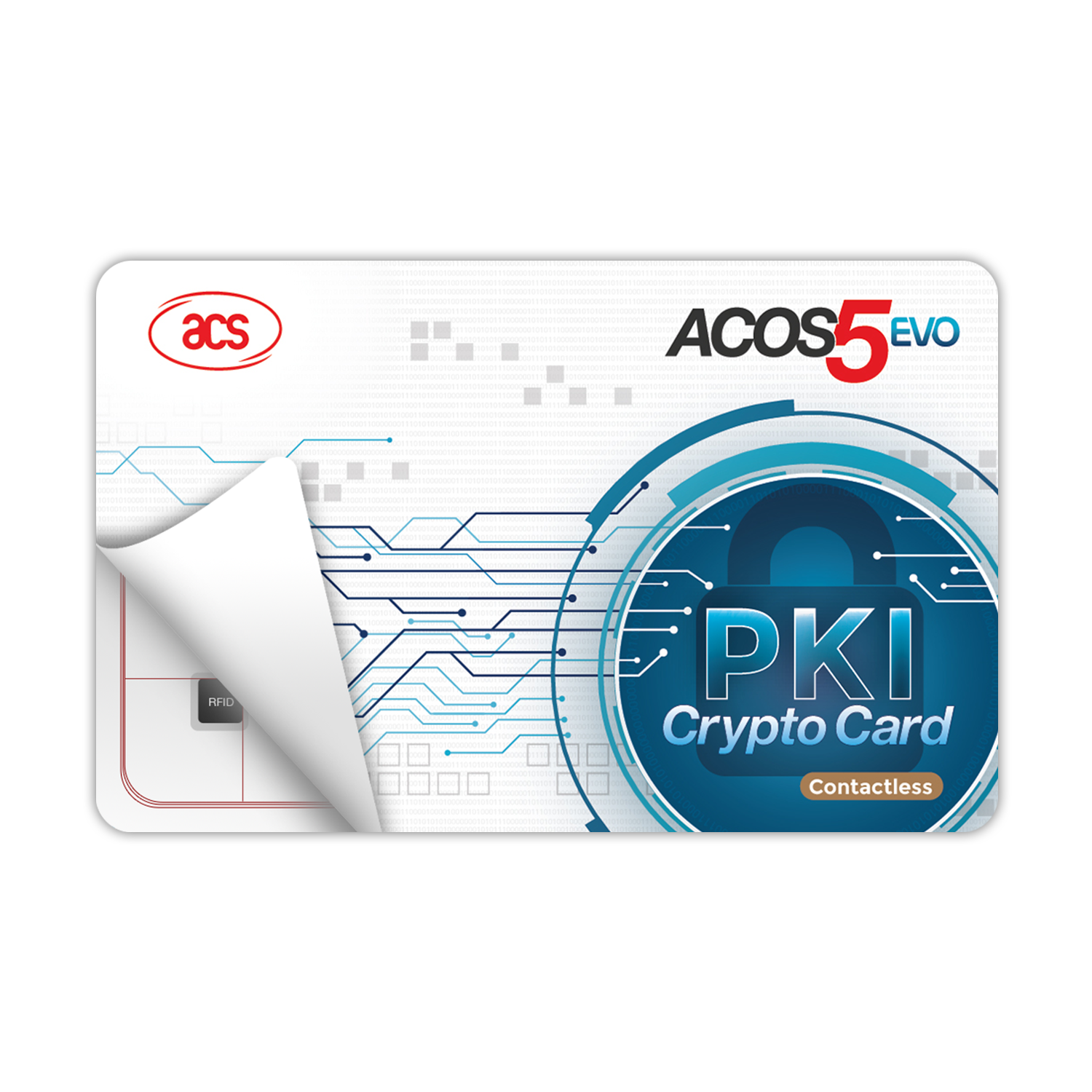

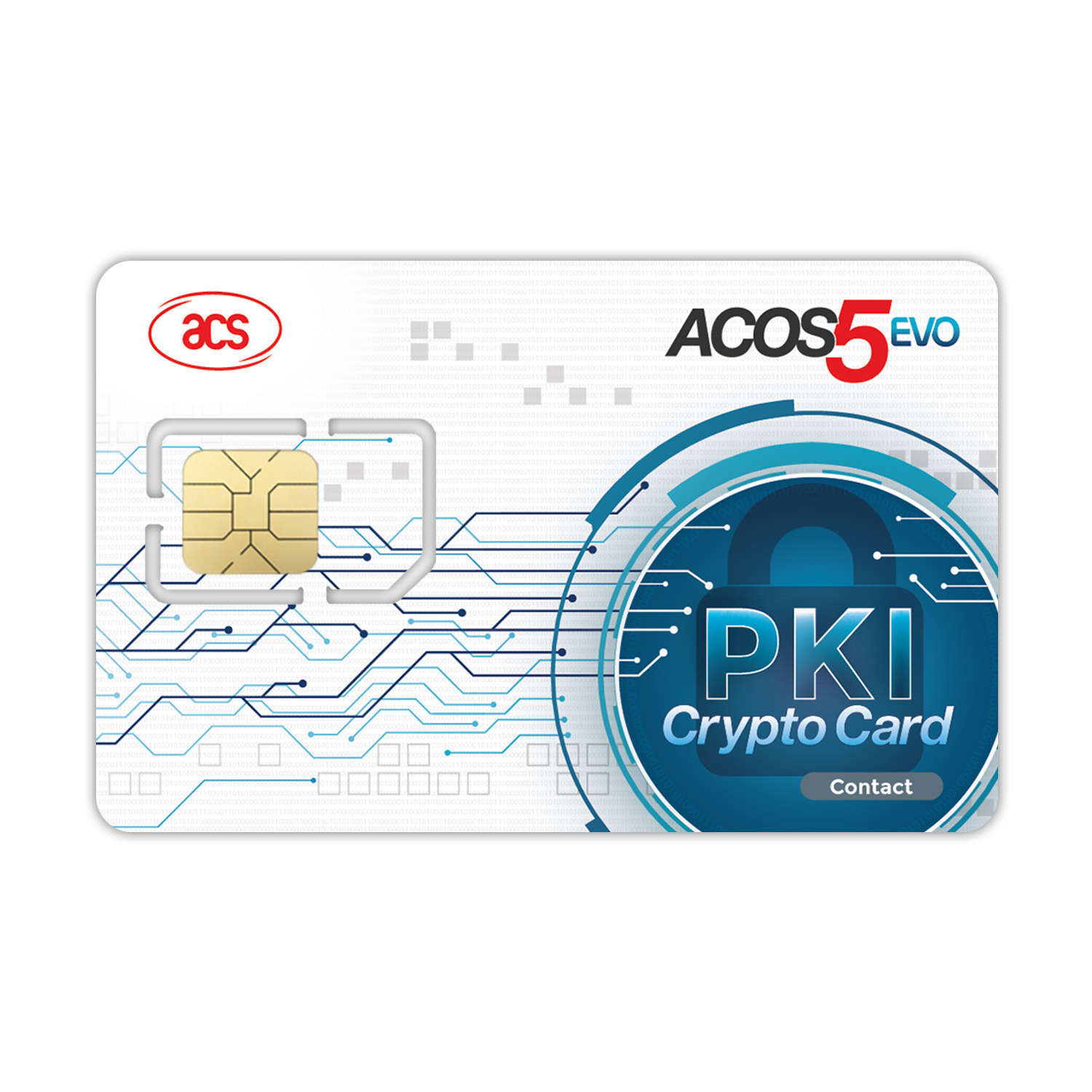

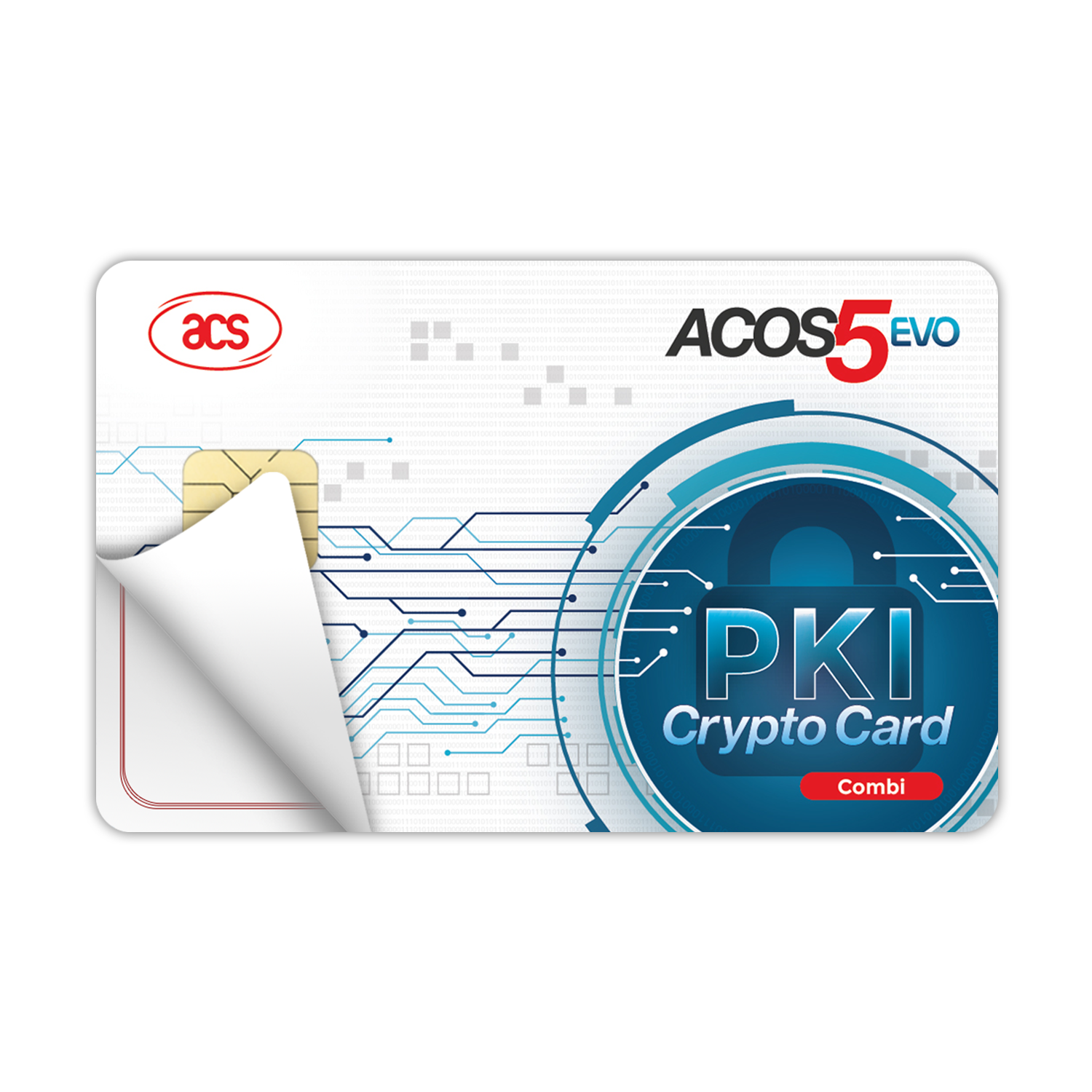

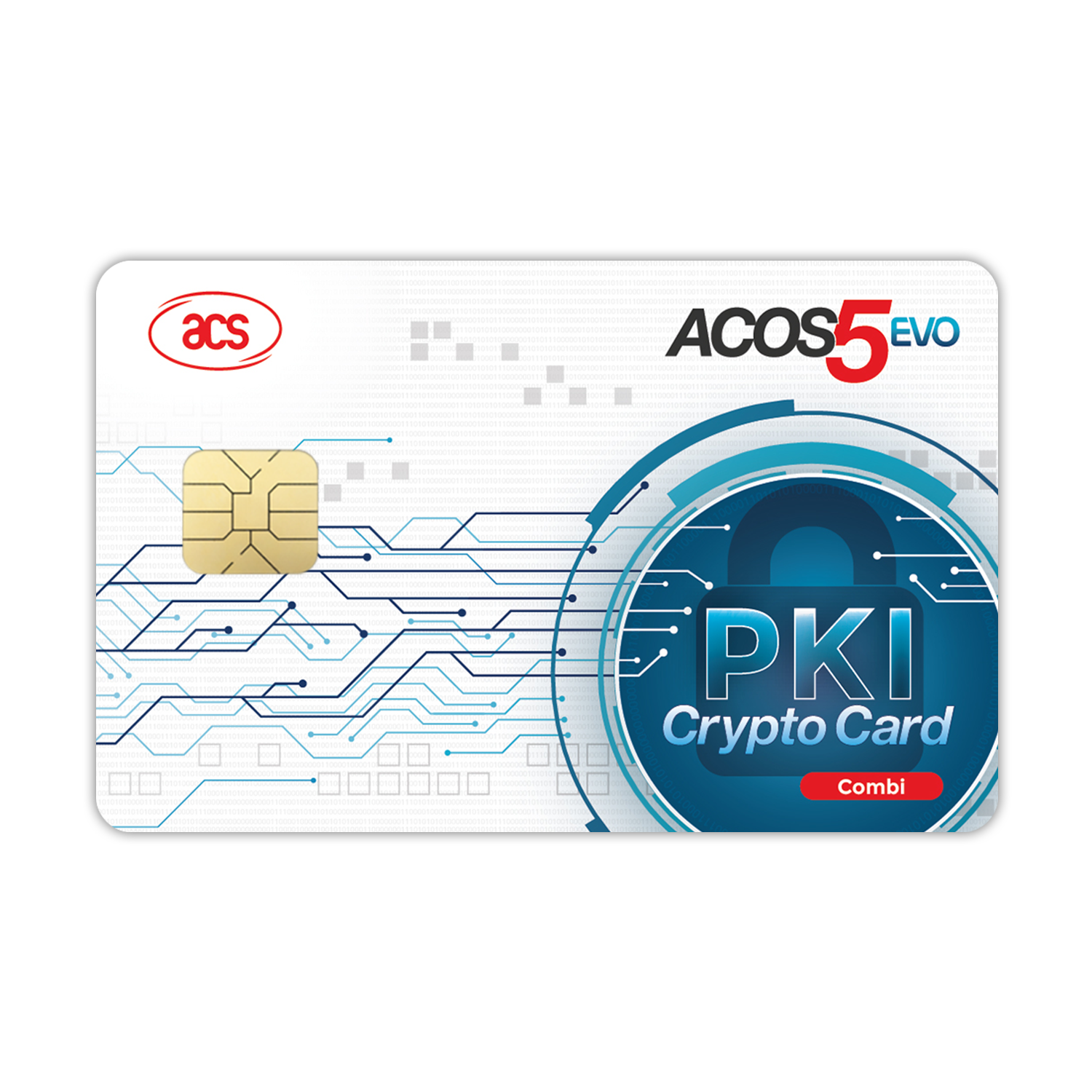

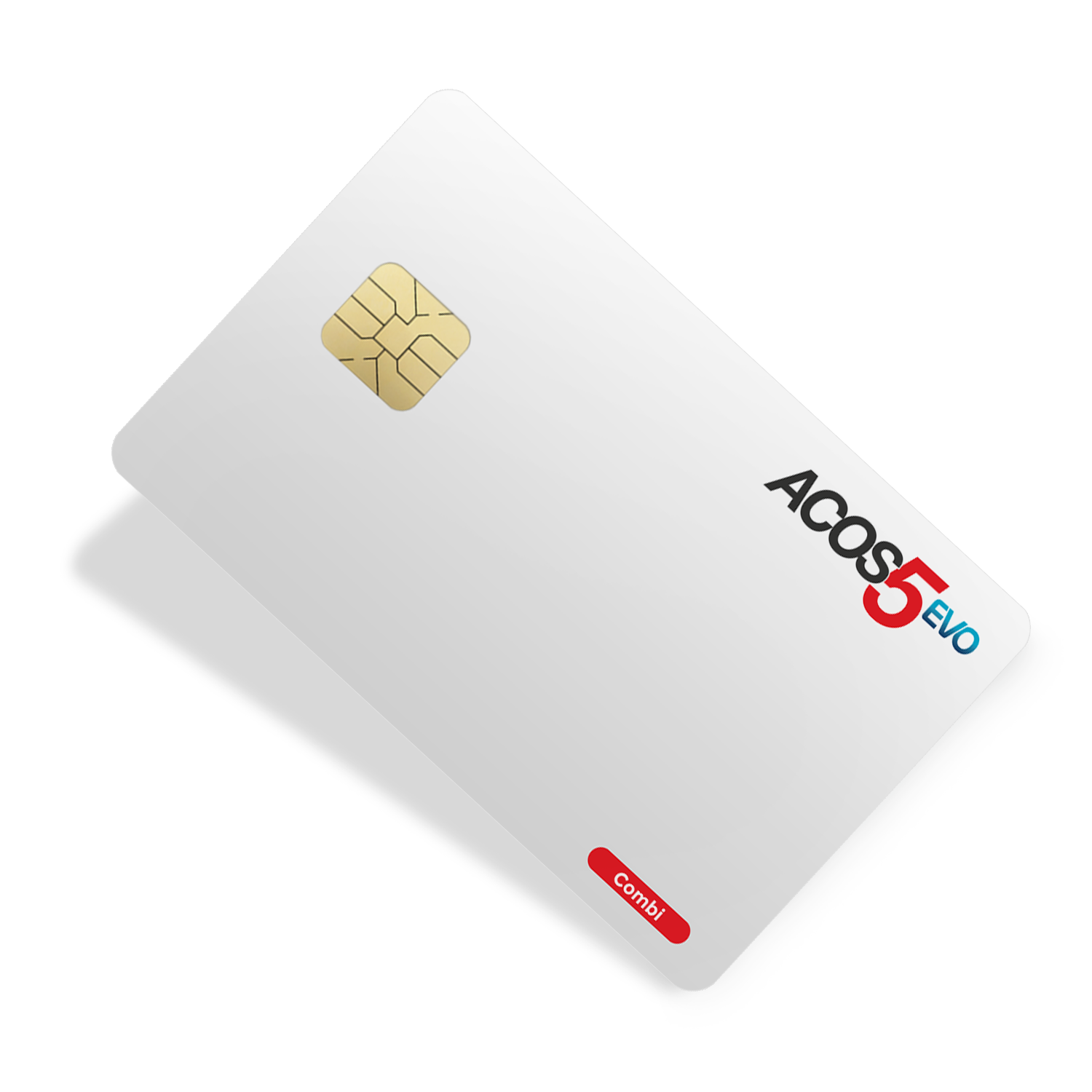

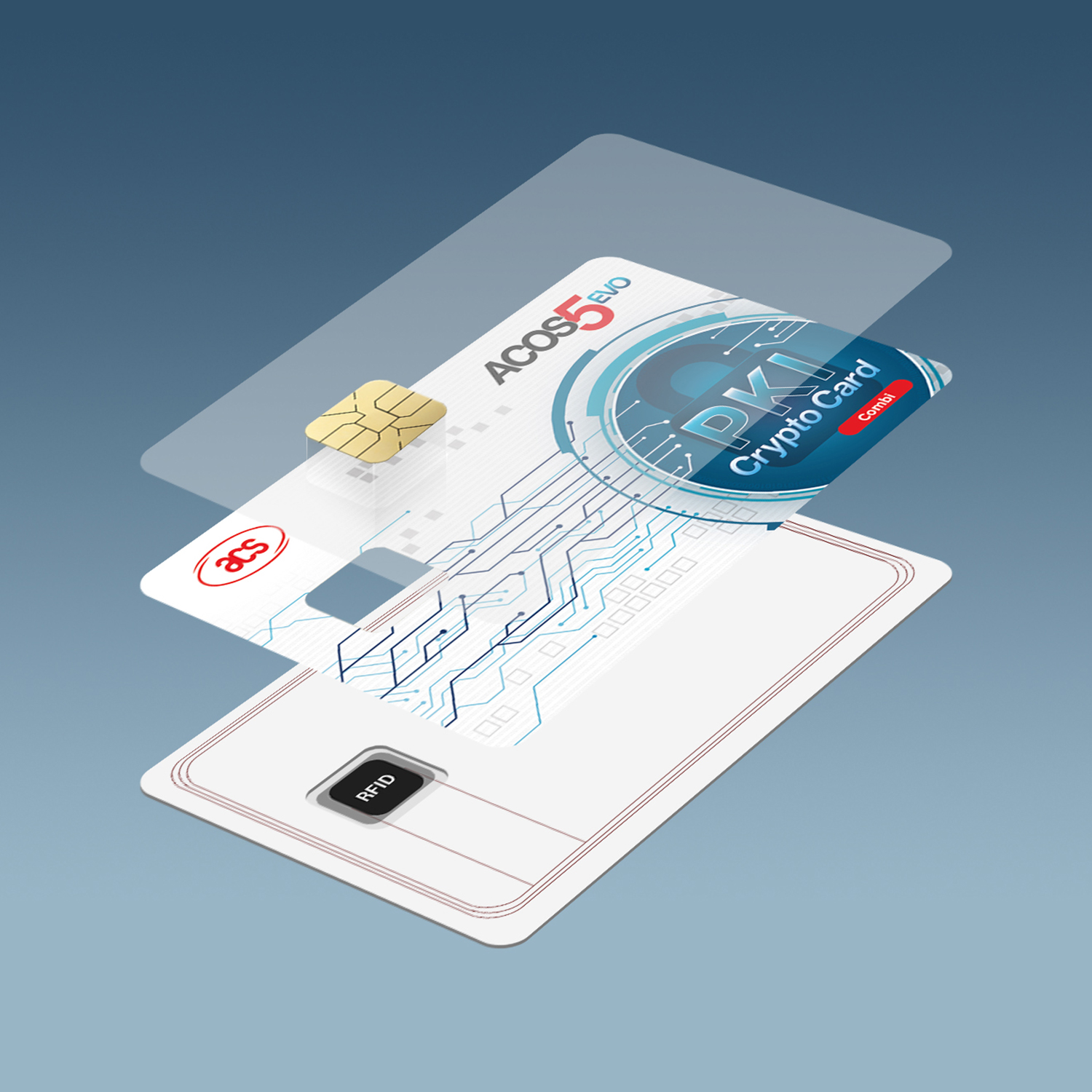

Images

Downloads

TypeTitleSizeUpdated
DatasheetProduct Presentation of ACOS5-EVO PKI Smart Card (Contact/ Contactless/ Combi)——
BrochureProduct Brochure of ACOS5-EVO PKI Smart Card (Contact/ Contactless/ Combi)——
DatasheetFunctional Specification of ACOS5-EVO PKI Smart Card (Contact)——
DatasheetFunctional Specification of ACOS5-EVO PKI Smart Card (Contactless)——
DatasheetFunctional Specification of ACOS5-EVO PKI Smart Card (Combi)——
ManualReference Manual of ACOS5-EVO PKI Smart Card (Contact) — available on requestavailable on request——
ManualReference Manual of ACOS5-EVO PKI Smart Card (Contactless) — available on requestavailable on request——
ManualReference Manual of ACOS5-EVO PKI Smart Card (Combi) — available on requestavailable on request——
Need pricing, samples or integration support for PR1025? Contact our sales teamorask about distribution.
