PR1016 — Small NFC Reader Module · USB
Smart Card Reader Modules

PR1016

Small NFC Reader Module · USB

Small NFC reader module especially for compact machines

Manufacturer reference: ACS — ACM1252U-Z2 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • ISO 14443
  • ISO 18092
  • USB Full Speed
  • PC/SC
  • CCID
  • CE
  • FCC
  • RoHS
  • REACH
  • Microsoft® WHQL

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1016

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1016 is a small NFC reader module developed based on 13.56 MHz contactless technology, for fast and easy integration to embedded systems.

The PR1016 supports ISO 14443 Type A and B cards, and MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 30 mm (depending on tag type used). PR1016 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.

It is PC/SC-compliant and firmware upgradeable. Its small size allows it to be integrated to compact machines. It can be used with a detachable micro-USB cable that allows it flexibility to be located far from the USB host interface.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Contactless Card Support:
  • - Read/write speed of up to 424 kbps
  • - Built-in antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
  • - Supports ISO 14443 Part 4 Type A and B cards, MIFARE®, FeliCa and all four types of NFC (ISO 18092 tags)
  • - Built-in anti-collision feature (only one tag is accessed at any time)
  • Application Programming Interface
  • - Supports PC/SC
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics
Dimensions (mm) 52.0 mm (L) x 20.0 mm (W) x 6.0 mm (H)
Weight (g) 3.65 g
USB Interface
Protocol USB CCID
Connector Type Micro USB
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1.0 m, Detachable
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
Protocol ISO14443-4 Compliant Cards, T=CL; MIFARE® Classic Card Protocol, T=CL; ISO 18092, NFC Tags; FeliCa
Antenna 20 mm x 22 mm
Built-in Peripherals
LED 1 bi-color: Red and Green
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance ISO 14443, ISO 18092, USB Full Speed, PC/SC, CCID, CE, FCC, RoHS, REACH, Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, MAC OS®, Solaris, Android™

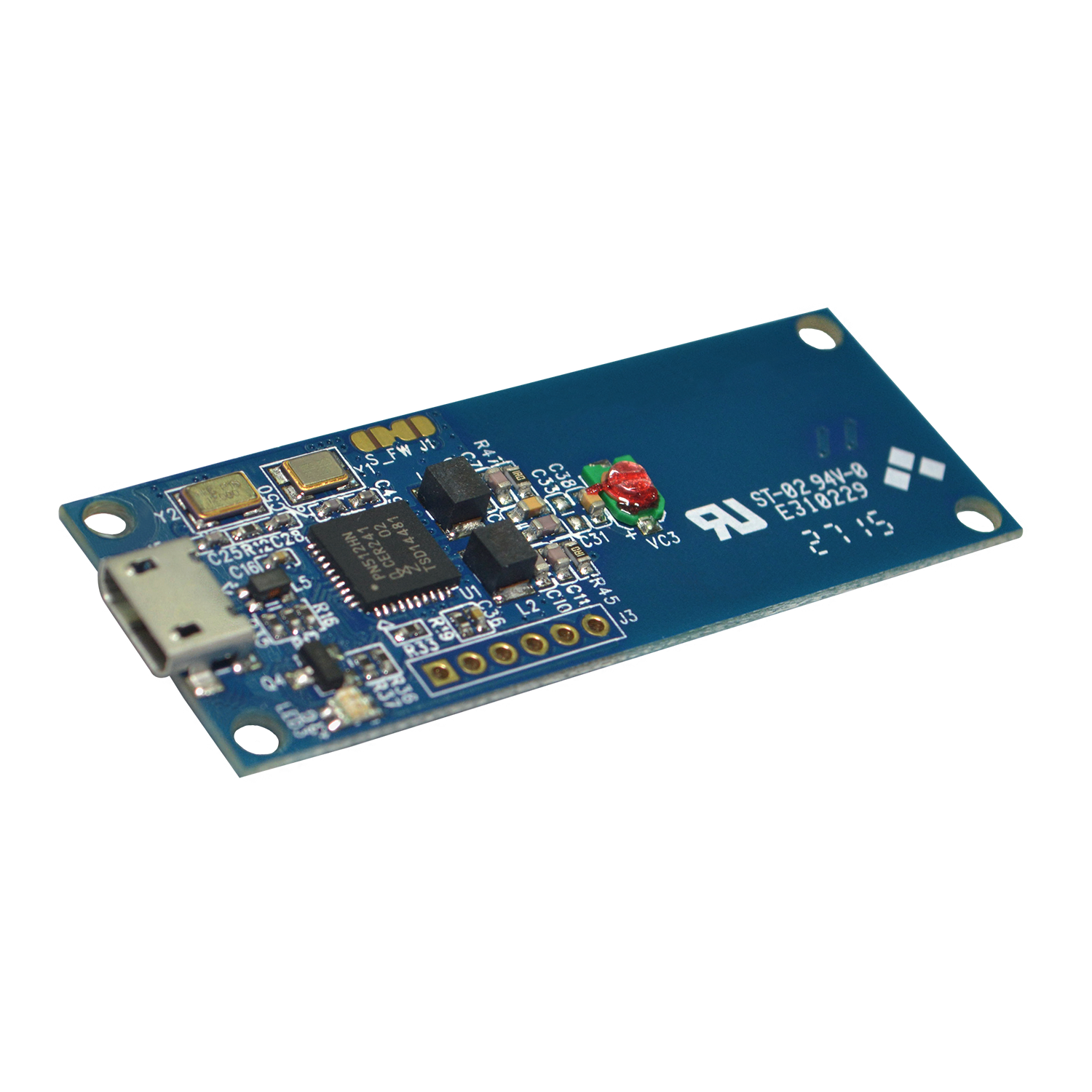

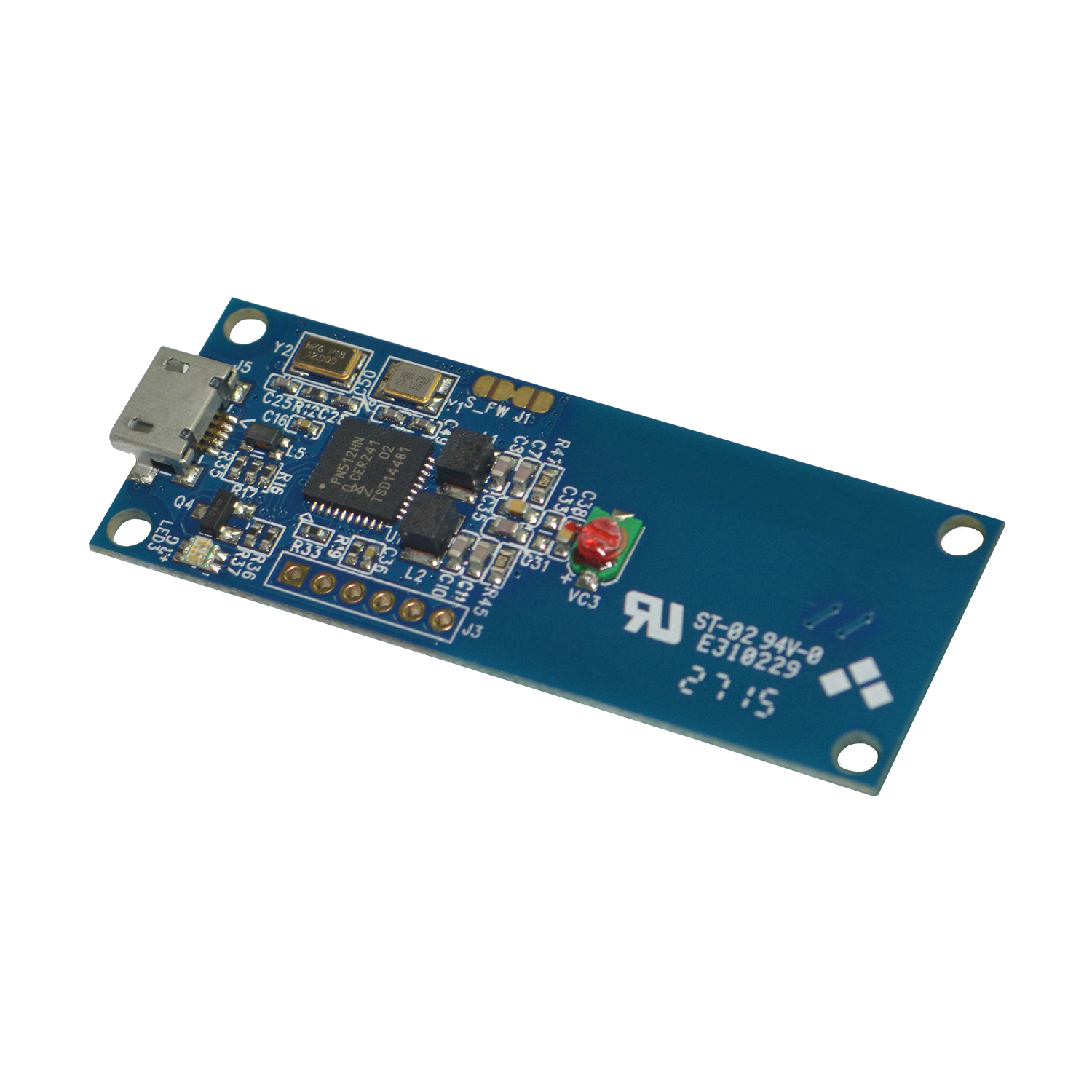

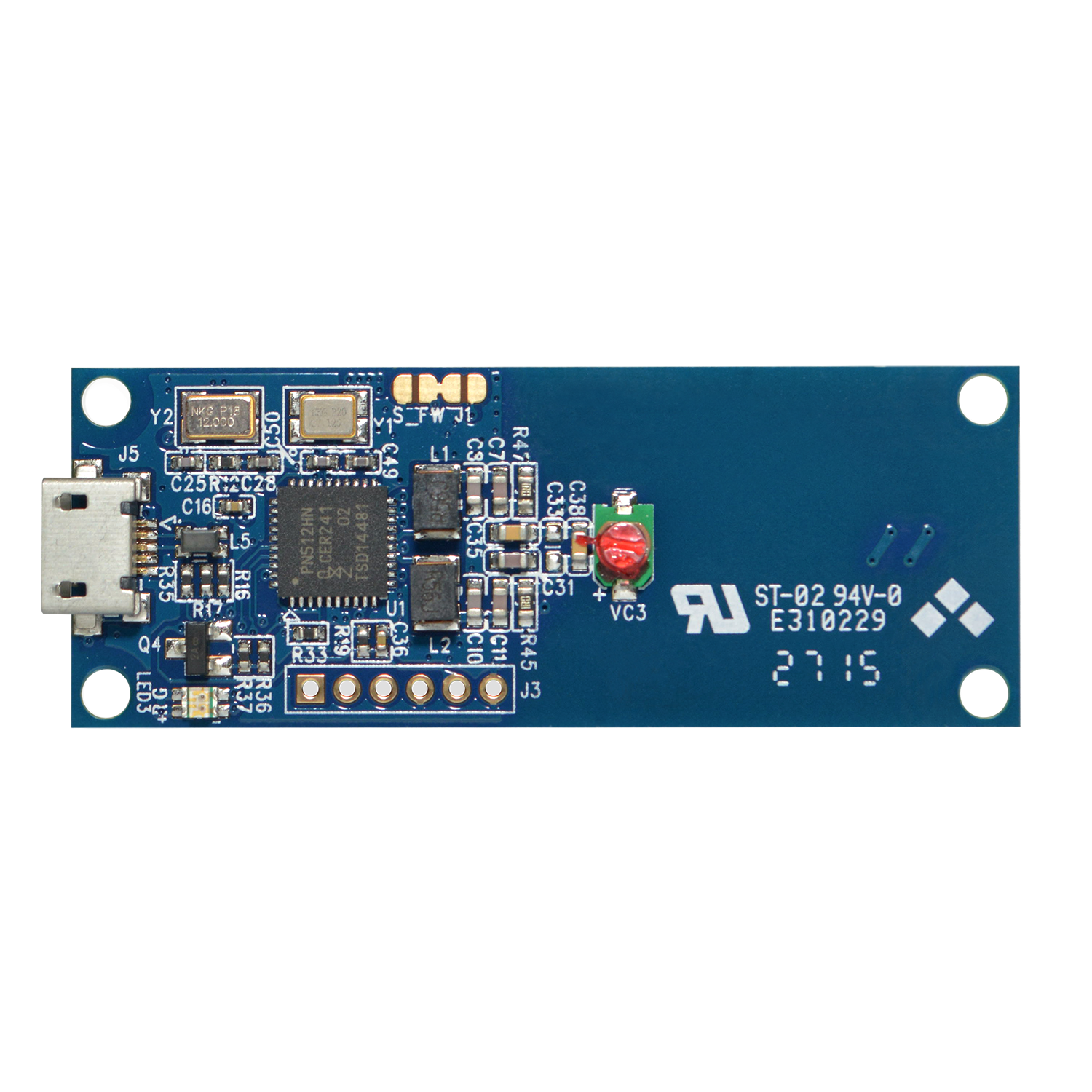

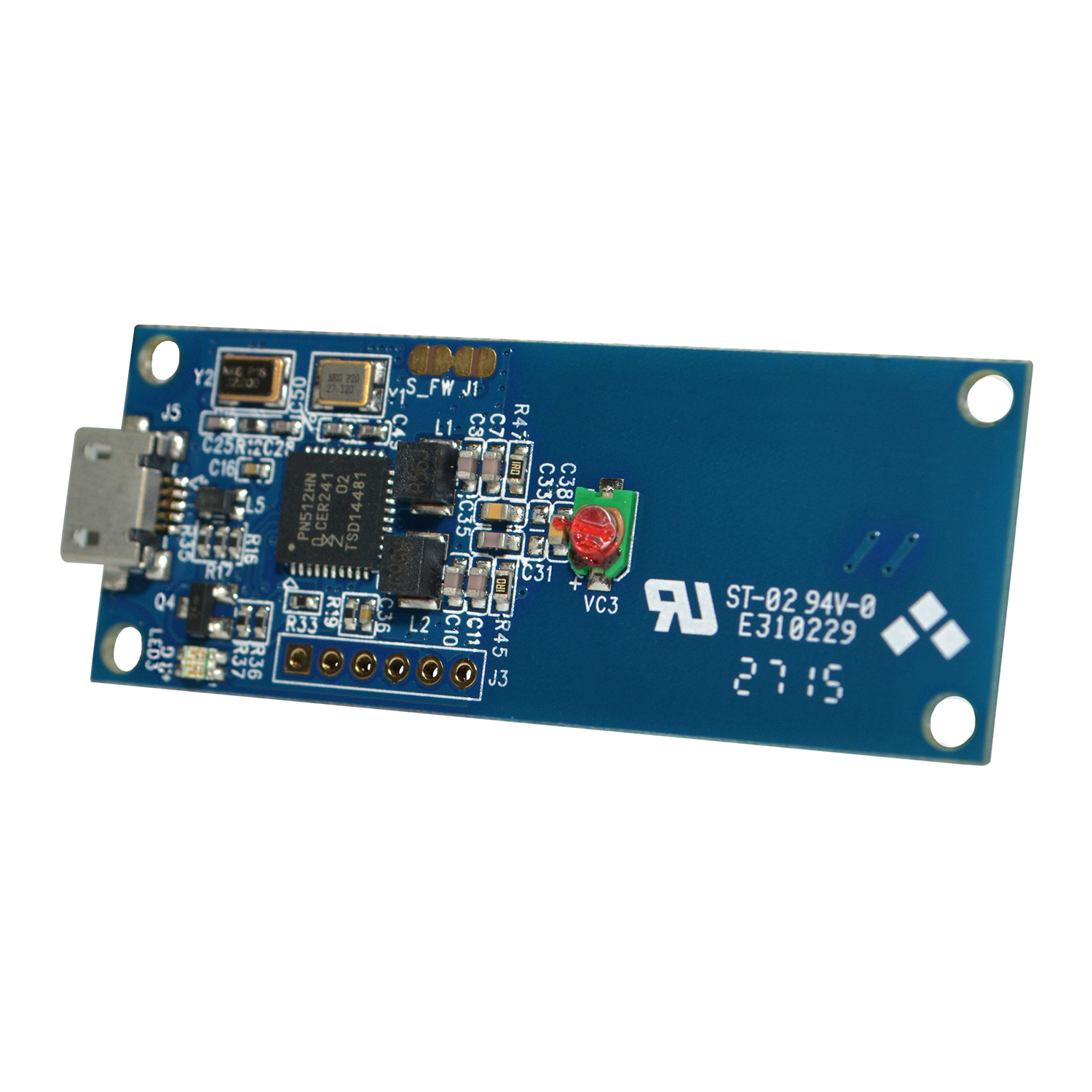

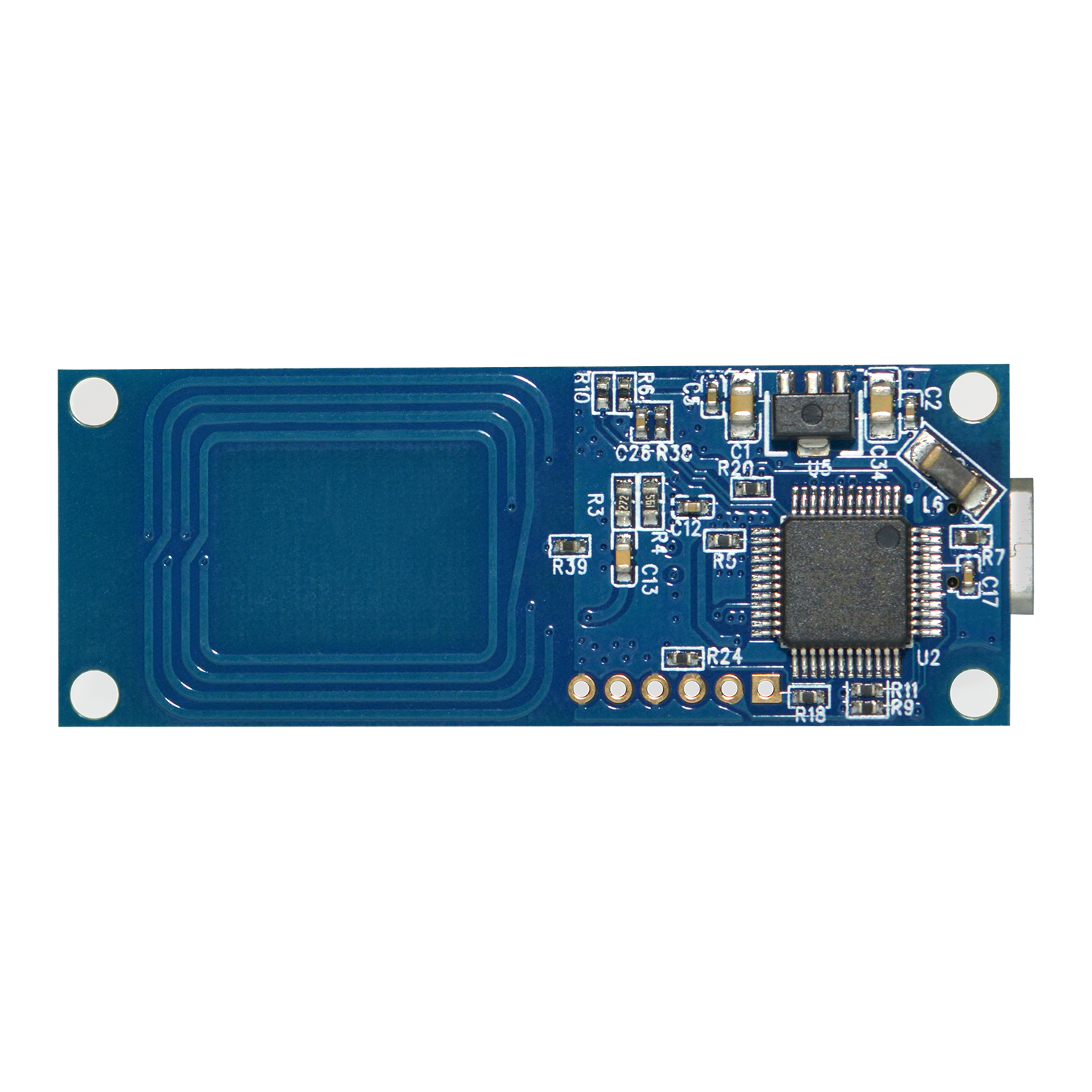

Images
