PR1034 — Smart Card Reader Module · USB
Smart Card Reader Modules

PR1034

Smart Card Reader Module · USB

Contact smart card reader module that enables easy implementation of smart card-based solutions in embedded systems

Manufacturer reference: ACS — ACM39U-Y3 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • EN60950/IEC 60950
  • ISO 7816
  • USB Full Speed
  • EMV™ Level 1 (Contact)
  • PC/SC
  • CCID
  • CE
  • FCC
  • WEEE
  • RoHS
  • REACH
  • Microsoft® WHQL

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1034

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1034 provides a solution for secured access control by employing the globally recognized ACR39 core. It comes in module form to enable easy implementation of smart card-based solutions in embedded systems. The PR1034 uses the latest microchip technology, bringing you high security for your confidential files in a convenient and easy way.

The PR1034 supports ISO 7816 Class A, B, and C smart cards. Also, it works with memory cards and microprocessor cards with T=0 and T=1 protocol. It features a USB Full Speed interface and a smart card read/write speed of 600 Kbps. This highly durable device can last for at least 200,000 card insertion cycles.

The PR1034 is also easy to install and use with various environments. Being PC/SC and CCID–compliant, its drivers are compatible with operating systems such as Windows®, Linux®, and Mac OS®. In addition, the PR1034 can also be integrated with systems running the Android™ platform with versions 3.1 and later.

With its various features, the PR1034 is a powerful component that is ideal for Security, e-Banking, e-Payment, and e-Government applications.

Features

  • USB 2.0 Full Speed Interface
  • Plug and Play – CCID support brings utmost mobility
  • Smart Card Reader: Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards; Supports CAC (Common Access Card); Supports SIPRNET Card; Supports J-LIS card; Supports microprocessor cards with T=0 or T=1 protocol; Supports memory cards; Supports PPS (Protocol and Parameters Selection); Features Short Circuit Protection
  • Application Programming Interface: Supports PC/SC; Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later

Technical Specifications

Physical Characteristics

Property Value
Dimensions (mm) 70.0 mm (L) × 82.0 mm (W) × 10.0 mm (H)
Weight (g) 32 g

USB Interface

Property Value
Protocol USB CCID
Connector Type 1 x 5 Pins Header Connector; 2 x 3 Pins Header Connector
Power Source From USB Port
Speed USB Full Speed (12 Mbps)

Contact Smart Card Interface

Property Value
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others CAC, PIV, SIPRNET, J-LIS Smart Cards

Certifications/Compliance

Property Value
Certifications/Compliance EN60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS, REACH, Microsoft® WHQL

Device Driver Operating System Support

Property Value
Device Driver Operating System Support Windows®, Linux®, MAC OS®, Android™, Solaris

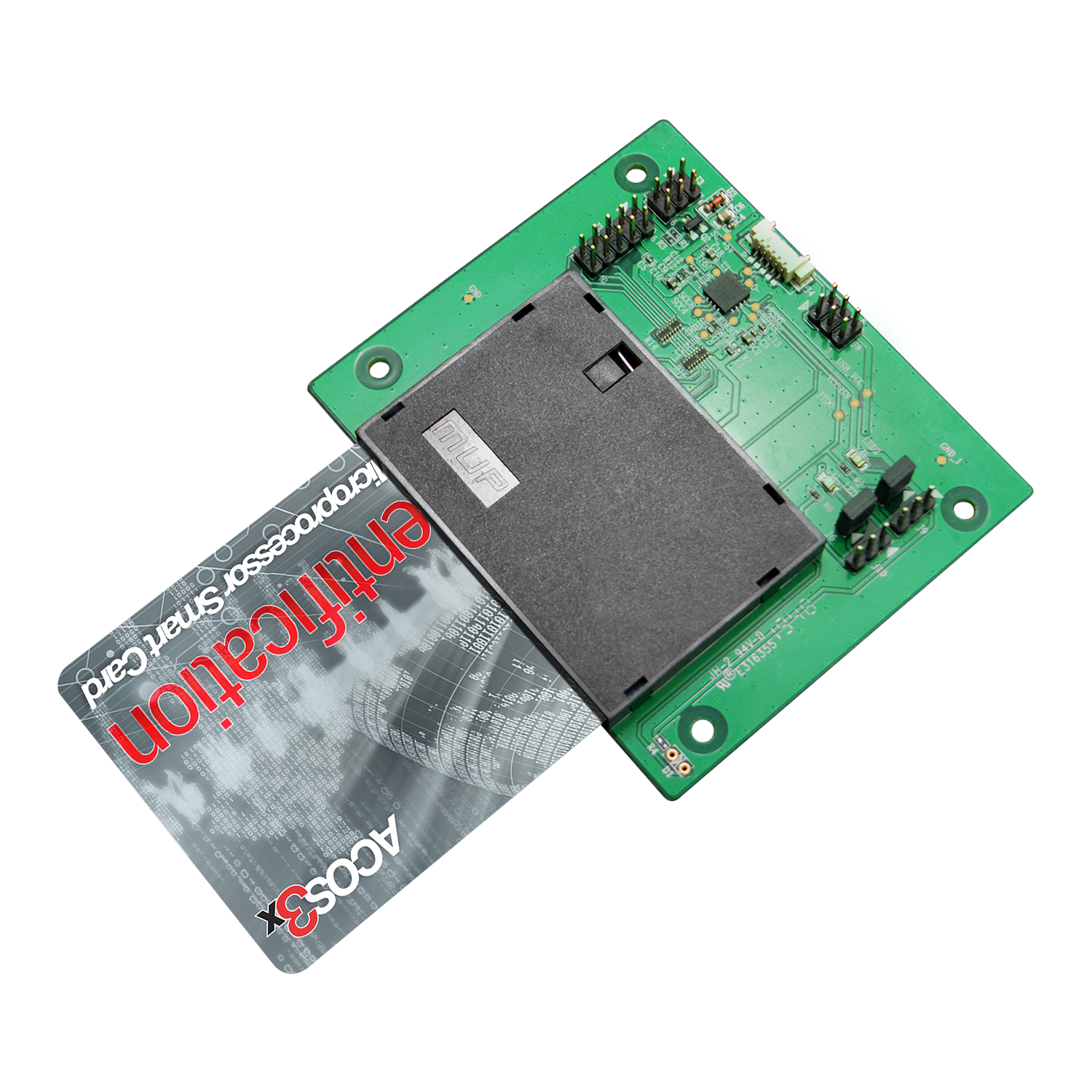

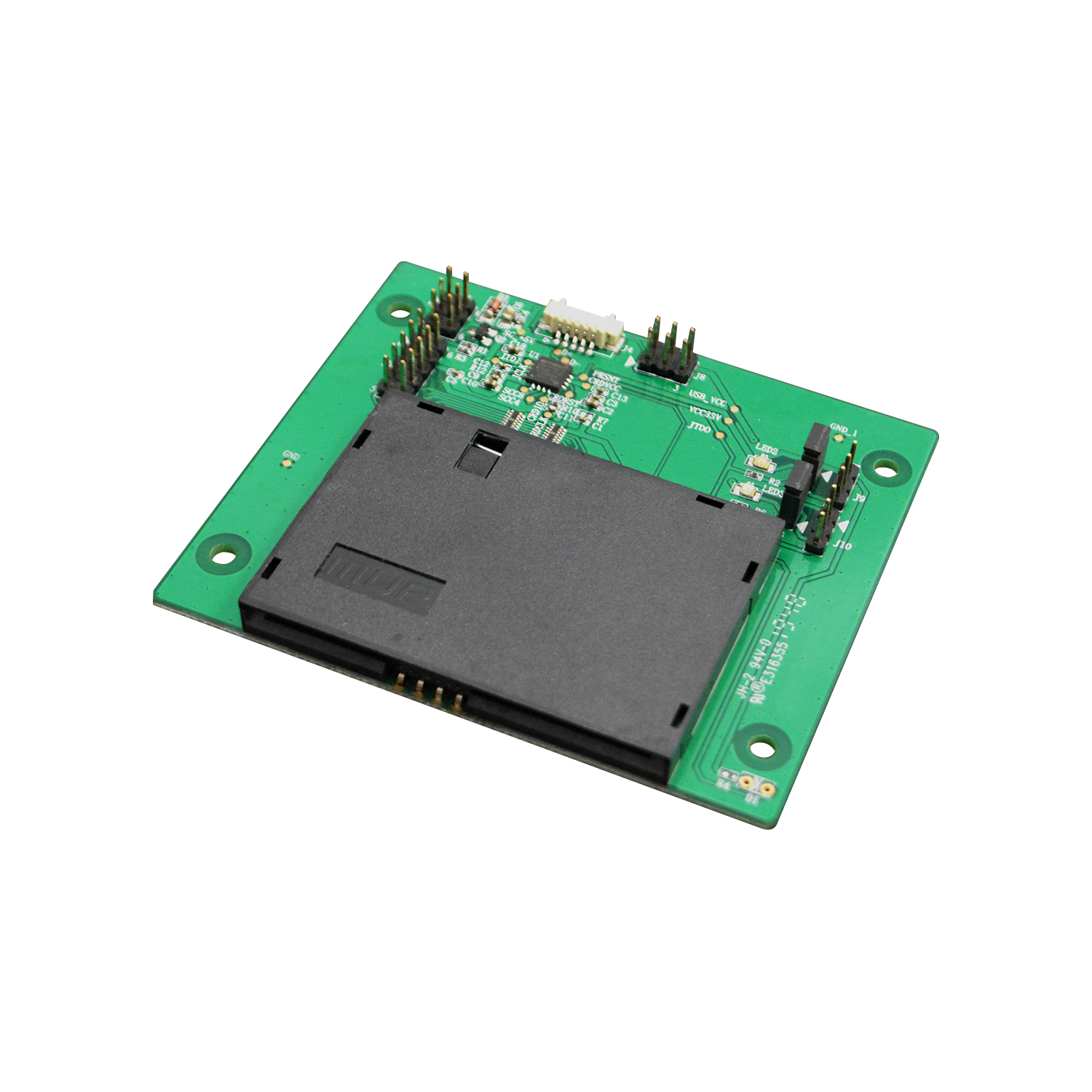

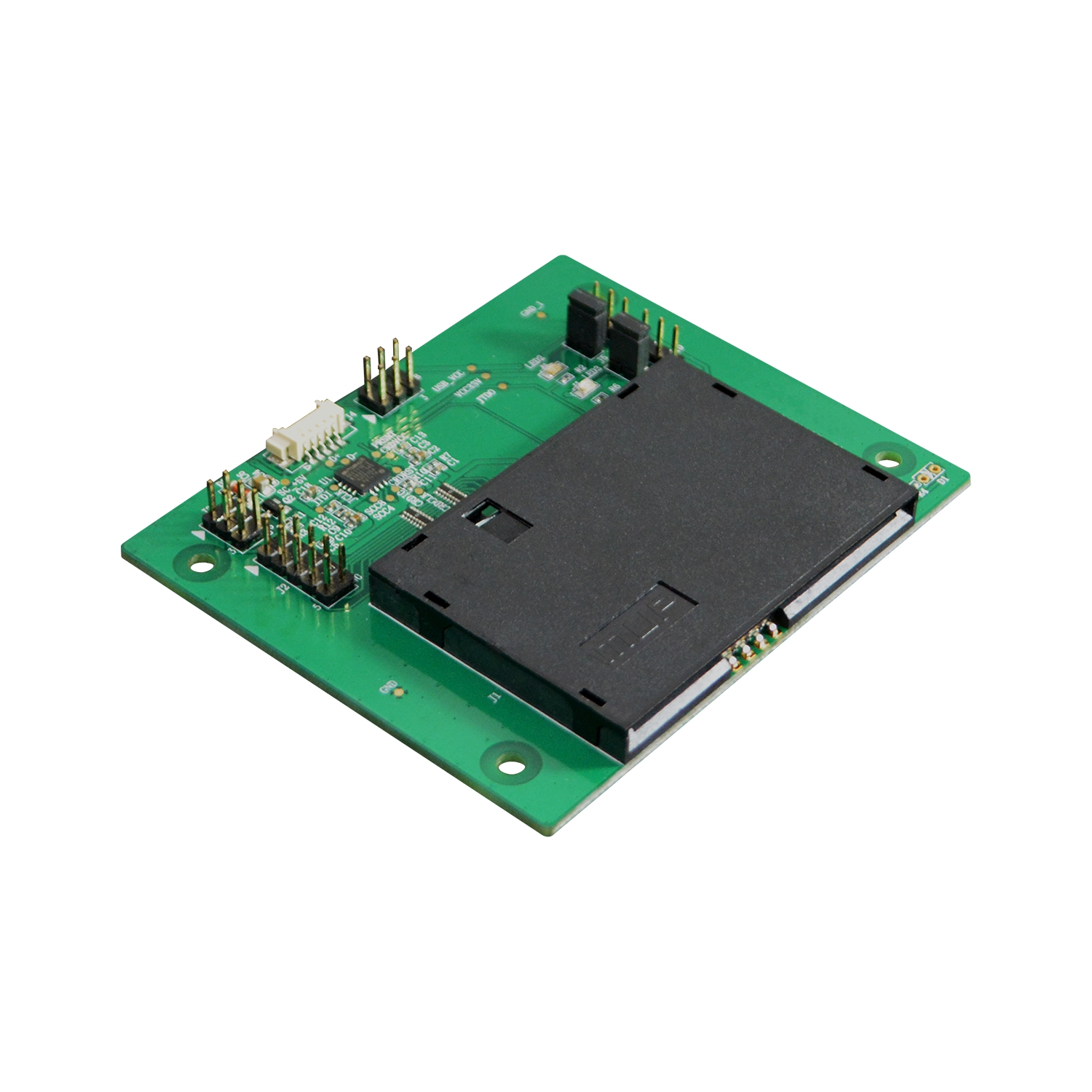

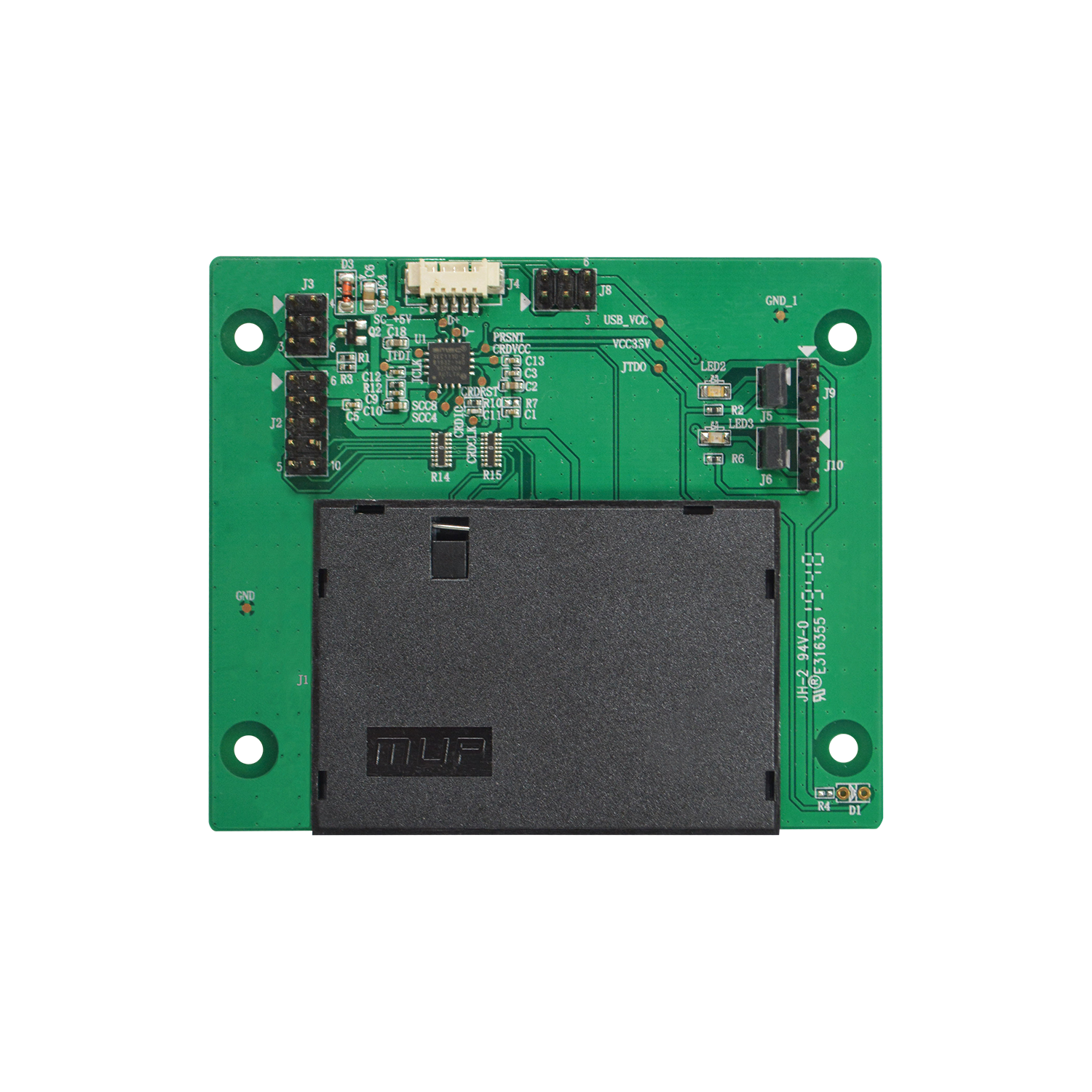

Images

Downloads

TypeTitleSizeUpdated
APIACS ApduTool (iOS) — Application Note (iOS and iPadOS 16.2 or above, v1.2)118.31 KB23-Feb-2024
DriverPC/SC Driver Installer (Windows®, v4.4.2.1)5.02 MB11-Dec-2025
DriverPC/SC Driver Installer (Linux®, v1.1.13)4.30 MB20-Nov-2025
DriverPC/SC Driver Installer (macOS®, v1.1.13)281.65 KB17-Nov-2025
SoftwareAndroid EVK (Android™ 3.1 or above, v1.1.8)1.46 MB25-Nov-2025
DriverPC/SC Driver Installer (Solaris 10, 11 and above, v1.0.8) — available on request, no direct download link on pageavailable on request—16-Feb-2017
BrochureProduct Presentation of ACR39 Series Smart Card Reader——
DatasheetTechnical Specification of ACM39U-Y3 Smart Card Reader Module——
ManualReference Manual of ACM39U-Y3 Smart Card Reader Module——
ManualUser Manual of ACM39U-Y3 Smart Card Reader Module——
