PR1059 — USB Mobile Wallet NFC Reader Module
Smart Card Reader Modules

PR1059

USB Mobile Wallet NFC Reader Module

NFC reader module with a primary USB interface, supporting Apple VAS ECP 1.0, Apple Access ECP 2.0 and Google Smart Tap. RS-232 (TTL-level serial) is available upon request; confirm the hardware configuration, signal levels and pinout

Manufacturer reference: ACS — WalletMate II Boost ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • Apple VAS
  • Google Smart Tap
  • IEC/EN 62368
  • CE
  • UKCA
  • FCC
  • VCCI
  • RoHS
  • REACH
  • Microsoft® WHQL
  • USB CCID
  • PC/SC
  • WEEE

Primary Applications

  • e-Government
  • e-banking and e-payment
  • Loyalty Program
  • Smart Poster/URL Marketing
  • e-Healthcare
  • Network Security
  • Access Control
  • Transportation

PR1059

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

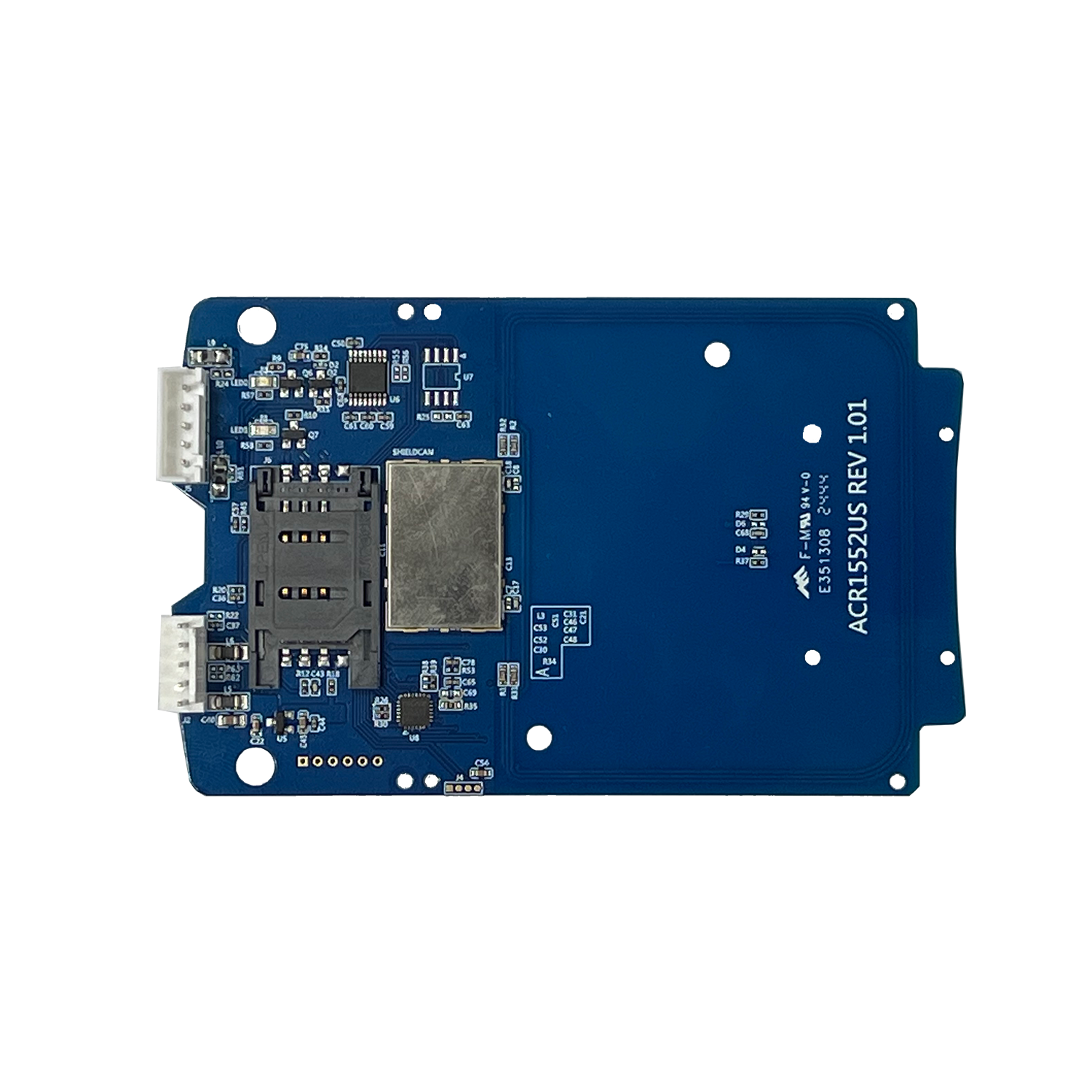

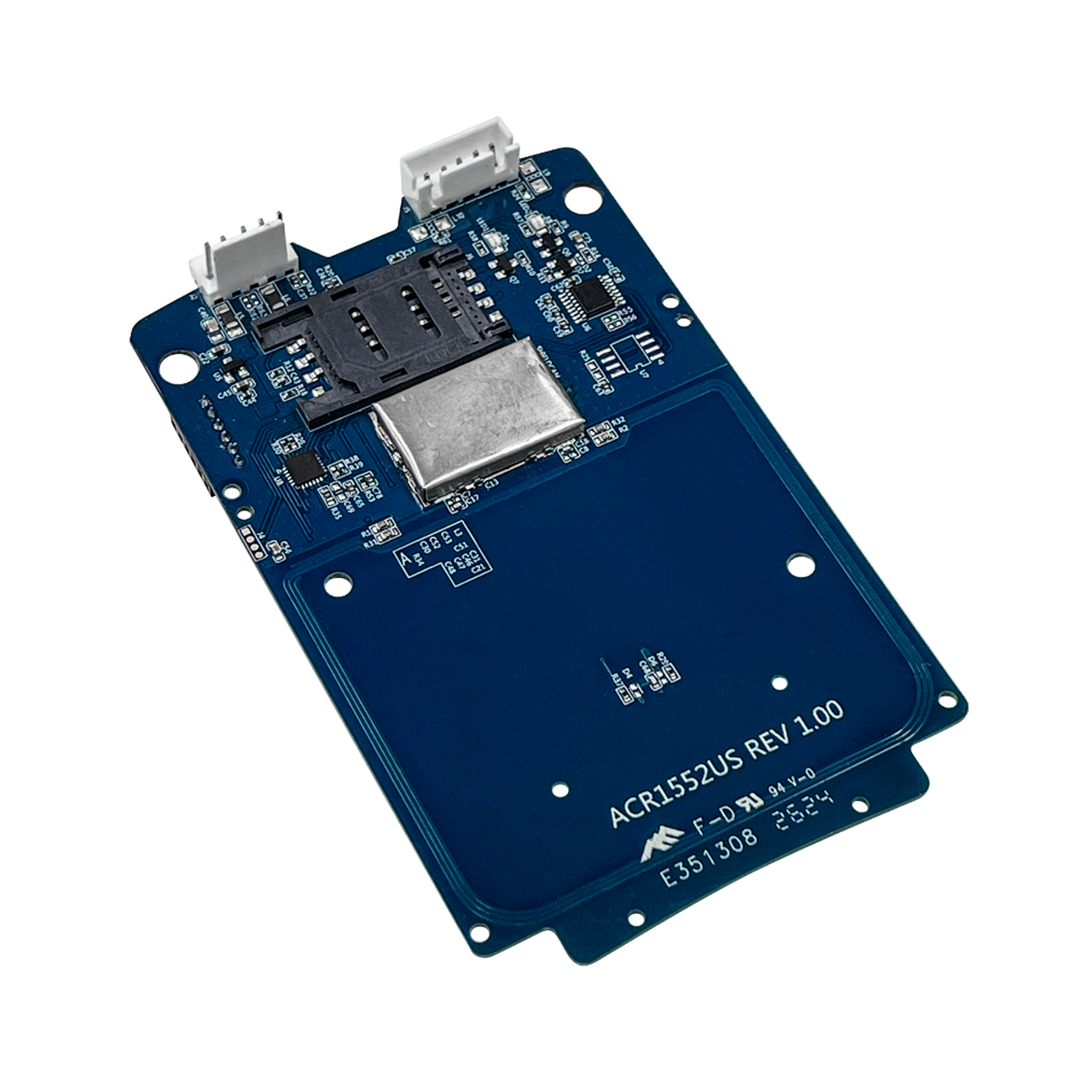

PR1059 Mobile Wallet NFC Reader Module

The PR1059 is a versatile NFC reader module designed to enhance smartphone applications. Certified for Apple VAS (ECP1.0), Google Smart Tap, and Apple ECP 2.0 Access Control protocols, it seamlessly supports virtual passes such as loyalty cards, tickets, and IDs across iOS and Android, delivering a smooth, cardless experience with simple tap-to-go functionality.

Key Features

  • VAS Certified: Fully certified for Apple VAS protocol (ECP1.0) and Apple ECP 2.0 Access Control.
  • Google Smart Tap: Fully certified for Google Smart Tap protocol.
  • Smart Card Support: Compatible with ISO 14443 Type A & B, MIFARE®, FeliCa, ISO 18092 NFC, and ISO 15693 cards.
  • High-Speed Communication: Operates at up to 848 kbps with advanced security features like mutual authentication and key diversification.
  • Compact Design: Perfect for integration into handheld devices, kiosks, and IoT devices without sacrificing functionality.

Flexible NFC Modes

Supports three operating modes:

  1. Smart Card Reader/Writer
  2. Card Emulation
  3. Keyboard Emulation

Ideal for applications like payments, access control, ticketing, loyalty programs, and smart marketing.

Broad Compatibility Works seamlessly with Windows®, Linux®, macOS®, and Android™, making it a reliable and adaptable solution for industries like finance, healthcare, and government.

To further support developers, the PR1059 is compatible with the ACS VAS Test Tool. Developed by Advanced Card Systems Ltd. (ACS), this tool is designed to test NFC-enabled Apple Wallet Passes and Google Wallet Passes with PR1059.

- Learn more about the PR1041 Series -

Features

  • USB 2.0 Full Speed Interface or RS-232 (TTL/UART, upon request)
  • CCID Compliance
  • Apple VAS & Goolgle Smart Tap Certified; Certified by Apple for the Value Added Services (VAS) protocol using ECP1.0 and Apple ECP 2.0 Access Control.; Certified by Google Smart Tap protocol.; Supports Secure Element–based key management to ensure robust protection.
  • Contactless Smart Card Reader; Read/Write speed up to 848 kbps; Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type); Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO 18092 NFC; Supports MIFARE® (T=CL), FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card; Built-in anti-collision feature; Supports extended APDU (max. 64 kbytes)
  • Support various NFC modes; Smart Card Reader/Writer Mode; Card Emulation Mode; Keyboard Emulation Mode
  • Application Programming Interface; Apple VAS & Google Smart Tap API; Supports PC/SC; Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals; User-controllable bi-color LED (Blue & Green); User-controllable buzzer (Monotone)
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics

Property Value
Dimensions (mm) Main Body: 106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H)
Weight (g) 20 g ± 0.2 g

USB Interface

Property Value
Current Consumption Max. 300mA
Supply Voltage 5VDC
Connector Type USB Port connector (J2): 5pin, Molex KK 254 Wire-to-Board Header compatible; Serial Port Connector (J5): 5pin, JST B5B-XH-A compatible
Protocol USB or RS-232 (TTL, Upon request)
Speed USB 2.0 Full Speed (12 Mbps) compatible with USB 3.0
Cable Length 1.5 m, Detachable (Optional)

Contactless Smart Card Interface

Property Value
Standard ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO 15693; ISO 18092 NFC Tags; FeliCa and Topaz

SAM Card Interface

Property Value
Clock Frequency 5MHz, up to 10 MHz (Upon request)
Read/Write Speed 13.4kbps - 1,250kbps
Standard 1 x ISO 7816 Class A (5V,3V) Standard SIM size slot
Protocol T=0, T=1

Built-in Peripherals

Property Value
LED 1 bi-color: Blue and Green
Buzzer 1 x Programmable Buzzer (Mono-tone)

Other Features

Property Value
Firmware Upgrade Supported

Certifications/Compliance

Property Value
Certifications/Compliance Certifications: Apple VAS, Google Smart Tap, IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, Microsoft® WHQL; Compliance: USB CCID, PC/SC, WEEE

Device Driver Operating System Support

Property Value
Device Driver Operating System Support Windows®, Linux®, macOS, Android™
