PR1035 — Smart Floppy Smart Card Reader · USB
Contact Smart Card Readers

PR1035

Smart Floppy Smart Card Reader · USB

Contact smart card reader that is an ideal solution for easy integration of smart card readers into desktop environment

Manufacturer reference: ACS — ACR39F-A2 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1035

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

ACR39F Smart Floppy is the ideal solution for easy integration of smart card readers into the desktop environment. Using the USB interface, it is powered by the computer's internal power supply, and can be configured to go with the customer preferences.

ACR39F Smart Floppy supports ISO 7816 Class A, B, and C smart cards. Also, it works with different memory cards and microprocessor cards with T=0 and T=1 protocol. It features a USB Full Speed interface and a smart cards read/write speed of 600 Kbps. This highly durable device can last for at least 100,000 card insertion cycles.

ACR39F Smart Floppy is easy to install, use, and integrate in a computer-based environment. It is PC/SC and CCID compliant, and its drivers are compatible with Windows®, Solaris™, Linux®, macOS. In addition, ACR39F Smart Floppy can be used on mobile devices running with Android™ Versions 3.1 and above.

With its various features, ACR39F Smart Floppy can be used in different applications, such as Banking and Payment, e-Government, e-Purse and Loyalty, and Access Control applications.

Features

  • USB 2.0 Full Speed Interface (via detachable cable)
  • Compatible with USB 3.0
  • Plug and Play – CCID support brings utmost mobility
  • Smart Card Reader:
  • - Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
  • - Supports CAC
  • - Supports SIPRNET Card
  • - Supports J-LIS card
  • - Supports microprocessor cards with T=0 or T=1 protocol
  • - Supports memory cards
  • - Supports PPS (Protocol and Parameters Selection)
  • - Features Short Circuit Protection
  • Application Programming Interface:
  • - Supports PC/SC
  • - Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ Versions 3.1 and later

Technical Specifications

Physical Characteristics
Dimensions (mm) 125.0 mm (L) x 101.0 mm (W) x 25.5 mm (H)
Weight (g) 82.5 g
USB Interface
Protocol USB CCID
Connector Type 1 x 5 Pins Header Connector
Power Source From USB Port
Speed USB Full Speed (12 Mbps)
Cable Length 1.0 m, Detachable
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others CAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance
Standards USB CCID, PC/SC, EMV™ Level 1 (Contact), Microsoft® WHQL
Regulatory/Environmental CE, FCC, IEC/EN 60950, RoHS, REACH, WEEE
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, Solaris®, Android™

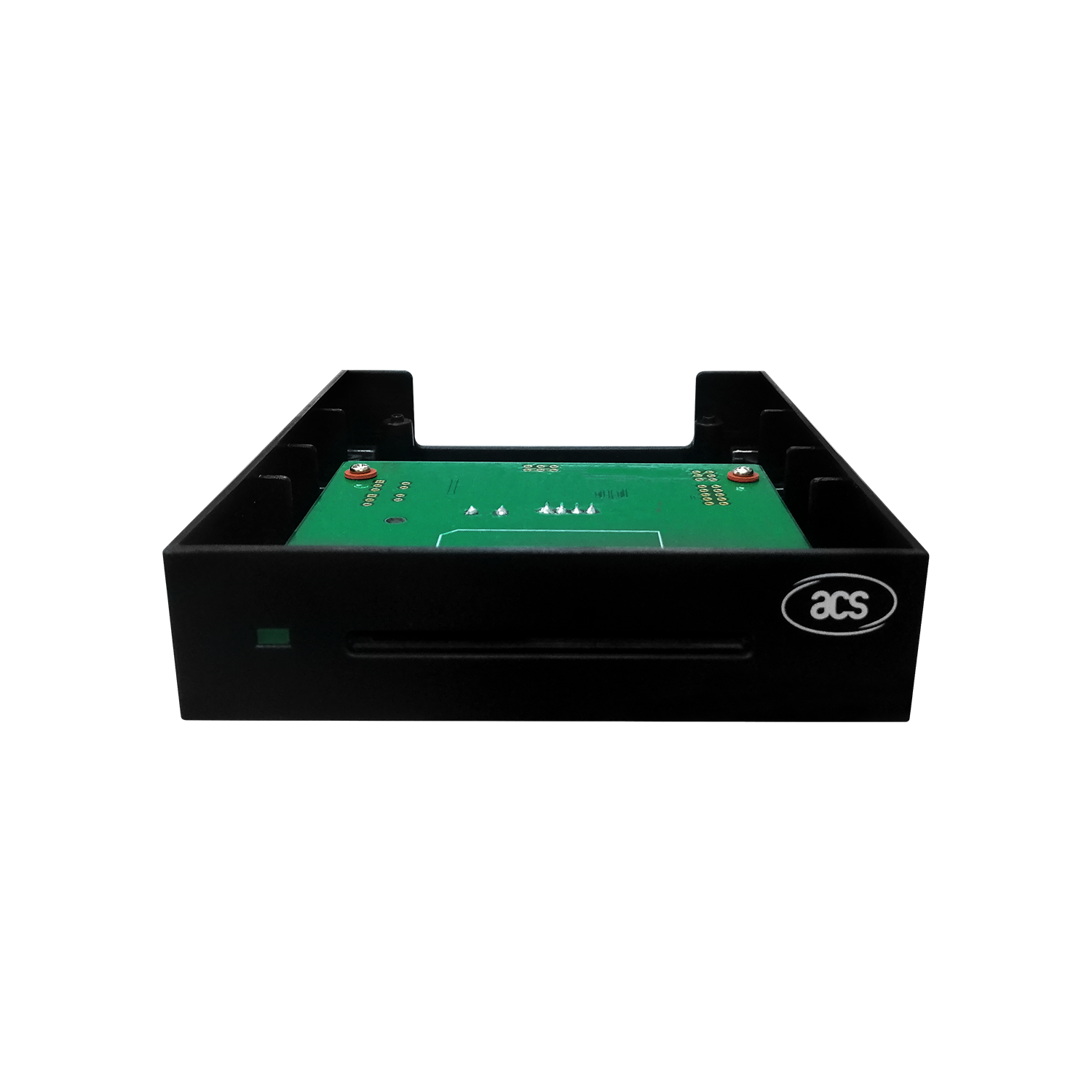

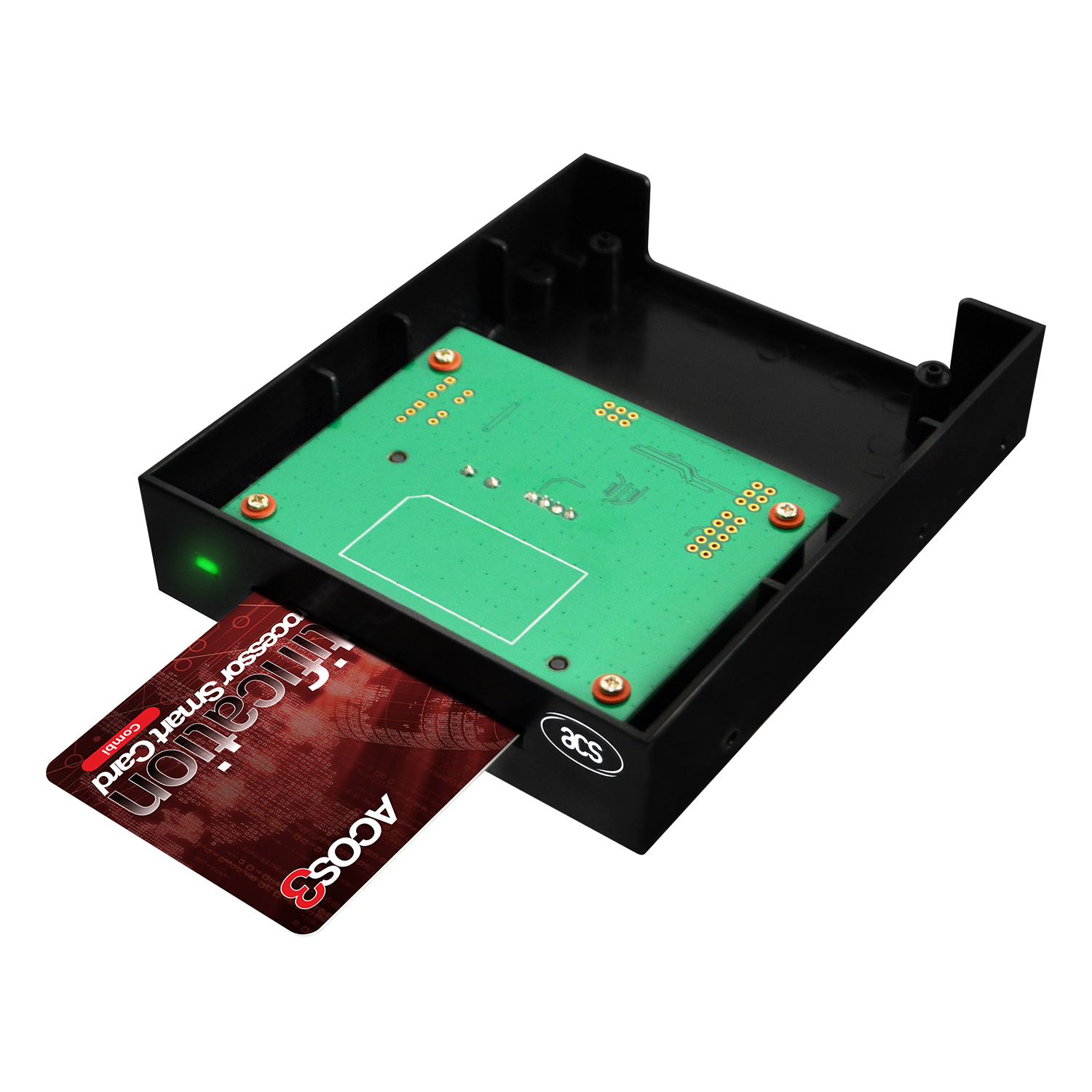

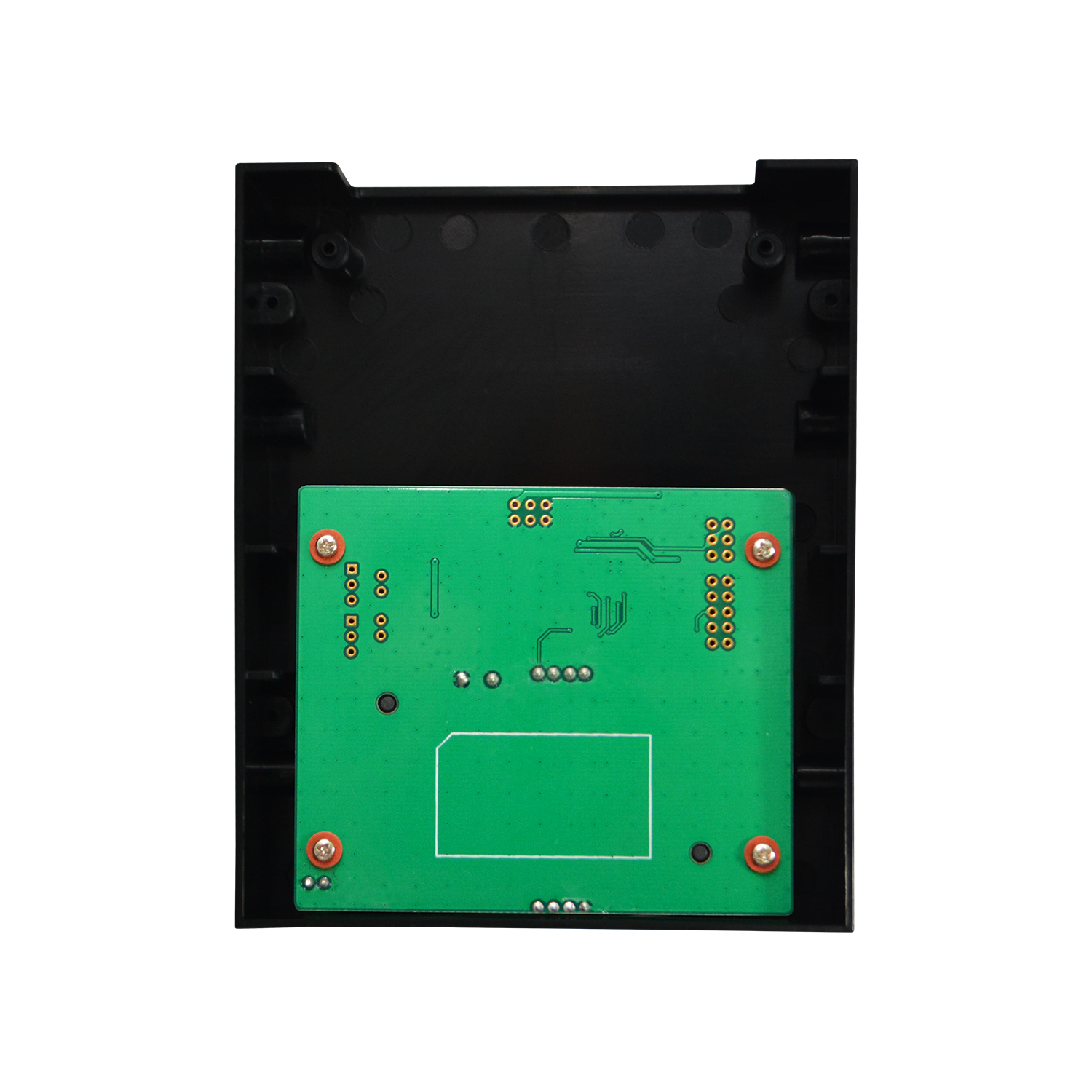

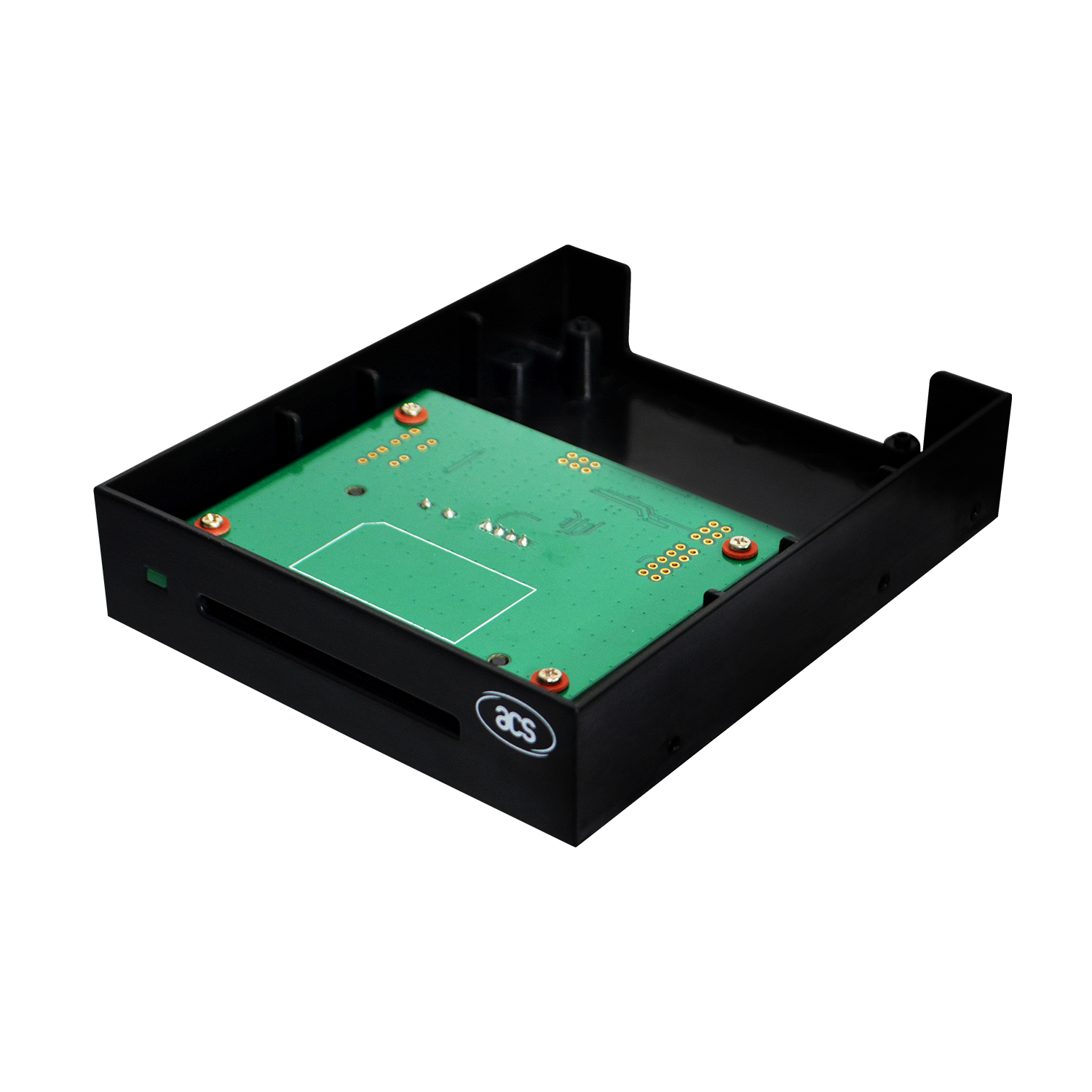

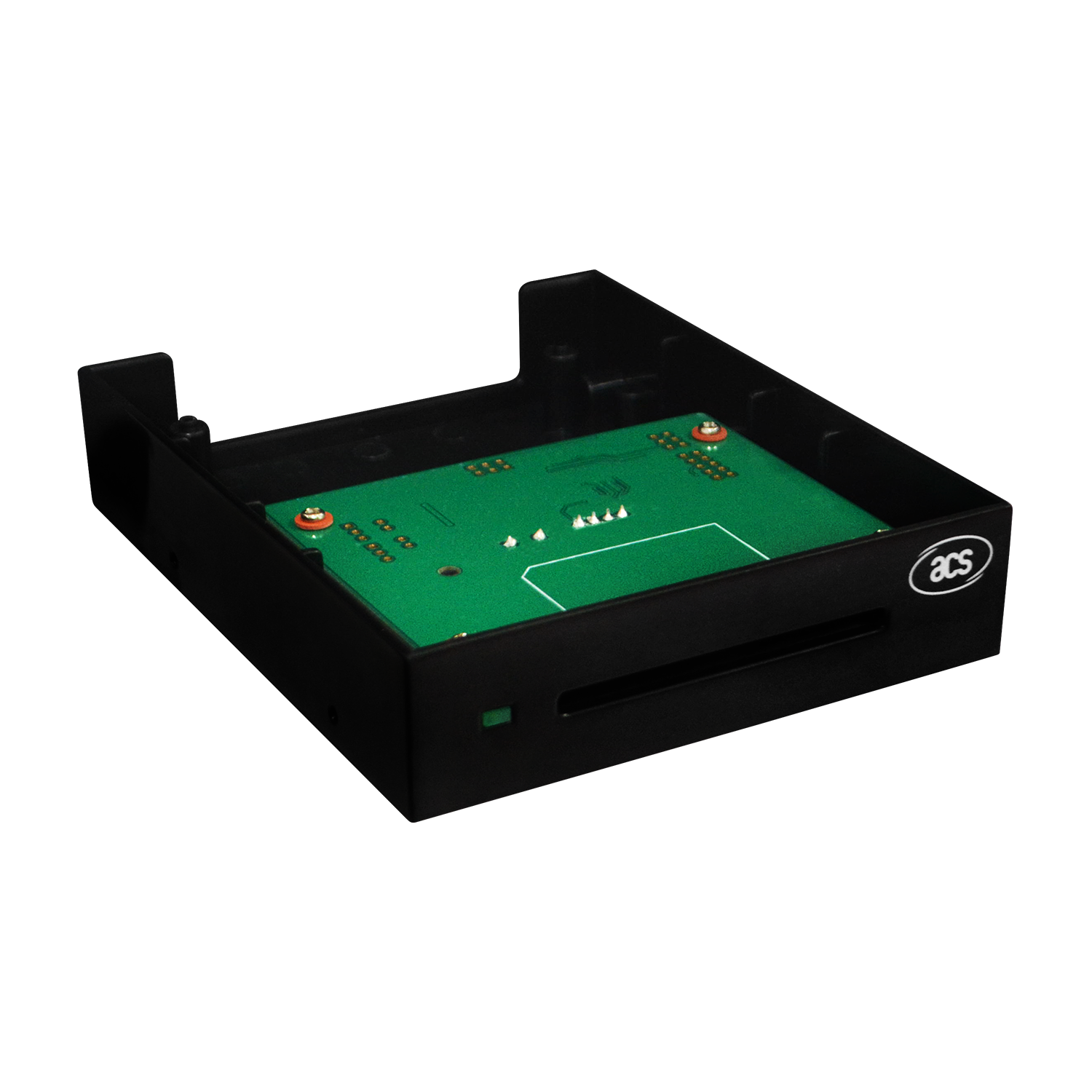

Images

Downloads

TypeTitleSizeUpdated
APIACS ApduTool (iOS)118.31 KB23-Feb-2024
DriverPC/SC Driver Installer (Windows®)5.02 MB11-Dec-2025
DriverPC/SC Driver Installer (Linux®)4.30 MB20-Nov-2025
DriverPC/SC Driver Installer (macOS®)281.65 KB17-Nov-2025
DriverAndroid EVK (Android™ 3.1 or above)1.46 MB25-Nov-2025
DriverPC/SC Driver Installer (Solaris 10, 11 and above)available on request—16-Feb-2017
BrochureProduct Presentation of ACR39 Series Smart Card Reader——
DatasheetTechnical Specification of ACR39F-A2 Smart Floppy Smart Card Reader——
ManualReference Manual of ACR39 Series Smart Card Reader——
Need pricing, samples or integration support for PR1035? Contact our sales teamorask about distribution.
