Overview

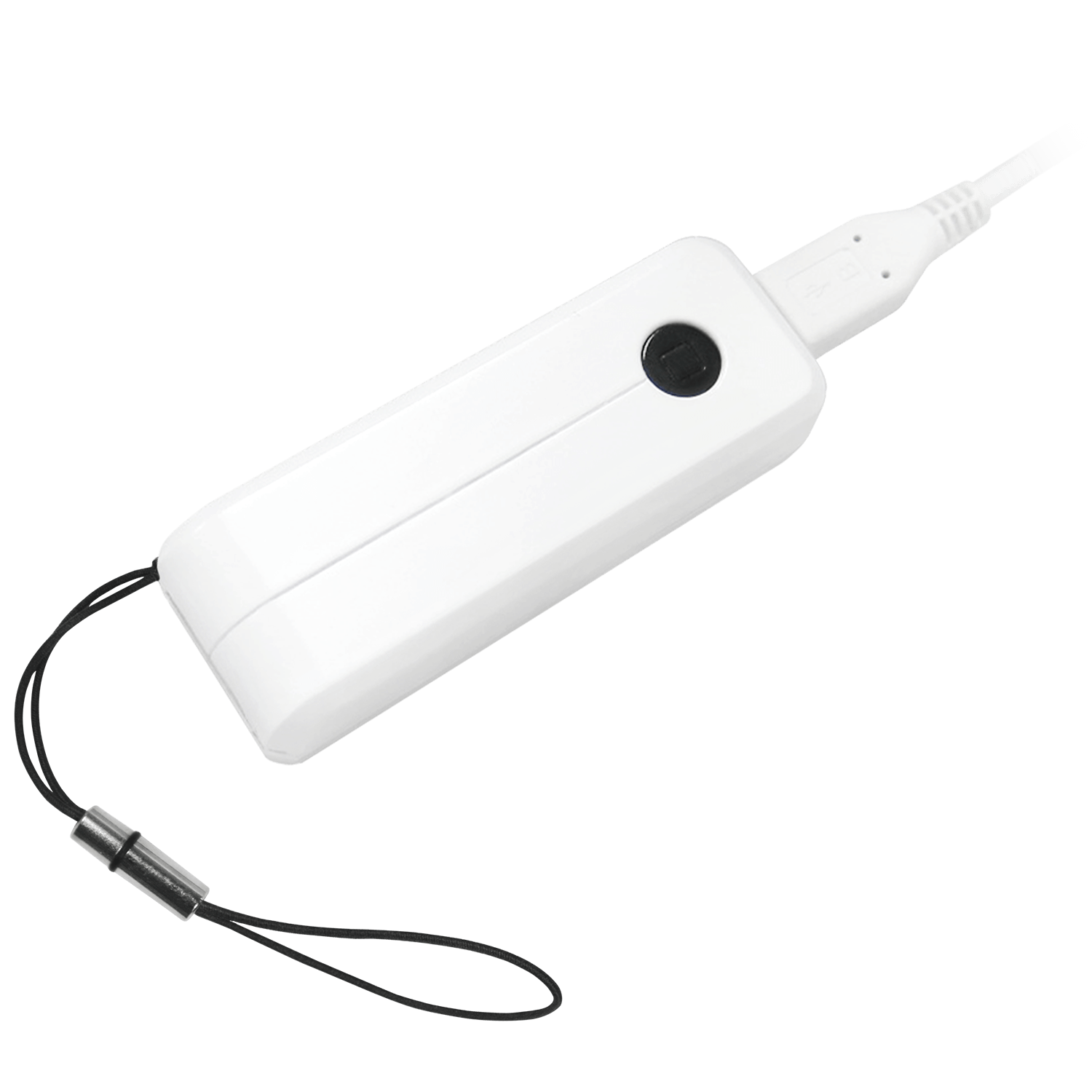

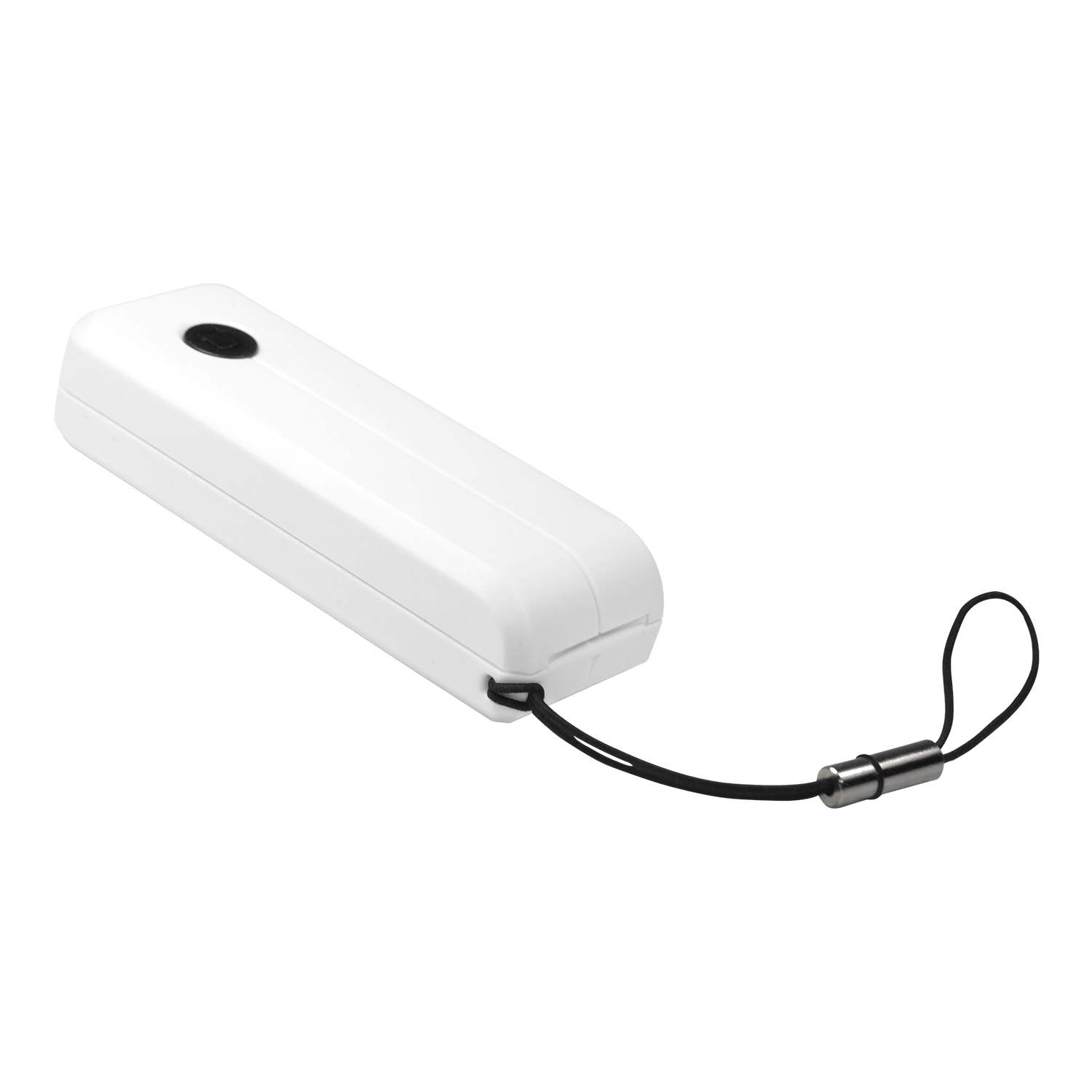

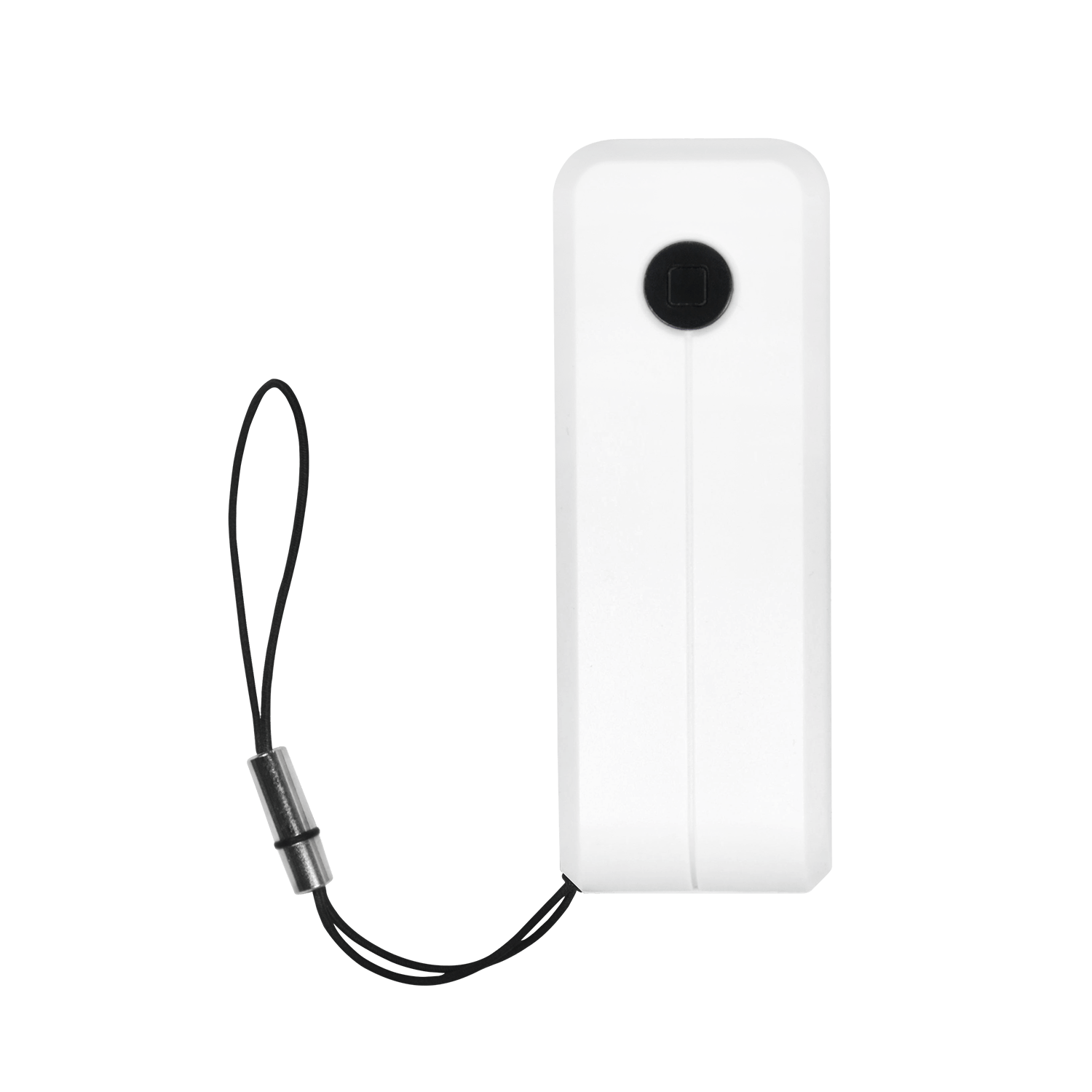

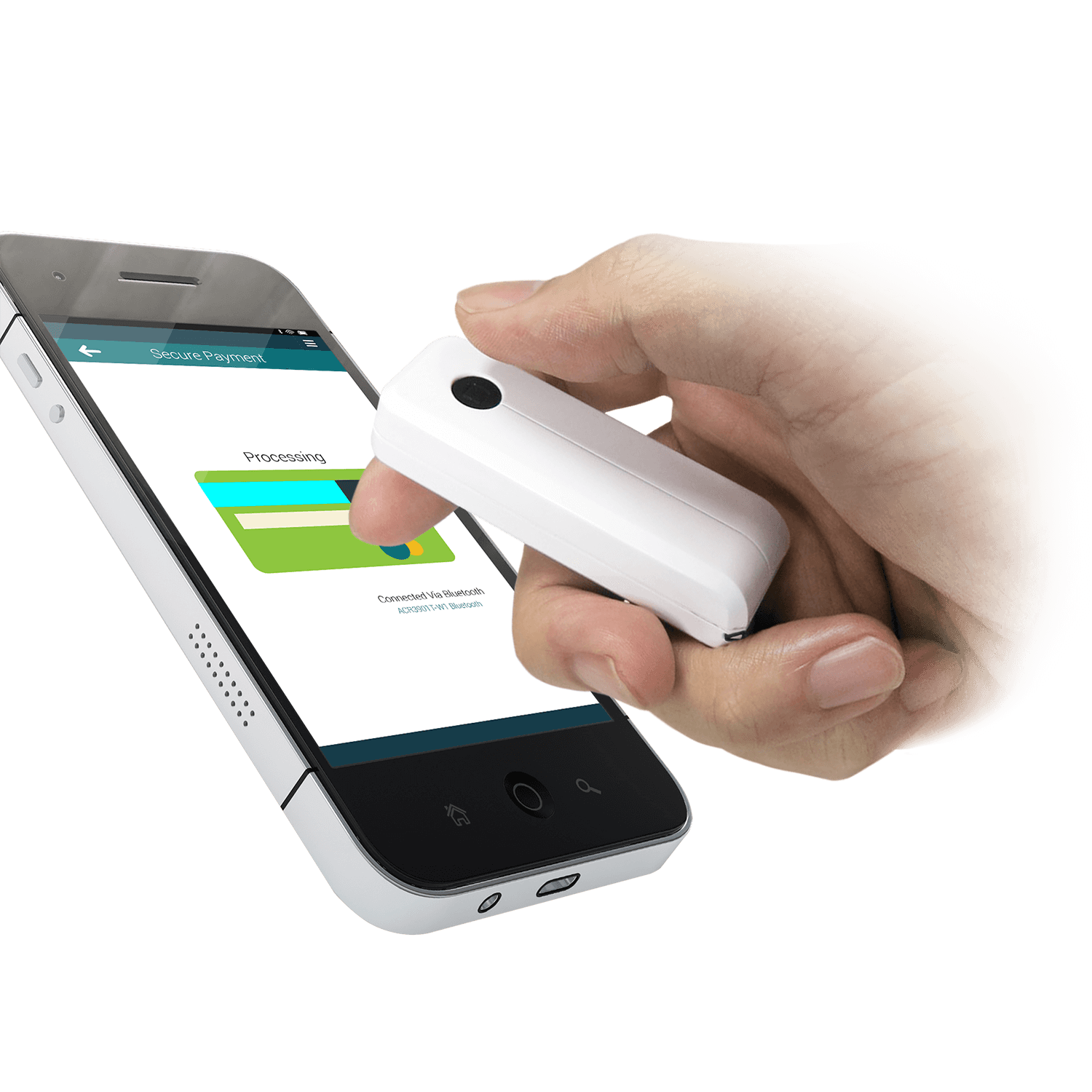

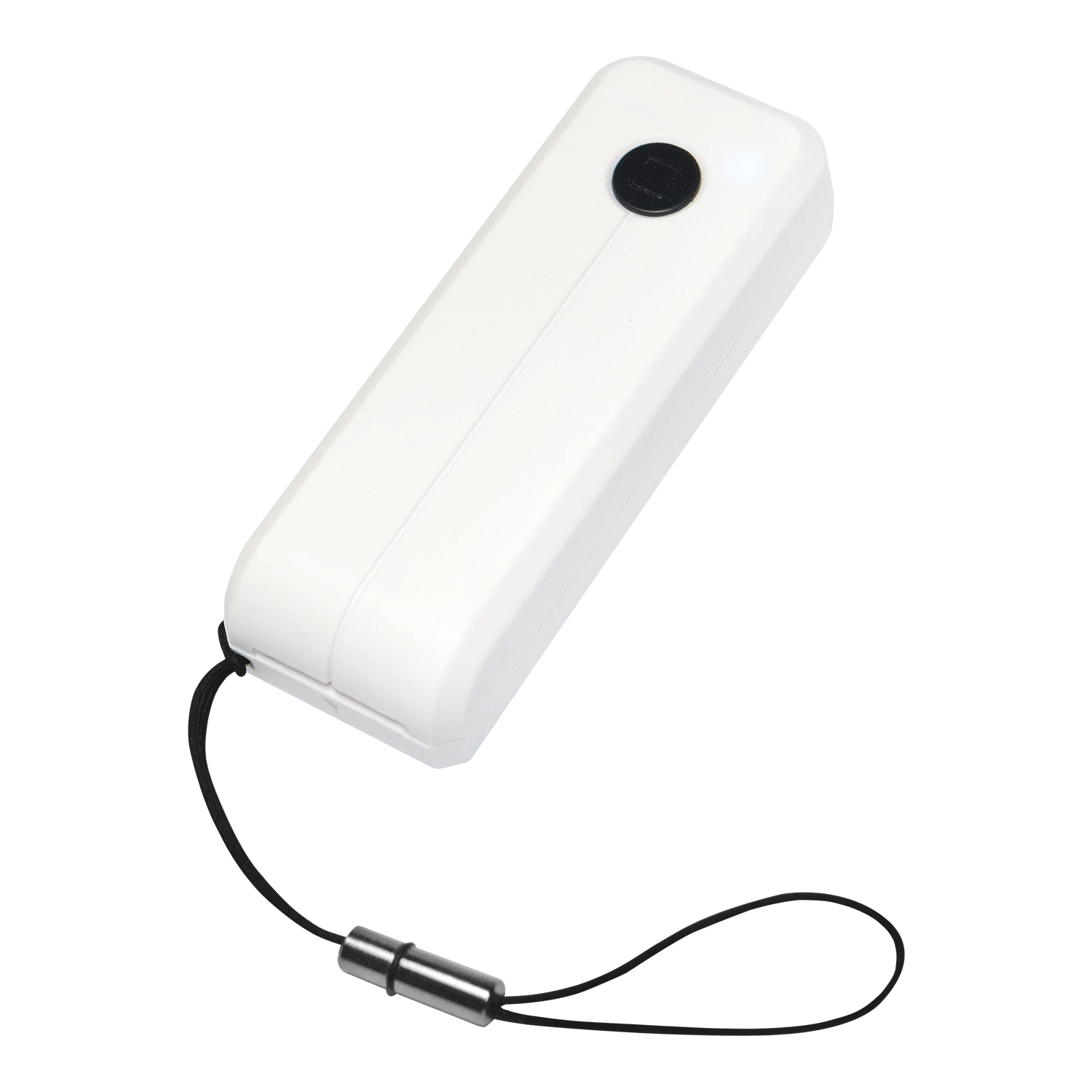

PR1020 ACS Secure Bluetooth® SIM-sized Contact Card Reader combines the latest smart card reader technology with Bluetooth® Smart connectivity. With a core based on the PR1013, this compact and lightweight smart card reader meets the requirements of various smart card-based applications running on most Bluetooth-enabled devices in the market, such as smart phones and tablets.
PR1020 supports ISO 7816 Class A, B, and C SIM-sized smart cards (5 V, 3 V, and 1.8 V) and most memory cards in the market, including microprocessor cards with T=0 and T=1 protocol. PR1020 has a read/write speed of up to 600 Kbps and connectivity options for both USB Full Speed and Bluetooth 4.0 Interfaces. With its compact design and rechargeable Lithium-ion battery, PR1020 is extremely portable and convenient for use anytime, anywhere.
PR1020 also offers in-field firmware upgrade to help the user cope with the fast-changing technology utilized by different applications. With this feature, stakeholders will be able to save valuable cost and time and provide utmost convenience to users. Equipped with AES-128 encryption algorithm, it supports devices running on Android™ 4.3 and above, iOS 8.0 and above, Windows®, and Mac OS®.
PR1020 uses Bluetooth® technology that allows easy integration without employing any physical connection to any terminal, and is PC/SC and CCID-compliant, making it easy to install and use in any computer-based environment. Its drivers are compatible with the Windows® operating system, Linux®, and Mac OS®.
With its numerous features, the PR1020 is the perfect smart card reader for your smart card solution.
Should you wish to try out the demo apps for PR1020, please download the app from Google Play and App Store.
Features
- Bluetooth® Interface
- USB 2.0 Full Speed Interface
- Power Source: Battery-Powered (rechargeable Lithium-ion battery via Micro-USB) or USB-Powered (PC-linked mode)
- CCID Compliance
- Contact Interface: Supports ISO 7816 Class A, B, and C (5V, 3V, 1.8V) SIM-sized cards
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- Supports PPS (Protocol and Parameters Selection)
- Features Short-Circuit Protection
- Supports AES-128 encryption algorithm
- Built-in Peripheral: Two LEDs, Button
- Application Programming Interface: Supports PC/SC and CT-API (through wrapper on top of PC/SC)
- USB Firmware Upgradeability
- Supports Android™ 4.3 and later
- Supports iOS 8.0 and later
Technical Specifications
| Category | Details |
|---|---|
| Physical Characteristics | |
| Dimensions (mm) | 66 x 24 x 14 mm |
| Weight (g) | 17 g (30 g with cable, ± 5 g tolerance) |
| Bluetooth Interface | |
| Protocol | Bluetooth® (Bluetooth Low Energy / Bluetooth 4.0) |
| Power Source | Rechargeable Lithium-ion Battery (charging through USB) |
| Speed | 1 Mbps |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | Micro-USB |
| Power Source | From USB port |
| Speed | USB Full Speed (12 Mbps) |
| Cable Length | 20 cm, Detachable |
| Contact Smart Card Interface | |

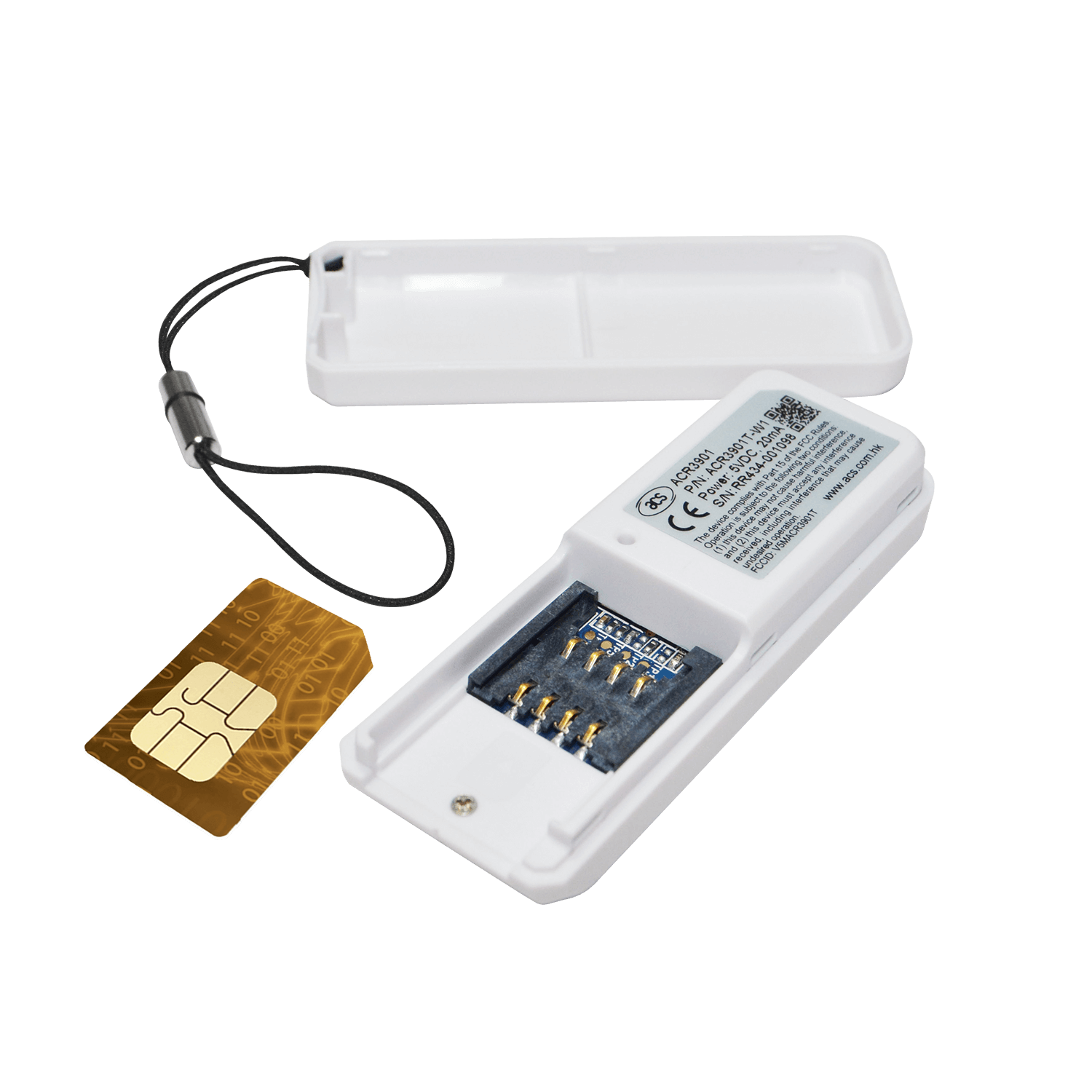

| Number of Slots | 1 SIM-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5V, 3V, 1.8V) |
| Protocol | T=0; T=1; Memory Card Support |
| Built-in Peripherals | |
| Buttons | For Device ON/OFF; Transaction Approval (depending on software support) |
| LED | 1 Bi-color: Green and Blue; 1 single-color: Red |
| Other Features | |
| Encryption | In-device AES encryption algorithm |
| Firmware Upgrade | Supported |
| Certifications/Compliance | |
| Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, Bluetooth®, PC/SC, CCID, CE, FCC, RoHS, REACH, Microsoft® WHQL |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, MAC OS® 10.7 and later, Android™ 4.3 and later, iOS 8.0 and later |
