PR1048
Plan your purchase
Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.
- Evaluation samples
- Paid samples
- Warranty
- One-year warranty
Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.
What to include in your enquiry
- Model and quantity
- Specify the model or required function, evaluation quantity and expected order quantity.
- Destination and application
- Include the delivery country, project use and required delivery date.
- Cards and host platform
- List the card or tag type, operating system and version, connection and software requirements.
Questions to resolve before ordering
- Which card, tag or identity document must the product work with, and what data must be read or written?
- Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.
If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.
Overview

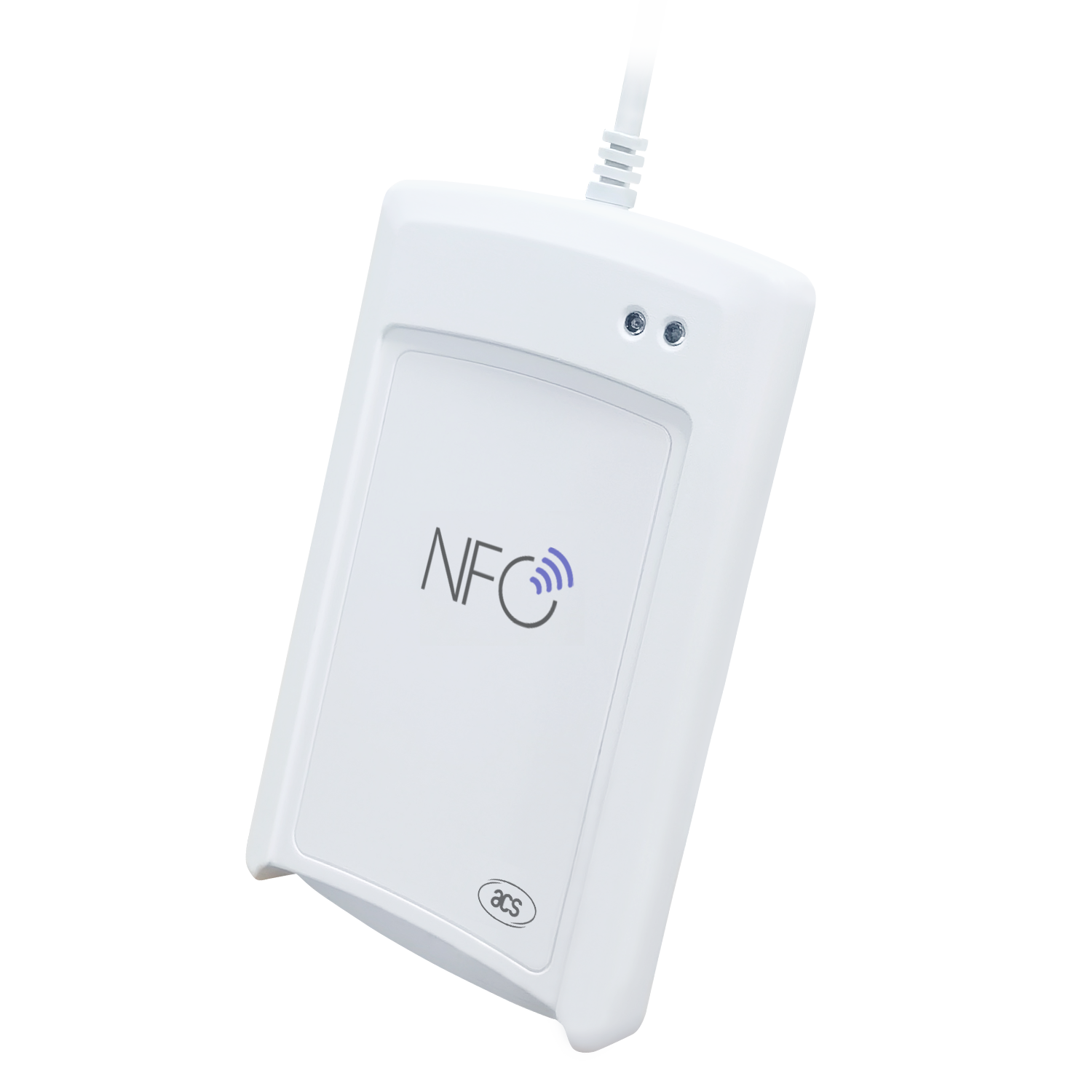

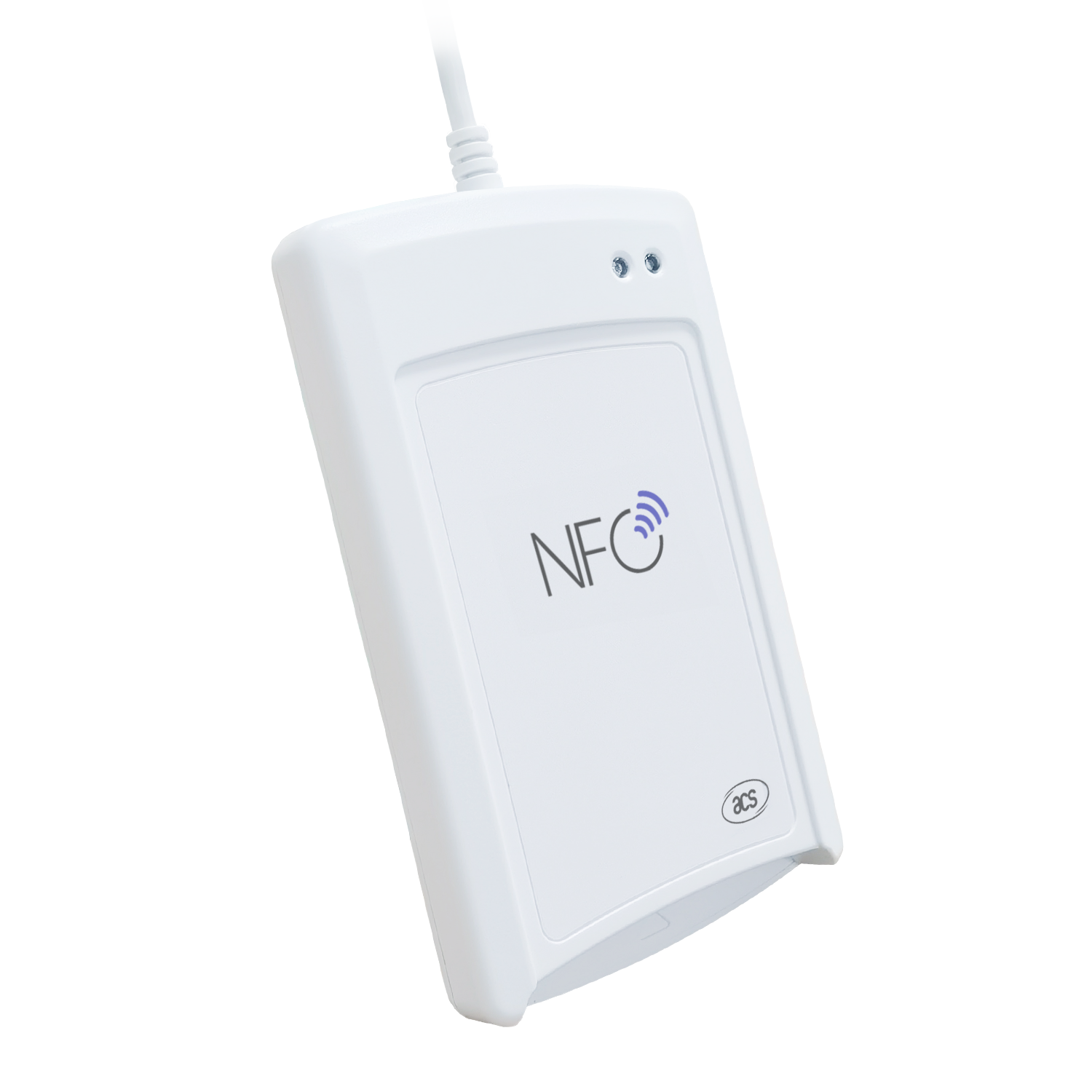

PR1047 DualBoost III is the third generation of ACS's ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816, ISO 14443 Type A & B cards, and ISO 15693 standards. PR1047 DualBoost III enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It also features a Secure Access Module (SAM), which serves the purpose of key diversification and mutual authentication. This SAM feature ensures a high level of security in transactions.
Comprehensive SDK—The PR1048 is a collection of PC/SC-compliant sample codes, for device and card programming. The SDK is designed to help software developers with the necessary tools and guidance to streamline their development process and create applications that effectively utilize the PR1047 DualBoost III.
Card Emulation and Keyboard Emulation Capability—The Smart Card and Reader Tool in this SDK includes NFC and NDEF tools to demonstrate the NFC capability of the PR1047. The card emulation function enables the card reader to simulate the behavior of a contactless smart card, while the keyboard emulation function allows card readers to work with a wide range of software applications that accept keyboard input.
Technical Specifications

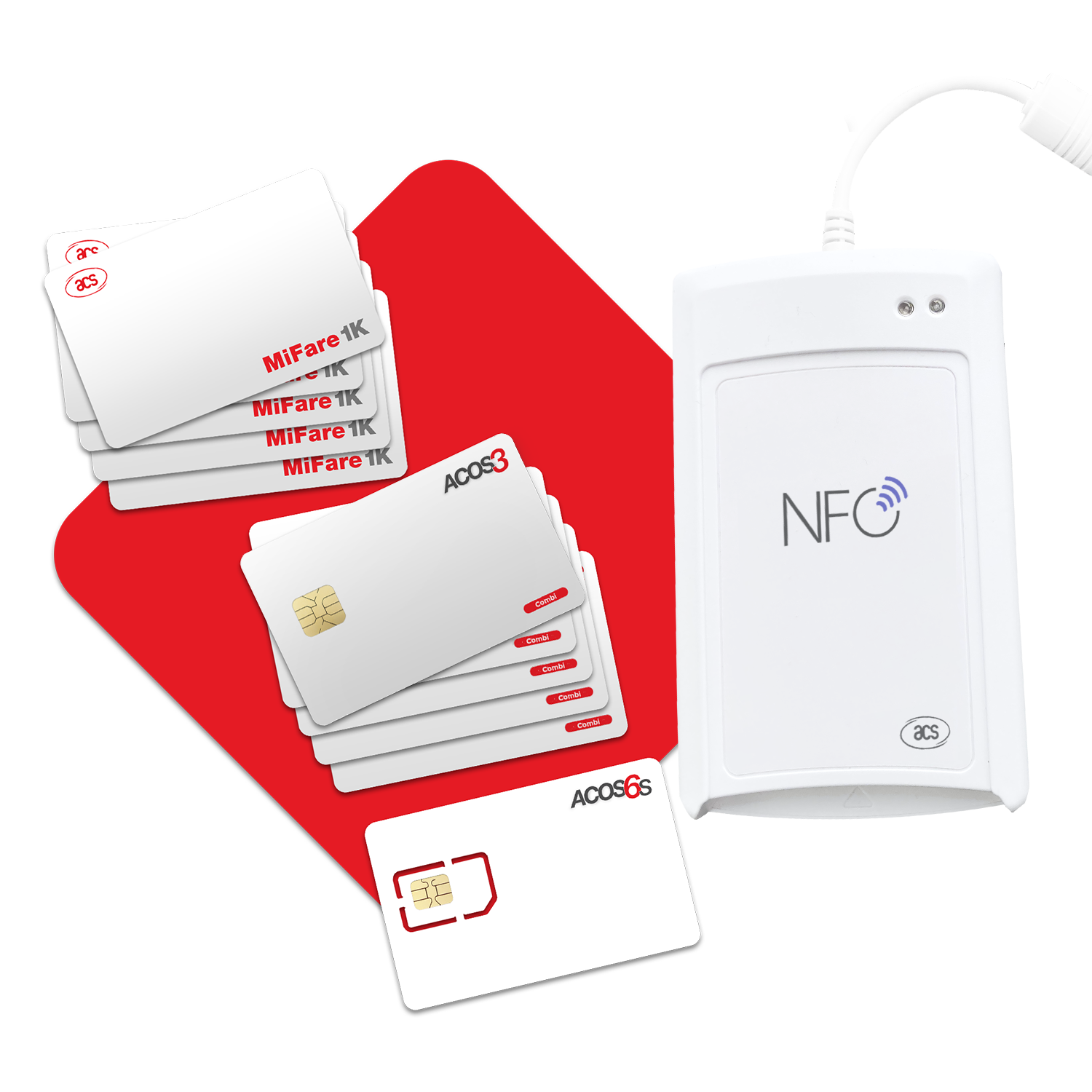

SDK Contents
| Item | Details |
|---|---|
| Smart Card Reader(s) | 1 x PR1047 DualBoost III USB Dual Interface Reader |
| Test Card(s)/ Token(s) | 5 x MIFARE 1K Cards, 5 x PR1024 Combi Smart Cards, 1 x PR1029 Secure Access Module Card |
| Software Installer | Reference Manual(s); Tools and Utilities: QuickView 2.08, Script Tool 5.02, Smart Card and Reader Tool, Keyboard Configuration Tool V100, ACS CCID PC/SC Driver; Sample Codes demonstrating basic commands used to communicate with the cards and readers, available in Java (JDK8), MS Visual Basic (.NET framework 4.7.2), MS Visual C# (.NET framework 4.7.2), MS Visual C++ (.NET framework 4.7.2) |
| SDK Operating System Support | Windows® 10, Windows® 11 |
