PR1011 — USB Contactless Reader Module with SAM Slot
Smart Card Reader Modules

PR1011

USB Contactless Reader Module with SAM Slot

USB contactless reader module with Secure Access Module (SAM) slot and on-board antenna

Manufacturer reference: ACS — ACM1281U-C7 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • ISO 7816 (SAM Slot)
  • ISO 14443
  • USB Full Speed
  • PC/SC
  • CCID
  • CE
  • FCC
  • RoHS
  • REACH
  • Microsoft® WHQL

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1011

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1011 USB Contactless Reader Module with SAM Slot was designed based on 13.56 MHz technology for fast and easy integration into embedded systems.

PR1011 supports ISO 14443 Parts 1-4 Type A and B cards, and MIFARE® Classic series. It has a card reading distance of up to 50 mm (depending on tag type). Moreover, it has an ISO 7816-compliant built-in SAM (Secure Access Module) slot, which can be used with a SAM card for high-level security in contactless transactions.

The PR1011 comes with an integrated (on-board) antenna and supports USB firmware upgradability and extended APDU. It supports up to a maximum communication speed of 848 kbps and a detachable USB cable is also available. This reader module is suitable for highly demanding contactless smart card applications, such as vending machine payment systems, kiosks, gaming machines, and other integrated systems.

Device features: PC-Linked, USB, Molex Connector, Contactless Reader, Firmware Upgradeable

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • USB Firmware Upgradeability
  • Smart Card Reader:
  • - Contactless Interface:
  • - Read/write speed up to 848 kbps
  • - Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • - Supports ISO 14443 Part 4 Type A and B cards and MIFARE® Classic series
  • - Built-in anti-collision feature (only 1 tag is accessed at any time)
  • - Supports extended APDU (max. 64 kbytes)
  • - SAM Interface:
  • - ISO 7816-compliant SAM slot, Class A (5V)
  • Application Programming Interface:
  • - Supports PC/SC
  • - Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals:
  • - 2 user-controllable single-color LEDs
  • - 1 user-controllable buzzer

Technical Specifications

Category Details
Physical Characteristics
Dimensions (mm) 106.6 mm (L) x 67.0 mm (W) x 16.0 mm (H)
Weight (g) 20.8 g
USB Interface
Connector Type Standard Type A
Protocol USB CCID
Speed USB Full Speed (12 Mbps)
Power Source From USB port
Cable Length 1.0 m, Detachable (Upon Request)
Contactless Smart Card Interface
Standard ISO 14443 A and B Parts 1-4
Protocol ISO14443-4 Compliant Cards, T=CL; MIFARE® Classic Card Protocol, T=CL
Antenna 65 mm x 60 mm
SAM Card Interface
Number of Slots 1
Standard ISO 7816 Parts 1-3, Class A (5 V)
Protocol T=0; T=1
Built-in Peripherals
LED 2 single-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance ISO 7816 (SAM Slot), ISO 14443, USB Full Speed, PC/SC, CCID, CE, FCC, RoHS, REACH, Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, MAC OS®, Solaris, Android™

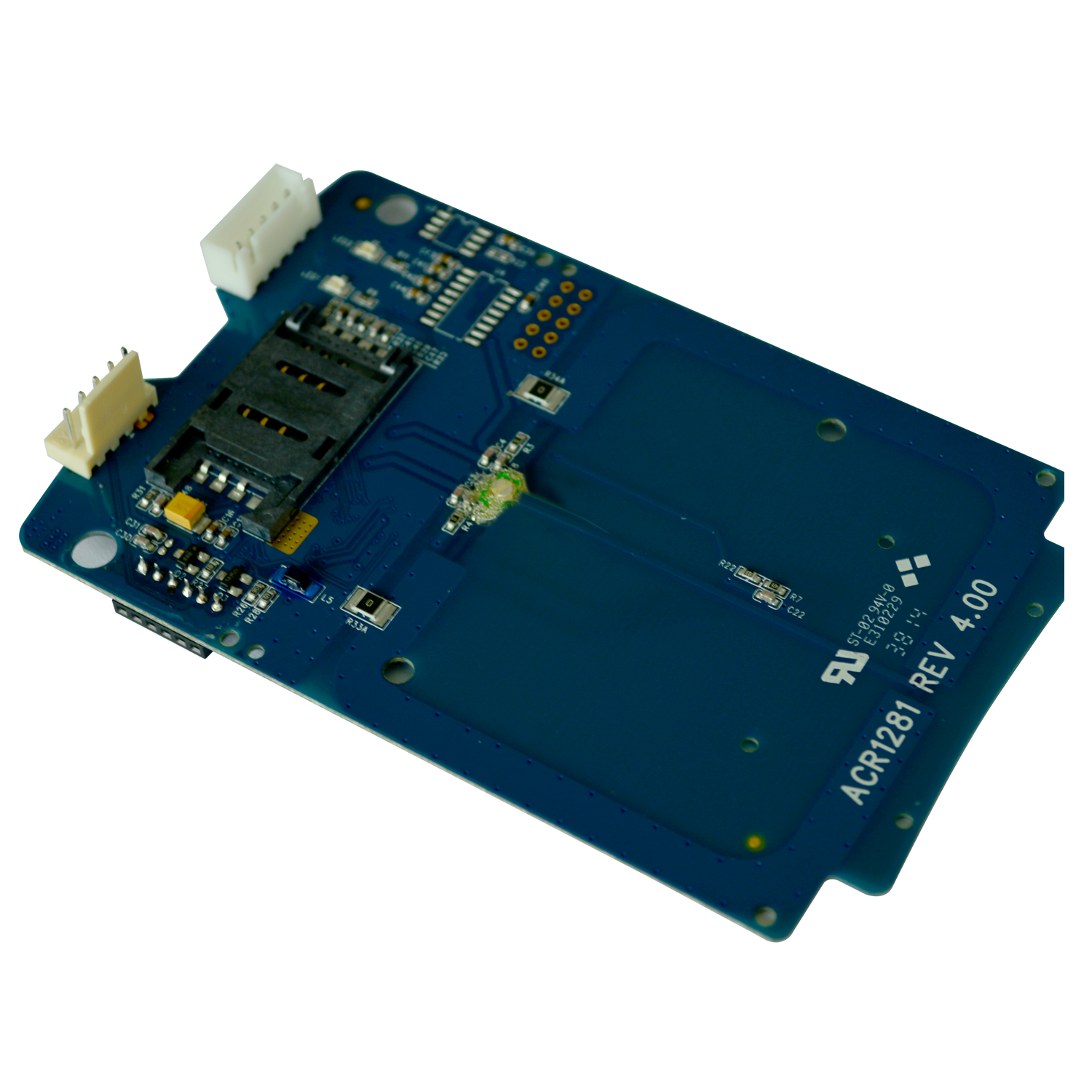

Images
