PR1010 — USB NFC Reader Module with Detachable Antenna Board
Smart Card Reader Modules

PR1010

USB NFC Reader Module with Detachable Antenna Board

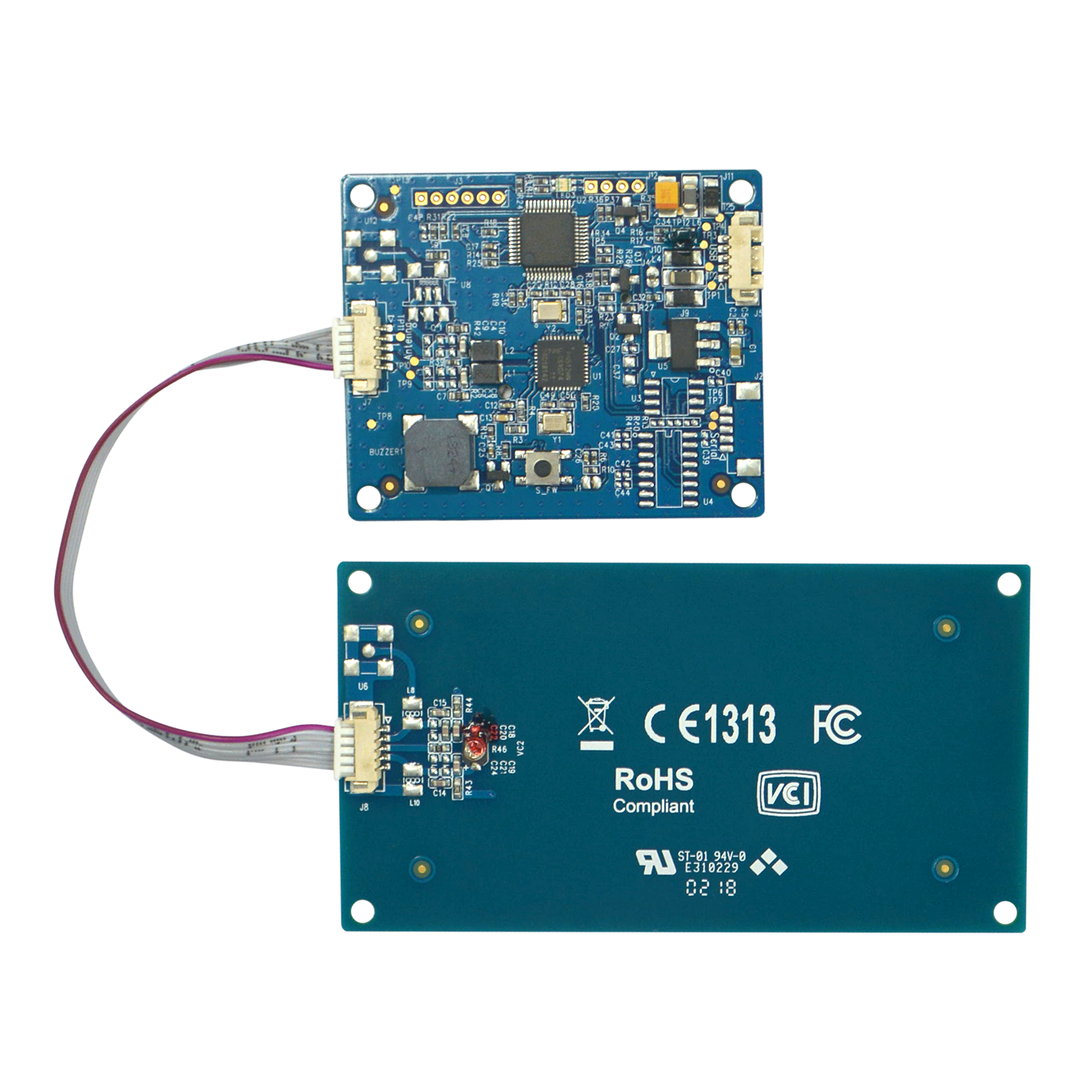

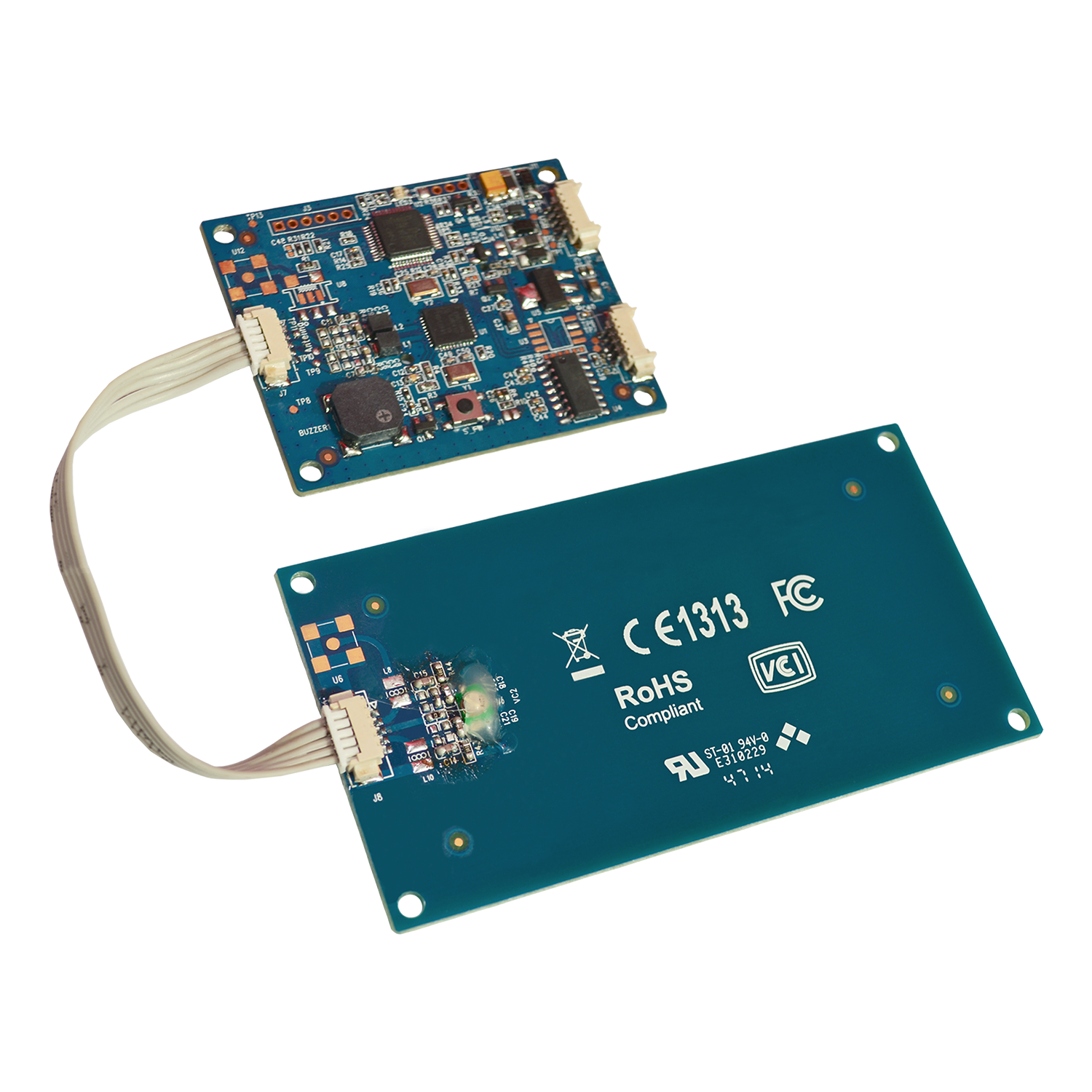

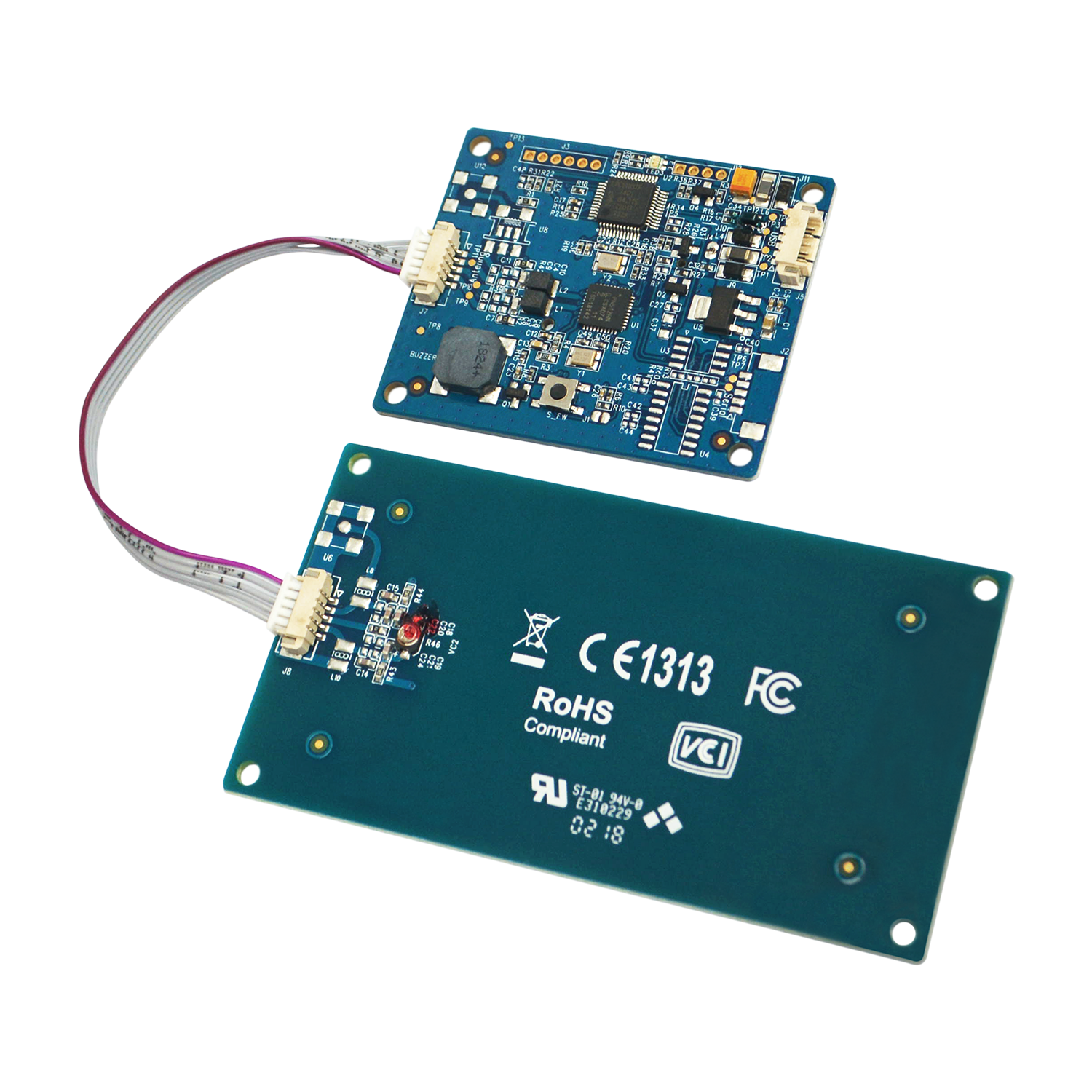

NFC reader module with detachable antenna board

Manufacturer reference: ACS — ACM1252U-Y3 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation
  • P2P Communication

PR1010

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1010 USB NFC Reader Module with Detachable Antenna Board is developed based on the 13.56 MHz contactless technology. This smart card reader module is designed for fast and easy integration into embedded systems.

This reader module supports the three NFC modes (card reader/writer, card emulation, and peer-to-peer communication) and supports various cards such as ISO 14443 Type A and B, MIFARE®, and FeliCa cards, and ISO 18092–compliant NFC tags. It also supports other NFC devices with access speeds of up to 424 Kbps and proximity operating distances of up to 50 mm (depending on tag type used).

The PR1010 comes with a detachable antenna and optional USB cable, which provide flexibility when integrating the module into embedded systems, such as kiosks and vending machines. It is the perfect front-end interface module to enable NFC transactions for applications involving integrated systems.

Upon request, PR1010 comes with a Class A, ISO 7816-compliant Secure Access Module (SAM) slot.

Key Attributes: PC-Linked, USB, Molex Connector, Contactless Reader, NFC Reader, Firmware Upgradeable

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • USB Firmware Upgradeability
  • Smart Card Reader: - Contactless Interface: - Read/write speed up to 424 kbps - Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) - Supports ISO 14443 Type A and B, MIFARE®, and FeliCa cards, and all 4 types of NFC (ISO/IEC 18092) tags - Supports MIFARE® 7-byte UID, MIFARE® Plus and MIFARE® DESfire - Built-in anti-collision feature (only 1 tag is accessed at any time) - NFC Support: - NFC Reader/Writer Mode - Peer-to-Peer Mode - Card Emulation Mode
  • Application Programming Interface: - Supports PC/SC - Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals: - User-controllable bi-color LED - User-controllable buzzer

Technical Specifications

Physical Characteristics
Dimensions (mm) Main Board: 55.0 mm (L) x 45.0 mm (W) x 5.1 mm (H)
Antenna Board: 91.0 mm (L) x 49.5 mm (W) x 5.1 mm (H)
Weight (g) 26.6 g
USB Interface
Protocol USB CCID
Connector Type Standard Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1.0 m, Detachable (Upon Request)
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO18092, NFC Tags; FeliCa
Antenna 77 mm x 49.5 mm
SAM Card Interface
Number of Slots 1 (Optional)
Built-in Peripherals
LED 1 bi-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950, ISO 7816 (SAM Slot), ISO 14443, ISO 18092, USB Full Speed, PC/SC, CCID, VCCI (Japan), CE, FCC, RoHS, REACH, Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, MAC OS®, Solaris, Android™
