PR1052 — USB NFC Reader Module with Detachable Antenna Board
Smart Card Reader Modules

PR1052

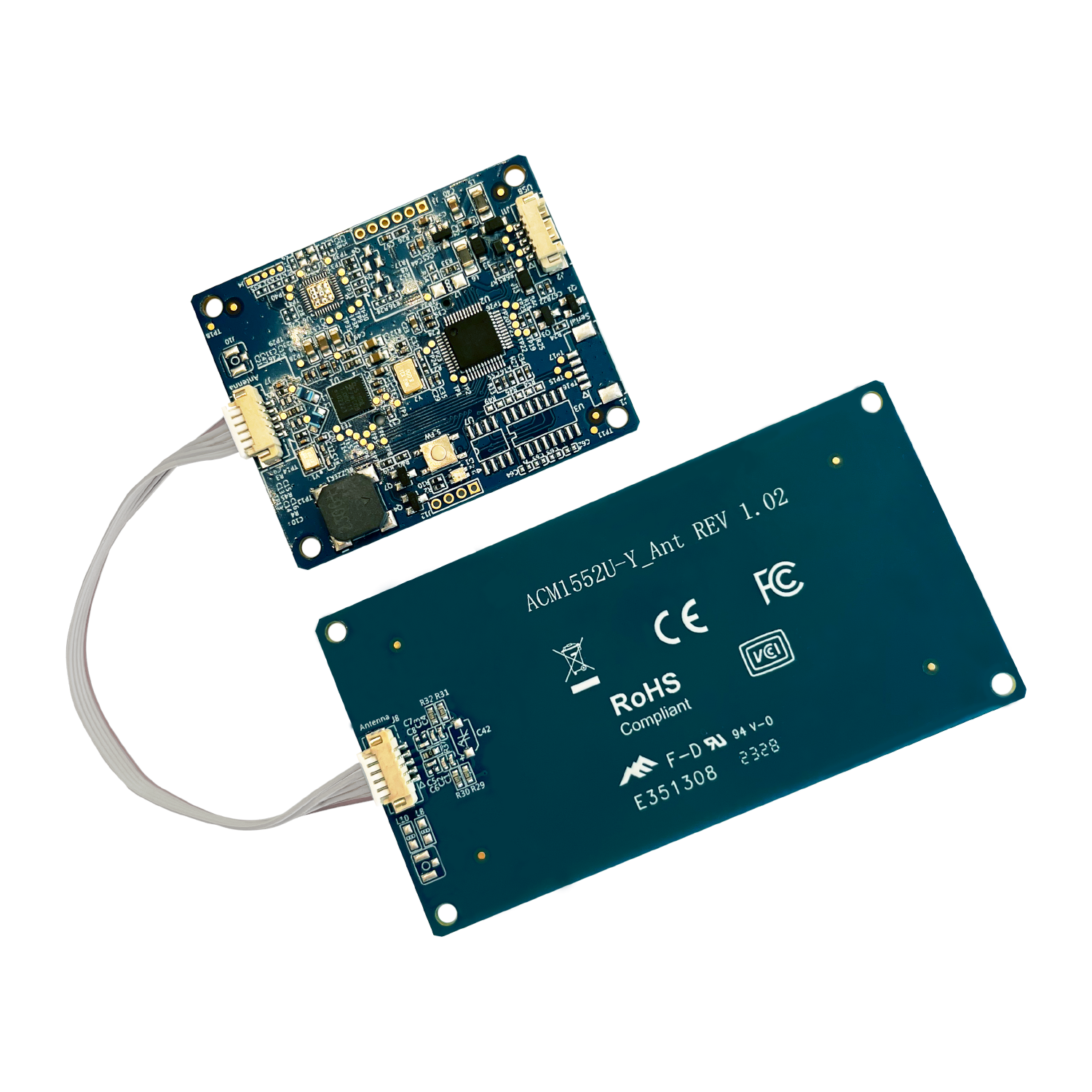

USB NFC Reader Module with Detachable Antenna Board

PR1052 uses a detachable antenna board, providing a different layout option from the compact Z2 module.

Manufacturer reference: ACS — ACM1552U-Y3 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • IEC/EN 62368
  • CE
  • UKCA
  • FCC
  • VCCI
  • RoHS
  • REACH
  • WEEE
  • Microsoft® WHQL
  • USB CCID
  • PC/SC

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1052

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

Confirm the quotation scope

Use this checklist to specify what you want quoted. Manufacturer specifications describe the product; compatibility with your setup still requires evaluation.

Board and antenna assembly
Request the current mechanical drawing for the quoted revision. Confirm the reader board, detachable antenna board, interconnection and USB cable included.
Optional SAM
If needed, request the optional Class A (5 V) SAM slot explicitly. Confirm the fitted option and whether the SAM card is quoted separately.
Installed configuration
Record antenna position, surrounding materials, firmware and reader mode. Evaluate the intended cards in the complete enclosure.

Questions to resolve before ordering

  • Where will the reader board and detachable antenna board be mounted? Request the current mechanical drawing and confirm the interconnection for the supplied revision.
  • Do you require the optional Class A (5 V) SAM slot? Specify the SAM and card operations, and confirm the option is included in the quoted assembly.
  • Which USB host, OS version, card commands and reader mode will you evaluate? List the required cables, boards and buzzer behaviour.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗
From enquiry to evaluation and order

Use these checkpoints to confirm the configuration and evaluation scope before ordering in volume.

  1. Define the requirement

    Describe the task the product must perform and identify any requirements that still need clarification.

  2. Check the quotation scope

    Match the PR code to the manufacturer variant. Check the quoted hardware, accessories, software and licence terms.

  3. Agree the sample evaluation

    Before arranging evaluation units, agree the test setup and acceptance criteria. Record results and unresolved issues.

  4. Confirm the volume order

    Recheck the configuration and version against the evaluated unit, then confirm the quantity and delivery terms.

Manufacturer specifications describe the product; they do not confirm that your card, host and application have been tested together.

OEM NFC module specifications at a glance

Check the USB host connection, board and antenna layout, card operations and supplied assembly before choosing an embedded reader.

Host interface
USB 2.0 Full Speed; USB CCID and PC/SC.
Board and antenna layout
Separate reader and detachable antenna boards; confirm the mechanical drawing for the supplied revision.
Contactless card standards
ISO 14443 Type A/B, ISO 15693 and ISO 18092 at 13.56 MHz.
Operating modes
Reader/writer, keyboard emulation and card emulation; confirm the firmware and configuration for your application.
SAM requirement and option
One ISO 7816 Class A (5 V), SIM-size SAM slot is optional; confirm inclusion before ordering.
Integration hardware
Programmable blue/green LED and mono-tone buzzer; confirm the USB cable and assembly requirements.

Evaluate the module with your host, cards and finished enclosure. Y3 dimensions differ between manufacturer documents; request the current mechanical drawing for the supplied revision. Confirm firmware, cables and optional items before ordering. Price, quantity and lead time require a quotation.

Overview

PR1052 USB NFC Reader Module with Detachable Antenna Board was developed based on the 13.56 MHz contactless technology. It can access contactless card and devices following the ISO 14443, ISO 15693 and ISO 18092 standards. This smart card reader module is designed to easily integrate embedded systems.

PR1052 is a CCID & PC/SC compliant reader, this plug-and-play NFC reader makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also supports three NFC modes:

  • Smart Card Reader/Writer
  • Card Emulation
  • Keyboard Emulation (Configured by this tool)

By integrating the three NFC modes, this NFC reader module provides versatility, cost-effectiveness, and flexibility, making it a powerful and valuable solution for smart card applications.

PR1052 has a detachable antenna and an optional USB cable, allowing it to be the perfect front-end interface module for NFC transaction applications, including vending machine payment systems, kiosks, gaming machines, and other integrated systems.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Contactless Smart Card Reader: - Read/Write speed up to 848 kbps - Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type) - Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC - Supports MIFARE Classic®, MIFARE® Mini, MIFARE Ultralight® (T=CL), FeliCa and Topaz Card - Built-in anti-collision feature - Supports extended APDU (max. 64 kbytes)
  • NFC Support: - Smart Card Reader/Writer Mode - Card Emulation Mode - Keyboard Emulation Mode
  • Application Programming Interface: - Supports PC/SC - Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals: - User-controllable bi-color LED (Blue & Green) - User-controllable buzzer (Monotone) - One SAM slot (Upon Request)
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics
Dimensions (mm) Main Board: 55.0 x 45.0 x 6.5; Antenna Board: 91.0 x 49.5 x 5.0
Weight (g) 27.7
USB Interface
Protocol USB CCID
Connector Type USB Type-A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1m, Detachable (Upon Request)
Contactless Smart Card Interface
Standard ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO 15693; ISO 18092 NFC Tags; FeliCa
Built-in Peripherals
LED 1 bi-color: Blue and Green
Buzzer Monotone
Other Features
Other Features Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE Classic®, MIFARE® Mini, MIFARE Ultralight® (T=CL), FeliCa, Topaz Card. Other NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance Certifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, WEEE, Microsoft® WHQL. Compliance: USB CCID, PC/SC
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, Android™

Images
