PR1039 — Secure Validator with QR code Scanner · RS-232
Automatic Fare Collection (AFC) Readers

PR1039

Secure Validator with QR code Scanner · RS-232

Automatic fare collection validator with contactless card reading and a QR code scanner

Manufacturer reference: ACS — ACR350 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • Banking & Payment
  • Access Control
  • Transportation

PR1039

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

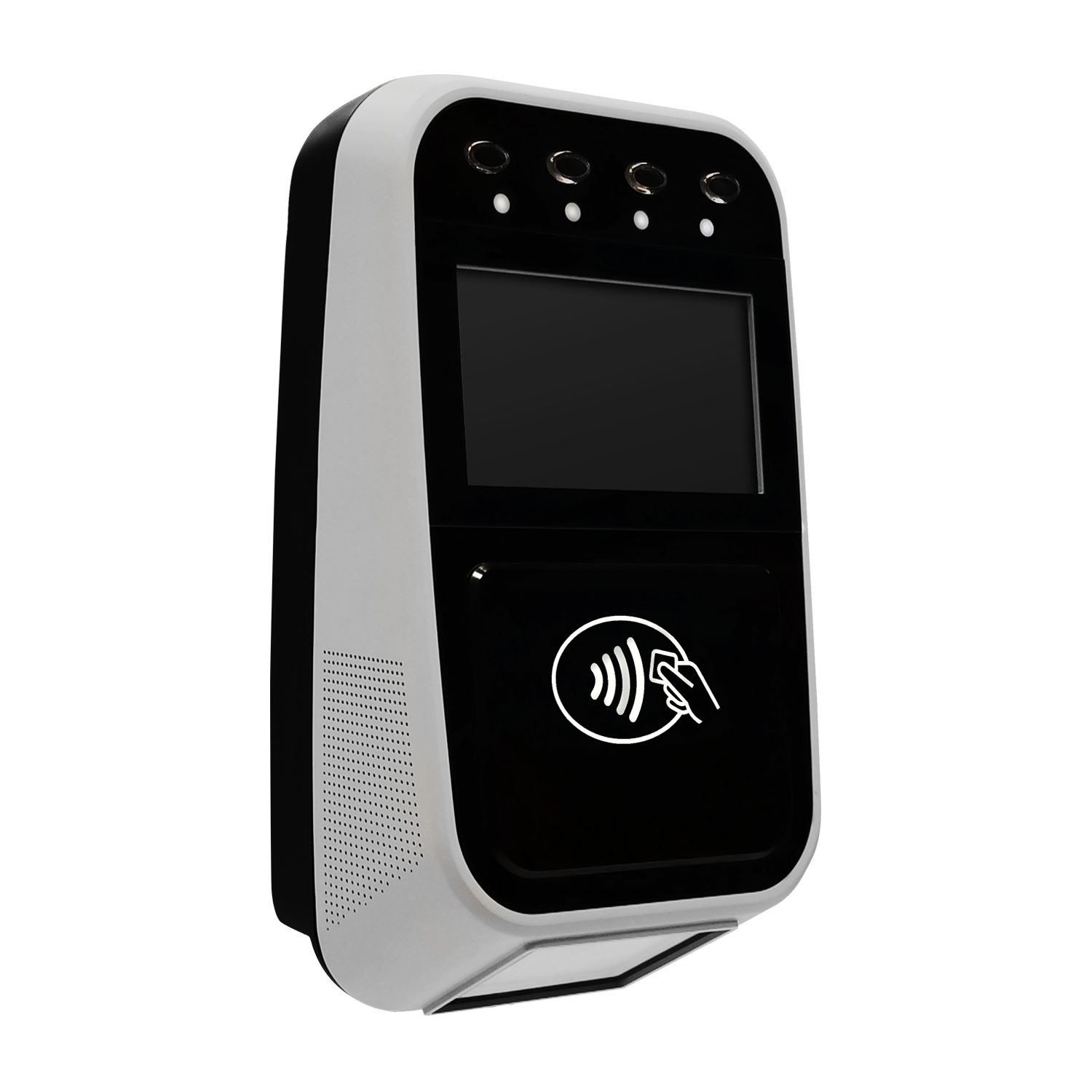

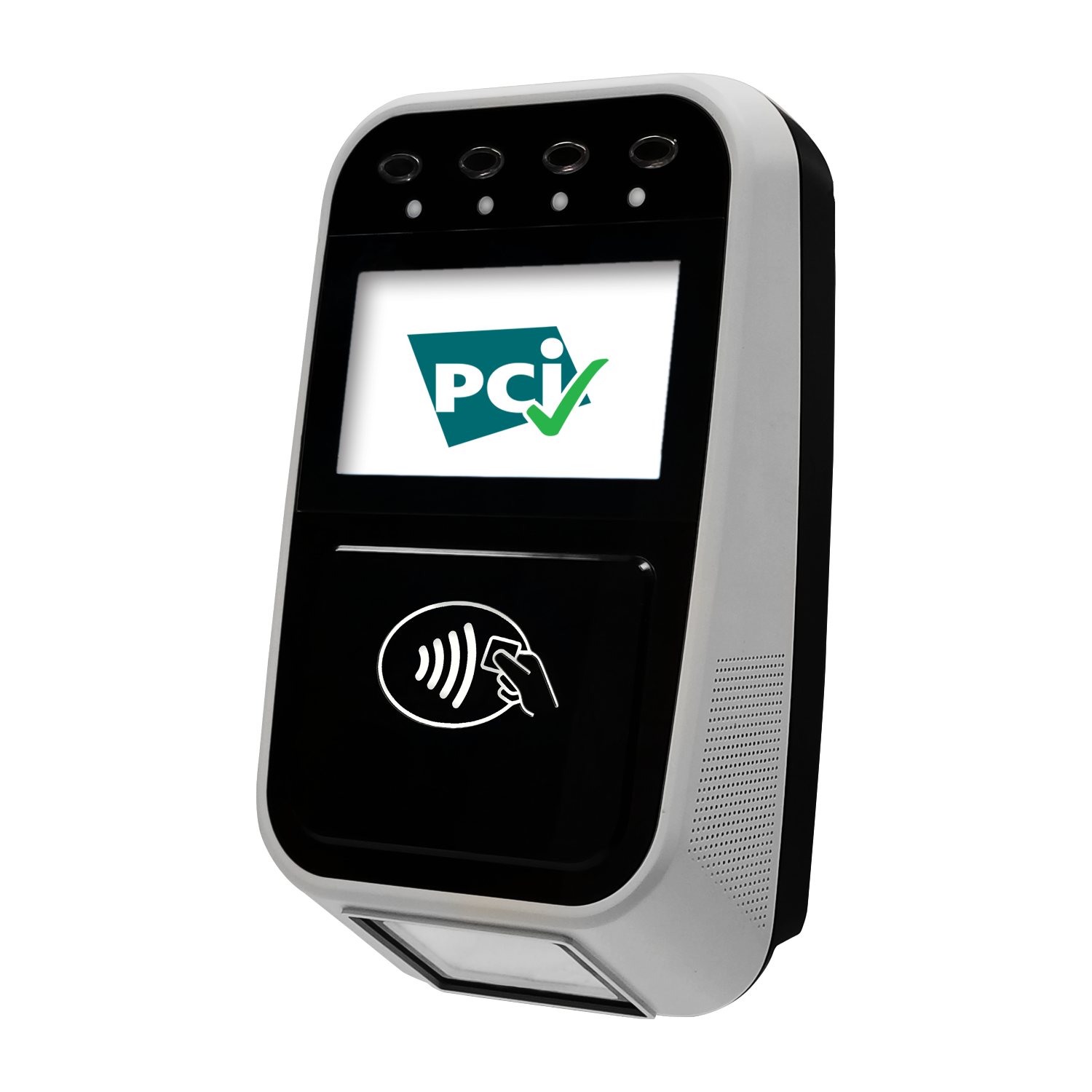

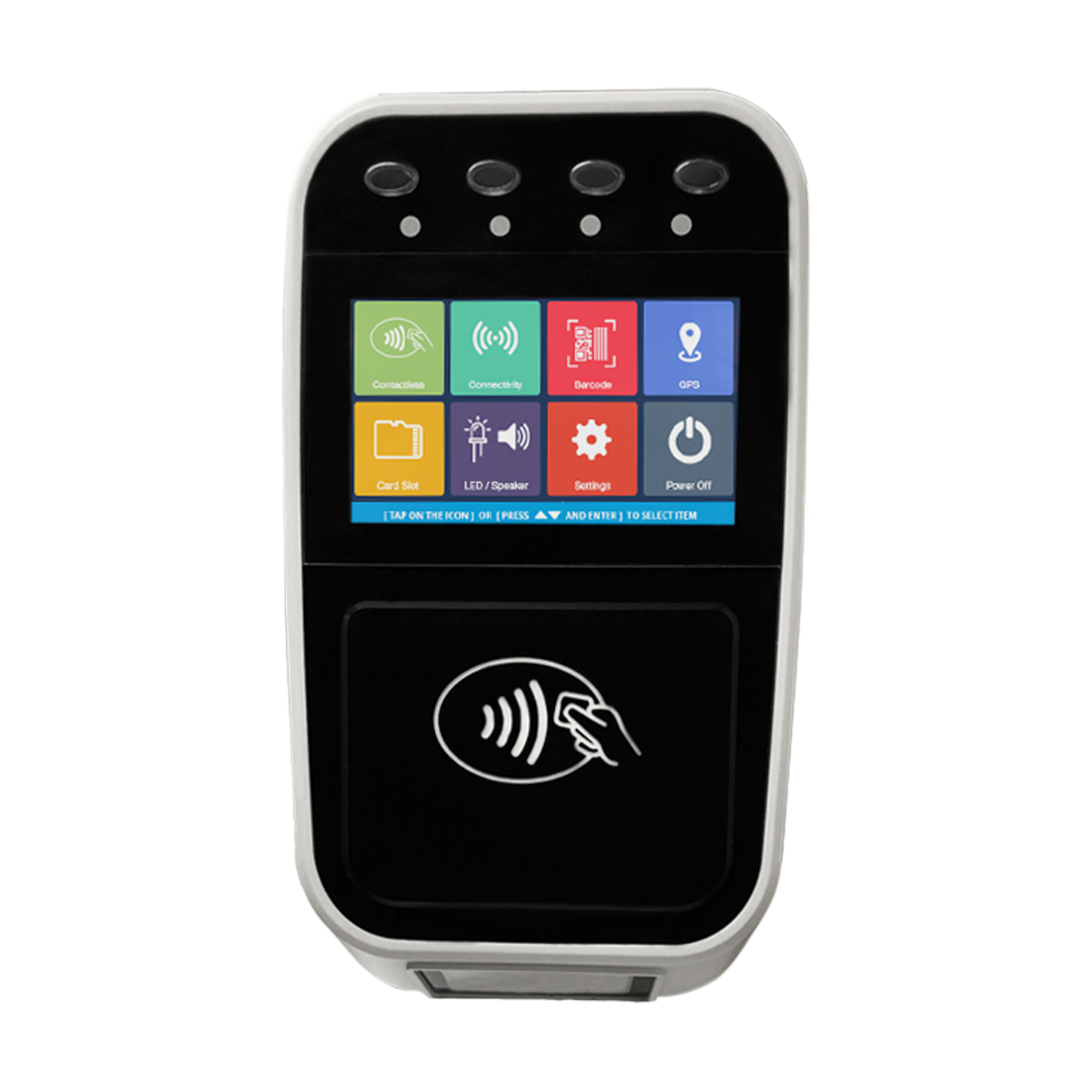

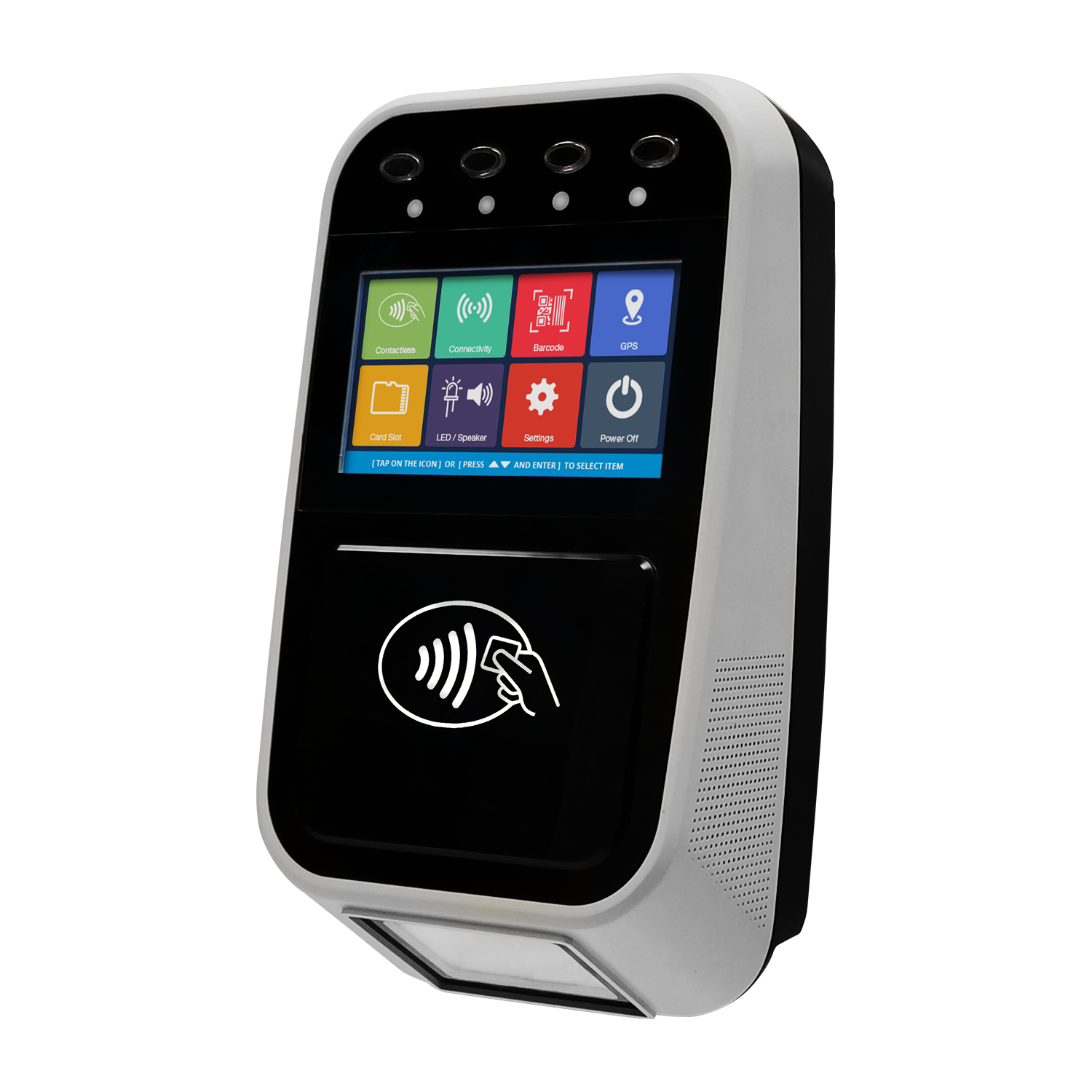

PR1039 Secure Validator with QR code Scanner

The PR1039 Secure Validator is an advanced version of the PR1023 Validator, designed specifically for Automatic Fare Collection (AFC) systems to offer the convenience of cashless and secure payment in buses, ferries, trams, railways, and other transportation modes. This validator enables high-speed transaction processing through 13.56 MHz contactless (RFID) technology. It supports ISO 14443 Type A and B cards, MIFARE®, and FeliCa. Certified with PCI PTS 5.1 with SRED, it complies with major payment standards such as PBOC Level 1 (Contactless) and EMV™ Levels 1 and 2 (Contactless), including MasterCard® Contactless and Visa PayWave®, offering flexibility and security for open-loop payment systems.

The embedded barcode scanner facilitates transactions using printed or mobile barcodes and other QR payment applications. It features advanced wireless connectivity options for data transfer, such as GSM/GPRS, 3G/4G, and Wi-Fi. Additionally, an optional GNSS feature allows for vehicle location, fleet management, and flexible distance-based fare settings.

To protect the bus validator from harsh environments, it has an IK08 rating for mechanical impact, an IP65 rating for dust and water protection, and complies with Military Standard MIL-STD-810 for shock and vibration. Control signals and ignition sense are included, while Bluetooth support is available only via an external Bluetooth 5.0 USB dongle. With these features, the PR1039 is an excellent choice for transit operators.

Features

  • Arm® Cortex®-A9 Quad-Core Processor at 1.0GHz running Linux®
  • 32GB eMMC and 1GB RAM
  • UPS via SuperCap (5 second interval after primary power source is lost)
  • Military Standard MIL-STD-810 for Shock and Vibration
  • IP65 Rating for Dust and Water Protection
  • Expandable Micro SD Card support with memory up to 128 GB
  • Connectivity Options: USB Host; Serial Port (RS-232, RS-485); Ethernet Port; Wi-Fi; GPRS/GSM, 3G, and 4G (optional); Built-in 10/100/1000 Ethernet; Support for an external Bluetooth® 5.0 USB Dongle (optional); GNSS (optional); GPIO Isolated ports (2 x input + 2 x output); CAN BUS; Ignition Sense
  • Smart Card Interface:
  • Contactless Interface: Read/Write speed of up to 424 kbps; built-in antenna for contactless tag access with card reading distance of up to 50 mm (depending on tag type); supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, and FeliCa; built-in anti-collision feature (only one tag is accessed at any time)
  • SAM Interface: Four SIM-sized Card Slots; supports ISO 7816 Class A, B, and C (5 V, 3 V and 1.8 V) cards
  • SIM Interface: One SIM-sized Card Slot for GPRS/3G/4G connectivity
  • Built-in Peripherals: 4.3-inch Easy-to-Read, TFT Colored LCD; Capacitive Type Touch Panel; Barcode Scanner (Linear/2D, optional); Real-time Clock (RTC) with independent backup battery; 6 LED Status Indicators (Front: Blue, Orange, Green, and Red; Back: Green and Red); User-controllable buzzer
  • Compliance and certification: PCI PTS POI v5.1 with SRED; EMV® Levels 1 (Contactless); PBOC Level 1 (Contactless); MasterCard® Contactless; Visa payWave®; CE; FCC; REACH; RoHS

Technical Specifications

Physical Characteristics
Dimensions (mm) 245 mm (H) x 135 mm (W) x 91 mm (T) (Main Body); 245 mm (H) x 135 mm (W) x 159 mm (T) (With Back Mount)
Weight (g) 1.01 kg (Main Body); 1.81 kg (With Back Mount)
Pole Supported 31mm, 32mm, 35mm (Both Vertical and Horizontal)
Standalone Mode
Power Source External Power Adapter (9 V – 36 V)
Connectivity
USB Host 2.0 High Speed
Bluetooth Support for an external Bluetooth® 5.0 USB Dongle
Cellular (Optional) GPRS/GSM/3G/4G
Serial Port RS-232 x 1, RS-485 x 1
Wi-Fi 2.4GHz, IEEE 802.11 b/g/n
Ethernet Built-in 10/100/1000 Ethernet
Control Signals 2 x input + 2 x output
Contactless Smart Card Interface
Standard ISO 14443 A & B, Parts 1-4, MIFARE Classic®, MIFARE DESFire®, MIFARE Ultralight®, MIFARE Ultralight C®, MIFARE Plus®, FeliCa, Calypso
Protocol MIFARE Classic Card Protocol, T=CL
SAM Card Interface
Number of Slots 4 Standard SIM-sized Card Slots (ID-000)
Standard ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V), T=0 and T=1
Processor
Processor Arm® Cortex®-A9 Quad-Core Processor 1.0 GHz
SIM Card Interface
Number of Slots 1 Standard SIM-sized Card Slot
Standard GPRS/GSM/3G/4G
Memory
RAM 1 GB
Flash Memory Size 32GB (25GB available for user)
Built-in Peripherals
Barcode Scanner (Optional) Linear: Code 128, EAN, Code 39, UPC, Code 2 of 5, Interleaved 2 of 5, Codabar, etc; 2D: PDF417, Data Matrix, QR Code; Illumination: White LED; Supported Print Materials: Paper, Mobile phones and Tablets
Temperature Sensor Supported
Buttons 4 backlit buttons
LCD 4.3-in TFT Colored LCD, 480 x 272 Colors
LED Front: Blue, Orange, Green, Red; Back: Green, Red
Speaker 3W Speaker, Buzzer; Around 80 dB in 1 m distance
Touch Panel Capacitive Type
Other Features
Other Features Key Management Supported: Fixed Key, MK/SK, DUKPT
Security Tamper Switch (Internal anti-intrusion detection and protection)
Firmware Upgrade Supported
Real-time Clock Supported with independent backup battery
Certifications/Compliance
Certifications/Compliance Standards: PCI PTS POI v5.1 with SRED, EMV® Levels 1 (Contactless), PBOC Level 1 (Contactless), MasterCard® Contactless, Visa payWave®, IP65, IK08; Regulatory/Environmental: CE, FCC, REACH, RoHS
