PR1063 — FIDO® Certified USB Security Key with NFC
FIDO® Device

PR1063

FIDO® Certified USB Security Key with NFC

FIDO® Certified USB security key with NFC for passwordless authentication

Manufacturer reference: ACS — PocketKey+ II ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • FIDO2 L1
  • FIDO U2F
  • Microsoft® WHQL
  • CE
  • UKCA
  • FCC
  • RoHS
  • REACH

Primary Applications

  • Enterprises
  • Healthcare & Insurance
  • Financial Services & Payments
  • e-Government

PR1063

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1063 provides the ideal solution for secure online authentication. This device features advanced PKI technology and supports seamless passwordless logins, streamlining access to your accounts. As a proud holder of FIDO Alliance certification, the PR1063 supports both FIDO U2F and FIDO2 protocols, ensuring your data is protected with the highest security standards.

Designed for users who value security and convenience, the PR1063 enhances your authentication process. Experience a new level of ease and security as you access your accounts effortlessly, knowing your information is safe.

  • Account Protection - Provides passwordless security, enhancing protection for personal accounts
  • User Convenience - Offers quick access to online services, making logins seamless
  • Enhanced Privacy - Protects personal data, preventing unauthorized access
  • Portability - Easy to carry, ensuring secure access anywhere

Features

  • Ultra-portable form factor with 2-in-1 connectivity
  • - USB Type-C connector
  • - NFC Interface

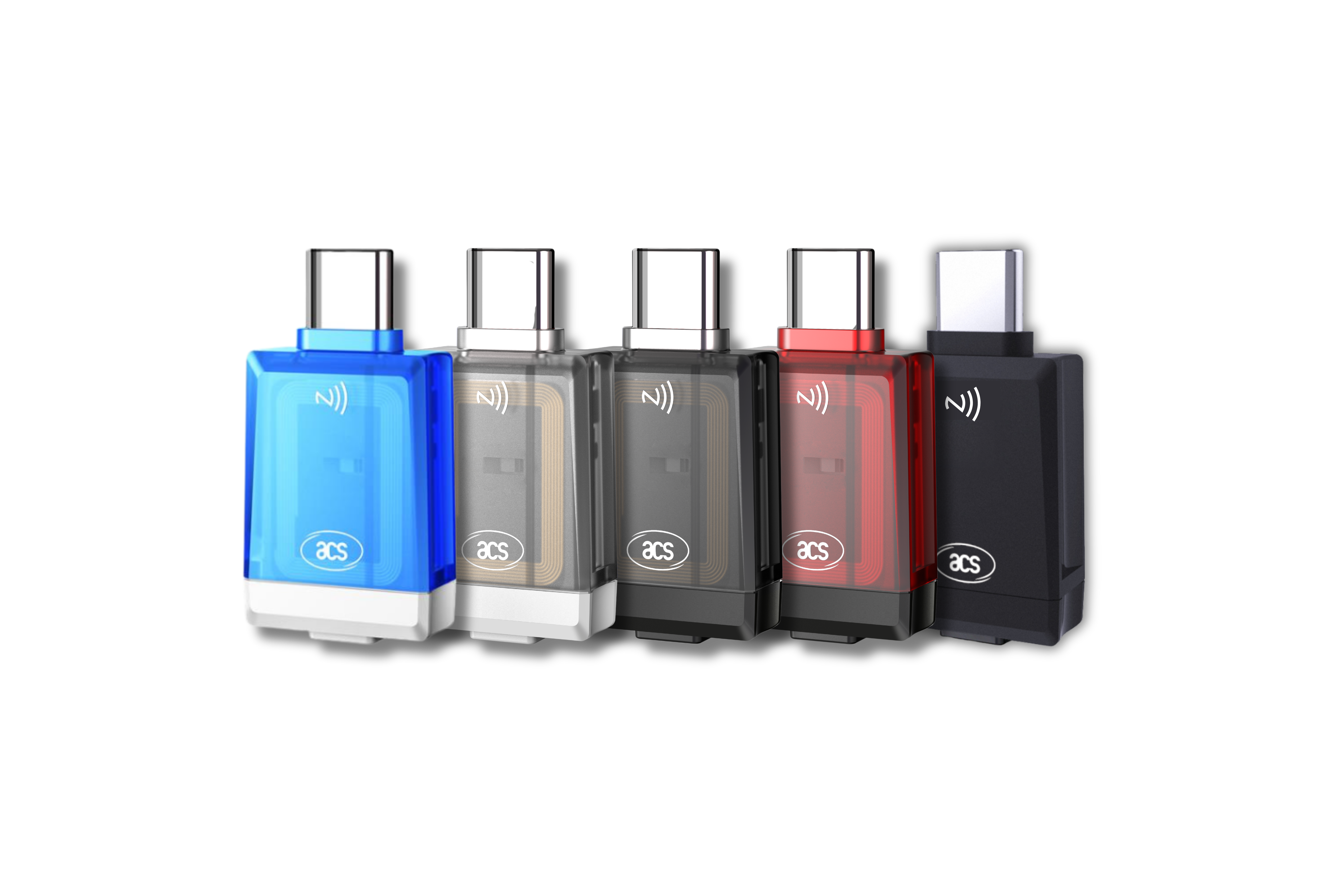

  • Available in multiple colours
  • Security Feature
  • - FIDO2 Authenticators
  • - PKI Support
  • - Data protection
  • Plug & Play
  • Passwordless Login

Technical Specifications

Physical Characteristics
Dimensions (mm) 35 mm (L) x 18 mm (W) x 7.8 mm (H)
Weight (g) 4.2 g ± 1 g
USB Interface
Protocol USB CCID & HID
Connector Type USB Standard Type-C
Speed USB 2.0 Full Speed (12 Mbps)
NFC Interface
ISO 14443 Type A Support
Contact Smart Card Interface
Cryptographic Specification ECC p256
Supply Current Max. 100 mA
Built-in Peripherals
LED 1 x LED (Blue)
User Interface Mechanical Switch for Presence Validation
Other Features
Enterprise Attestation Upon Request
ACS FIDO Key Manager Supported
Passkeys (FIDO2) slots 100
PKI slots 150
ACS OTP Supported
OATH – HOTP Supported
OATH – TOTP Supported
Security Authenticators: FIDO2, FIDO2 CTAP2
Certifications/Compliance
Systems/Standards FIDO2 L1, FIDO U2F, Microsoft® WHQL
Regulatory/Environmental CE, UKCA, FCC, RoHS, REACH
Device Driver Operating System Support
OS support Windows®, Linux®, macOS, Android™ and iOS
Browsers Chrome™, Safari®, Microsoft Edge® and Firefox®
Platforms Microsoft®, Apple ID®, iCloud®, Facebook and Google®

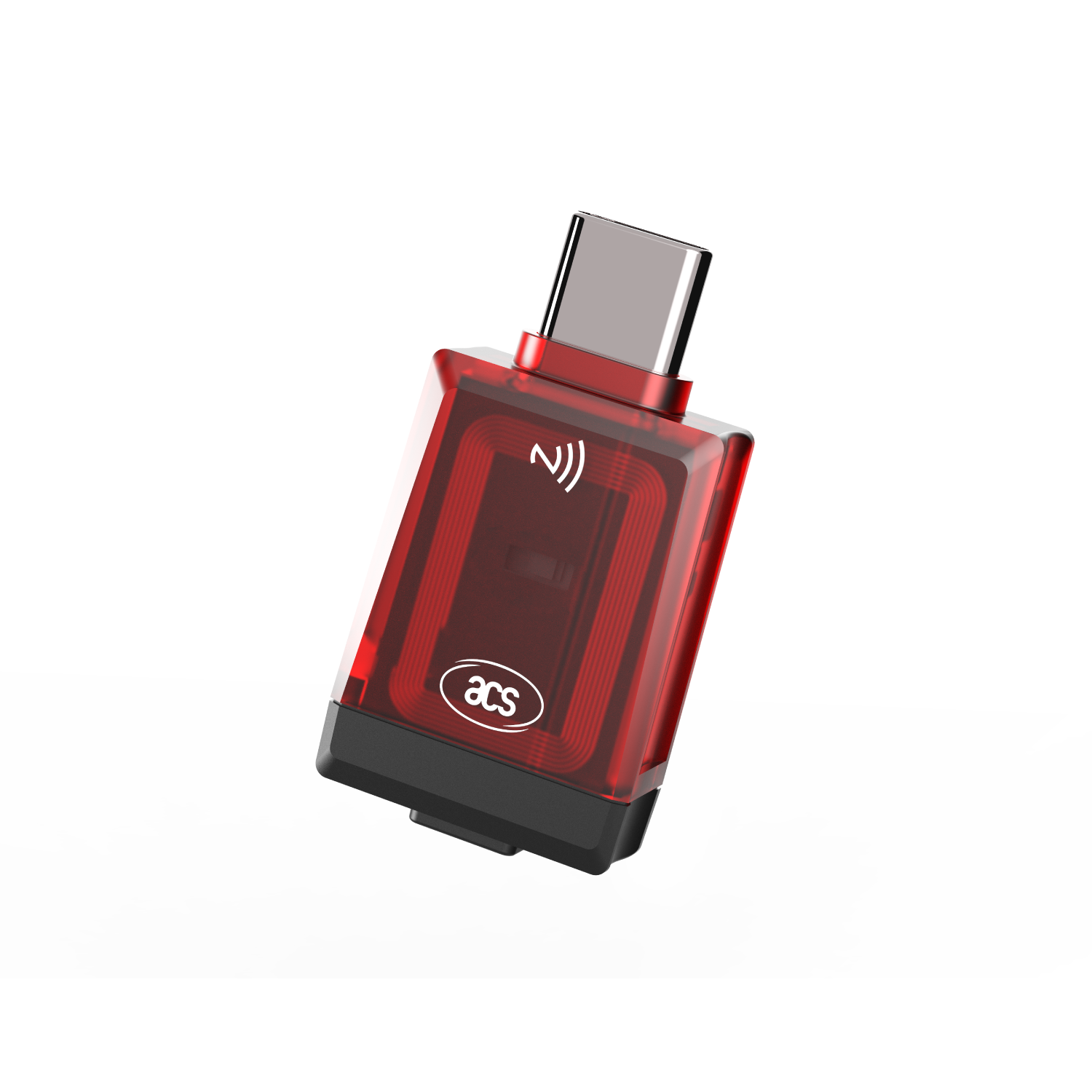

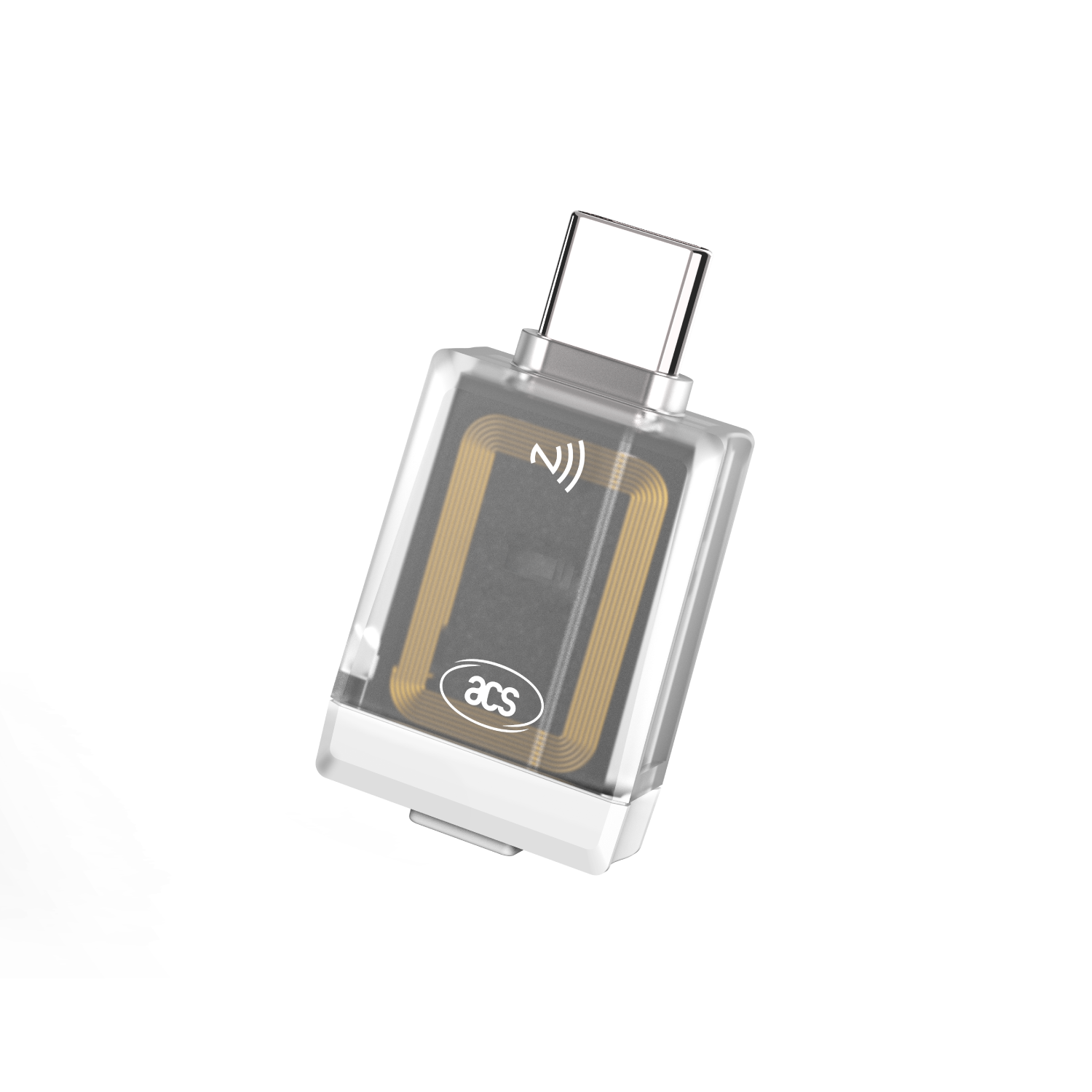

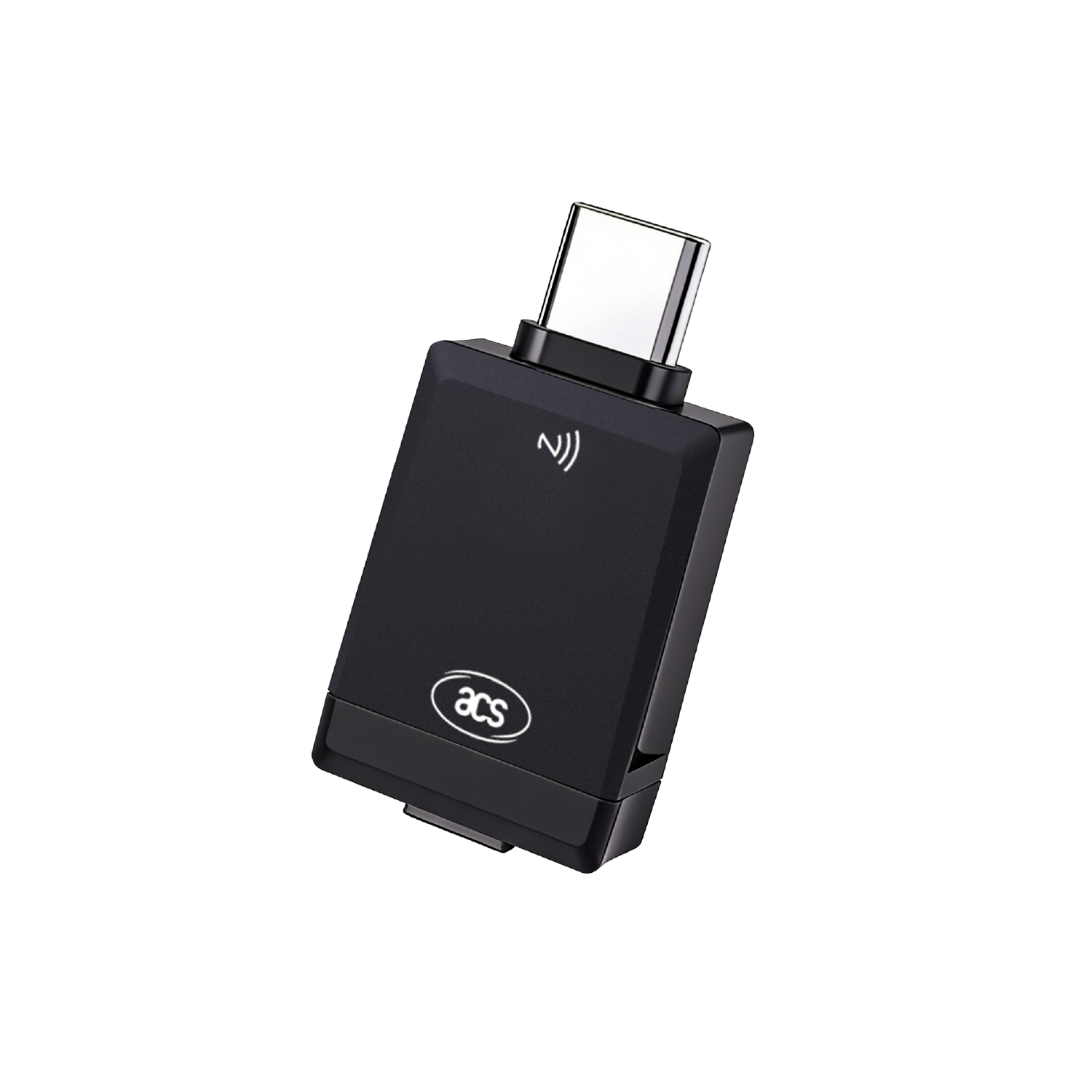

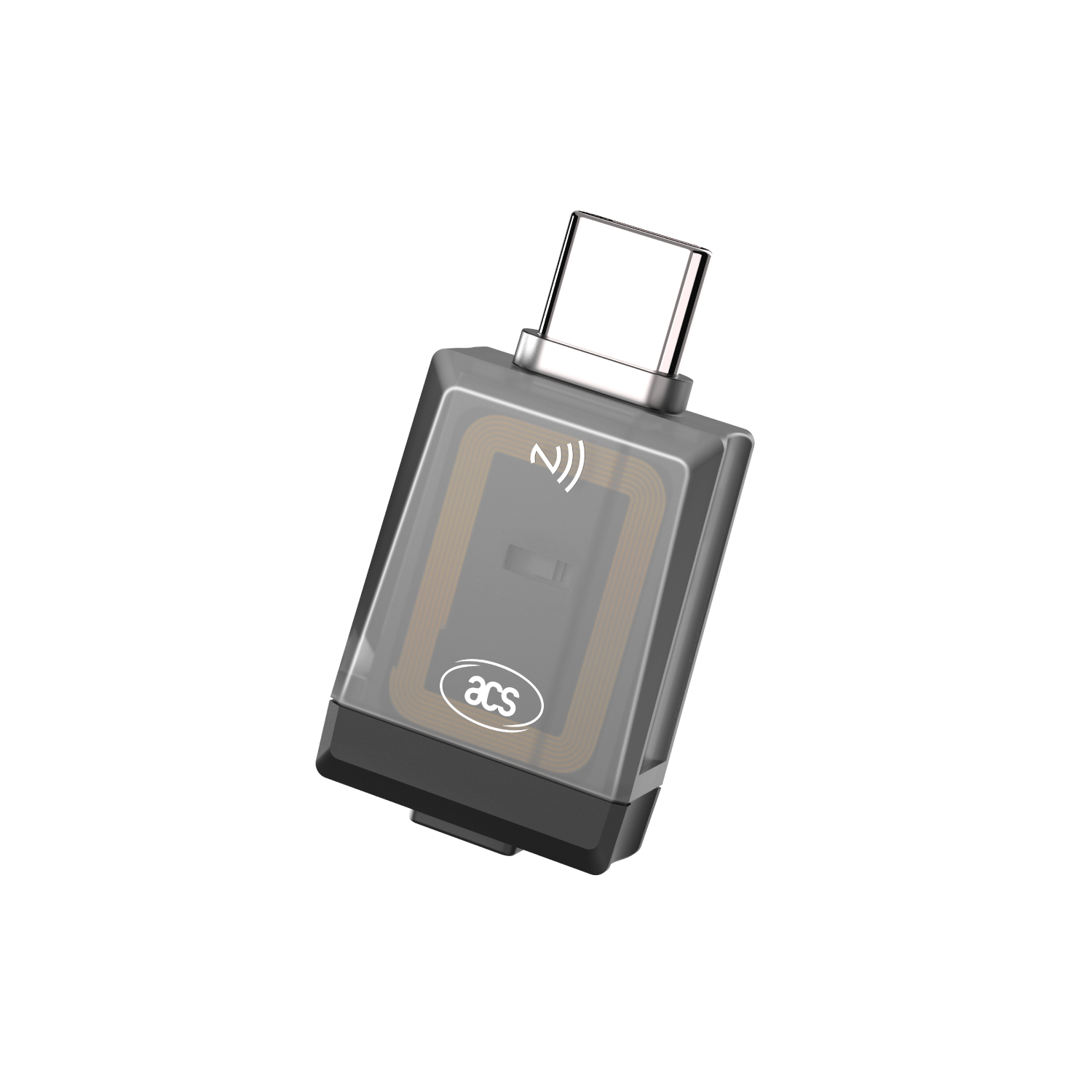

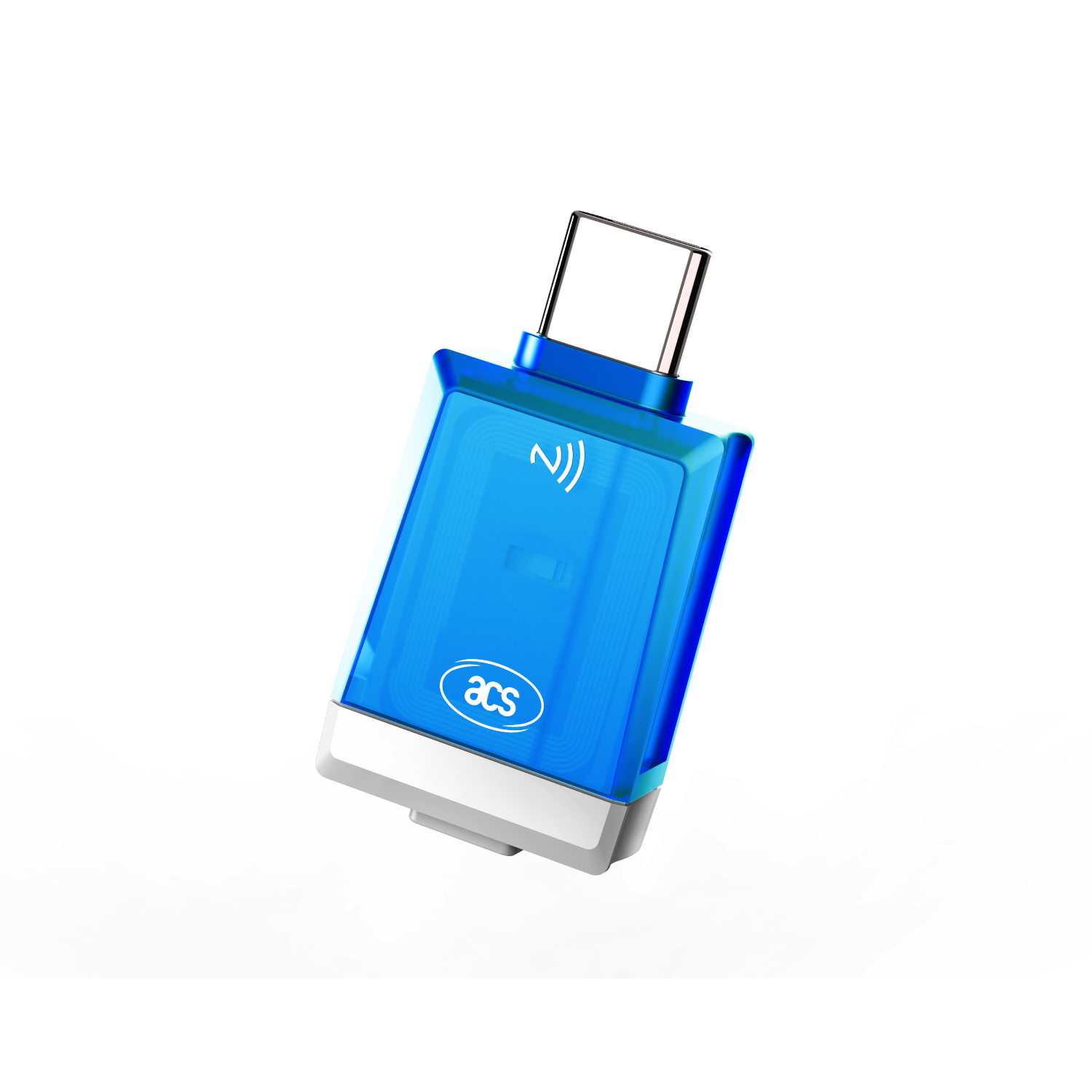

Images
