PR1051 — Contact Smart Card Reader · USB
Contact Smart Card Readers

PR1051

Contact Smart Card Reader · USB

Contact smart card reader available with USB Type-A and Type-C connectors

Manufacturer reference: ACS — ACR40U (Premium) ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • USB CCID
  • PC/SC
  • EMV™ Level 1 (Contact)
  • PBOC Level 1 (Contact)
  • TAA
  • J-LIS
  • Microsoft® WHQL
  • CE
  • IEC/EN 62368
  • UKCA
  • FCC
  • VCCI
  • RoHS
  • REACH
  • WEEE
  • UL 62368
  • KC

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1051

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1050 / PR1051 contact smart card reader

Introducing the PR1050 / PR1051, ACS's latest compact high-speed USB contact smart card reader. It provides seamless support for ISO 7816 Class A, B, and C smart cards, microprocessor cards using T=0 and T=1 protocols, and a wide range of memory cards available in the market.

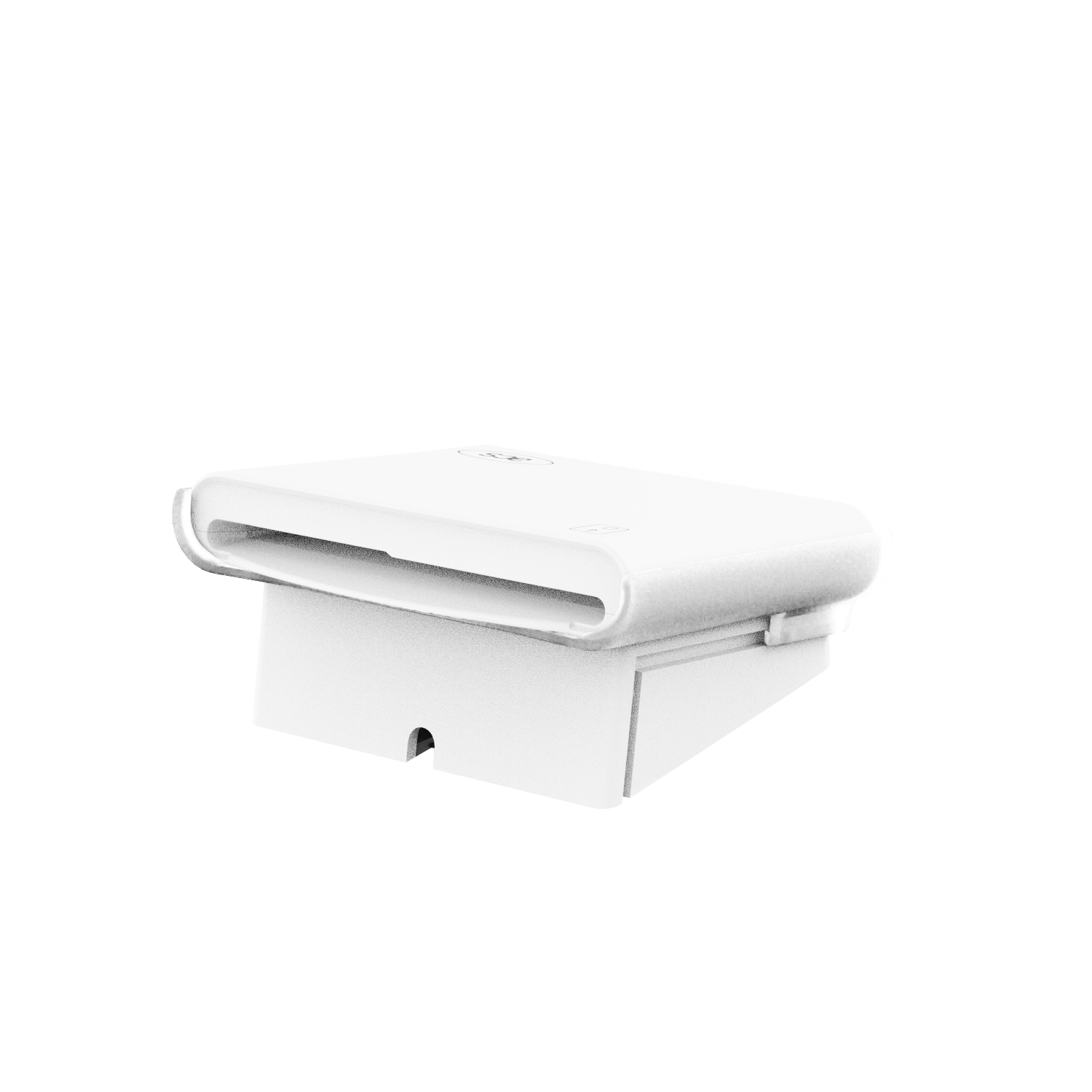

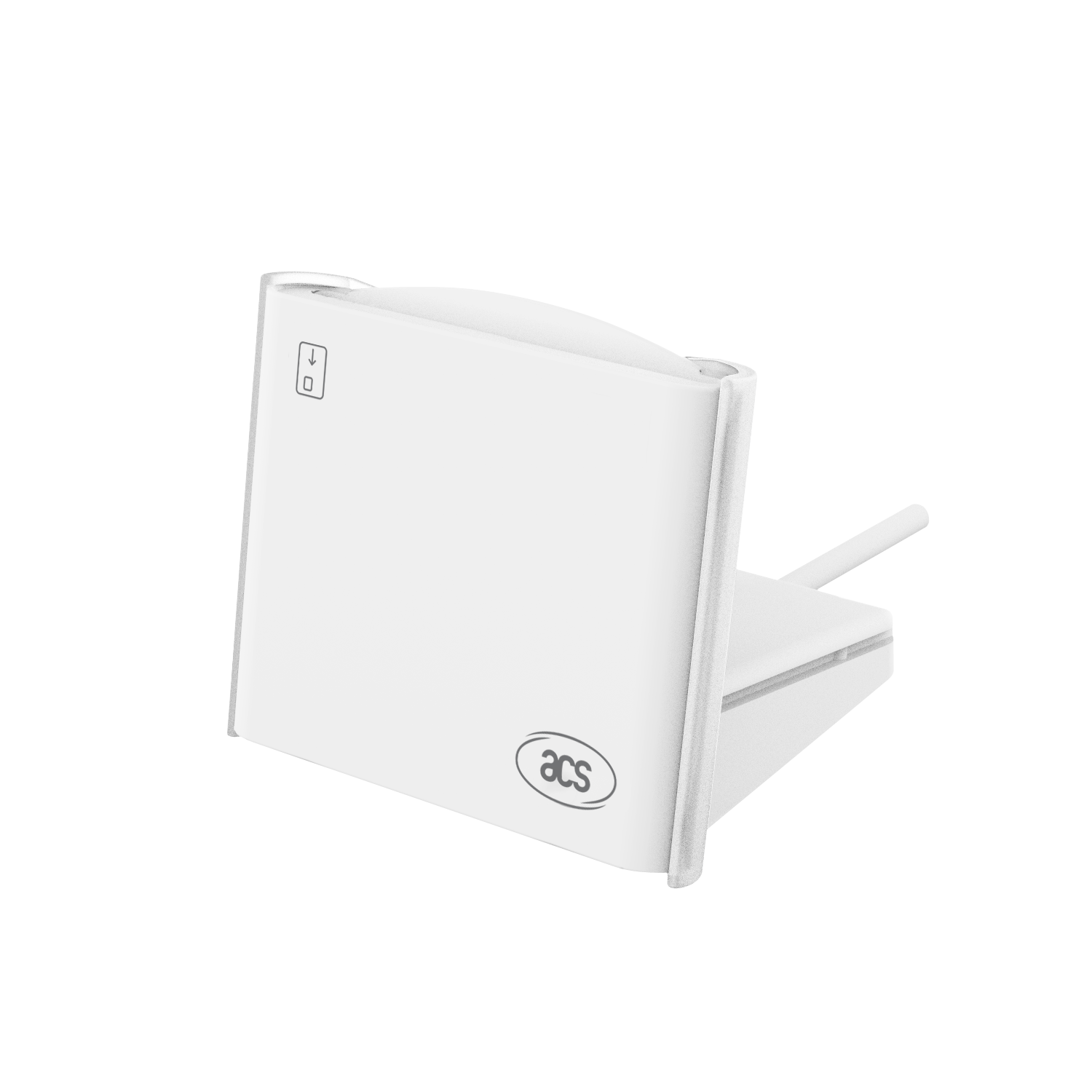

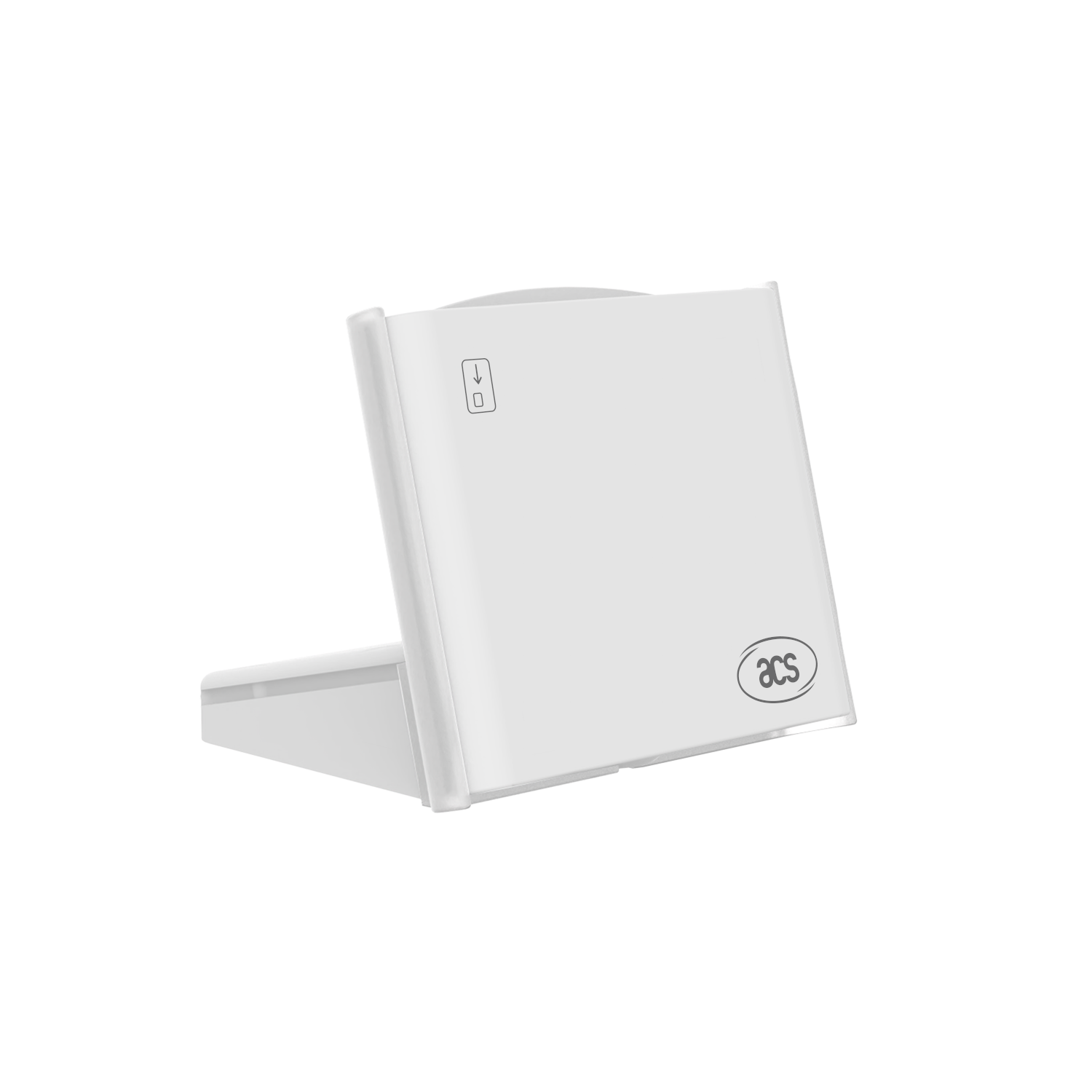

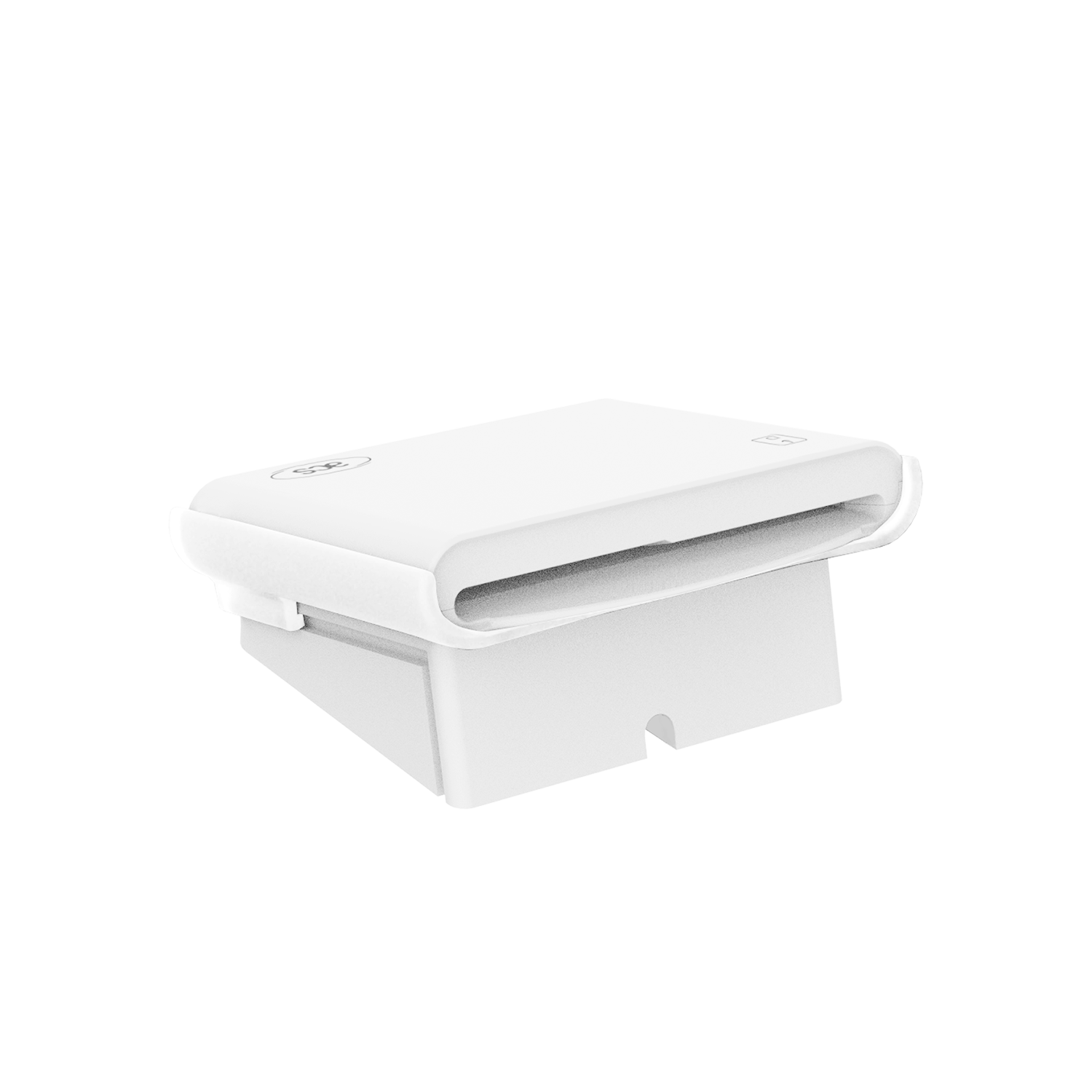

The PR1050 / PR1051 features two LED lights, indicating card and reader status. Exciting new additions include firmware upgradability and on-device user data storage, catering to various application scenarios. It also comes with a stand accessory that allows for multiple configurations, including upright and horizontal orientations.

The PR1050 / PR1051 is in compliance with CCID, PC/SC, and Microsoft® WHQL standards, ensuring seamless integration with various operating systems such as Windows®, Linux®, macOS, iOS, iPadOS, and Android™.

Both USB Type-A and Type-C interfaces are available, providing flexible connectivity options.

Device features: PC-Linked, USB, Single Contact Card Slot

Features

  • USB 2.0 Full Speed Interface
  • USB Type A
  • Plug and Play – CCID support brings utmost mobility
  • Smart Card Reader:
  • - Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
  • - Supports CAC
  • - Supports SIPRNET Card
  • - Supports MyKad
  • - Supports J-LIS Card
  • - Supports microprocessor cards with T=0 or T=1 protocol
  • - Supports memory cards
  • - Supports PPS (Protocol and Parameters Selection)
  • - Features Short-Circuit Protection
  • Application Programming Interface:
  • - Supports PC/SC
  • - Support CT-API
  • Supports all major operating systems:
  • - Windows®, Linux®, macOS, iOS, iPadOS, Android™, Solaris™

Technical Specifications

Category Details
Physical Characteristics
Dimensions (mm) 62.5 mm (L) × 67.6 mm (W) × 58.5 mm (H)
Weight (g) 65.0 g ± 5.0 g
USB Interface
Protocol USB CCID
Connector Type USB Type A, USB Type C
Power Source USB Port
Speed USB 2.0 Full Speed (12 Mbps); Compatible with USB 3.0
Cable Length 1m (Non-Detachable)
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others Mykad, CAC, J-LIS, SIPRNET Smart Cards
Certifications/Compliance
Certifications/Compliance Standards: USB CCID, PC/SC, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), TAA, J-LIS, Microsoft® WHQL; Regulatory/Environmental: CE, IEC/EN 62368, UKCA, FCC, VCCI, RoHS, REACH, WEEE, UL 62368, KC
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, iOS, iPadOS, Android™, Solaris™
