PR1007 — SIM-Sized Smart Card Reader · USB
Contact Smart Card Readers

PR1007

SIM-Sized Smart Card Reader · USB

Ultra-portable card reader for SIM-sized smart cards

Manufacturer reference: ACS — ACR39T-A1 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • USB CCID
  • PC/SC
  • Microsoft® WHQL
  • CE
  • IEC/EN 62368
  • FCC
  • VCCI
  • RoHS
  • REACH
  • WEEE
  • UKCA

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1007

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1007 brings new and modern technology to the world of smart card readers. This SIM-sized smart card reader is small but packs in a lot of features. Being a compact and powerful smart card reader, the PR1007 brings together sophisticated technology and modern design to meet rigorous requirements of various smart card-based applications.

PR1007 supports ISO 7816 smart cards, various memory cards, and microprocessor cards with T=0 and T=1 protocol. It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows®, Solaris™, Linux®, and macOS®. Additionally, PR1007 may also be used on mobile devices running on Android™ platform versions 3.1 and above.

Weighing nothing more than your standard USB stick, PR1007 is a device that you can bring anywhere to keep smart card technology right at your fingertips.

Features

  • USB 2.0 Full Speed Interface
  • Compatible with USB 3.0
  • Plug and Play – CCID support brings utmost mobility
  • Smart Card Reader: Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards; Supports microprocessor cards with T=0 or T=1 protocol; Supports memory cards; Supports PPS (Protocol and Parameters Selection); Features Short-Circuit Protection
  • Application Programming Interface: Supports PC/SC; Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later

Technical Specifications

Physical Characteristics
Dimensions (mm) 49.5 mm (L) x 21.5 mm (W) x 9.0 mm (H)
Weight (g) 8.5 g
USB Interface
Protocol USB CCID
Connector Type USB Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Contact Smart Card Interface
Number of Slots 1 Standard SIM-Sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Certifications/Compliance
Certifications/Compliance Standard: USB CCID, PC/SC, Microsoft® WHQL. Regulatory/Environmental: CE, IEC/EN 62368, FCC, VCCI, RoHS, REACH, WEEE, UKCA
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS®, Solaris™, Android™

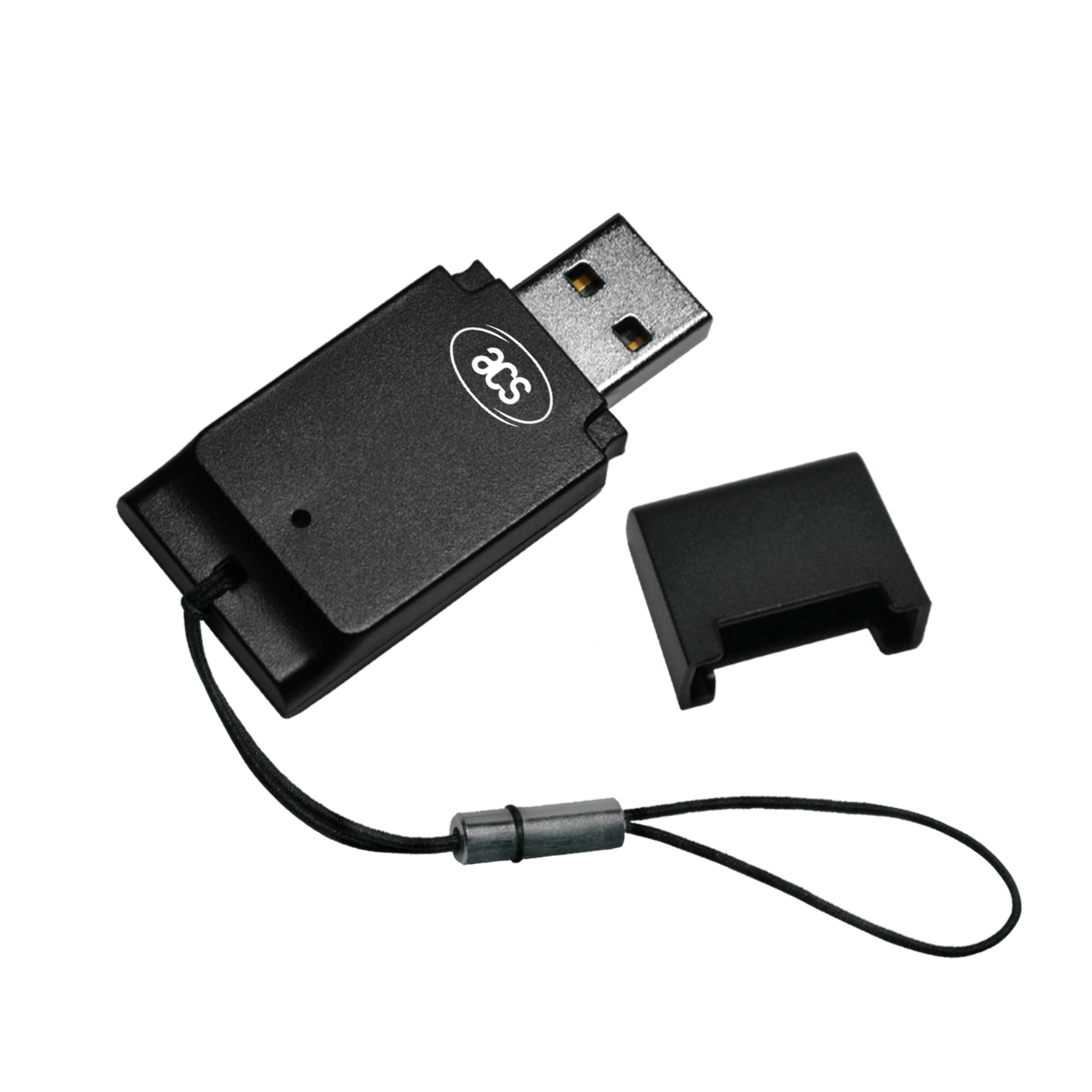

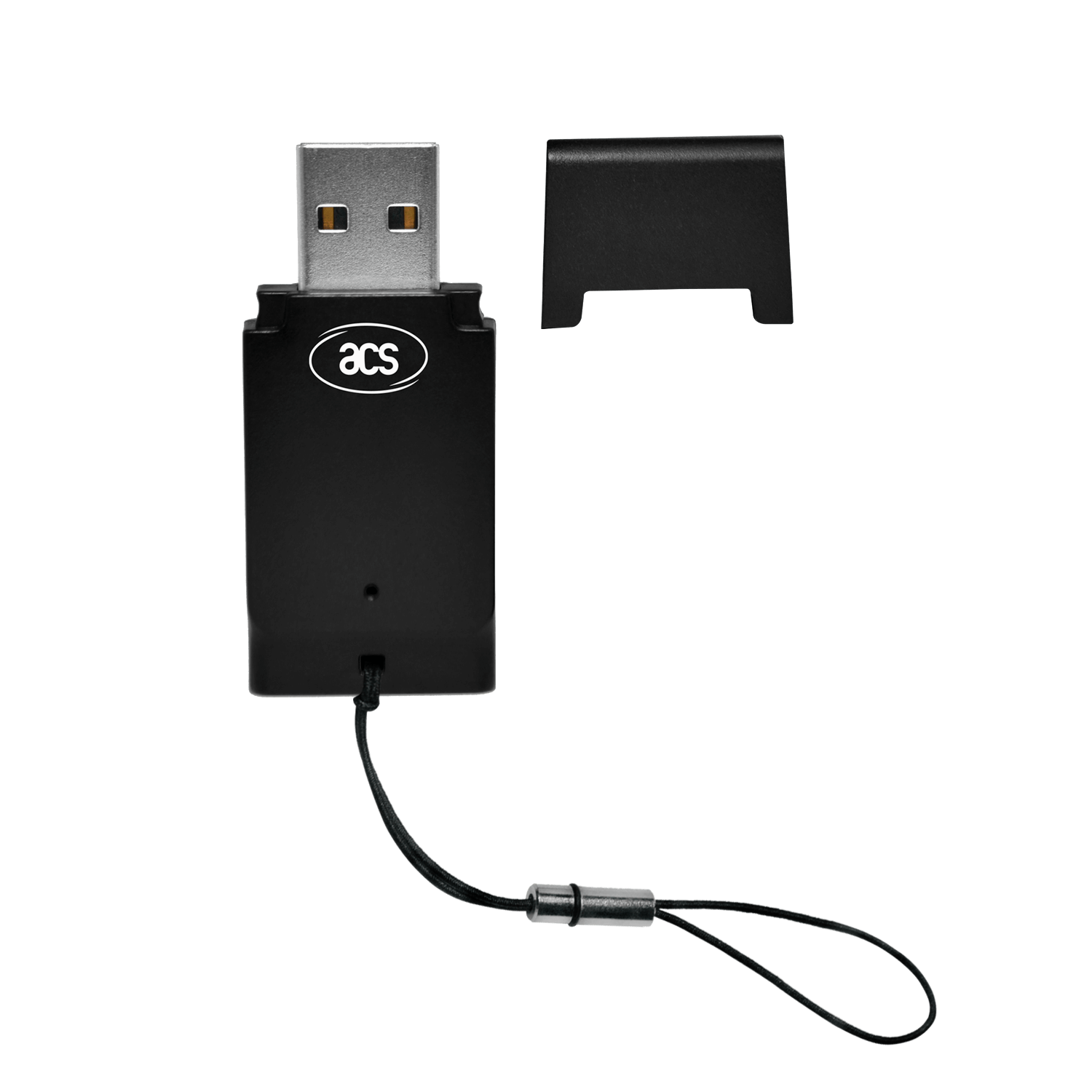

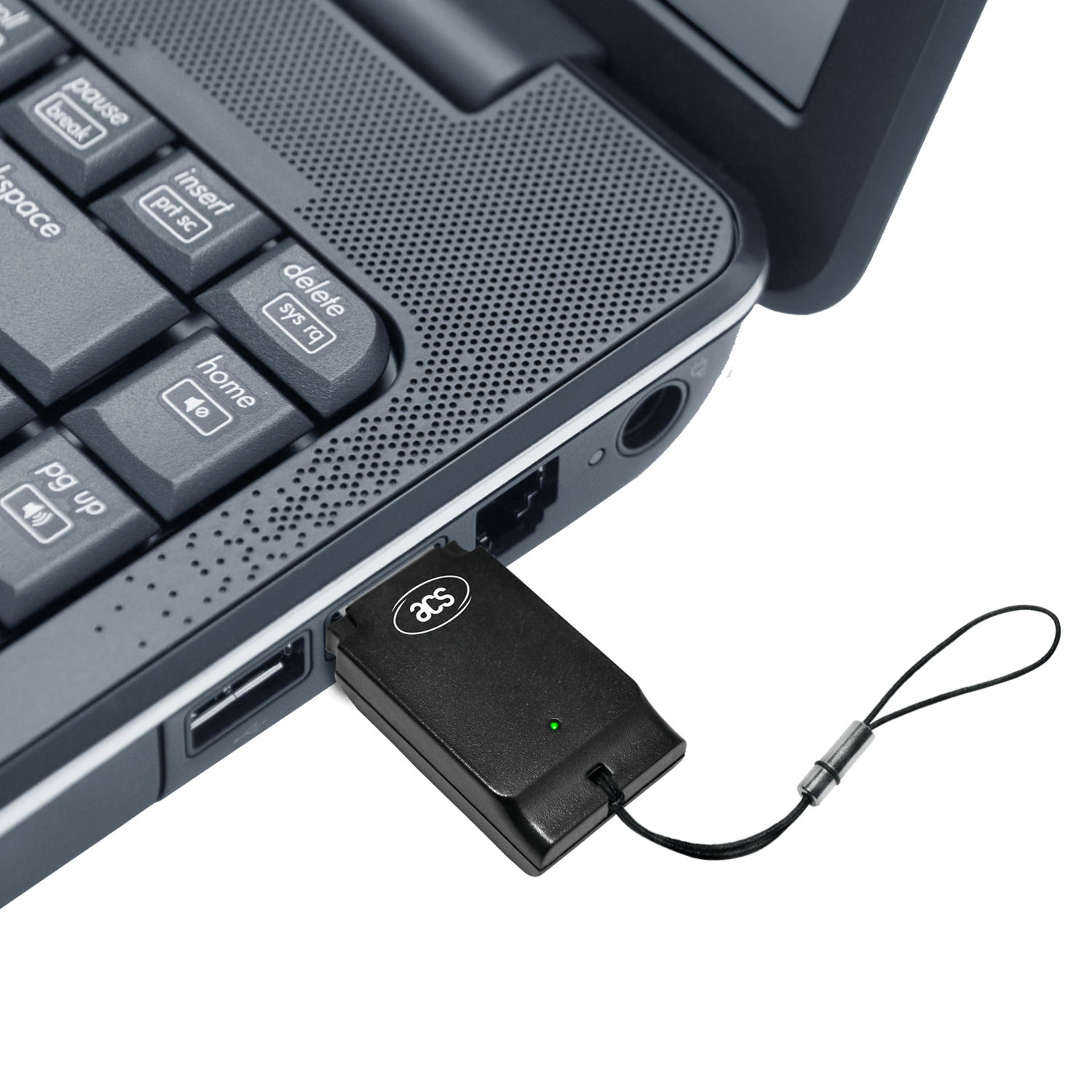

Images

Downloads

TypeTitleSizeUpdated
SoftwareACS ApduTool (iOS) — iOS and iPadOS 16.2 or above, v1.2118.31 KB23-Feb-2024
DriverPC/SC Driver Installer — Windows®, v4.4.2.15.02 MB11-Dec-2025
DriverPC/SC Driver Installer — Linux®, v1.1.134.30 MB20-Nov-2025
DriverPC/SC Driver Installer — macOS®, v1.1.13281.65 KB17-Nov-2025
SoftwareAndroid EVK — Android™ 3.1 or above, v1.1.81.46 MB25-Nov-2025
DriverPC/SC Driver Installer — Solaris 10, 11 and above, v1.0.8 — available on requestavailable on request—16-Feb-2017
DatasheetProduct Presentation of ACR39 Series Smart Card Reader——
ManualReference Manual of ACR39 Series Smart Card Reader——
DatasheetTechnical Specification of ACR39T Series Smart Card Reader——
Need pricing, samples or integration support for PR1007? Contact our sales teamorask about distribution.
