PR1061 — ePassport Reader · USB
ID Document Readers

PR1061

ePassport Reader · USB

ePassport and ID document reader combining OCR, RFID/NFC, contact smart card reading and a QR code scanner

Manufacturer reference: ACS — AIR60U-A2 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • ICAO DOC 9303
  • USB CCID
  • PC/SC
  • CE
  • FCC
  • RoHS
  • REACH

Primary Applications

  • Hotel Check-in
  • Car Rental
  • Tour Desk
  • Self-service Kiosks

PR1061

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which passports or identity documents must be processed? Specify whether you need MRZ/OCR, chip data, contact-card reading or QR capture.
  • What is the target operating system and application? Confirm the required API, document coverage and software scope alongside the hardware.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗

Overview

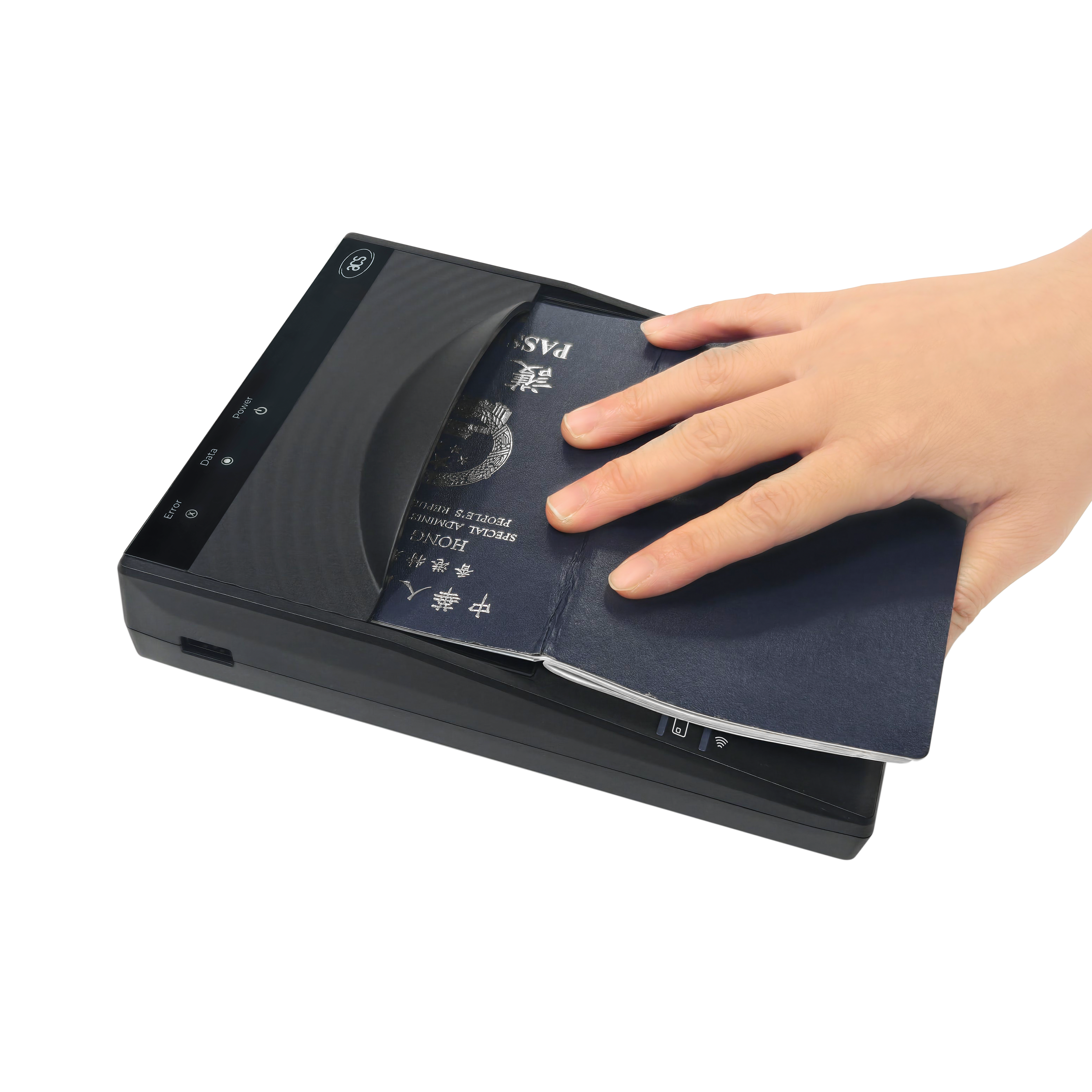

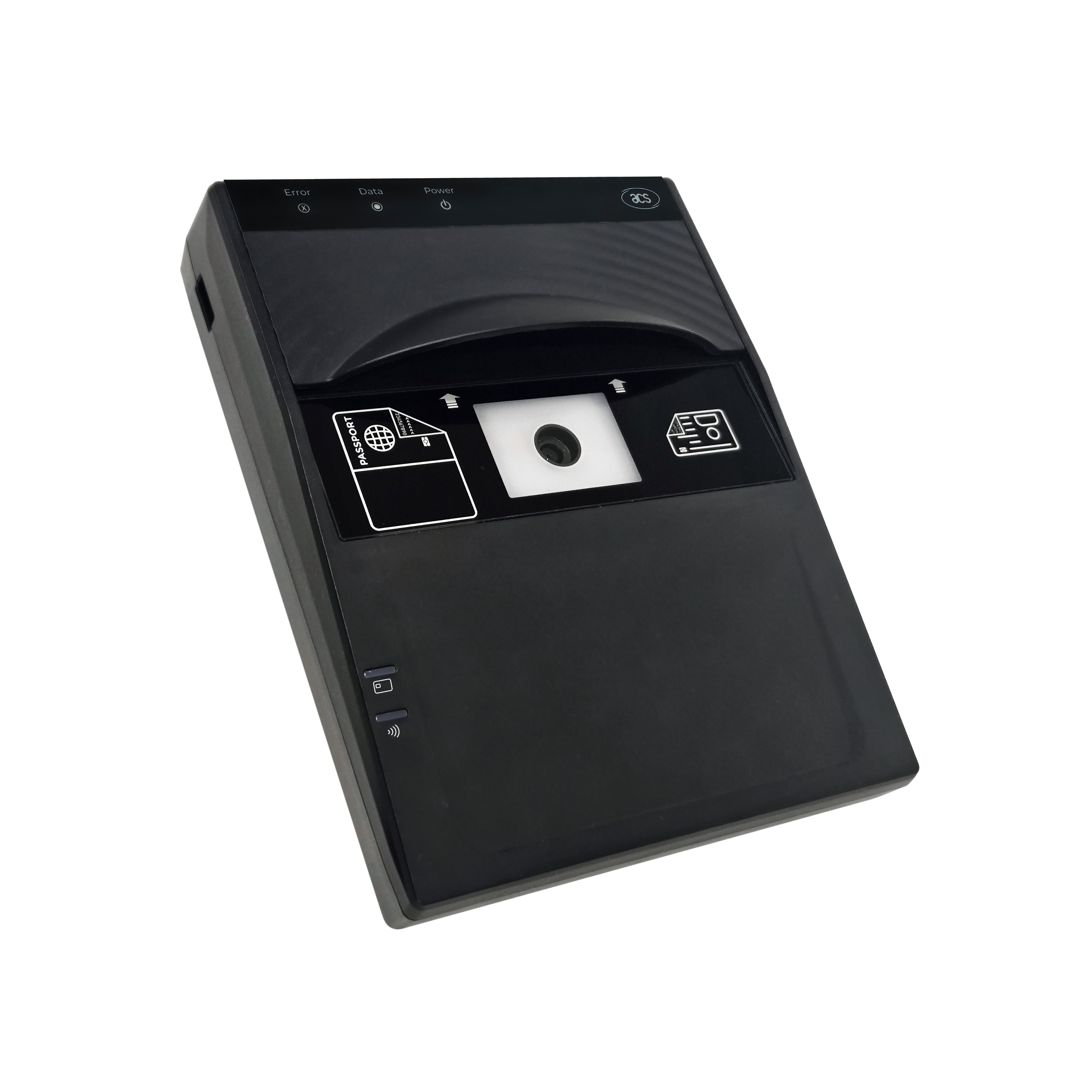

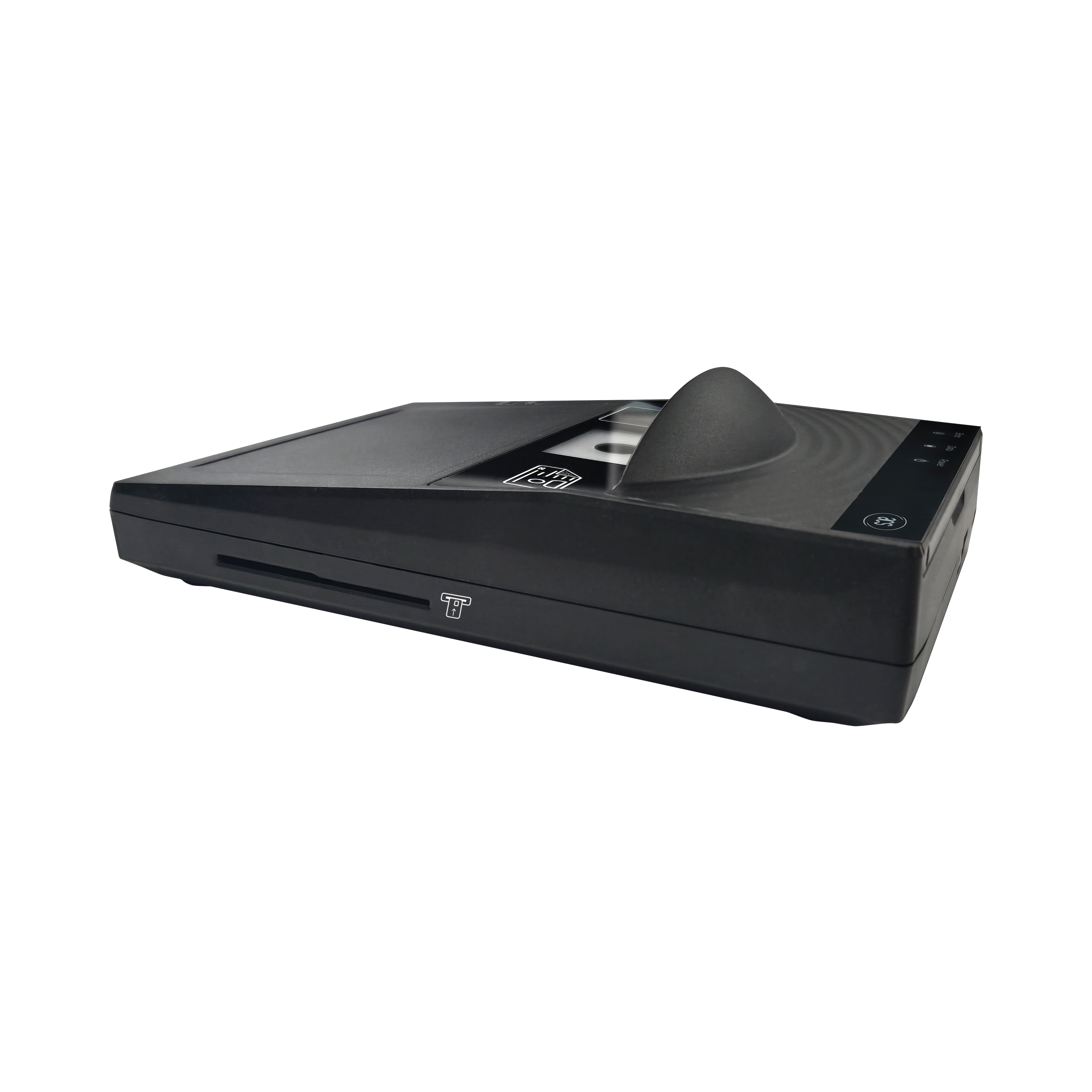

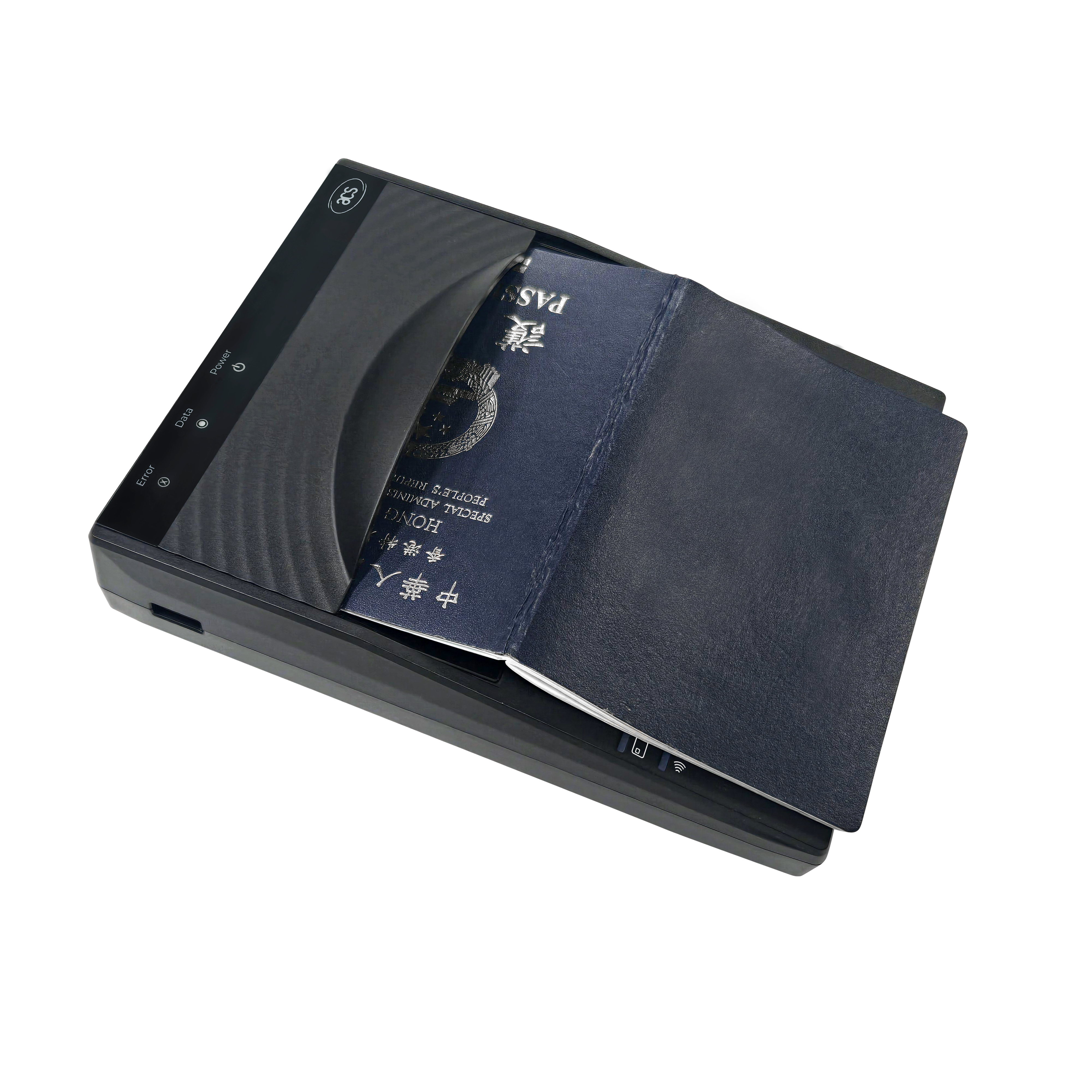

The AIR60U ePassport Reader is a compact and versatile ID document reader designed for fast and reliable identity verification in limited spaces. Its modular design combines Optical Character Recognition (OCR), RFID/NFC, and contact smart card reading into one device, facilitating quick data capture from ICAO DOC 9303-compliant e-passports and ID cards.

With QR code scanner, the AIR60U supports digital identity documents, making it ideal for hotels, car rental counters, travel agencies, and transportation terminals. By automating identity data capture, it enhances processing speed, reduces manual errors, and improves customer experience—all while fitting seamlessly into kiosks, e-gates, or desktop setups.

Features

  • USB 2.0 Full Speed Interface
  • Multi-Mode Identity Capture
  • - Combines OCR, RFID, contact card, and QR code technologies
  • - Fully compliant with ICAO DOC 9303 standards for e-passports and ID cards
  • Identity Verification Technologies
  • - MRZ Reading achieves an OCR performance of ≤1 second with 99.8% accuracy
  • - E-passport Reading complies with ICAO 9303 and reads chip data in ≤3 seconds
  • Contactless Smart Card Reader
  • - Read/Write ISO 14443A/B speed of up to 848 kbps
  • - Clock frequency up to 13.56MHz
  • - Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
  • - Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO 18092 NFC
  • - Supports MIFARE® (T=CL), FeliCa, NFC tags
  • Contact Smart Card Reader
  • - Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V) speed of up to 1,250 kbps
  • - Supports microprocessor cards with T=0 or T=1 protocol
  • - ISO 7816-compliant SAM slot (Class A)
  • Application Programming Interface: Supports PC/SC
  • Built-in Peripherals: 5 x LED(s), Buzzer
  • USB Firmware Upgradability
  • Support operating systems: Windows®, Linux®

Technical Specifications

Physical Characteristics
Dimensions (mm) 186.8 mm (L) x 144.6 mm (W) x 54.9 mm (H)
Weight (g) 372 g
USB Interface
Current Consumption 1 A
Protocol USB CCID
Connector Type USB Type-C
Speed USB Full Speed (12 Mbps)
Cable Length 1 m, Detachable
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V)
Contactless Smart Card Interface
Standard ISO 14443 Type A & B Parts 1–4, ISO 15693, MIFARE®, FeliCa, NFC, etc.
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO 15693; ISO 18092; FeliCa
SAM Card Interface
Number of Slots 1 x Standard SIM size slot
Standard ISO 7816 Class A (5V)
Clock Frequency 5 MHz, up to 10 MHz (upon request)
Protocol T=0; T=1
Built-in Peripherals
LED 5 x LED
Buzzer Available
Other Features
Other Features Smart Card Reader/Writer, Card Emulation, Keyboard Emulation
Firmware Upgrade Supported
Certifications/Compliance
Standards ICAO DOC 9303, USB CCID, PC/SC
Regulatory/Environmental CE, FCC, RoHS, REACH
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®
