PR1024 — Microprocessor Card
Smart Cards & Smart Card OS

PR1024

Microprocessor Card

Easy-to-use microprocessor smart card line with a wide range of memory capabilities. Available in Contact, Contactless and Combi Interface

Manufacturer reference: ACS — ACOS3 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

PR1024

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1024 Microprocessor Card is designed to support various applications such as loyalty program, parking registration, network access control, public transportation, telecommunication, and electronic purse.

PR1024 is specifically designed for secure payment applications as well as loyalty programs, logical access control and e-Purse applications. Likewise, it may be utilized for closed-loop payment solutions. ACS also offers various card customization options such as inclusion of magnetic stripe, signature panel and others.

The PR1024 is available in contact, combi and contactless interface.

Technical Specifications

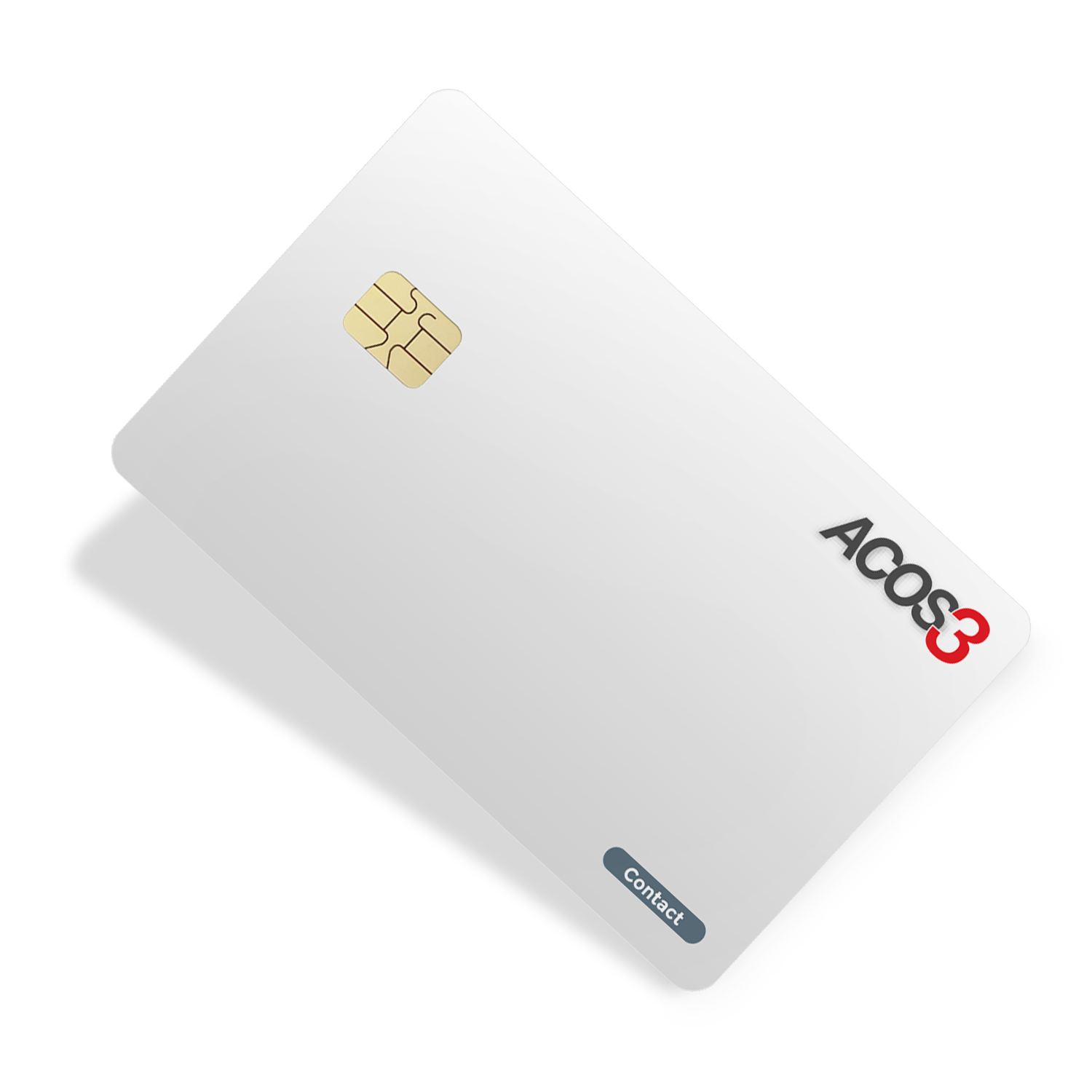

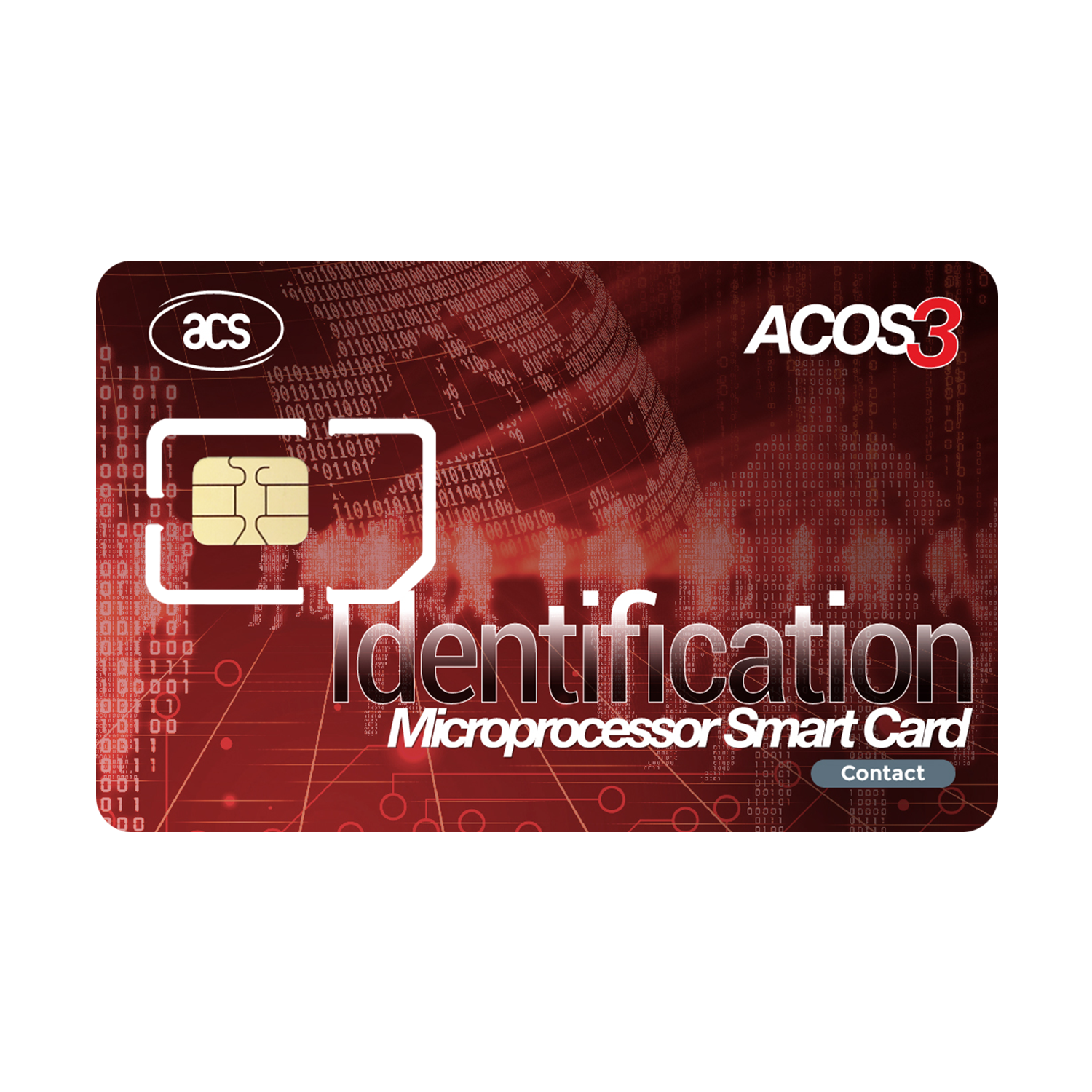

Contact Interface

  • Memory: Capacity 32KB or 72KB
  • Contact Smart Card Interface: Compliant with ISO 7816 Parts 1, 2 and 3; Supports T=0 Protocol; Supports baud up to 223.2 kbps
  • Cryptographic Features: DES, 2K3DES, 3K3DES; AES: 128/192 bits; MAC; Random Number Generation: FIPS 140-2 compliant hardware based RNG
  • File Security: Five secret codes + Issuer Code; PIN code; Key pair for mutual authentication; Session key based on random numbers; Secure Messaging function for confidential and authenticated data; Supports Account File Data Structure that can be enabled for secure purse/payment applications

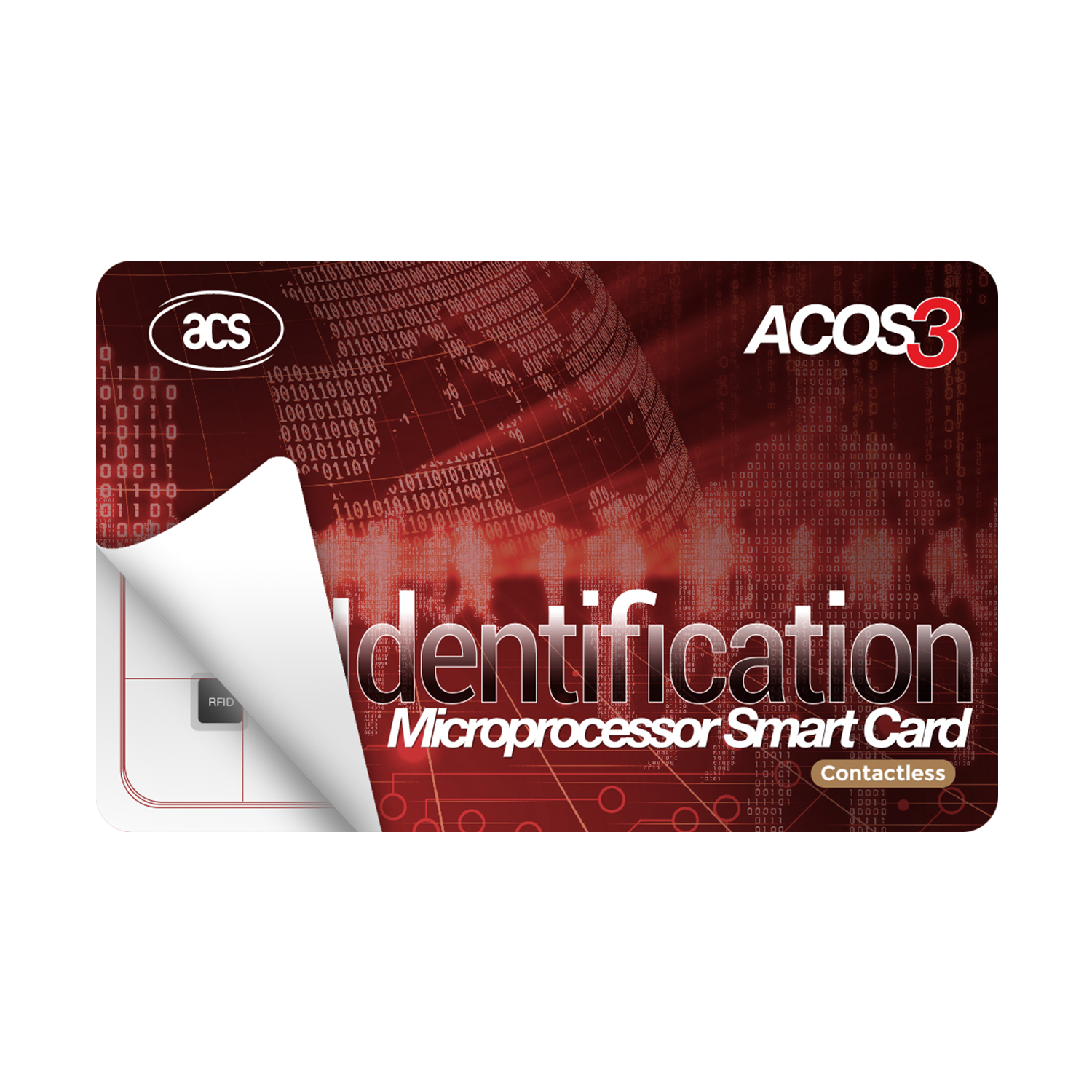

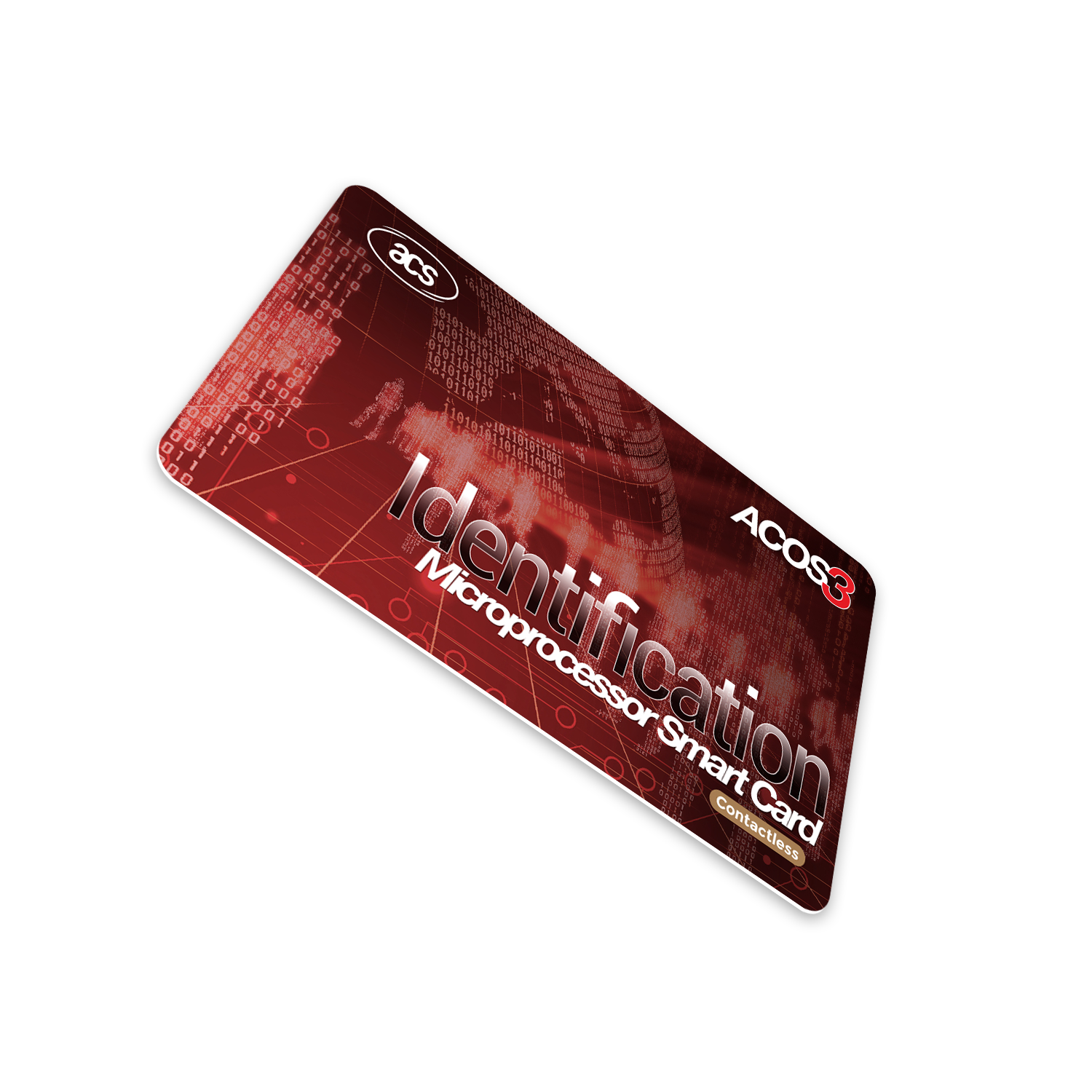

Contactless Interface

  • Memory: Capacity 8KB
  • Contactless Smart Card Interface: Compliant with ISO 14443 Parts 1, 2, 3 and 4 (Type A); Supports T=CL Protocol; Supports baud up to 848 kbps
  • Cryptographic Features: DES, 2K3DES; Random Number Generation: FIPS 140-2 compliant hardware based RNG
  • File Security: Five secret codes + Issuer Code; PIN code; Key pair for mutual authentication; Session key based on random numbers; Secure Messaging function for confidential and authenticated data transfers; Supports Account File Data Structure that can be enabled for secure purse/payment applications

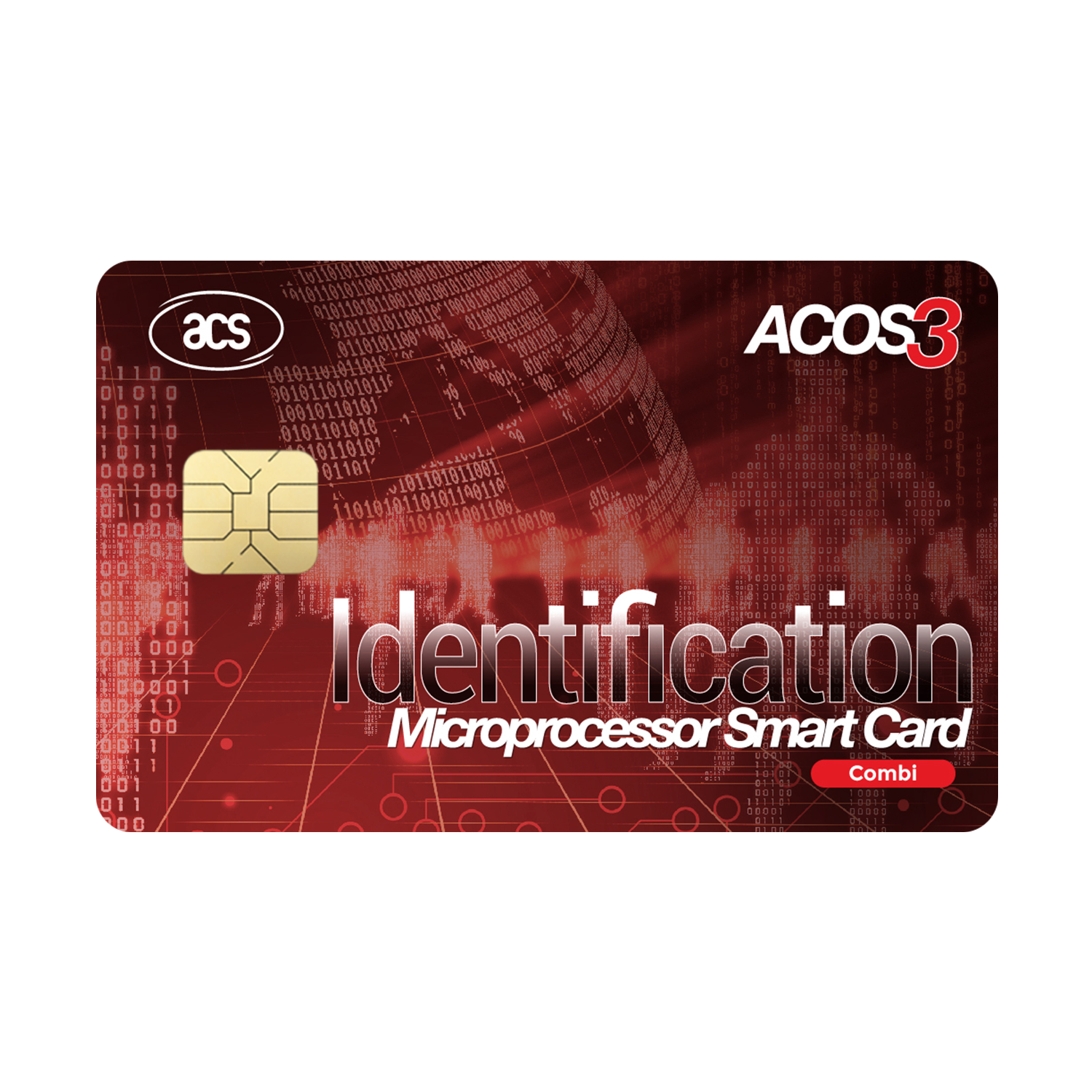

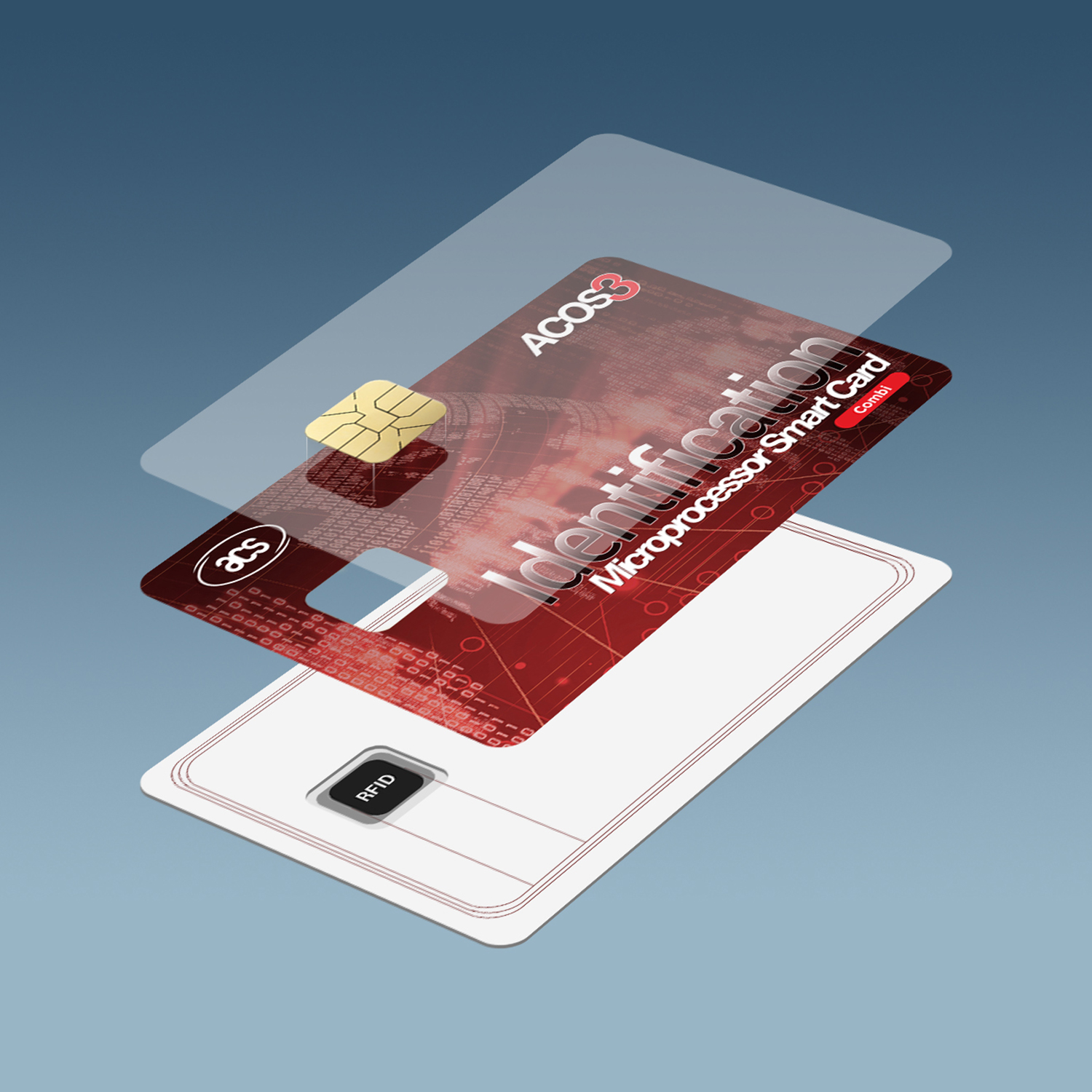

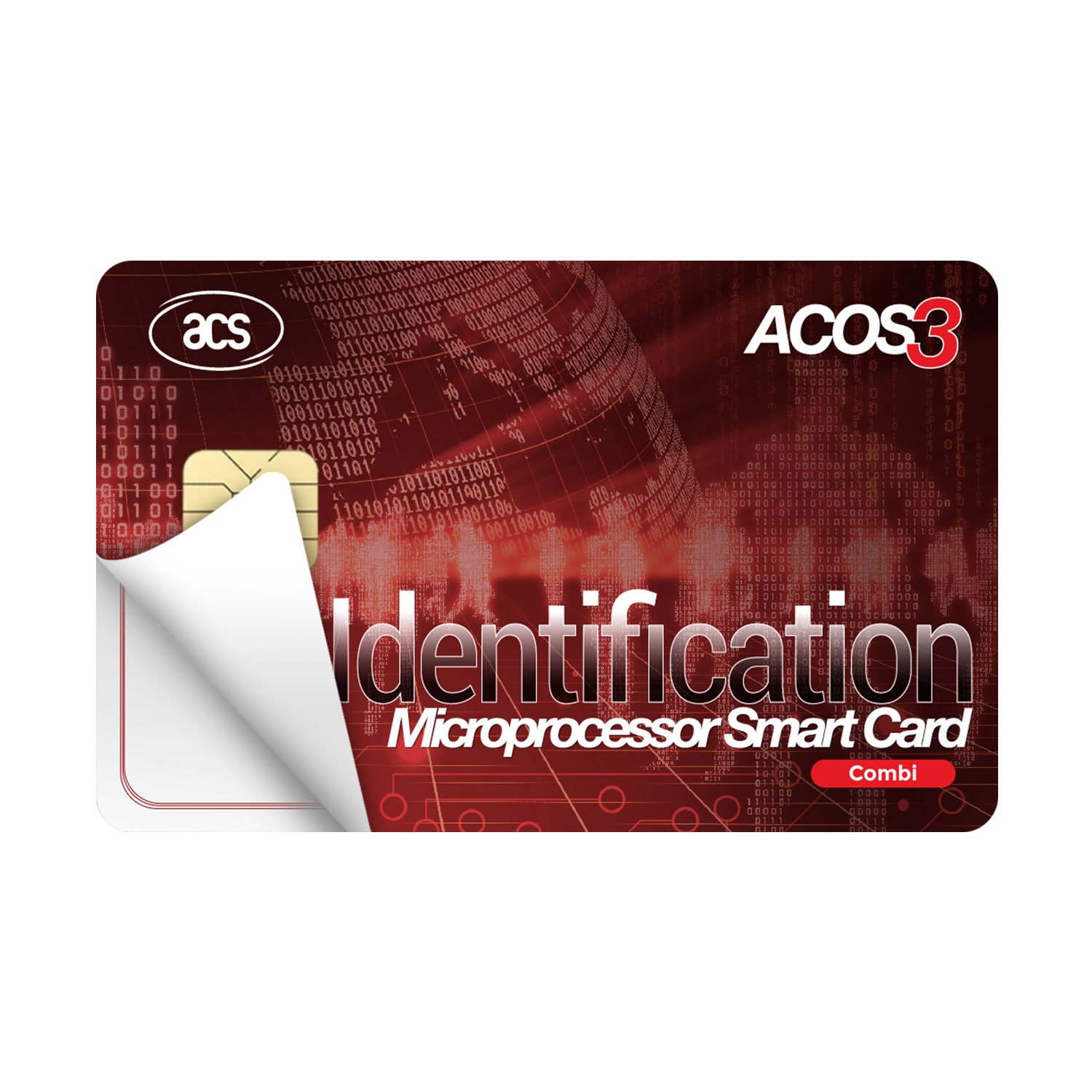

Combi Interface

  • Memory: Capacity 8KB
  • Contact Smart Card Interface: Compliant with ISO 7816 Parts 1, 2 and 3; Supports T=0 Protocol; Supports baud up to 223.2 kbps
  • Contactless Smart Card Interface: Compliance with ISO 14443 (Type A) Parts 1, 2, 3, 4; Supports T=CL Protocol; Supports baud up to 848 kbps
  • Cryptographic Features: DES, 2K3DES; Random Number Generation: FIPS 140-2 compliant hardware based RNG
  • File Security: Five secret codes + Issuer Code; PIN code; Key pair for mutual authentication; Session key based on random numbers; Secure Messaging function for confidential and authenticated data transfers; Supports Account File Data Structure that can be enabled for secure purse/payment applications

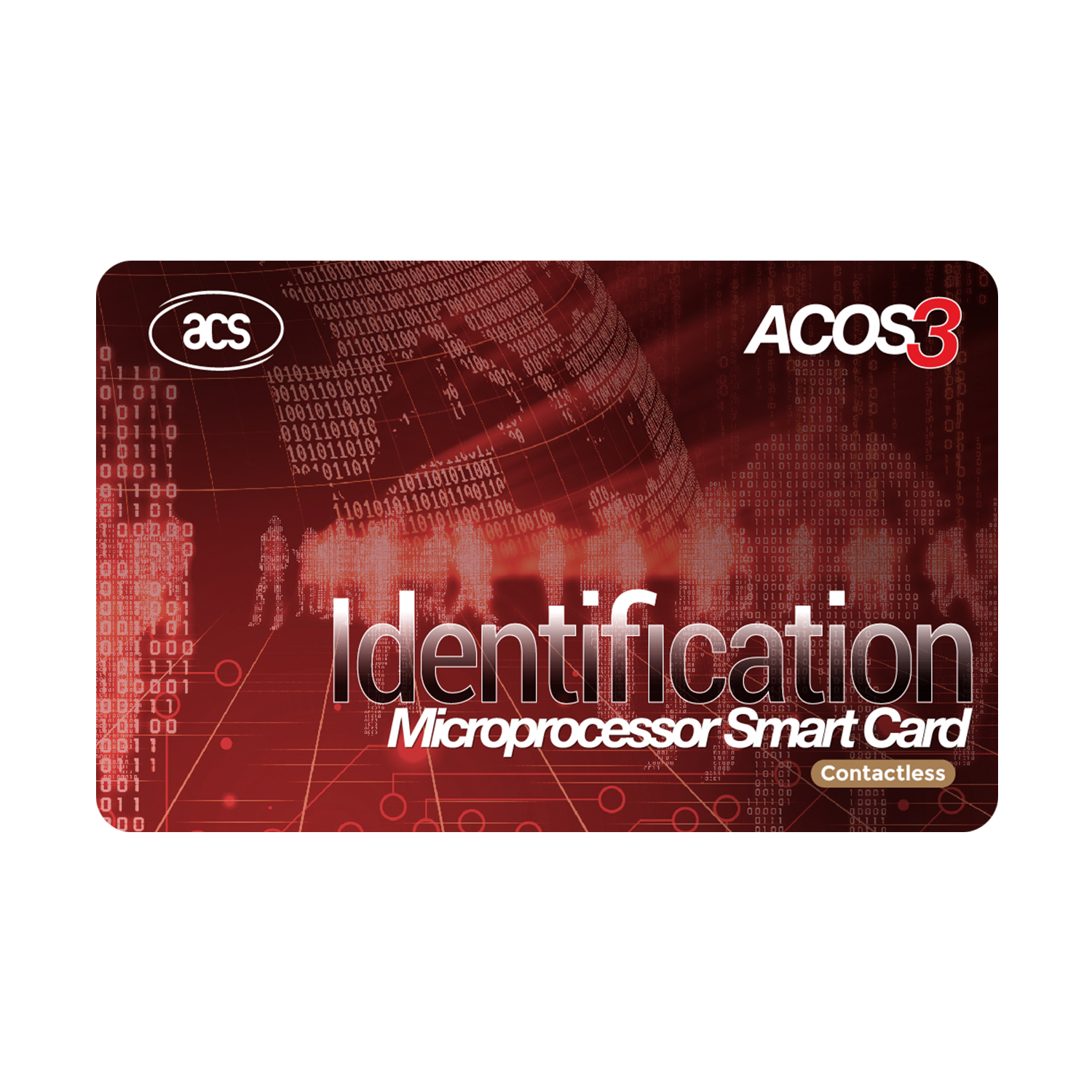

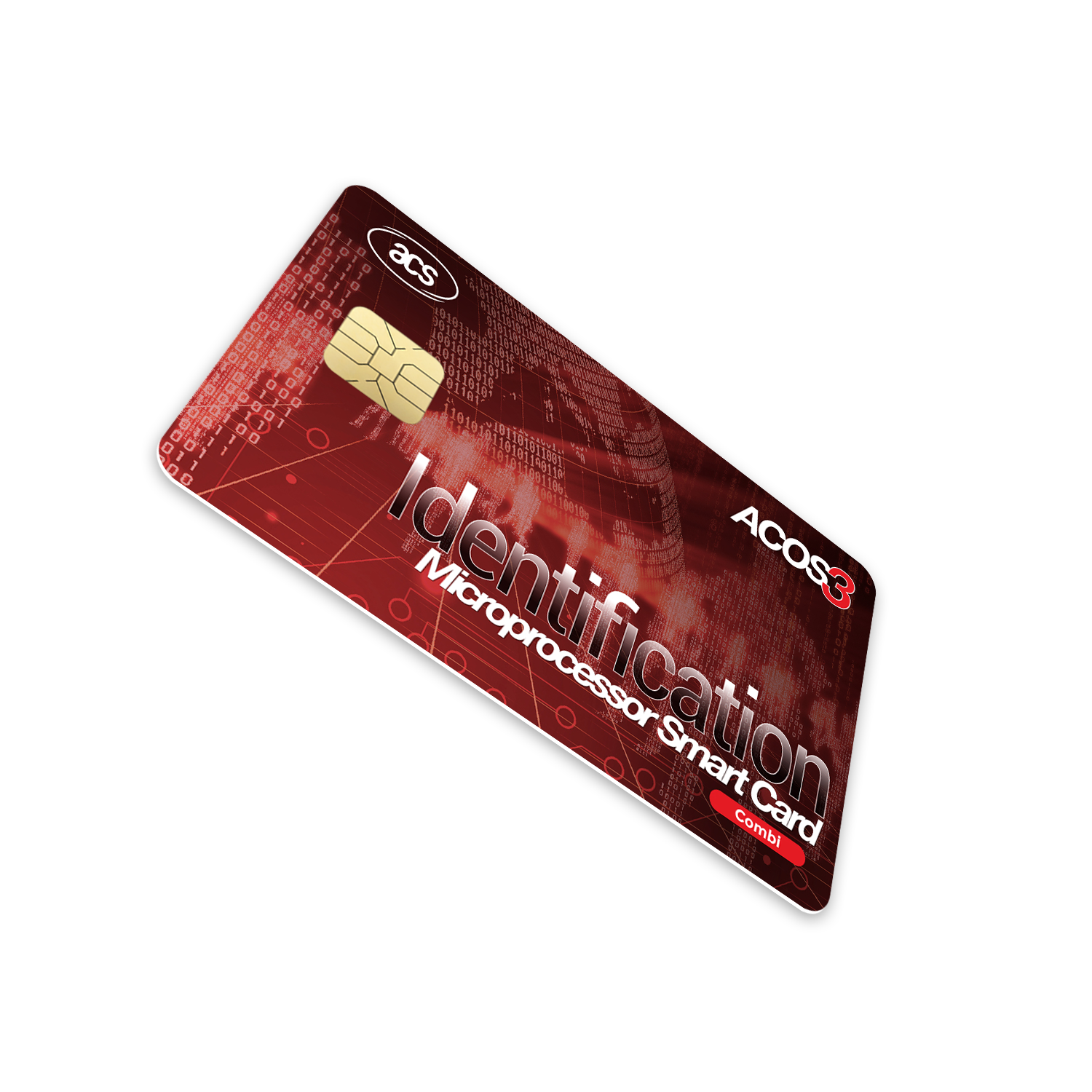

Images

Downloads

TypeTitleSizeUpdated
BrochureProduct Presentation of ACOS3 (Contact/Contactless/Combi)——
BrochureProduct Brochure of ACOS3 (Contact/Contactless/Combi)——
DatasheetFunctional Specification of ACOS3 Microprocessor Card (Contact)——
DatasheetFunctional Specification of ACOS3 Microprocessor Card (Contactless)——
DatasheetFunctional Specification of ACOS3 Microprocessor Card (Combi)——
ManualReference Manual of ACOS3 Microprocessor Card (Contact)available on request——
ManualReference Manual of ACOS3 Microprocessor Card (Contactless)available on request——
ManualReference Manual of ACOS3 Microprocessor Card (Combi)available on request——
Need pricing, samples or integration support for PR1024? Contact our sales teamorask about distribution.
