PR1050 — Contact Smart Card Reader · USB
Contact Smart Card Readers

PR1050

Contact Smart Card Reader · USB

An ISO 7816 Class A/B/C contact reader; PR1050-A1 has USB Type-A and PR1050-AF has USB Type-C.

Manufacturer reference: ACS — ACR40U (Standard) ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • USB CCID
  • PC/SC
  • EMV™ Level 1 (Contact)
  • PBOC Level 1 (Contact)
  • TAA
  • J-LIS
  • Microsoft® WHQL
  • CE
  • IEC/EN 62368
  • UKCA
  • FCC
  • VCCI
  • RoHS
  • REACH
  • WEEE
  • UL 62368
  • KC

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1050

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

Confirm the quotation scope

Use this checklist to specify what you want quoted. Manufacturer specifications describe the product; compatibility with your setup still requires evaluation.

Standard variant and cable
Specify the Standard model with USB Type-A or Type-C. Check the fixed 1 m cable and card insertion space; Premium is a separate product.
Hardware and SDK scope
List the PR1050 hardware and PR1054 SDK separately if required. Confirm kit hardware, test cards and software licences in the quotation.
Card and middleware
Specify the card voltage, T=0/T=1 or memory-card commands, and middleware version. Test the application workflow; PC/SC alone does not confirm compatibility.

Questions to resolve before ordering

  • Which Standard variant do you need: PR1050-A1 (USB Type-A) or PR1050-AF (USB Type-C)? Specify the host OS version, drivers, middleware and application; confirm hardware and SDK package scope separately.
  • What exact contact card, voltage and operations will you evaluate? Specify T=0, T=1 or the memory-card type and required commands; test the full application workflow.
  • Will the 55 × 65 × 9 mm reader, full-size card insertion space and 1 m fixed cable fit the installation? Include sample quantity, order quantity and delivery country in your enquiry.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗
From enquiry to evaluation and order

Use these checkpoints to confirm the configuration and evaluation scope before ordering in volume.

  1. Define the requirement

    Describe the task the product must perform and identify any requirements that still need clarification.

  2. Check the quotation scope

    Match the PR code to the manufacturer variant. Check the quoted hardware, accessories, software and licence terms.

  3. Agree the sample evaluation

    Before arranging evaluation units, agree the test setup and acceptance criteria. Record results and unresolved issues.

  4. Confirm the volume order

    Recheck the configuration and version against the evaluated unit, then confirm the quantity and delivery terms.

Manufacturer specifications describe the product; they do not confirm that your card, host and application have been tested together.

Contact smart card reader specifications at a glance

Match the exact USB variant, card voltage and protocol, host software and installation space before selecting a contact reader.

Host interface and connector variants
USB 2.0 Full Speed; USB CCID and PC/SC. PR1050-A1: USB Type-A; PR1050-AF: USB Type-C.
Contact card standard and voltage
ISO 7816 Parts 1–4, Class A/B/C: 5 V, 3 V and 1.8 V.
Card protocols and memory-card scope
T=0 and T=1 microprocessor cards; memory-card support depends on the specific card type and commands.
Card slot
One full-size contact smart card slot.
Reader dimensions
55 × 65 × 9 mm.
USB cable
1 m, non-detachable cable; confirm the connector variant.

PR1006's product page lists USB Type-A; its linked specification also lists the PR1006-UF Type-C variant. Confirm the exact variant in your quotation. These facts describe PR1050 and the specified PR1006 variants; Premium models and SDK packages have separate entries. PC/SC does not guarantee compatibility with your cards, middleware or application. Evaluate the complete workflow before ordering; price, quantity and lead time require a quotation.

Overview

Introducing the PR1050 / PR1051, ACS's latest compact high-speed USB contact smart card reader. It provides seamless support for ISO 7816 Class A, B, and C smart cards, microprocessor cards using T=0 and T=1 protocols, and a wide range of memory cards available in the market.

The PR1050 / PR1051 features two LED lights, indicating card and reader status. Exciting new additions include firmware upgradability and on-device user data storage, catering to various application scenarios. The PR1050 / PR1051 ensures compliance with CCID, PC/SC, and Microsoft® WHQL standards. It offers compatibility with multiple operating systems such as Windows®, Linux®, macOS, iOS, iPadOS, and Android™.

Furthermore, both USB Type-A and Type-C interface options are available, allowing for seamless connectivity and expanding the reader's versatility and convenience.

Features

  • USB 2.0 Full Speed Interface
  • USB Type A
  • Plug and Play – CCID support brings utmost mobility
  • Smart Card Reader:
  • - Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
  • - Supports CAC
  • - Supports SIPRNET Card
  • - Supports MyKad
  • - Supports J-LIS Card
  • - Supports microprocessor cards with T=0 or T=1 protocol
  • - Supports memory cards
  • - Supports PPS (Protocol and Parameters Selection)
  • - Features Short-Circuit Protection
  • Application Programming Interface:
  • - Supports PC/SC
  • - Support CT-API
  • Supports all major operating systems
  • - Windows®, Linux®, macOS, iOS, iPadOS, Android™, Solaris™

Technical Specifications

Physical Characteristics
Dimensions (mm) 55 mm (L) x 65.0 mm (W) x 9.0 mm (H)
Weight (g) 40.0 g ± 5.0 g
USB Interface
Protocol USB CCID
Connector Type USB Type A, USB Type C
Power Source USB Port
Speed USB 2.0 Full Speed (12 Mbps), Compatible with USB 3.0
Cable Length 1 m (Non-Detachable)
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others Mykad, CAC, J-LIS, SIPRNET Smart Cards
Certifications/Compliance
Standards USB CCID, PC/SC, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), TAA, J-LIS, Microsoft® WHQL
Regulatory/Environmental CE, IEC/EN 62368, UKCA, FCC, VCCI, RoHS, REACH, WEEE, UL 62368, KC
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, iOS, iPadOS, Android™, Solaris™

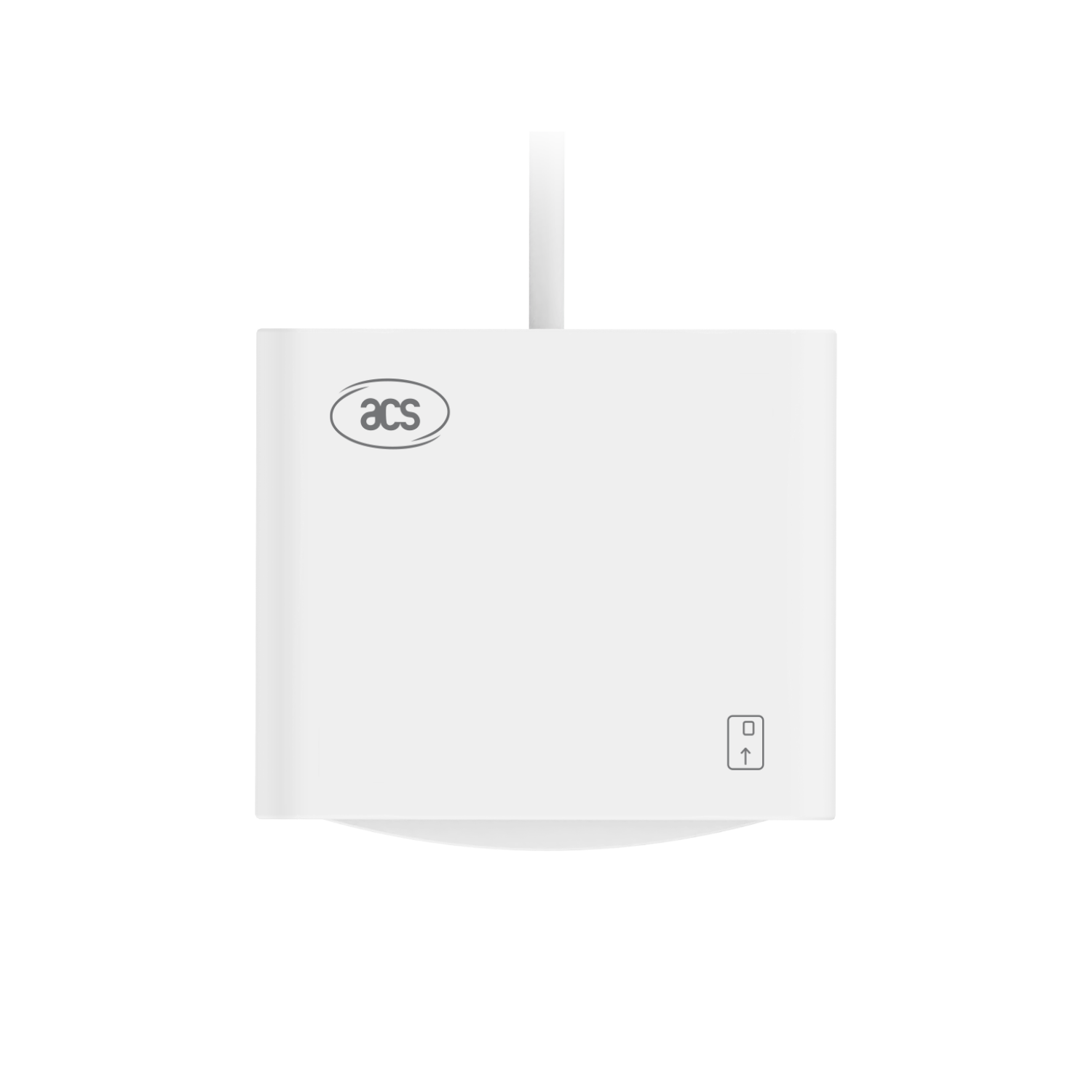

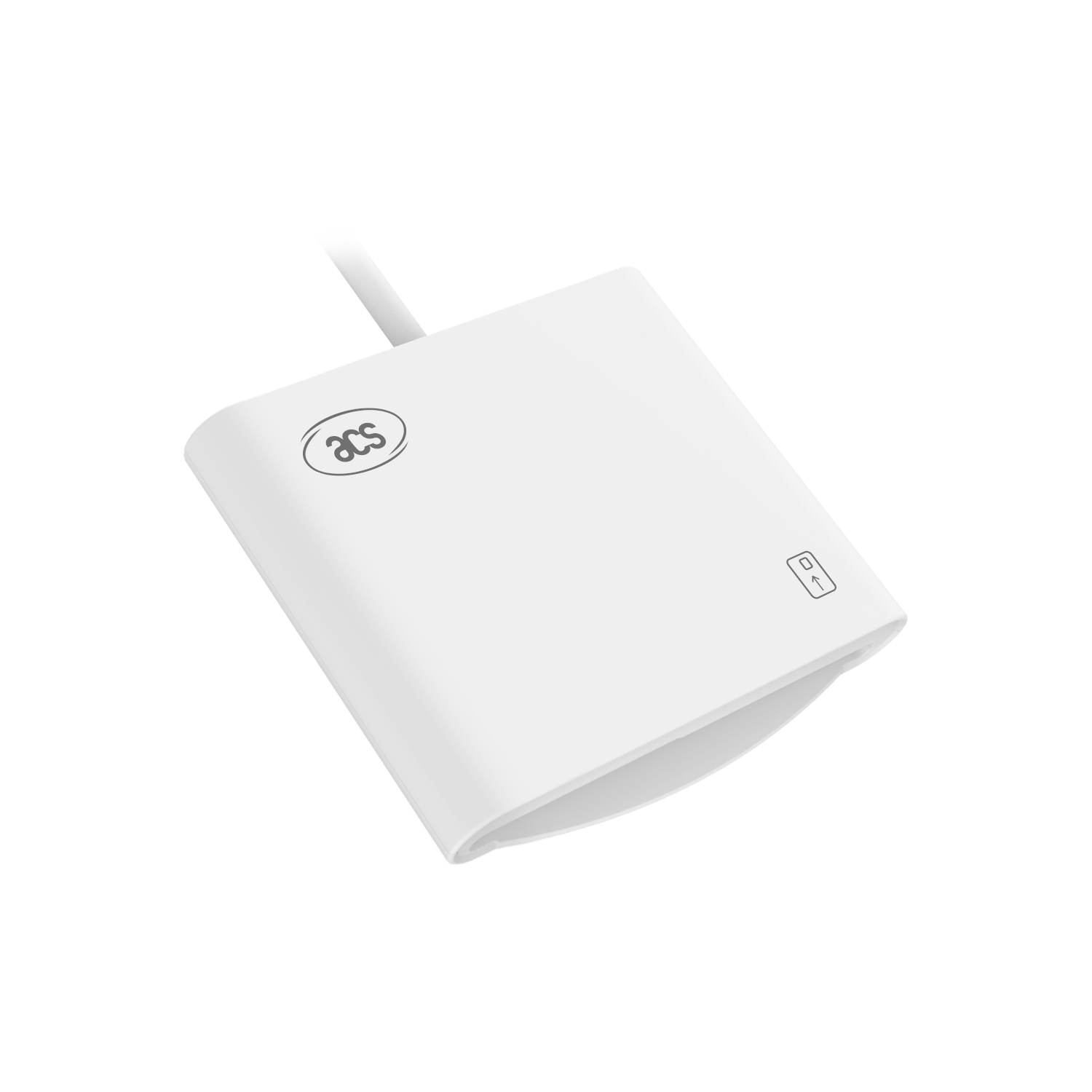

Images
