PR1060 — USB NFC Reader Module with SAM Slot
Smart Card Reader Modules

PR1060

USB NFC Reader Module with SAM Slot

NFC reader module with a primary USB interface, integrated antenna and SAM slot for embedded systems. RS-232 (TTL-level serial) is available upon request; confirm the hardware configuration, signal levels and pinout

Manufacturer reference: ACS — ACM1552D-C7 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • e-banking and e-payment
  • Loyalty Program
  • Smart Poster/URL Marketing
  • e-Healthcare
  • Network Security
  • Access Control
  • Transportation

PR1060

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1060 is a 13.56 MHz USB/Serial NFC reader module with a built-in antenna and an ISO 7816-compliant SAM slot for enhanced security. It supports ISO 14443 Type A/B, MIFARE Classic®, ISO 15693, and ISO 18092 standards, offering a reading distance of up to 70 mm. The device provides high-speed communication of up to 848 Kbps for ISO 14443 and 26 Kbps for ISO 15693. It operates in reader/writer, card emulation, and keyboard emulation modes (USB only), and also supports extended APDU and USB firmware upgrades.

Key Features

  • Smart Card Support: Compatible with ISO 14443 Type A & B, MIFARE®, FeliCa, ISO 18092 NFC, and ISO 15693 cards.
  • High-Speed Communication: Operates at up to 848 kbps
  • Secure SAM Slot: ISO 7816-compliant SAM slot for enhanced security
  • Dual Interface: Supports both USB and RS-232 for flexible integration with a wide range of systems.

Flexible NFC Modes

Supports three operating modes:

  1. Smart Card Reader/Writer
  2. Card Emulation
  3. Keyboard Emulation

Ideal for applications like payments, access control, ticketing, loyalty programs, and smart marketing.

Broad Compatibility

Works seamlessly with Windows®, Linux®, macOS®, and Android™, making it a reliable and adaptable solution for industries like finance, healthcare, and government.

Features

  • USB 2.0 Full Speed Interface or RS-232 (TTL/UART, upon request)
  • CCID Compliance
  • Read/Write speed up to 848 kbps
  • Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type)
  • Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC
  • Supports MIFARE® (T=CL), FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
  • Built-in anti-collision feature
  • Supports extended APDU (max. 64 kbytes)
  • SAM Interface: ISO 7816-compliant SAM slot, Class A (5V)
  • Supports various NFC modes: Smart Card Reader/Writer Mode, Card Emulation Mode, Keyboard Emulation Mode
  • Application Programming Interface: Supports PC/SC and CT-API (through wrapper on top of PC/SC)
  • Peripherals: 2x user-controllable LED (Blue & Green), user-controllable buzzer (Monotone)
  • USB Firmware Upgradability

Technical Specifications

Category Details
Physical Characteristics
Dimensions (mm) Main Body: 106.6 x 67.0 x 16.0 mm; Antenna: 65.0 x 60.0 mm
Weight (g) 20 g ± 0.2 g
USB Interface
Current Consumption Max. 300 mA
Supply Voltage 5VDC
Connector Type USB Port connector (J2): 5-pin, Molex KK 254 Wire-to-Board Header compatible; Serial Port Connector (J5): 5-pin, JST B5B-XH-A compatible
Protocol USB or RS-232 (TTL, upon request)
Speed USB 2.0 Full Speed (12 Mbps), compatible with USB 3.0
Cable Length 1.5 m, Detachable (Optional)
Contactless Smart Card Interface
Standard ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card (T=CL); MIFARE® Classic Card (T=CL); ISO 15693; ISO 18092 NFC Tags; FeliCa and Topaz
SAM Card Interface
Clock Frequency 5 MHz, up to 10 MHz (upon request)
Read/Write Speed 13.4 kbps – 1,250 kbps
Standard 1 x ISO 7816 Class A (5V, 3V) Standard SIM size slot
Protocol T=0, T=1
Built-in Peripherals
LED 2 x Programmable LED: Blue and Green
Buzzer 1 x Programmable Buzzer (Mono-tone)
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance Certifications: IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, Microsoft® WHQL. Standard: USB CCID, PC/SC, WEEE
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS®, Android™

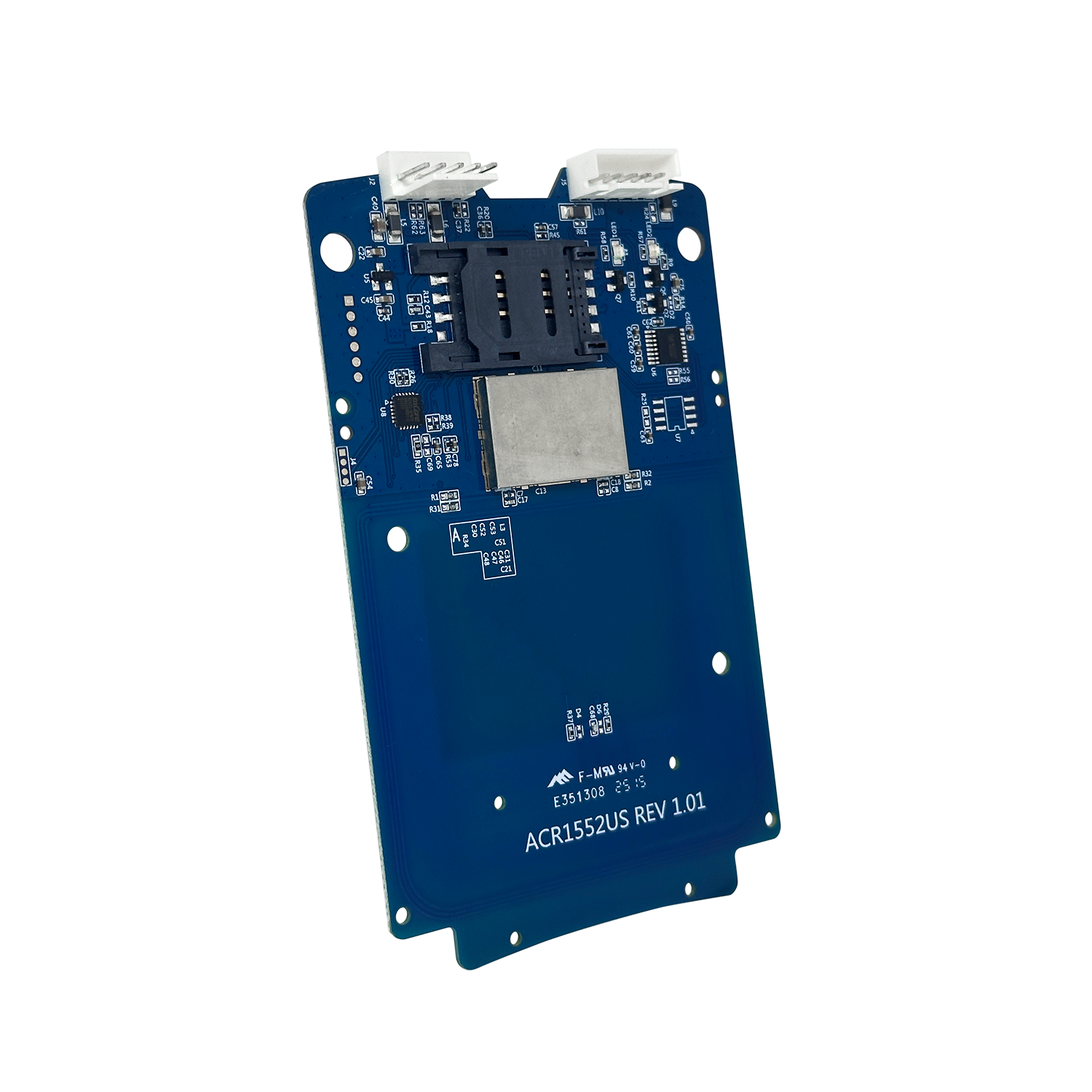

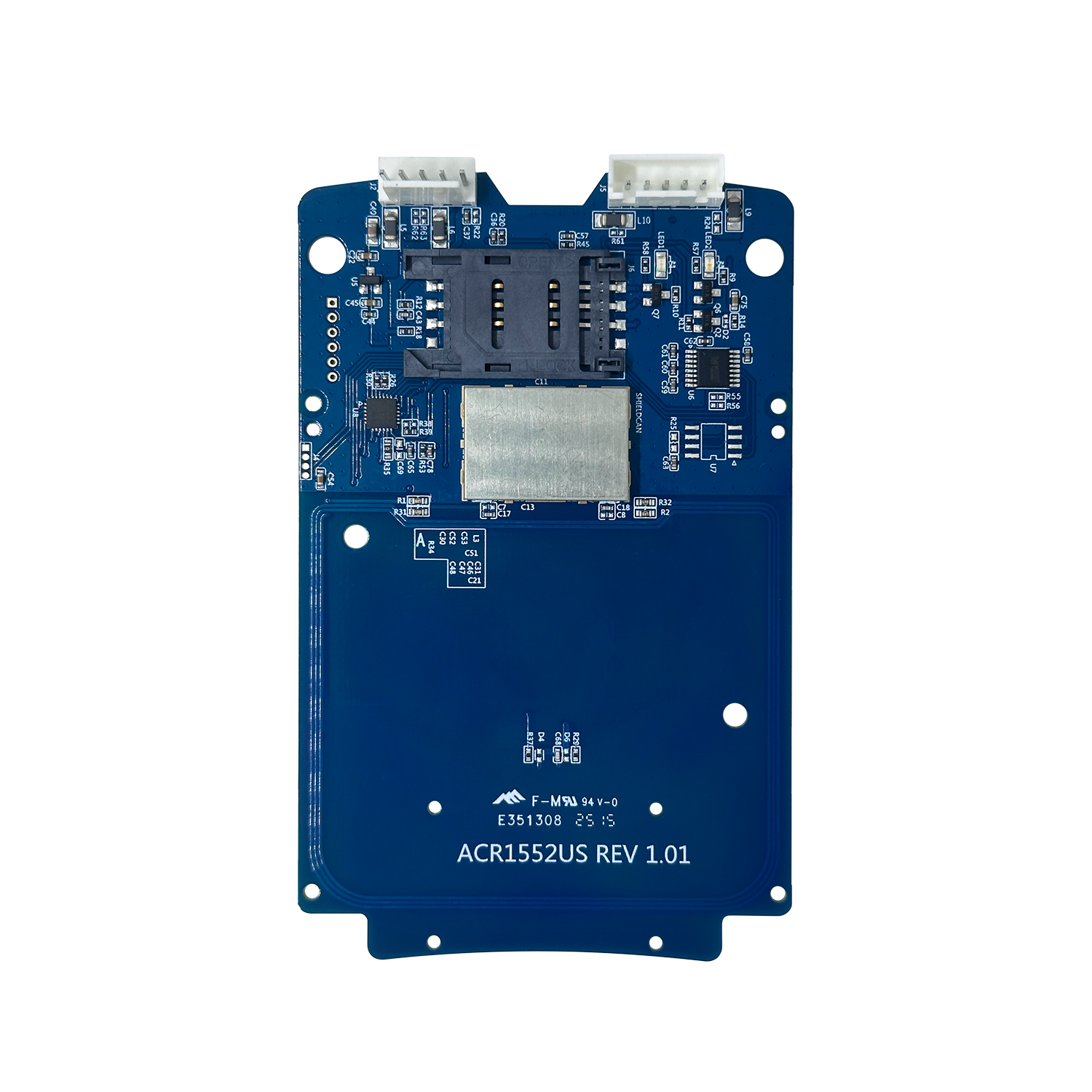

Images

Downloads

TypeTitleSizeUpdated
SoftwareConfiguration Tool (Keyboard Emulation, UID)567.78 KB27-Oct-2025
ManualACS ApduTool (iOS) Application Note118.31 KB23-Feb-2024
DriverPC/SC Driver Installer (Windows®)5.83 MB12-Dec-2025
DriverPC/SC Driver Installer (Linux®)4.30 MB20-Nov-2025
DriverPC/SC Driver Installer (macOS®)281.65 KB17-Nov-2025
SoftwareAndroid EVK1.46 MB25-Nov-2025
ManualReference Manual of ACM1552D-C7——
DatasheetTechnical Specification of ACM1552D-C7——
ManualUser Manual of ACM1552D-C7——
