PR1005 — DualBoost II Serial Dual Interface Reader · RS-232
Contactless Readers

PR1005

DualBoost II Serial Dual Interface Reader · RS-232

Dual-interface serial reader with a built-in Secure Access Module (SAM) slot

Manufacturer reference: ACS — ACR1281S-C1 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • ISO 14443
  • ISO 7816
  • CE
  • FCC
  • RoHS

Primary Applications

  • e-Government
  • Banking & Payment
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1005

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1005 DualBoost II is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. PR1005 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for banking or e-commerce to settle payments or other transactions securely using credit cards, and it for verifying contactless cards to provide access to specific areas or workstations. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.

The PR1005 is a plug and play device that does not require any driver installation. It comes with a built-in SAM slot for added security in both contact and contactless applications. Lastly, the PR1005 makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, PR1005 Serial DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.

Features

  • Serial RS232 Interface
  • USB interface for power supply
  • CCID-like frame format (binary format)
  • Contactless Smart Card Reader: - Read/write speed of up to 848 kbps - Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) - Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series - Built-in anti-collision feature (only one tag is accessed at any time) - Supports extended APDU (max. 64 kbytes)
  • Contact Smart Card Reader: - Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V) - Supports microprocessor cards with T=0 or T=1 protocol - Supports memory cards - ISO 7816 compliant SAM slot
  • Built-in Peripherals: - Two user-controllable LEDs - User-controllable buzzer
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics
Dimensions (mm) 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight (g) 150 g
Serial Interface
Connector Type DB-9 Connector
Protocol RS-232
Power Source From USB Port

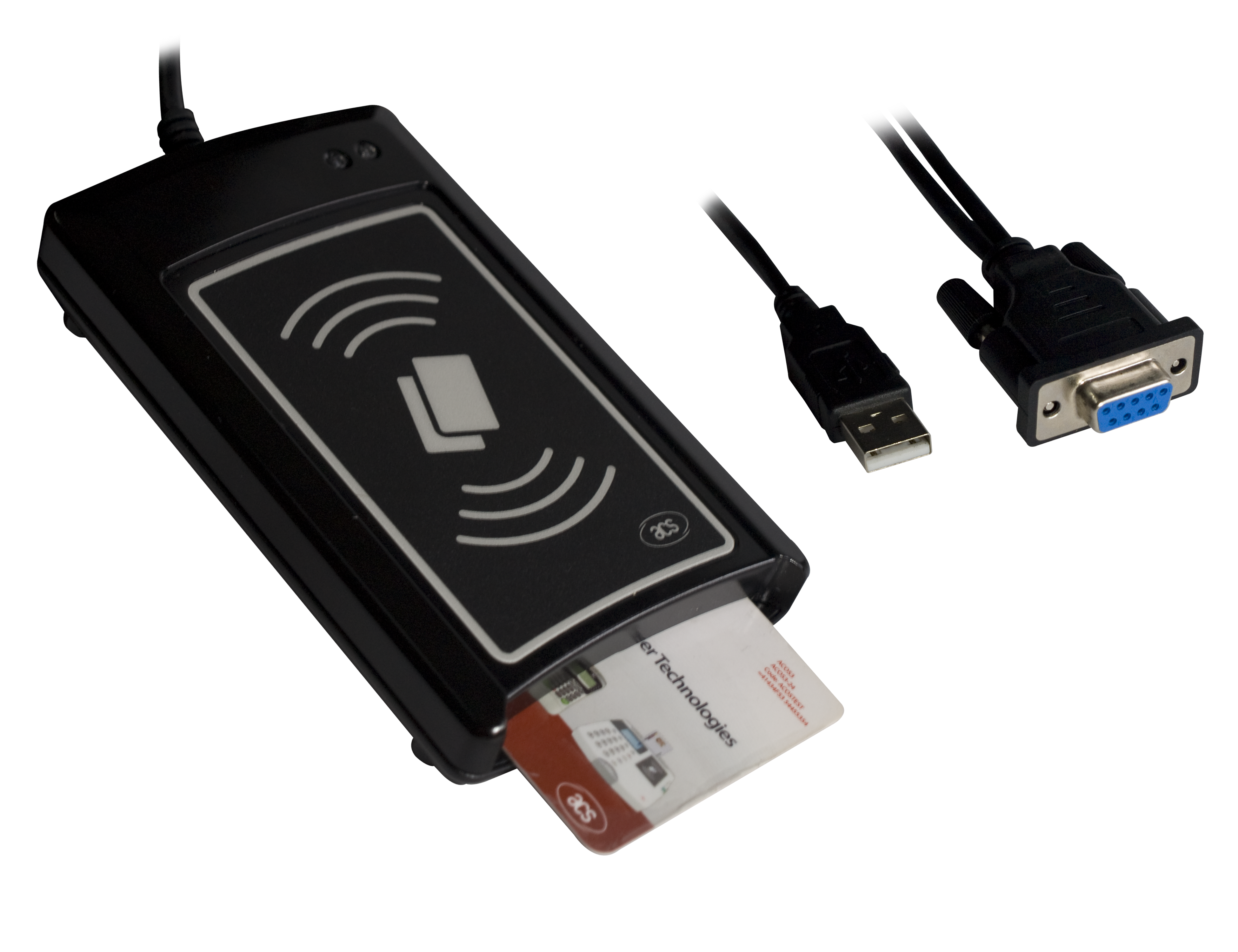

Cable Length 1.5 m, Fixed (DB9 + USB)
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1
Contactless Smart Card Interface
Standard ISO 14443 A & B Parts 1-4
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL
SAM Card Interface
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A (5 V)
Protocol T=0; T=1
Built-in Peripherals
LED 2 single-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance ISO 14443, ISO 7816, CE, FCC, RoHS
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®

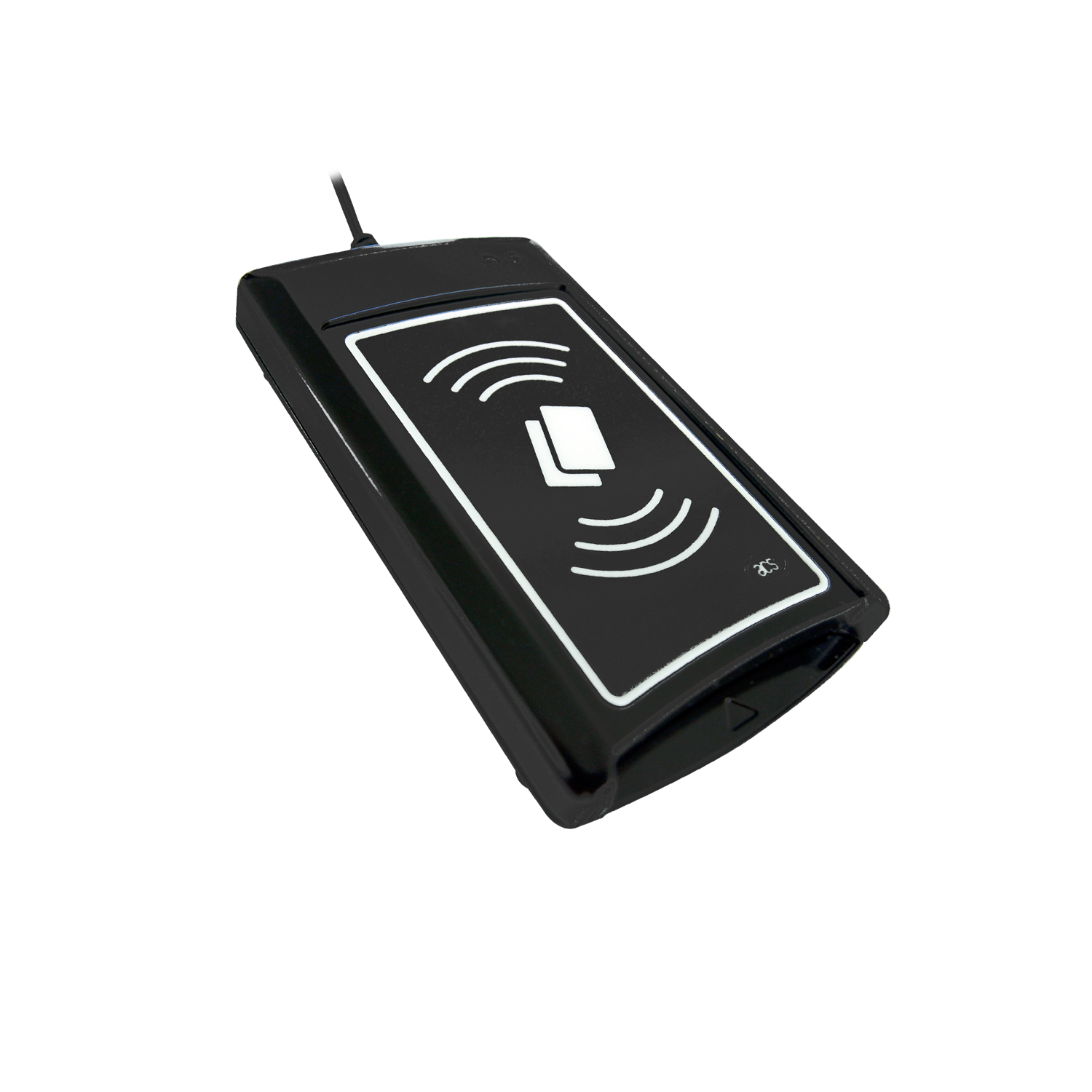

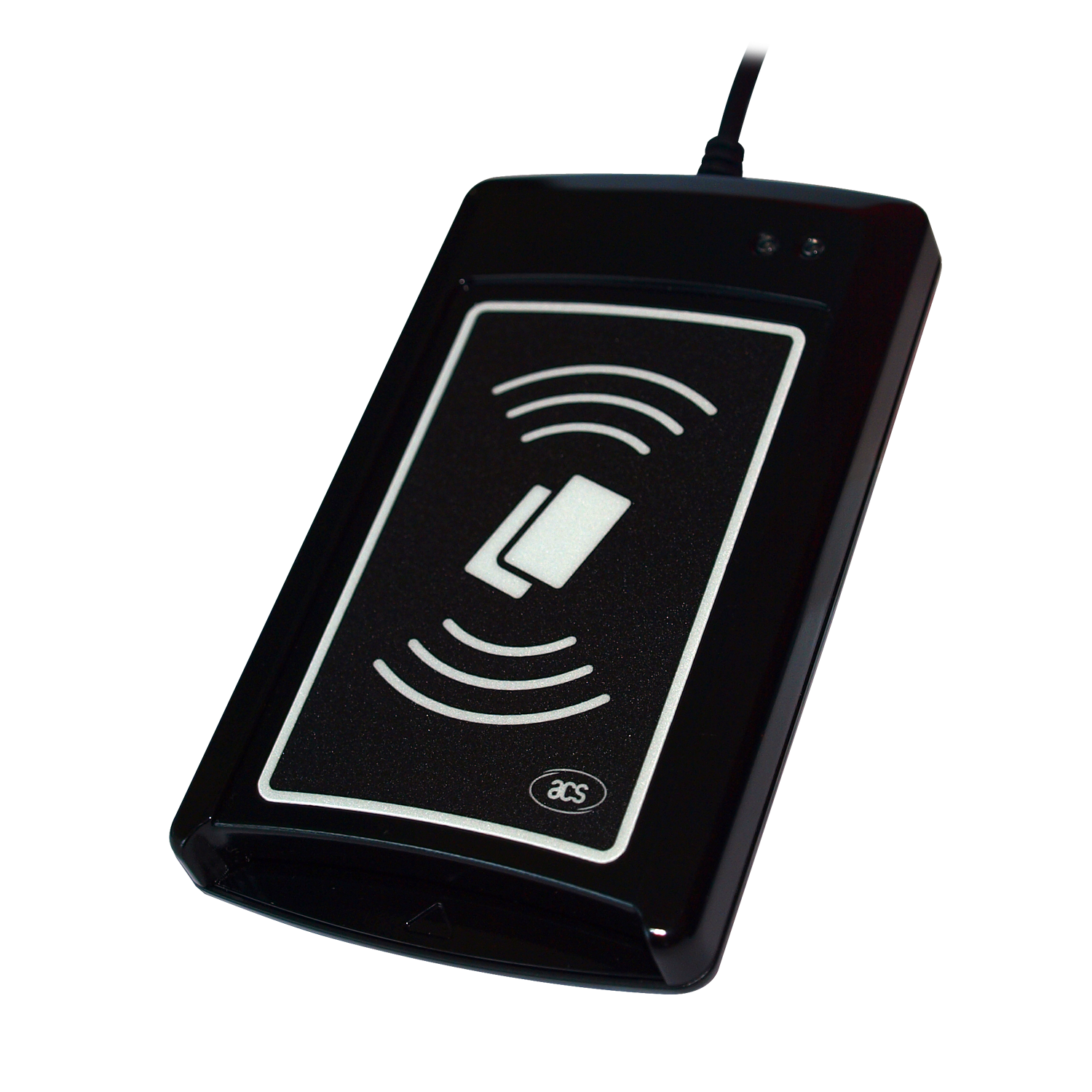

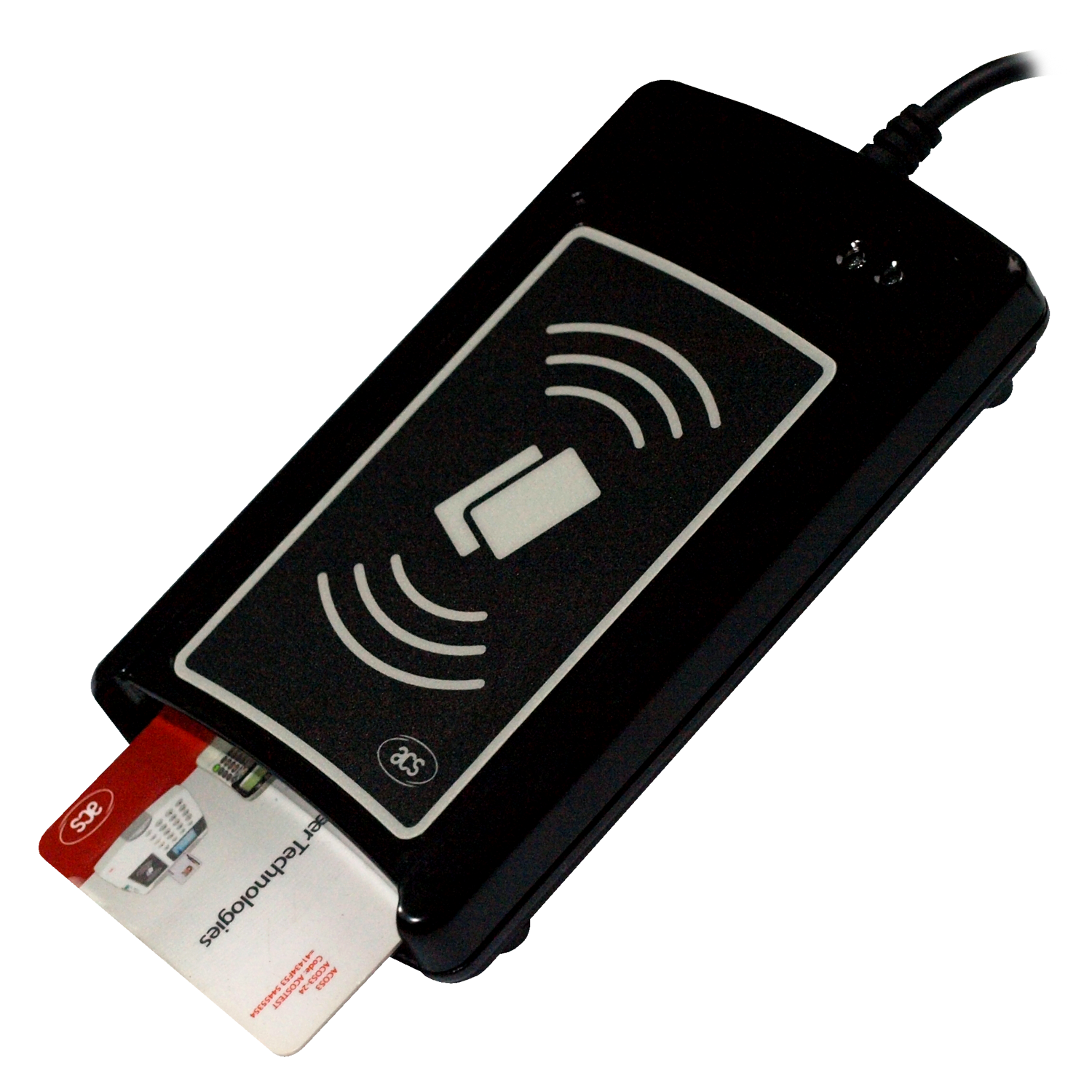

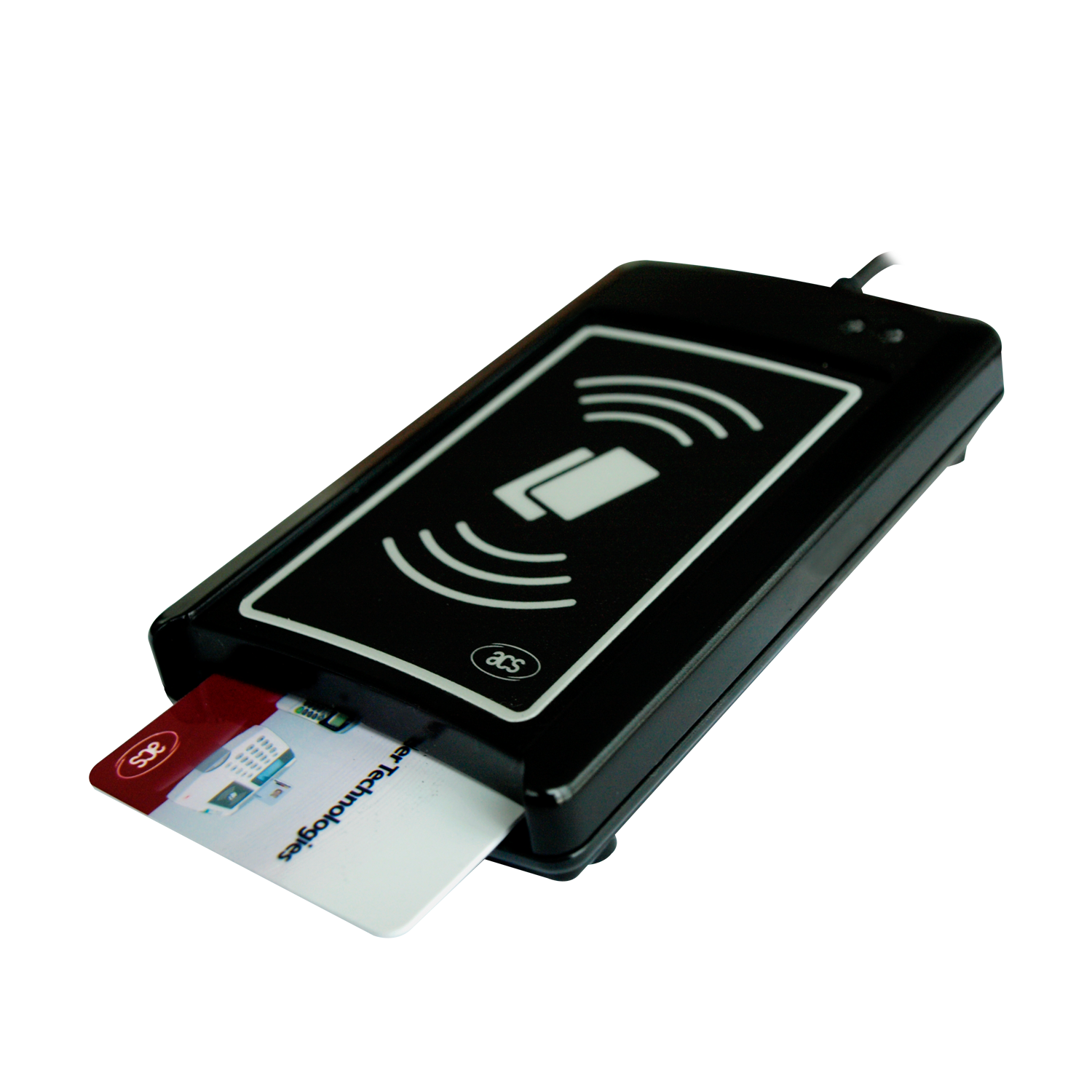

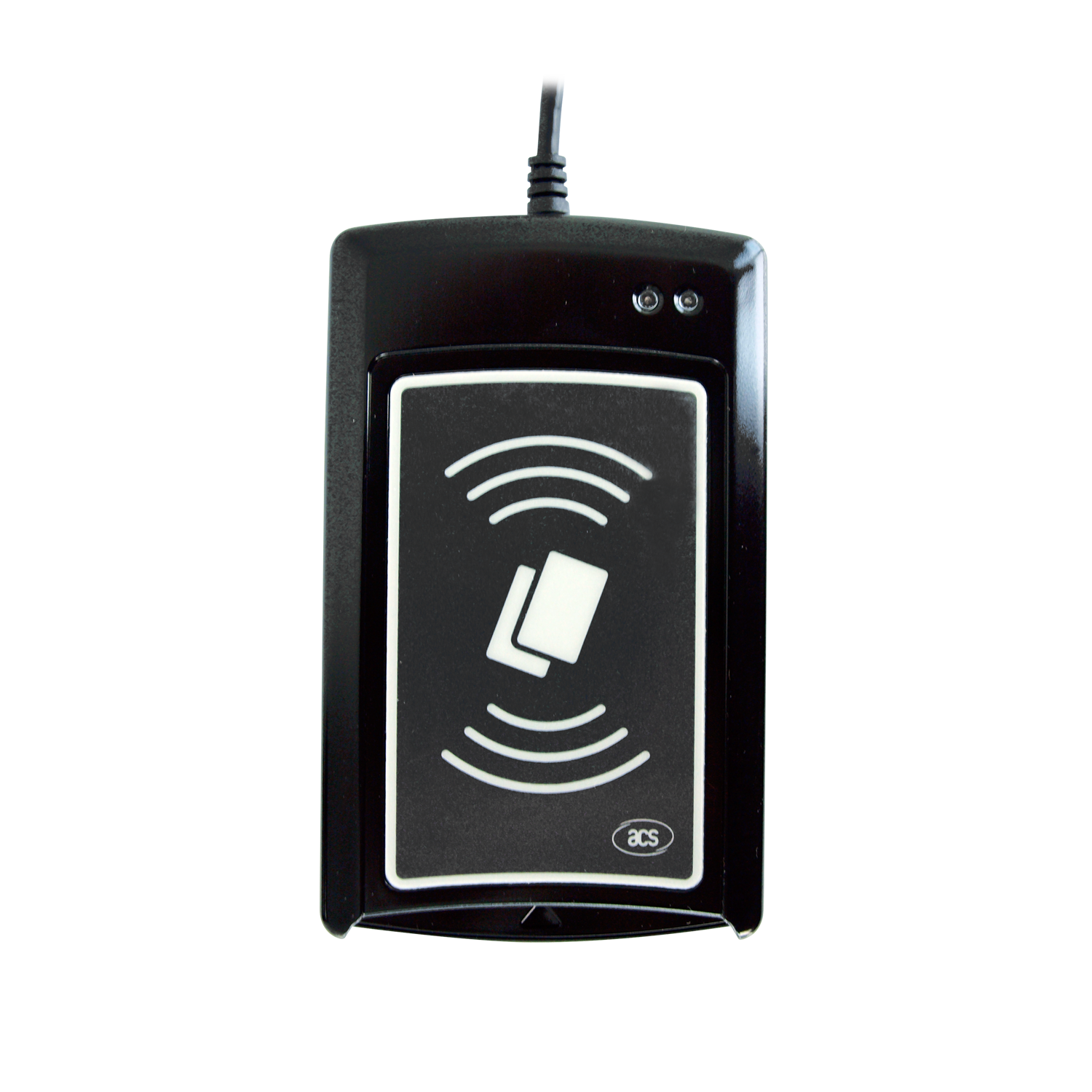

Images
