PR1021
Plan your purchase
Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.
- Evaluation samples
- Paid samples
- Warranty
- One-year warranty
Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.
What to include in your enquiry
- Model and quantity
- Specify the model or required function, evaluation quantity and expected order quantity.
- Destination and application
- Include the delivery country, project use and required delivery date.
- Cards and host platform
- List the card or tag type, operating system and version, connection and software requirements.
Questions to resolve before ordering
- Which card, tag or identity document must the product work with, and what data must be read or written?
- Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.
If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.
Overview

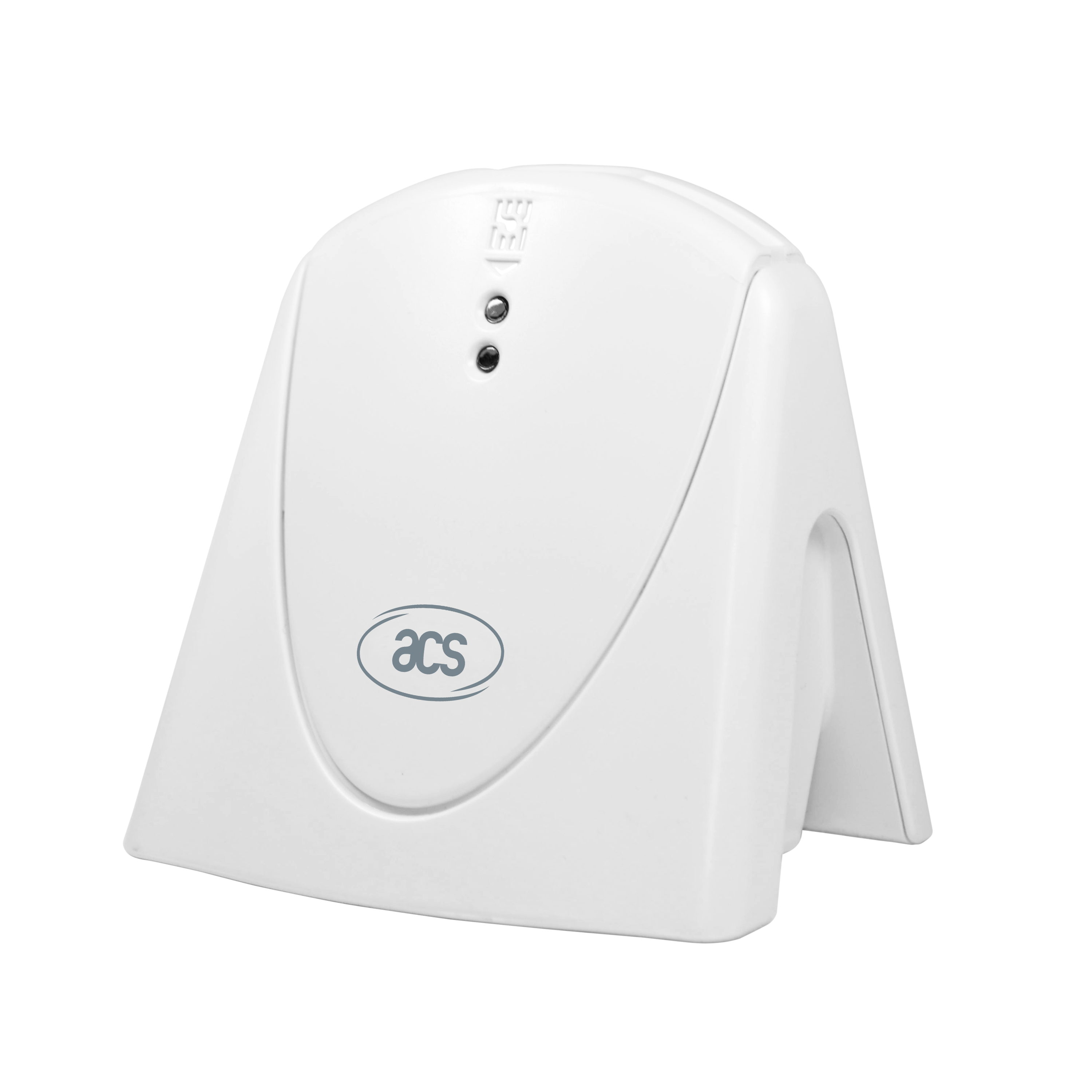

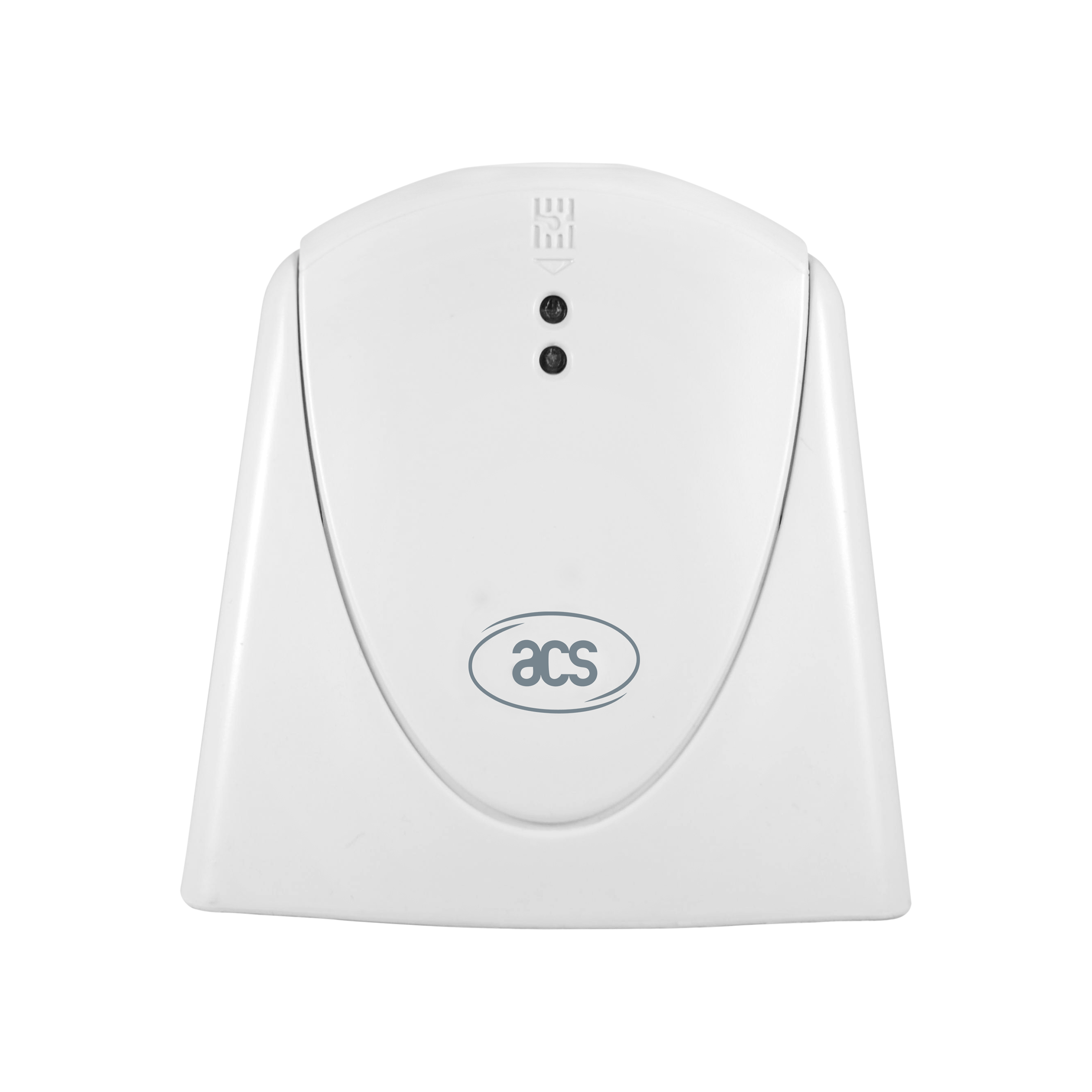

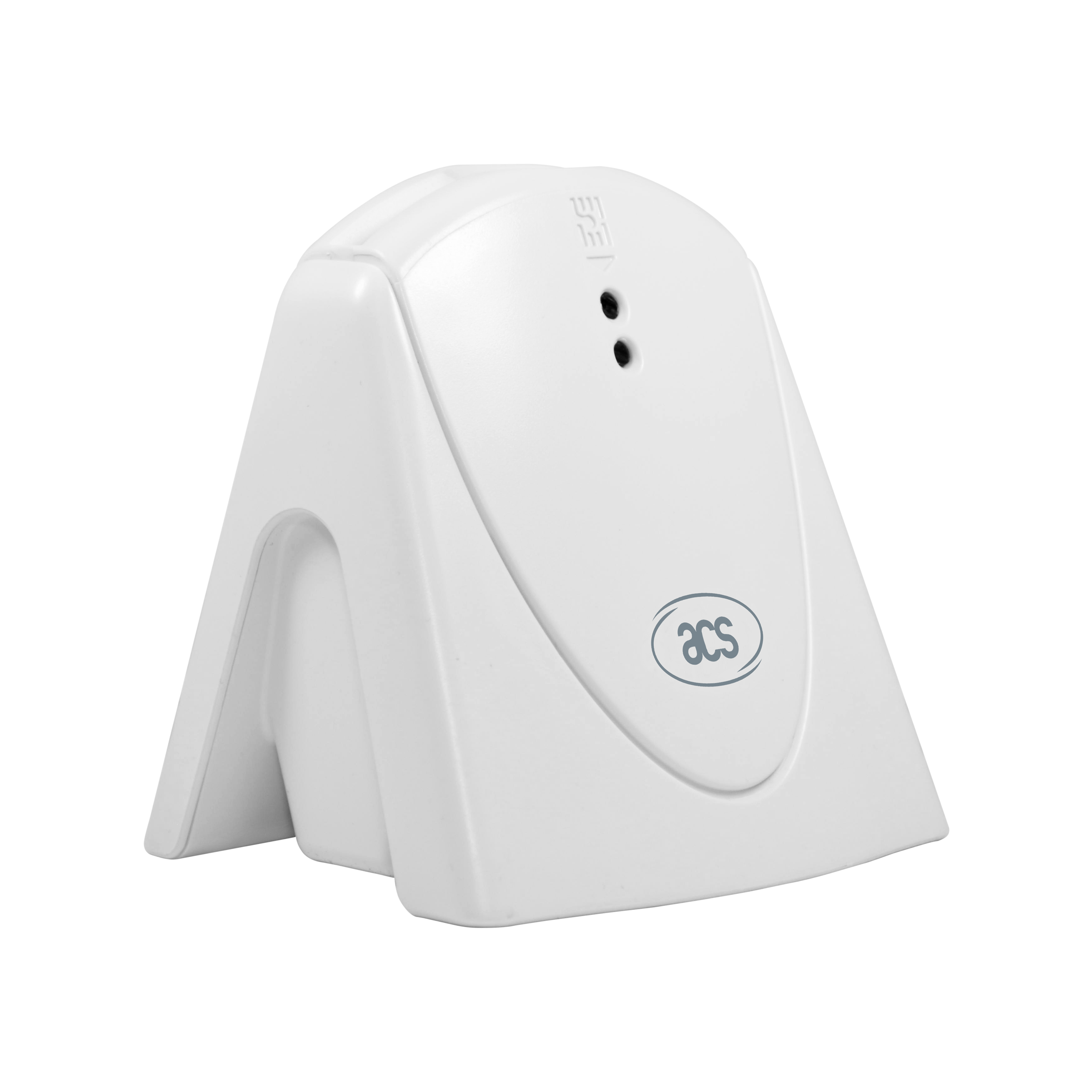

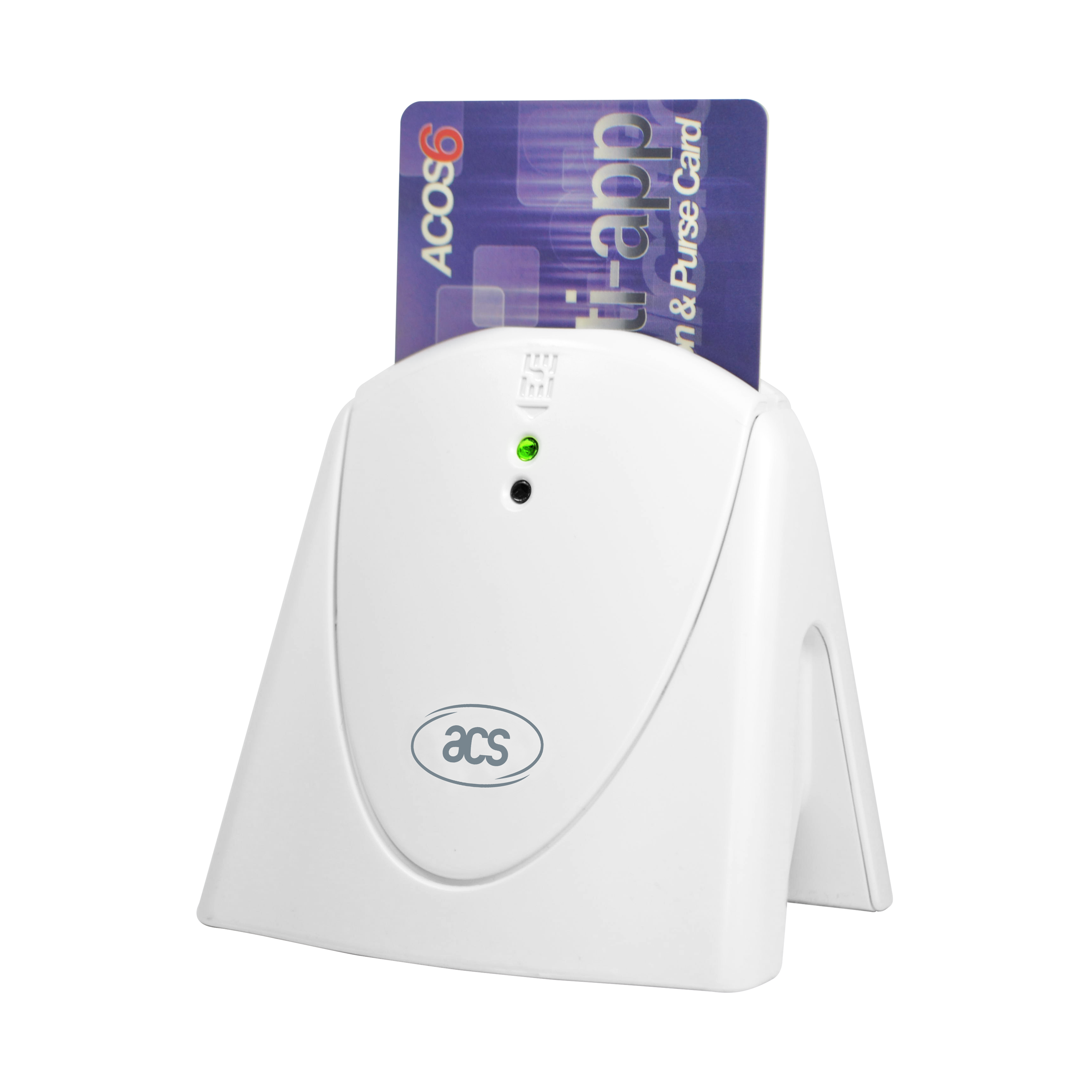

PR1021 is a smart card reader that enables upright insertion of smart cards, making it convenient to use for applications like e-Government, access control, and alike.
PR1021 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V), microprocessor cards with the T=0 or T=1 protocol, memory cards, as well as the Malaysian Identity Card (Mykad). It also features a USB full speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, PR1021 can last for 200,000 card insertion cycles. PR1021 also has various certifications, such as EMV™ Level 1 (Contact) and PBOC (People's Bank of China), making it the ideal smart card reader for your e-Banking and e-Payment applications.
PR1021 is easy to install, use, and integrate in a computer-based environment. It is PC/SC and CCID-compliant with drivers that are compatible with operating systems such as Windows®, Linux®, macOS® and Solaris™. In addition, PR1021 can also be used on mobile devices running on the Android™ platform Versions 3.1 and later.
With its advanced features, PR1021 is the ultimate smart card reader for your applications.
Features
- USB Full Speed Interface
- Compatible with USB 3.0
- USB Type-A Connector
- Plug and Play – CCID support brings utmost mobility
- Contact Interface: Supports ISO 7816 Class A, B and C (5V, 3V, 1.8V) cards
- Supports CAC (Common Access Card)
- Supports SIPRNET Card
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- Supports Mykad Card
- Supports PPS (Protocol and Parameters Selection)
- Features Short Circuit Protection
- Application Programming Interface: Supports PC/SC and CT-API (through wrapper on top of PC/SC)
- Supports Android™ 3.1 and later
Technical Specifications
| Category | Details |
|---|---|
| Physical Characteristics | |
| Dimensions (mm) | 71.5 x 80.0 x 80.0 mm |
| Weight (g) | 174 g |
| USB Interface | |
| Protocol | USB CCID |
| Connector Type | USB Type-A |
| Power Source | USB port |
| Speed | USB 2.0 Full Speed (12 Mbps) |
| Cable Length | 1.5 m (Non-Detachable) |
| Contact Smart Card Interface | |
| Number of Slots | 1 Full-sized Card Slot |
| Standard | ISO 7816 Parts 1-4, Class A, B, C (5V, 3V, 1.8V) |
| Protocol | T=0; T=1; Memory Card Support |
| Others | Mykad Card, CAC, PIV, SIPRNET Smart Cards |
| Certifications/Compliance | |
| Certifications/Compliance | Standards: USB CCID, PC/SC, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), Microsoft® WHQL, TAA. Regulatory/Environmental: CE, IEC/EN 62368, FCC, VCCI, KC, RoHS, REACH, WEEE, UKCA |
| Device Driver Operating System Support | |
| Device Driver Operating System Support | Windows®, Linux®, macOS®, Solaris™, Android™ |
Downloads
| Type | Title | Size | Updated |
|---|---|---|---|
| Manual | ACS ApduTool (iOS) Application Note | 118.31 KB | 23-Feb-2024 |
| Driver | PC/SC Driver Installer (Windows®) | 5.02 MB | 11-Dec-2025 |
| Driver | PC/SC Driver Installer (Linux®) | 4.30 MB | 20-Nov-2025 |
| Driver | PC/SC Driver Installer (macOS®) | 281.65 KB | 17-Nov-2025 |
| Software | Android EVK | 1.46 MB | 25-Nov-2025 |
| Manual | Reference Manual of ACR39 Series Smart Card Reader | — | — |
| Datasheet | Technical Specification of ACR39U-H1 Smart Card Reader | — | — |
| Brochure | Product Presentation of ACR39 Series Smart Card Reader | — | — |
