PR1017 — PocketMate II Smart Card Reader (USB Type-C)
Contact Smart Card Readers

PR1017

PocketMate II Smart Card Reader (USB Type-C)

Pocket-sized contact smart card reader with a USB Type-C connector

Manufacturer reference: ACS — ACR39U-NF ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • USB CCID
  • PC/SC
  • EMV™ Level 1 (Contact)
  • PBOC Level 1 (Contact)
  • J-LIS
  • Microsoft® WHQL
  • TAA
  • CE
  • IEC/EN 62368
  • UL 62368
  • FCC
  • VCCI
  • KC
  • RoHS
  • REACH
  • WEEE
  • UKCA

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Access Control
  • Network Security
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1017

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

ACR39 PocketMate II with USB Type-C Connector represents an ACS new paradigm. No larger than a USB stick, this smart card reader is capable of supporting demanding smart card applications using full-sized contact smart cards. It provides value and reliable functionality to meet your security needs, and is highly durable as it is able to last for 100,000 card insertion cycles.

PR1006 PocketMate II supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. It supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC), the SIPRNET Card and the Malaysian Identity Card (MyKad). This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications.

This USB Type-C connector version of PR1006 PocketMate II enables backwards compatibility and reversible use, along with all of the features mentioned for PR1006 series. PR1006 PocketMate II can easily be integrated in a computer-based or mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Linux®, Solaris™, and macOS. In addition, PR1006 PocketMate II may now be used on mobile devices running on Android™ versions 3.1 and later.

With the evolution of PR1006 Pocketmate II to USB Type-C, there are now more opportunies for the next generation of your smart card solution.

Features

  • USB 2.0 Full Speed Interface
  • USB Type-C Connector
  • Plug and Play – CCID support brings utmost mobility
  • Swivel Motion Design
  • Smart Card Reader: Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards; Supports CAC; Supports SIPRNET Card; Supports J-LIS Card; Supports Mykad Card; Supports microprocessor cards with T=0 or T=1 protocol; Supports memory cards; Supports PPS (Protocol and Parameters Selection); Features Short-Circuit Protection
  • Application Programming Interface: Supports PC/SC; Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later

Technical Specifications

Physical Characteristics

Property Value
Dimensions (mm) 58.0 mm (L) x 20.0 mm (W) x 13.9 mm (H)
Weight (g) 10 g

USB Interface

Property Value
Protocol USB CCID
Connector Type USB Type-C
Power Source USB port
Speed USB Full Speed (12 Mbps)

Contact Smart Card Interface

Property Value
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others Mykad Card, CAC, PIV, SIPRNET, J-LIS Smart Cards

Certifications/Compliance

Property Value
Certifications/Compliance Standard: USB CCID, PC/SC, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), J-LIS, Microsoft® WHQL, TAA. Regulatory/Environmental: CE, IEC/EN 62368, UL 62368, FCC, VCCI, KC, RoHS, REACH, WEEE, UKCA

Device Driver Operating System Support

Property Value
Device Driver Operating System Support Windows®, Linux®, macOS®, Solaris™, Android™

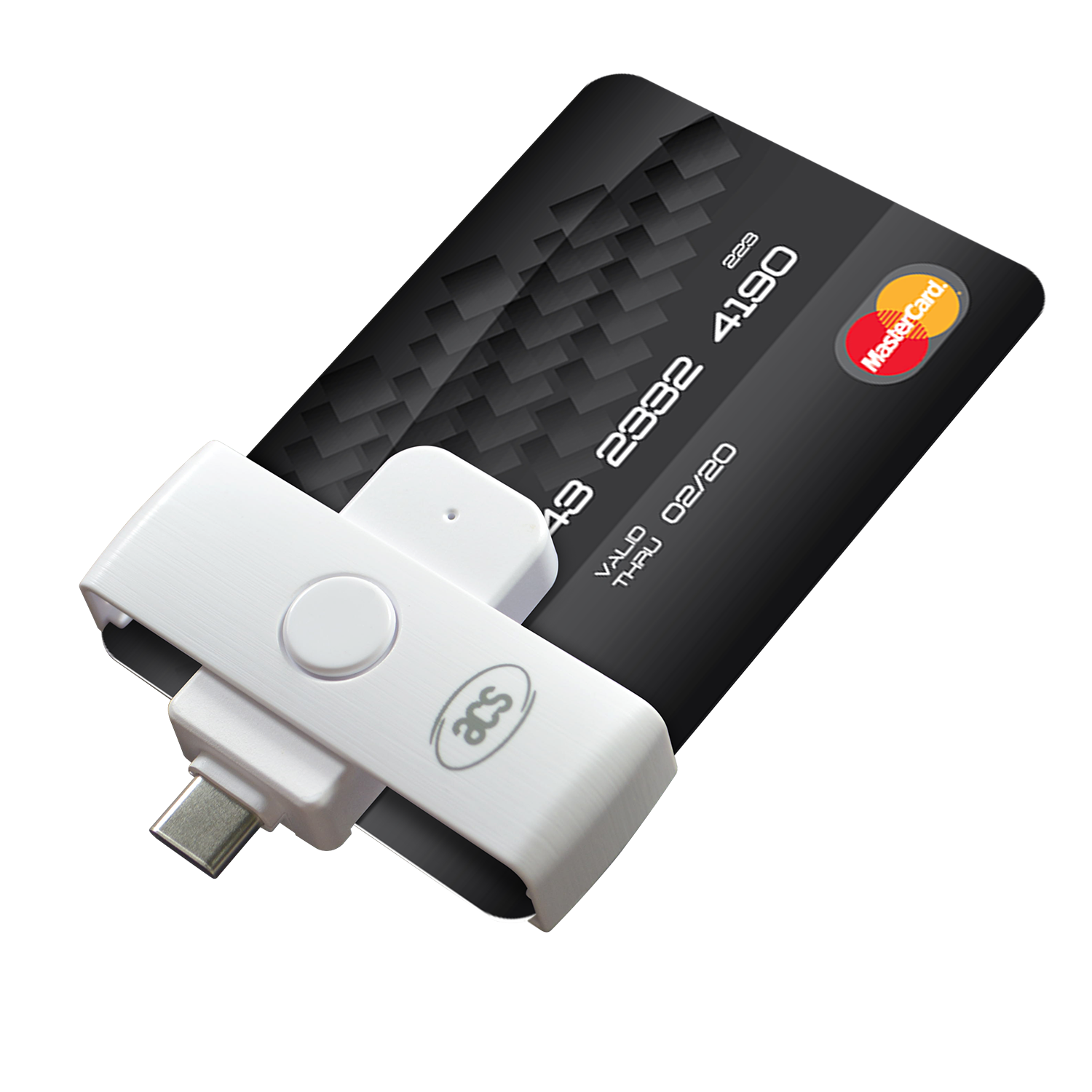

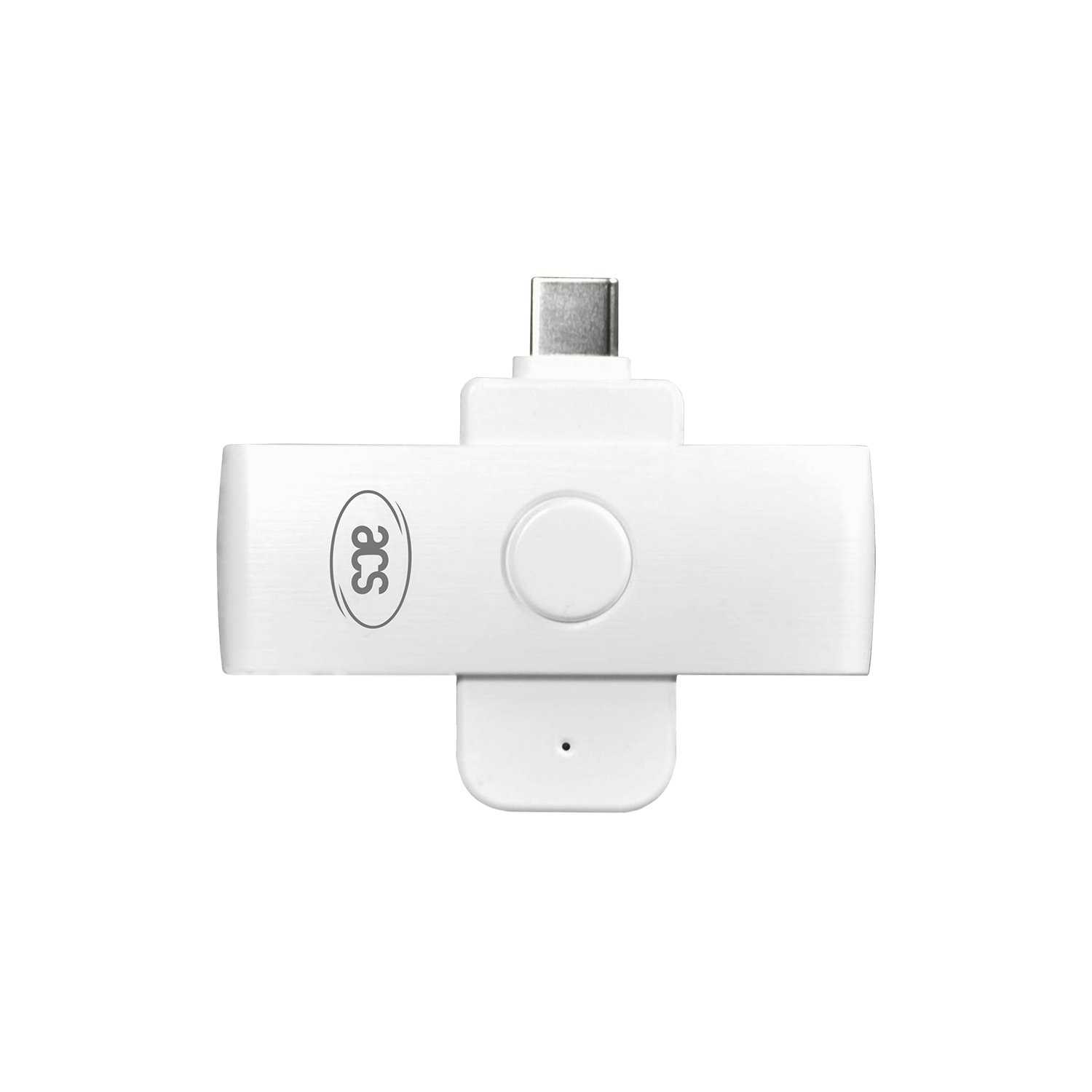

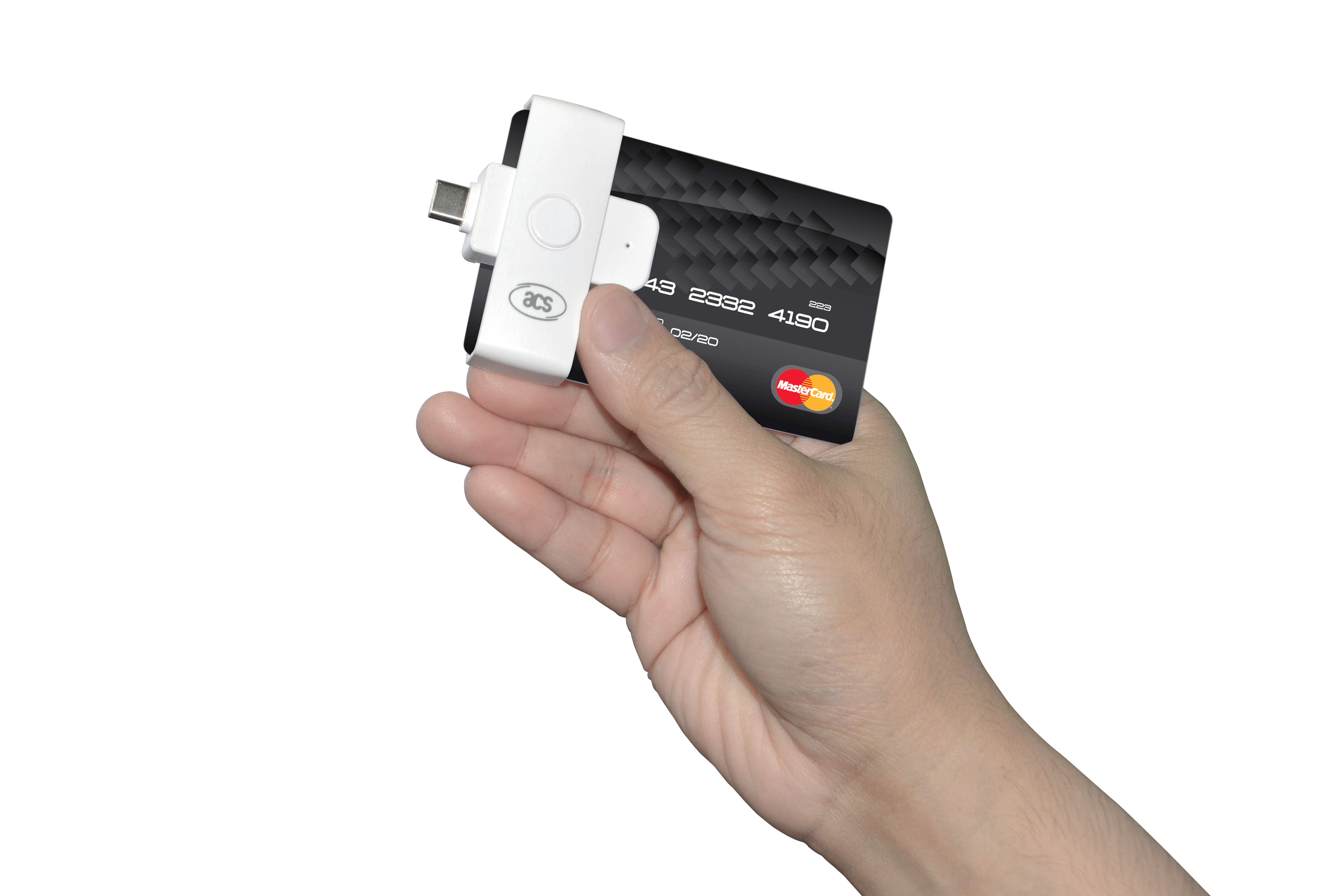

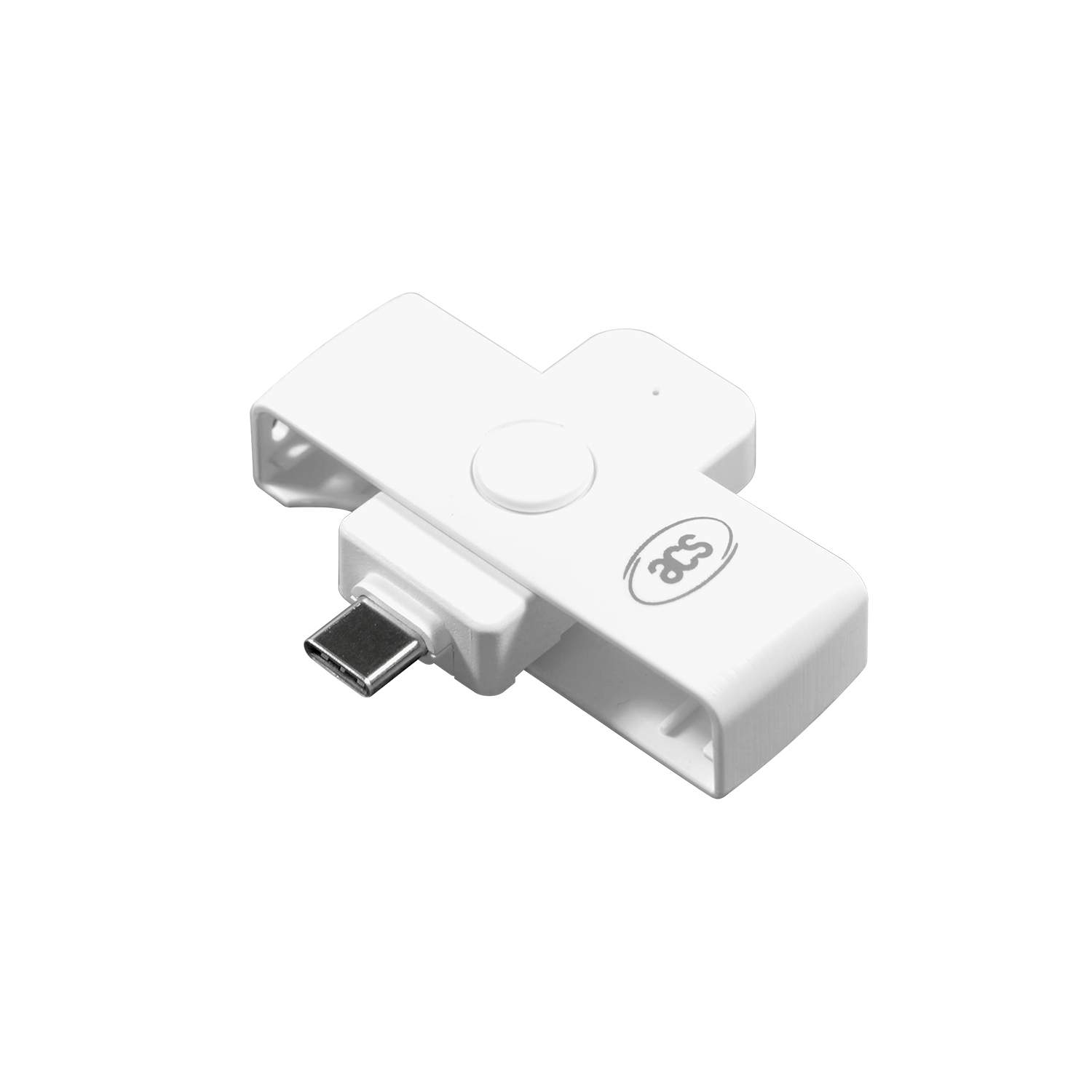

Images

Downloads

TypeTitleSizeUpdated
APIACS ApduTool (iOS and iPadOS 16.2 or above)118.31 KB (Version 1.2)23-Feb-2024
DriverPC/SC Driver Installer (Windows)5.02 MB (Version 4.4.2.1)11-Dec-2025
DriverPC/SC Driver Installer (Linux)4.30 MB (Version 1.1.13)20-Nov-2025
DriverPC/SC Driver Installer (macOS)281.65 KB (Version 1.1.13)17-Nov-2025
SoftwareAndroid EVK (Android 3.1 or above)1.46 MB (Version 1.1.8)25-Nov-2025
DriverPC/SC Driver Installer (Solaris 10, 11 and above — available on request, Version 1.0.8, 16-Feb-2017)available on request——
BrochureProduct Presentation of ACR39 Series Smart Card Reader——
DatasheetTechnical Specification of ACR39U-NF Pocketmate II Smart Card Reader——
ManualReference Manual of ACR39 Series Smart Card Reader——
