PR1055 — Secure Bluetooth® NFC Reader · USB
Mobile Card Readers

PR1055

Secure Bluetooth® NFC Reader · USB

PR1055 lists Bluetooth 5.2, USB Type-C, ISO 14443 and ISO 15693, plus Bluetooth HID keyboard emulation.

Manufacturer reference: ACS — ACR1555U ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • IEC/EN 62368
  • CE
  • UKCA
  • FCC
  • VCCI
  • RoHS
  • REACH
  • Bluetooth® BQB
  • MIC (AC-24038)
  • TELEC (211-240112)
  • Microsoft® WHQL
  • ISO14443
  • ISO 7816 (SAM Slot)
  • USB CCID
  • PC/SC
  • WEEE

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • e-Purse Application
  • Access Control
  • Network Security
  • Public Key Infrastructure

PR1055

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

Confirm the quotation scope

Use this checklist to specify what you want quoted. Manufacturer specifications describe the product; compatibility with your setup still requires evaluation.

Connection and output
Choose BLE card commands, Bluetooth HID UID output or USB Type-C PC/SC. State the required data and output format.
Evaluation package
List the USB cable, test cards, SAM and software library you need. Confirm contents and licences; a SAM slot does not mean a SAM card is included.
Mobile test conditions
Specify the phone or tablet, OS and library versions. Include reconnection and error recovery in the evaluation.

Questions to resolve before ordering

  • Will the application exchange card commands through BLE, or only receive UID text through Bluetooth HID?
  • Which ISO 14443 or ISO 15693 card operations and SAM commands must the evaluation cover?
  • Which phone or tablet, OS version and BLE library will you test, and do you also need USB Type-C access?

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗
From enquiry to evaluation and order

Use these checkpoints to confirm the configuration and evaluation scope before ordering in volume.

  1. Define the requirement

    Describe the task the product must perform and identify any requirements that still need clarification.

  2. Check the quotation scope

    Match the PR code to the manufacturer variant. Check the quoted hardware, accessories, software and licence terms.

  3. Agree the sample evaluation

    Before arranging evaluation units, agree the test setup and acceptance criteria. Record results and unresolved issues.

  4. Confirm the volume order

    Recheck the configuration and version against the evaluated unit, then confirm the quantity and delivery terms.

Manufacturer specifications describe the product; they do not confirm that your card, host and application have been tested together.

Bluetooth reader specifications at a glance

Check the hardware interface and card operation first, then evaluate the exact host, card and software package for this model.

Bluetooth host interface
Bluetooth 5.2 / Bluetooth Low Energy (BLE).
USB host interface
USB Type-C; USB CCID and PC/SC.
Listed contactless card standards
ISO 14443 Type A and B; ISO 15693; ISO/IEC 18092 NFC; MIFARE; FeliCa.
Listed card operation and keyboard modes
Reader/writer; card emulation; Bluetooth HID keyboard emulation. Check the supported UID output format for HID use.
SAM interface
1 SIM-sized SAM slot; ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V); T=0 and T=1.
Card-command integration
Use this model's Android/iOS BLE libraries for card commands. HID UID output and USB PC/SC use separate integration routes.

Listed features do not establish complete application compatibility. Check the selected library's operating-system requirements and test card commands, keys and reconnect behaviour. USB PC/SC, BLE card commands and HID keyboard output are distinct integration routes.

Overview

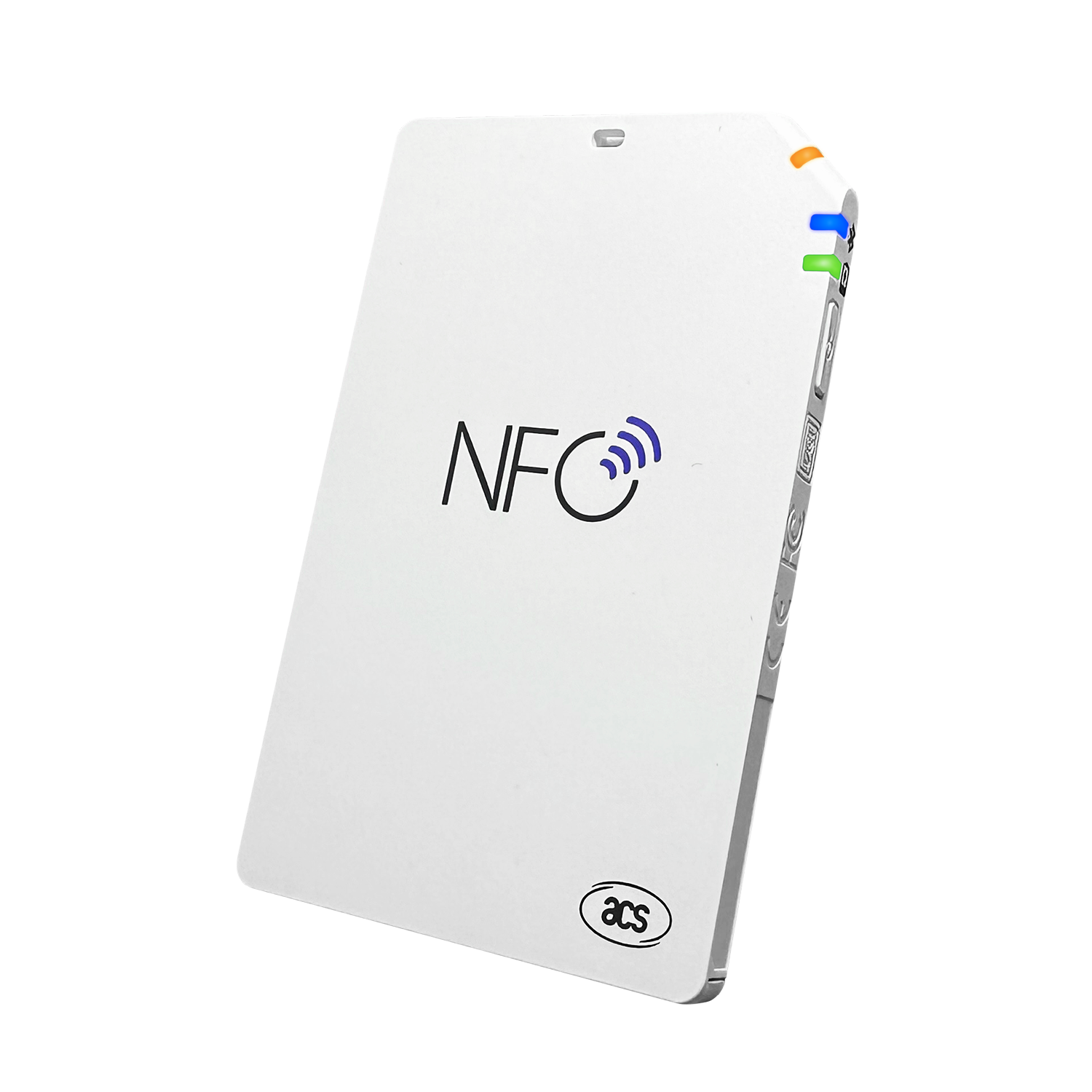

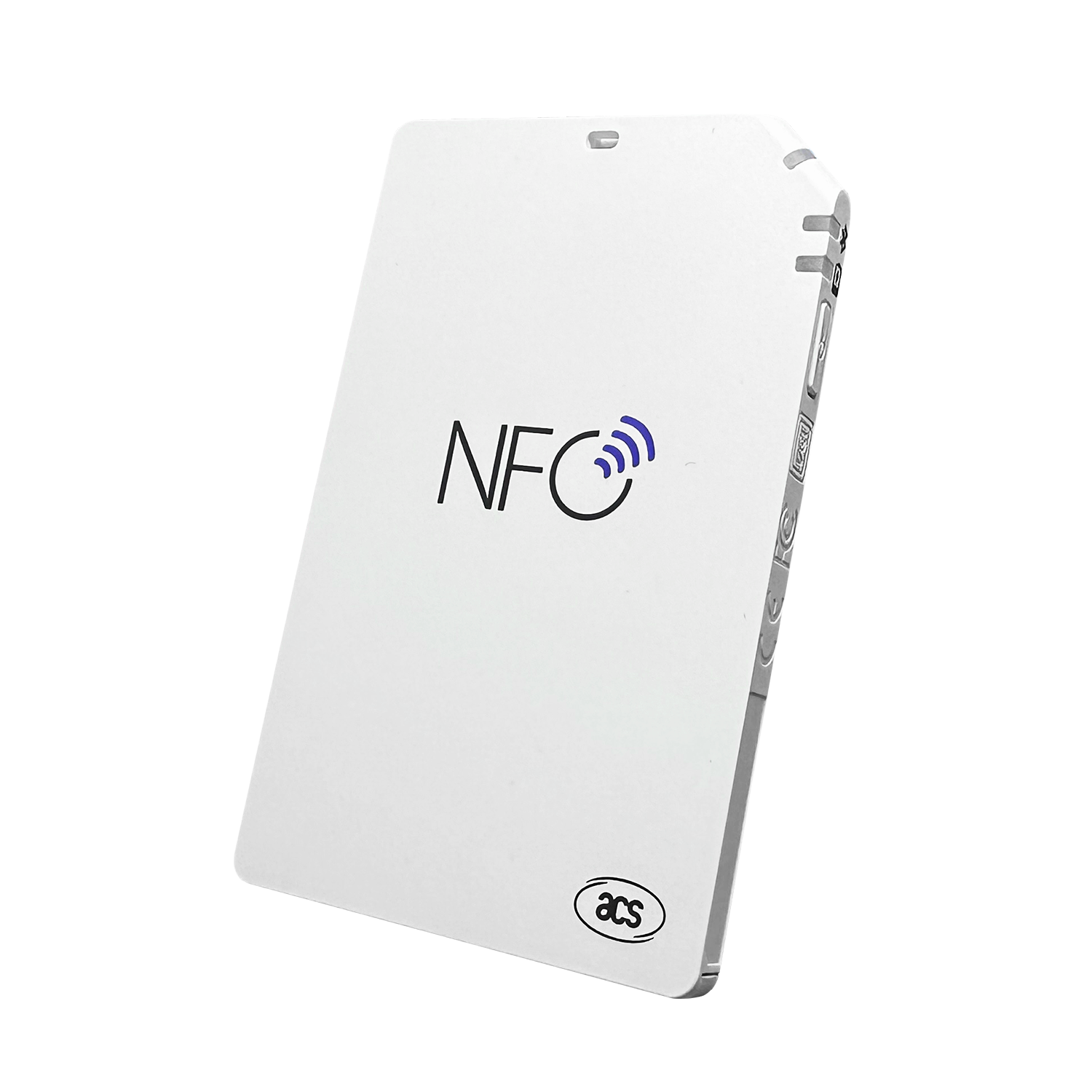

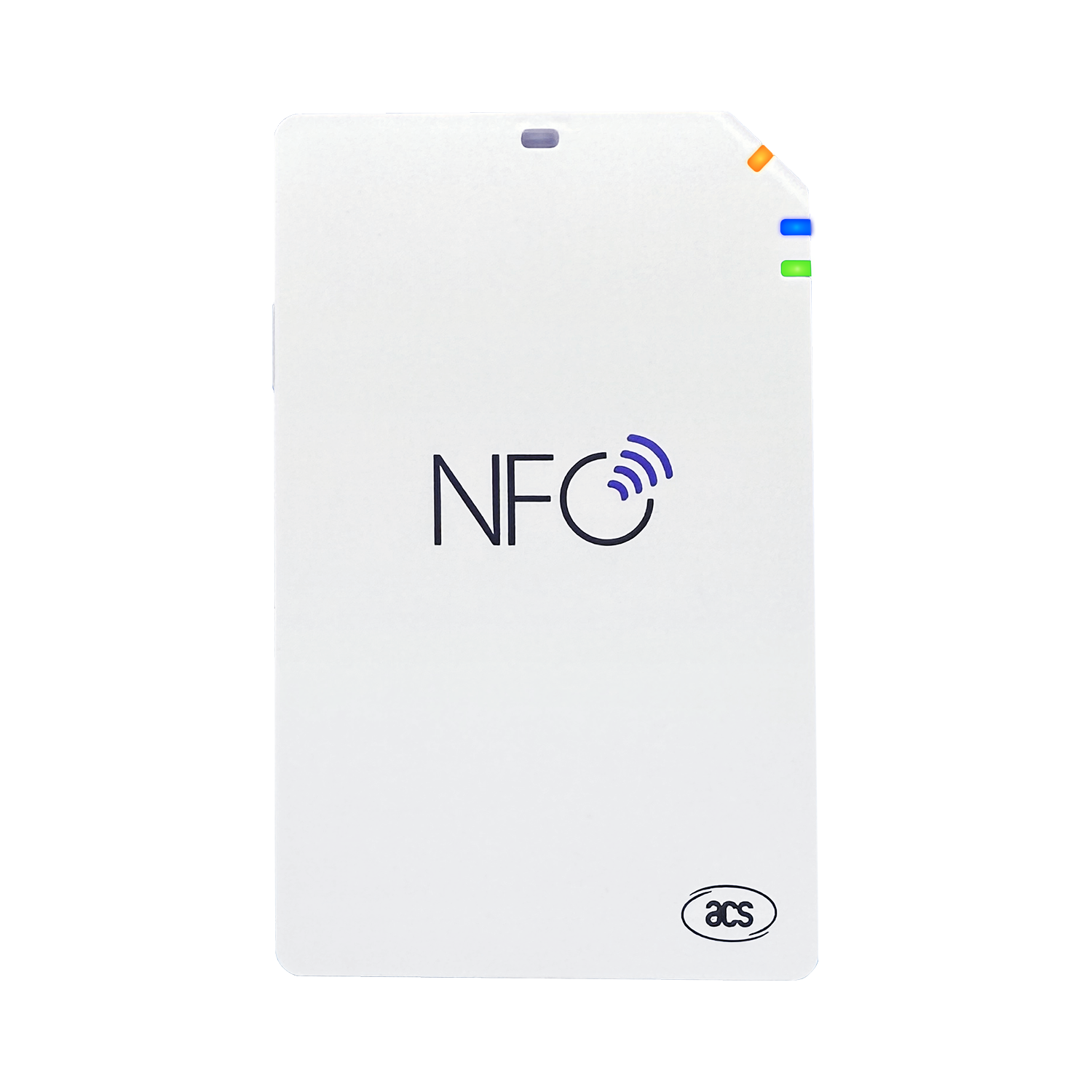

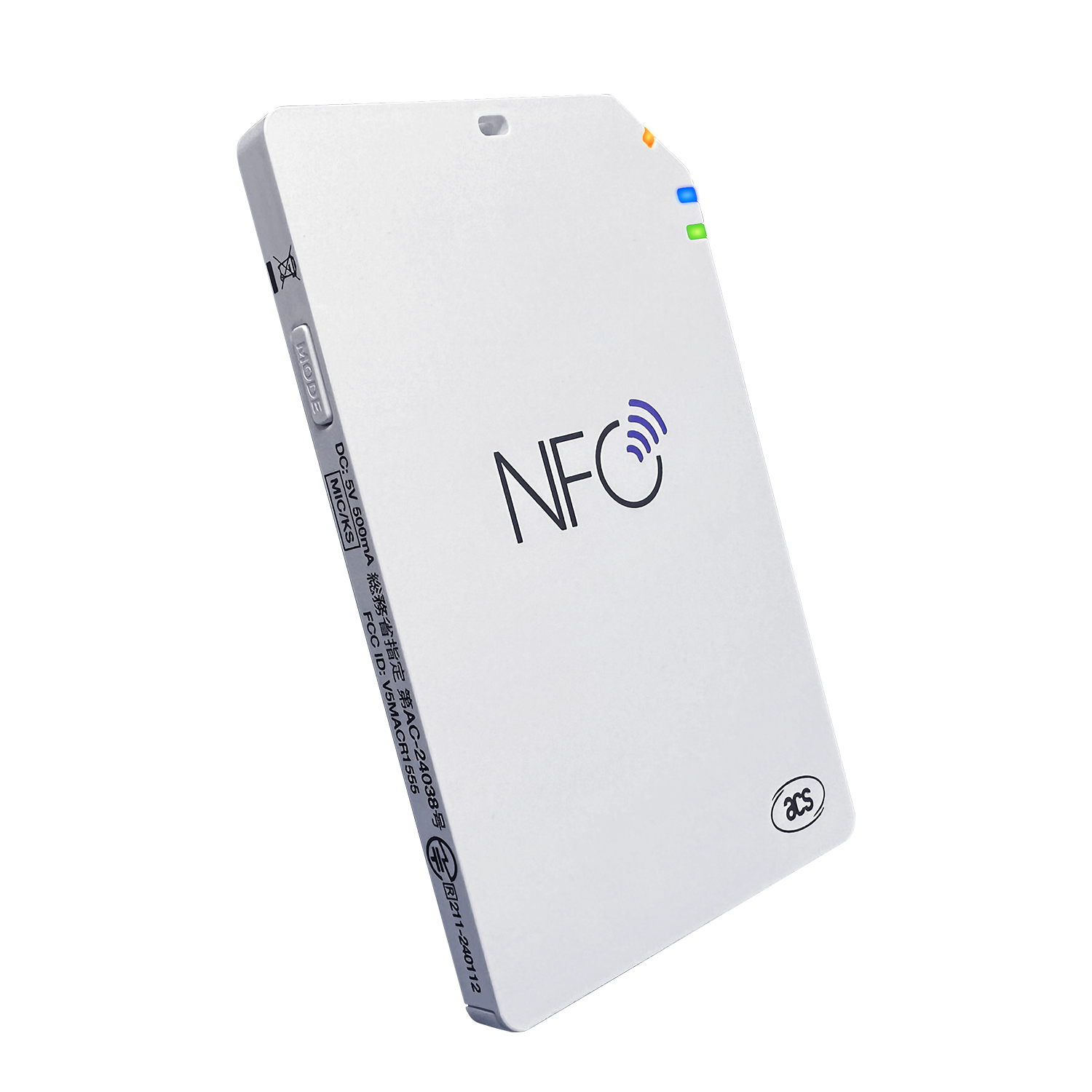

The PR1055 Secure Bluetooth® NFC Reader supports a wide range of standards, including ISO 14443 Type A and B contactless cards, MIFARE® cards, FeliCa, ISO 18092 NFC, and ISO 15693 cards. Its diverse compatibility makes the PR1055 ideal for applications in finance, healthcare, and government.

Dual Connectivity Options Stay connected effortlessly with the PR1055's Bluetooth 5.2 (Bluetooth Low Energy) for quick pairing with mobile devices, along with USB Full Speed for reliable PC connectivity. Whether you're in the office or on the move, this reader ensures you remain connected.

Advanced Features Designed for today's fast-paced environments where efficiency and security are crucial, the PR1055 boasts an impressive array of features: Smart Card Reader/Writer, Card Emulation, Bluetooth HID Keyboard Emulation, High-Speed Read/Write Performance of up to 848 kbps, Robust AES Encryption for secure message transmission.

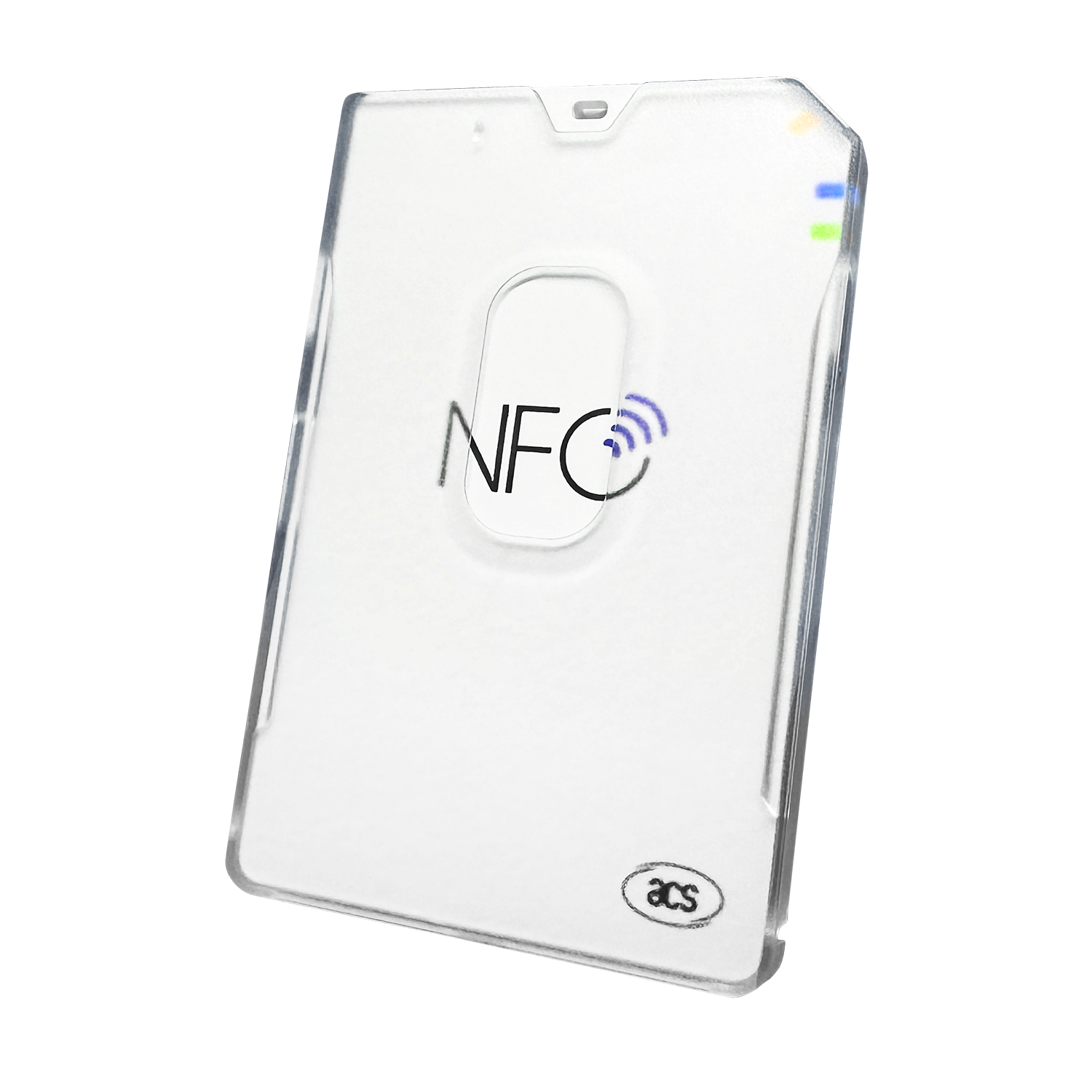

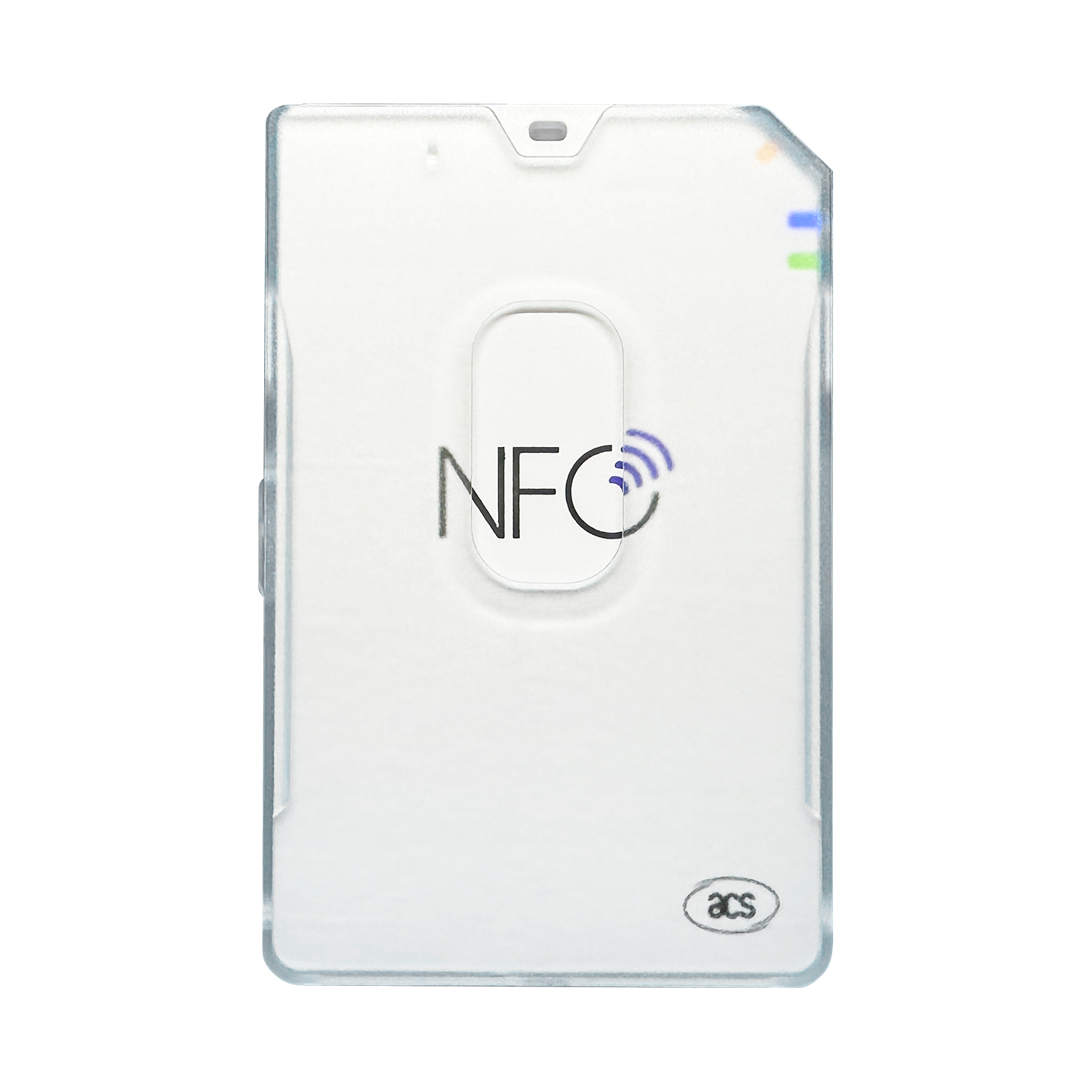

Portable and User-Friendly Design With its compact design and rechargeable Lithium-ion battery, the PR1055 is incredibly portable, making it ideal for use anytime, anywhere, with most Bluetooth-enabled smartphones and tablets. Additionally, a transparent holder is included, providing protection and convenience for carrying the device.

Fido Support The PR1055 Secure Bluetooth® NFC Reader also supports FIDO (Fast IDentity Online) authentication protocols, making it compatible with FIDO-enabled devices such as PR1042, ID-One Key and YubiKey. This enables secure, passwordless login and strong 2FA authentication for online services. By leveraging the NFC capabilities of the PR1055, users can conveniently authenticate themselves by simply tapping their FIDO-enabled NFC device on the reader.

Integrating FIDO support enhances the security of online transactions and access control systems, making the PR1055 an ideal choice for e-Government, banking, e-healthcare, network security, and other applications requiring high-level security.

Features

  • Support Bluetooth® 5.2: Support Bluetooth® HID mode, Support Bluetooth® AES-128 encryption, High speed transmission up to 2Mbps
  • Support various contactless card type: ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, 5 Types of NFC tags, MIFARE®, FeliCa
  • Performance: Read/Write ISO 14443 A & B speed of up to 848 kbps
  • Support various NFC features: Card Reader/Writer Mode, Card Emulation Mode, Support Keyboard Emulation mode
  • Security: One ISO 7816 Standard SAM slot for improved security
  • Support USB Firmware Upgrade
  • Compatibility: Support for all major operating systems — Windows®, Linux®, macOS, iOS, iPadOS, Android™

Technical Specifications

Physical Characteristics
Dimensions (mm) 93 mm (L) × 58 mm (W) × 6 mm (H); 94.1 mm x 60.2mm x 9.0 mm (with Card Holder)
Weight (g) 31.5 g ± 1.0 g (Card Reader); 39.7 g ± 1.0 g (with Card holder); 23.9 g ± 5.0 g (USB cable)
Bluetooth Interface
Protocol Bluetooth® 5.2; Bluetooth AES-128 encryption
Speed 2Mbps (BLE High-speed mode)
USB Interface
Protocol USB CCID
Connector Type USB Type-C
Power Source Rechargeable Lithium-ion Battery (charging through USB)
Speed USB Full Speed (12 Mbps)
Cable Length 1 m, Detachable (Type-C to Type-A)
Contactless Smart Card Interface
Standard ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO 15693; ISO 18092; FeliCa
SAM Card Interface
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A, B and C (5V, 3V, 1.8V)
Protocol T=0; T=1
Built-in Peripherals
LED 1 bi-color: Red and Green (Power), Blue (Mode), Orange (Operation Status)
Buzzer Monotone
Other Features
Other Features Smart Card Reader/Writer; Card Emulation; Keyboard Emulation (Bluetooth)
Encryption on device AES encryption algorithm
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance Standards: IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, Bluetooth® BQB, MIC (AC-24038), TELEC (211-240112), Microsoft® WHQL; Regulatory/Environmental: ISO14443, ISO 7816 (SAM Slot), USB CCID, PC/SC, WEEE
Device Driver Operating System Support
Device Driver Operating System Support USB: Windows®, Linux®, macOS® 10.7 or above, Android™ 4.3 or above, iOS 12.0 or above, iPadOS 16.0 or above. Bluetooth: Windows®, Android™ 4.3 or above, iOS 12.0 or above, iPadOS 16.0 or above

Images

Need pricing, samples or integration support for PR1055? Contact our sales teamorask about distribution.
