PR1022 — Smart Card Reader with Pinpad · USB
Contact Smart Card Readers

PR1022

Smart Card Reader with Pinpad · USB

Smart Card Reader with Pinpad and LCD that also supports Secure PIN Entry (SPE)

Manufacturer reference: ACS — APG8201-B2 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • USB CCID
  • PC/SC
  • PC/SC 2.0 Part 10 (SPE)
  • Microsoft® WHQL
  • CE
  • FCC
  • RoHS
  • REACH

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1022

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

Nowadays, more and more people rely on the Web for many day-to-day transactions that once required their physical presence. These include e-government, e-banking and online shopping. However, as technology becomes more sophisticated, fraud also becomes more prevalent. These occurrences generate financial losses to organizations and bring distress to cardholders.

The PR1022 is a smart card reader with a keypad and an LCD screen which has Secure PIN Entry (SPE) feature to protect every PIN code from attacks, such as viruses or USB sniffers. It can perform secure cardholder verification/authentication in order to allow them to perform online log-in and other online transactions. A cost-efficient response to man-in-the-middle attacks, the PR1022 help end-users and organizations protect their sensitive data from these attacks.

Device features: PC-Linked, USB, Single Contact Card Slot, Graphical/Dot Matrix LCD, Keypad/PINPad

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Supports PC/SC
  • Supports PC/SC 2.01 Secure PIN Entry (SPE)
  • Supports PPS (Protocols and Parameters Selection)
  • Smart Card Reader:
  • - Supports full-sized microprocessor Cards (T=0, T=1 Protocols)
  • - Supports ISO 7816 Class A Cards
  • - Allows semi-insertion of cards
  • Built-in Peripherals:
  • - Graphical LCD for Logos and Multiple-language Characters
  • - Monotone Buzzer
  • - Durable Tactile Keypad with 20 Silicon Rubber Keys
  • - Key Symbol on LCD to Recognize SPE Mode

Technical Specifications

Category Details
Physical Characteristics
Dimensions (mm) 95 mm (L) × 60 mm (W) × 13 mm (H)
Weight (g) 98 g
USB Interface
Protocol USB CCID
Connector Type USB Type A
Speed USB Full Speed (12 Mbps)
Power Source USB Port
Cable Length 1.5m (Non-Detachable)
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816, Class A (5 V)
Protocol T=0; T=1
Built-in Peripherals
LCD Dot Matrix LCD; Resolution: 96 × 16 pixels; Number of Characters: 16 characters × 2 lines
Buzzer Monotone
Keypad 20 keys
Certifications/Compliance
Certifications/Compliance Standards: USB CCID, PC/SC, PC/SC 2.0 Part 10 (SPE), Microsoft® WHQL; Regulatory/Environmental: CE, FCC, RoHS, REACH
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, Android™

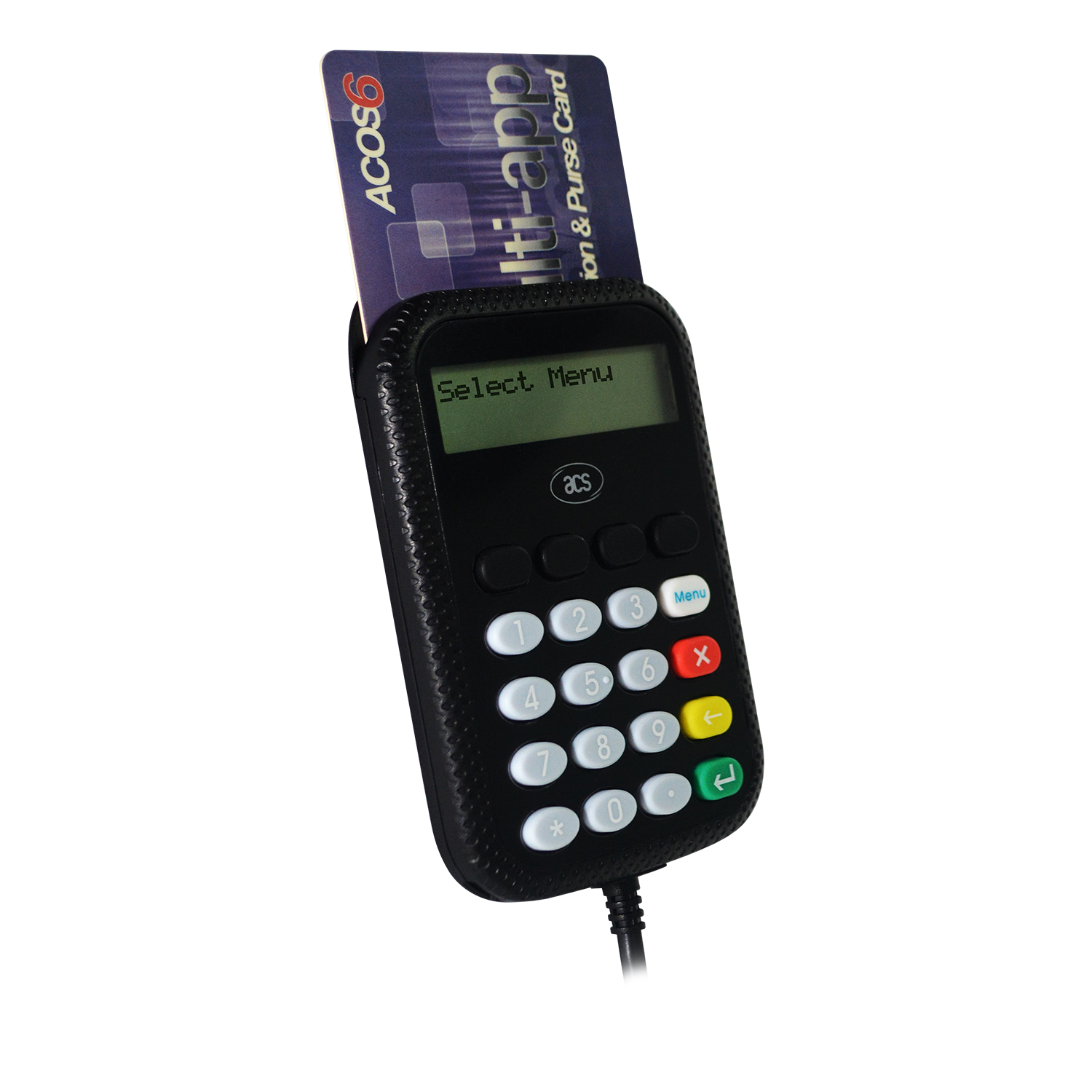

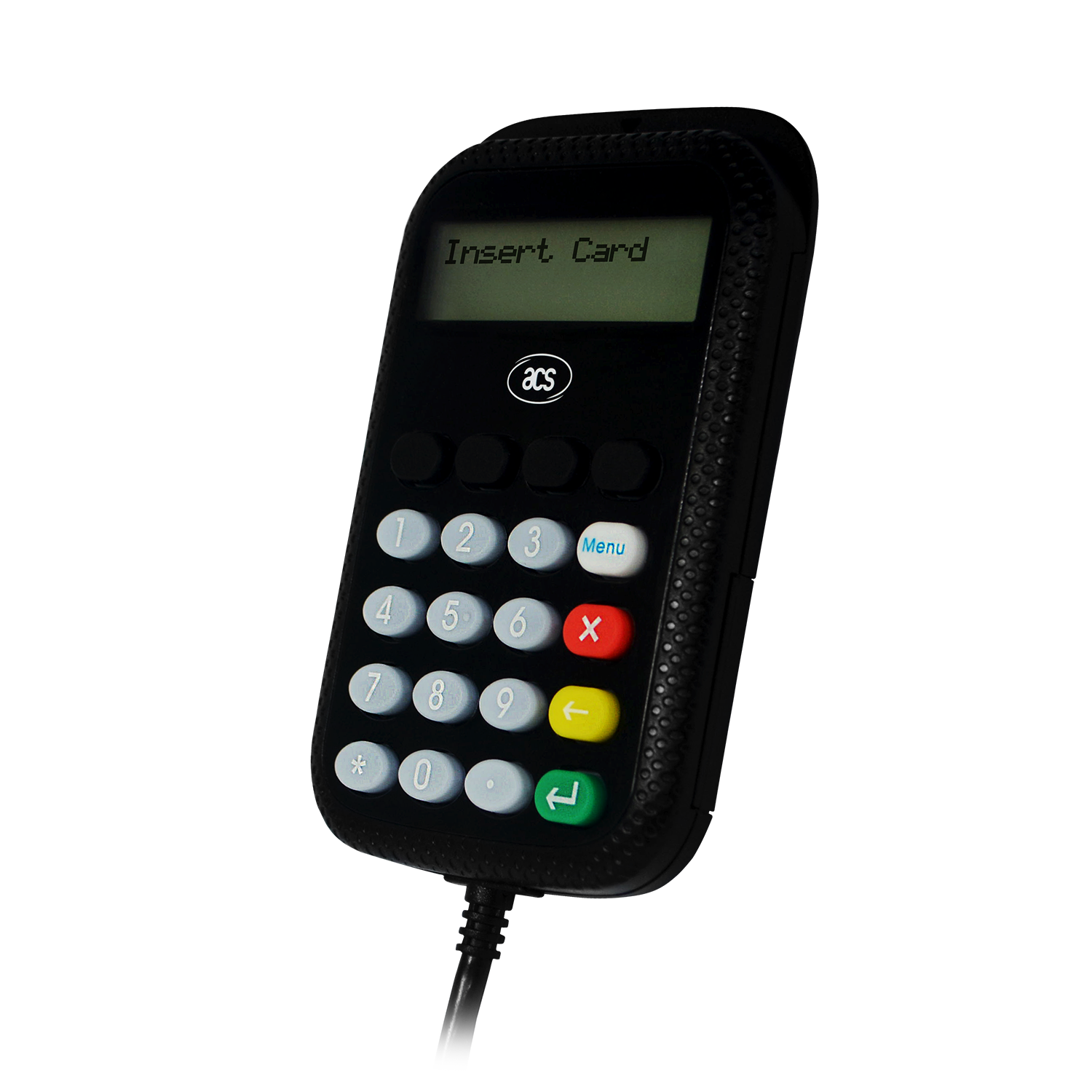

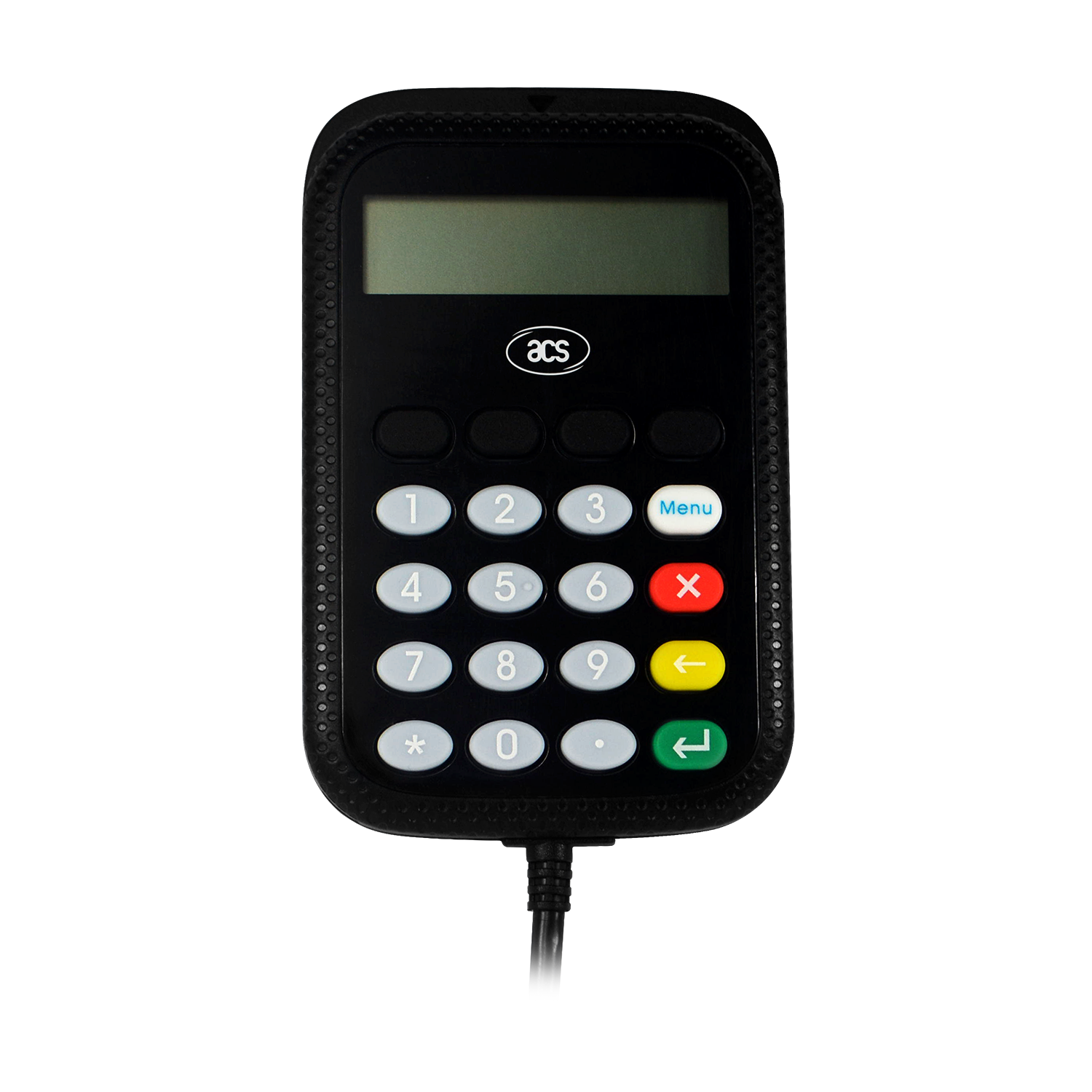

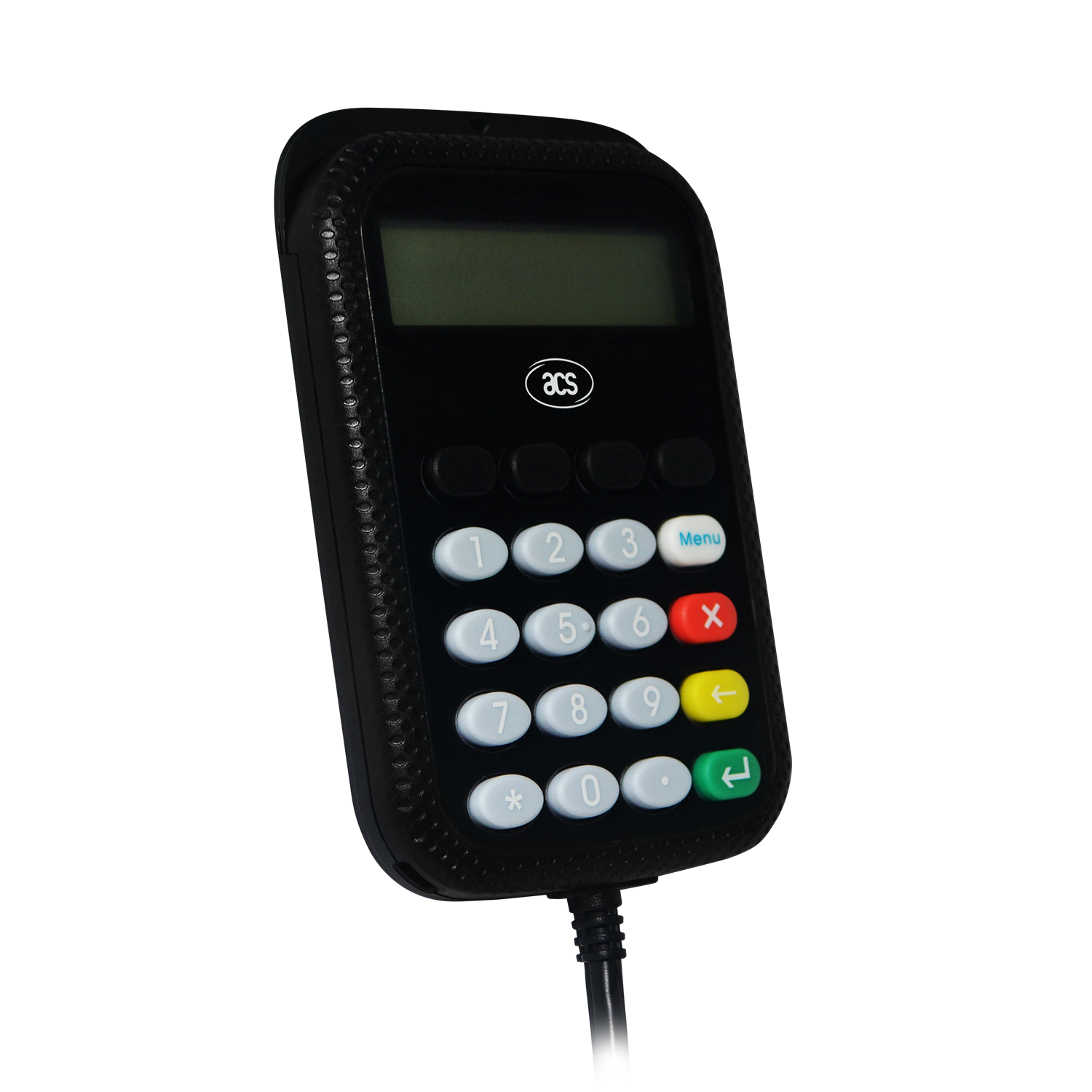

Images
