PR1013 — Secure Bluetooth® Contact Card Reader · USB
Mobile Card Readers

PR1013

Secure Bluetooth® Contact Card Reader · USB

Secure mobile contact card reader with Bluetooth® Smart connectivity

Manufacturer reference: ACS — ACR3901U-S1 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • EN 60950/IEC 60950
  • ISO 7816
  • USB Full Speed
  • Bluetooth®
  • EMV™ Level 1 (Contact)
  • PC/SC
  • CCID
  • CE
  • FCC
  • RoHS
  • REACH
  • VCCI (Japan)
  • MIC (Japan)
  • Microsoft® WHQL

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1013

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1013 ACS Secure Bluetooth® Contact Card Reader combines the latest technology in the world of smart card readers with Bluetooth® connectivity. This compact and wireless smart card reader brings together sophisticated technology with fresh design to meet different requirements in various smart card based applications using Bluetooth-enabled devices such as smart phones and tablets.

PR1013 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and most memory cards in the market, including microprocessor cards with T=0 and T=1 protocol. PR1013 has both USB Full Speed and Bluetooth 4.0 interface for smart cards. It has a read/write speed of up to 600 Kbps. With its compact design and rechargeable Lithium-ion battery, PR1013 is extremely portable and convenient for use anytime, anywhere.

PR1013 offers in-field firmware upgrade to help the user cope with the fast-changing technology utilized by different applications. With this feature, stakeholders will be able to save valuable cost and time and provide utmost convenience to users.

PR1013 uses Bluetooth® technology that allows easy integration without employing any physical connection to any terminal. Equipped with AES-128 encryption algorithm, it supports devices running on Android™ 4.3 and above, iOS 8.0 and above, Windows®, and Mac OS®.

PR1013 is PC/SC and CCID-compliant, making it easy to install and use in any computer-based environment. Its drivers are compatible with the Windows® operating system, Linux®, and Mac OS®.

With its numerous features, the PR1013 is the perfect smart card reader for your smart card solution.

Should you wish to try out the demo apps for PR1013, please download the app from Google Play and App Store.

Features

  • Bluetooth® Interface
  • USB 2.0 Full Speed Interface
  • Power Source: - Battery-Powered (incorporates a Lithium-ion battery rechargeable through Micro-USB port) - USB-Powered (through PC-linked mode)
  • CCID Compliance
  • Smart Card Reader: - Contact Interface: - Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards - Supports microprocessor cards with T=0 or T=1 protocol - Supports memory cards - Supports PPS (Protocol and Parameters Selection) - Features Short-Circuit Protection - Supports AES-128 encryption algorithm
  • Built-in Peripheral: - Three single-color LEDs
  • Application Programming Interface: - Supports PC/SC - Supports CT-API (through wrapper on top of PC/SC)
  • USB Firmware Upgradeability
  • Supports Android™ 4.3 and later
  • Supports iOS 8.0 and later

Technical Specifications

Physical Characteristics
Dimensions (mm) 94 mm (L) × 60 mm (W) × 12 mm (H)
Weight (g) 30.8 g (59.7 g with cable ± 5 g tolerance)
Bluetooth Interface
Protocol Bluetooth® (Bluetooth Low Energy / Bluetooth 4.0)
Power Source Rechargeable Lithium-ion Battery (charging through USB)
Speed 1 Mbps
USB Interface
Connector Type Micro-USB
Protocol USB CCID
Speed USB Full Speed (12 Mbps)
Power Source From USB port
Cable Length 1 m, Detachable
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Built-in Peripherals
LED 3 single-colors: Red, Blue and Green
Other Features
Encryption In-device AES encryption algorithm
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950, ISO 7816, USB Full Speed, Bluetooth®, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, RoHS, REACH, VCCI (Japan), MIC (Japan), Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, MAC OS® 10.7 and later, Android™ 4.3 and later, iOS 8.0 and later

PR1013 Software Development Kit

The PR1013 ACS Secure Bluetooth® Contact Card Reader supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and most memory cards in the market including microprocessor cards with T=0 and T=1 protocol. The PR1013 has both USB Full Speed and Bluetooth 4.0 interface for smart card with read/write speed of up to 600 Kbps.

Comprehensive SDK—The PR1036 is a collection of PC/SC–compliant sample codes, for device and contact card programming for Java, MS Visual Basic .NET 2013, MS Visual C# .NET 2013 and MS Visual C++ .NET. The SDK is designed to help software developers create PC-linked applications, like smart posters for advertising and marketing.

SDK Contents

Item Details
Smart Card Reader(s) 1 x PR1013 ACS Secure Bluetooth® Contact Card Reader
Test Card(s)/ Token(s) 5 x PR1024 Full-Sized Contact Cards
Kit Features ACS Smart Card and Reader Tool (enables the user to perform smart card reader and card-related commands); Tools & Utilities: QuickView (checks for proper driver installation), PCSC Learning Tool (shows the use of the PC/SC API's step-by-step and the parameters that need to be used), Script Tool 5 (allows the user to communicate with a smart card by using script command files); Sample codes demonstrating basic commands used to communicate with the cards and readers, available in Java (x86/x64), MS Visual Basic .NET 2013, MS Visual C# .NET 2013, MS Visual C++ .NET 2013 (x86/x64); ACS Smart Card Reader Driver; Reference Manuals
SDK Operating System Support Windows® 7*, Windows® 8.1*, Windows® 10 (*Need to purchase a Bluetooth® dongle separately)

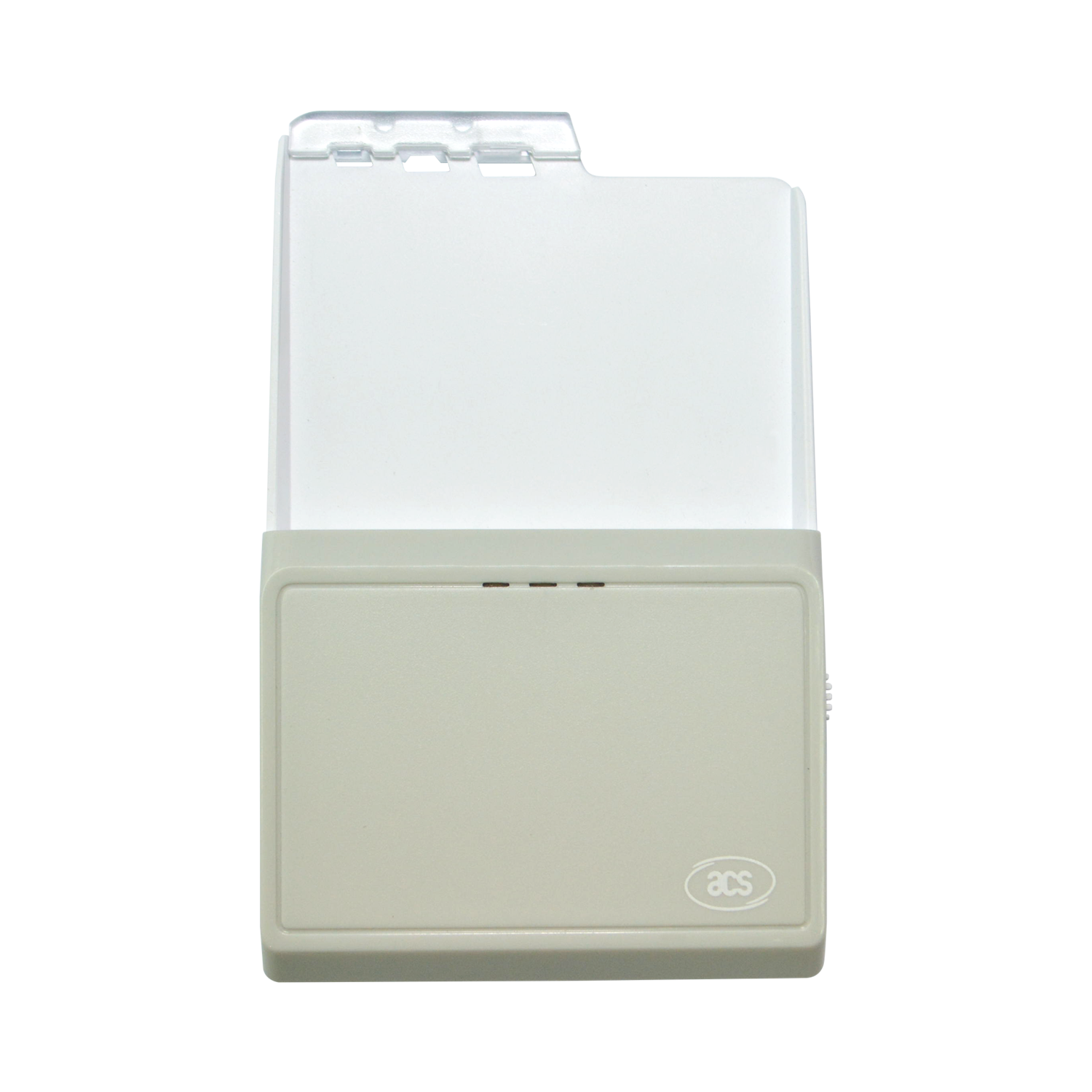

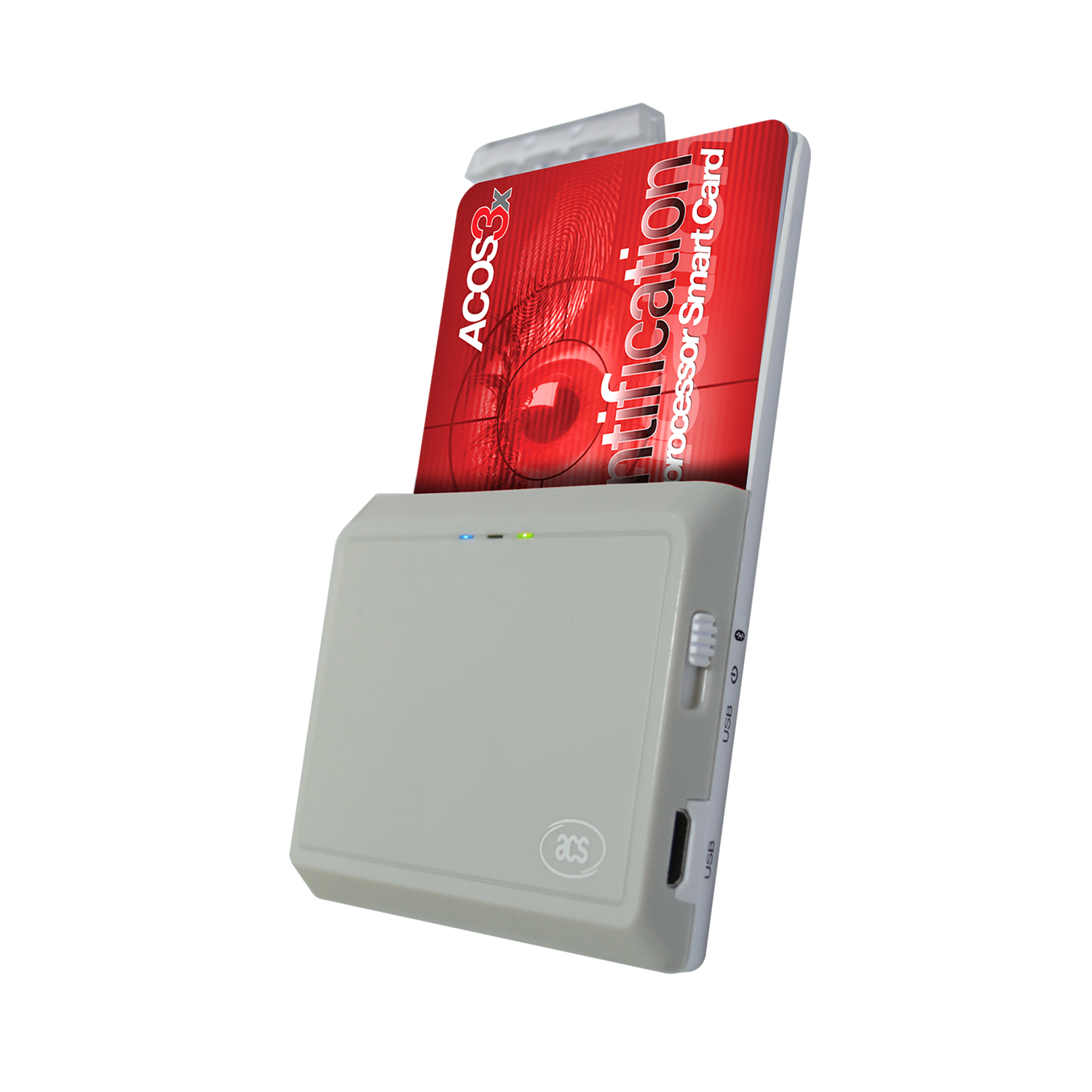

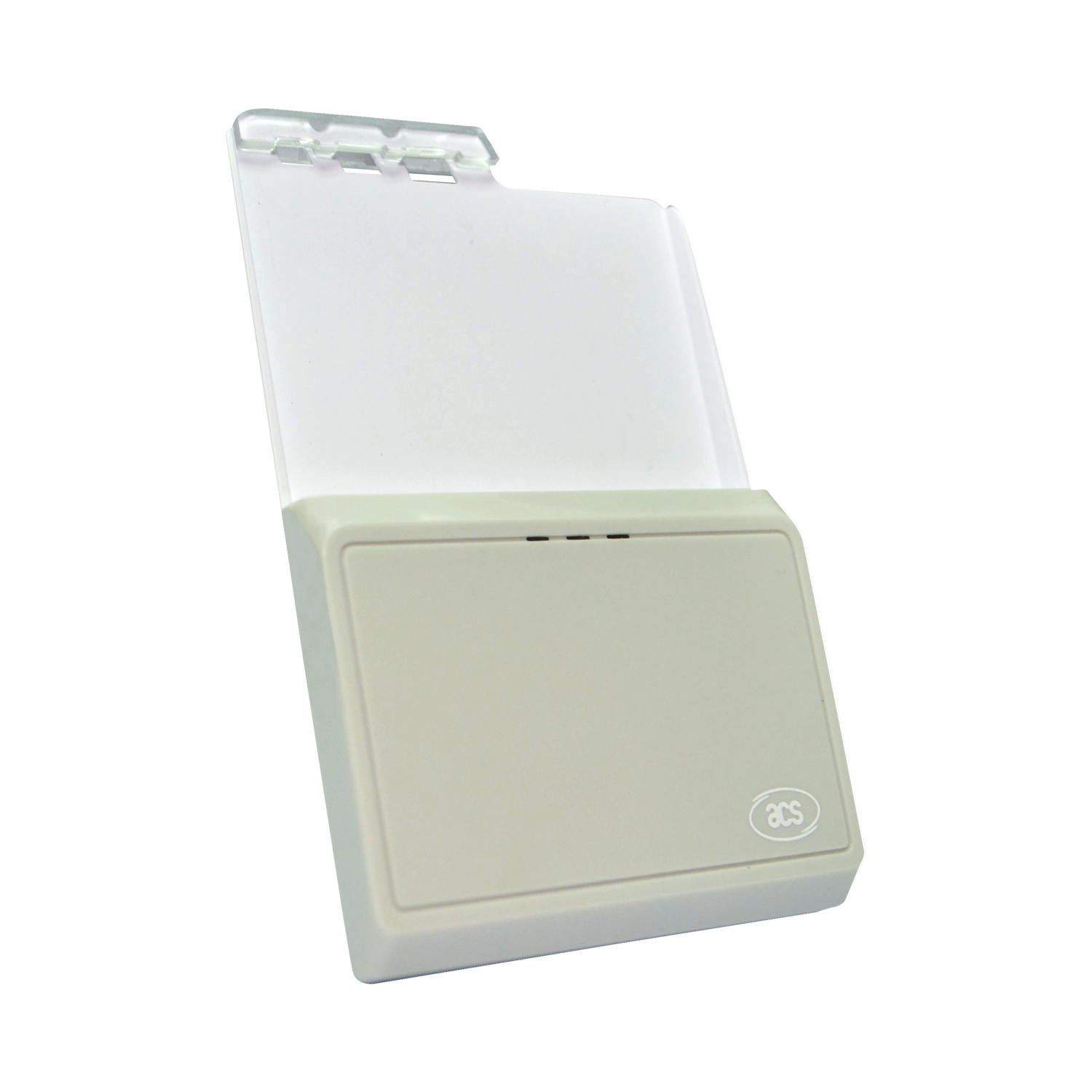

Images
