PR1018 — PocketMate II Smart Card Reader (USB Type-A)
Contact Smart Card Readers

PR1018

PocketMate II Smart Card Reader (USB Type-A)

Pocket-sized contact smart card reader with a USB Type-A connector

Manufacturer reference: ACS — ACR39U-N1 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1018

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1006 PocketMate II is a portable smart card reader that is more than meets the eye. The swivel-USB-GO design keeps it safe when not in use. The reader is capable of supporting demanding smart card applications using full-sized contact smart cards. No larger than a USB stick, it embodies reliable functionality and nifty design, and is highly durable as it is able to last for 100,000 card insertion cycles.

PR1006 PocketMate II supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and microprocessor cards with T=0 and T=1 protocol. In addition, it supports a wide variety of memory cards, including the Department of Defense Common Access Card (CAC), the SIPRNET Card and the Malaysian Identity Card (MyKad). This makes it ideal for a broad range of solutions, such as PIV, Physical and Logical Access Control, Digital Signature, and Online Banking applications.

This sleek and simple pocket-sized reader is designed to be used anytime and anywhere. Being PC/SC and CCID-compliant, PR1018 PocketMate II can easily be integrated in a computer-based environment. Using the standard USB Type-A connector, it helps provide wide-ranging support. Its drivers are compatible with operating systems such as Windows®, Solaris™, Linux®, and macOS. In addition, PR1006 PocketMate II may be used on mobile devices running on Android™ versions 3.1 and later.

PR1006 PocketMate II is the perfect smart card reader for your smart card solution.

Features

  • USB 2.0 Full Speed Interface
  • Compatible with USB 3.0
  • Plug and Play – CCID support brings utmost mobility
  • Swivel Motion Design
  • Smart Card Reader:
  • Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
  • Supports CAC
  • Supports SIPRNET Card
  • Supports J-LIS Card
  • Supports microprocessor cards with T=0 or T=1 protocol
  • Supports memory cards
  • Supports Mykad Card
  • Supports PPS (Protocol and Parameters Selection)
  • Features Short-Circuit Protection
  • Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later

Technical Specifications

Physical Characteristics
Dimensions (mm) 58.0 mm (L) x 20.0 mm (W) x 13.7 mm (H)
Weight (g) 12 g
USB Interface
Protocol USB CCID
Connector Type USB Type-A
Power Source USB port
Speed USB Full Speed (12 Mbps)
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others Mykad Card, CAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications/Compliance
Certifications/Compliance Standard: USB CCID, PC/SC, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), J-LIS, Microsoft® WHQL, TAA; Regulatory/Environmental: CE, IEC/EN 62368, UL 62368, FCC, VCCI, KC, RoHS, REACH, WEEE, UKCA
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS®, Solaris™, Android™

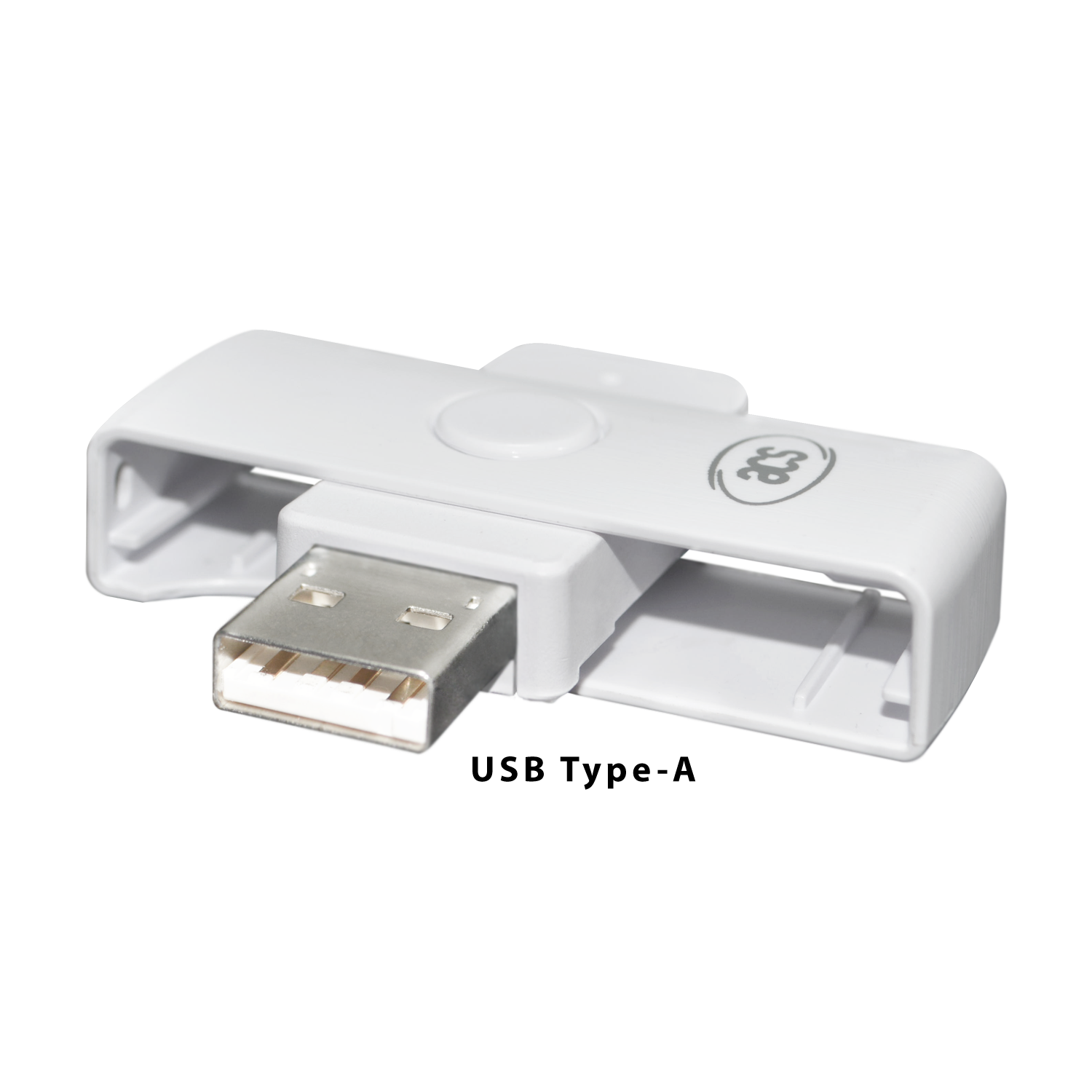

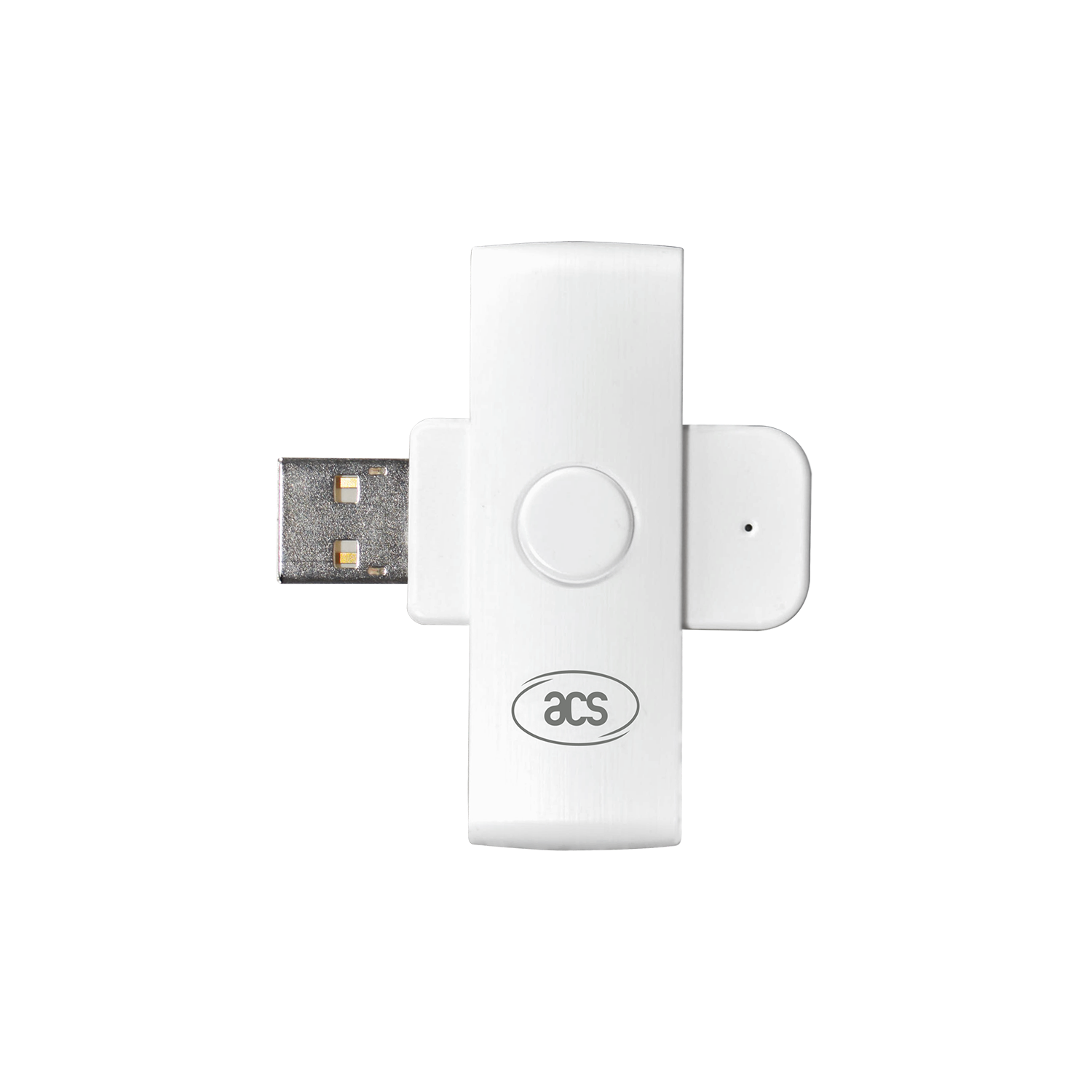

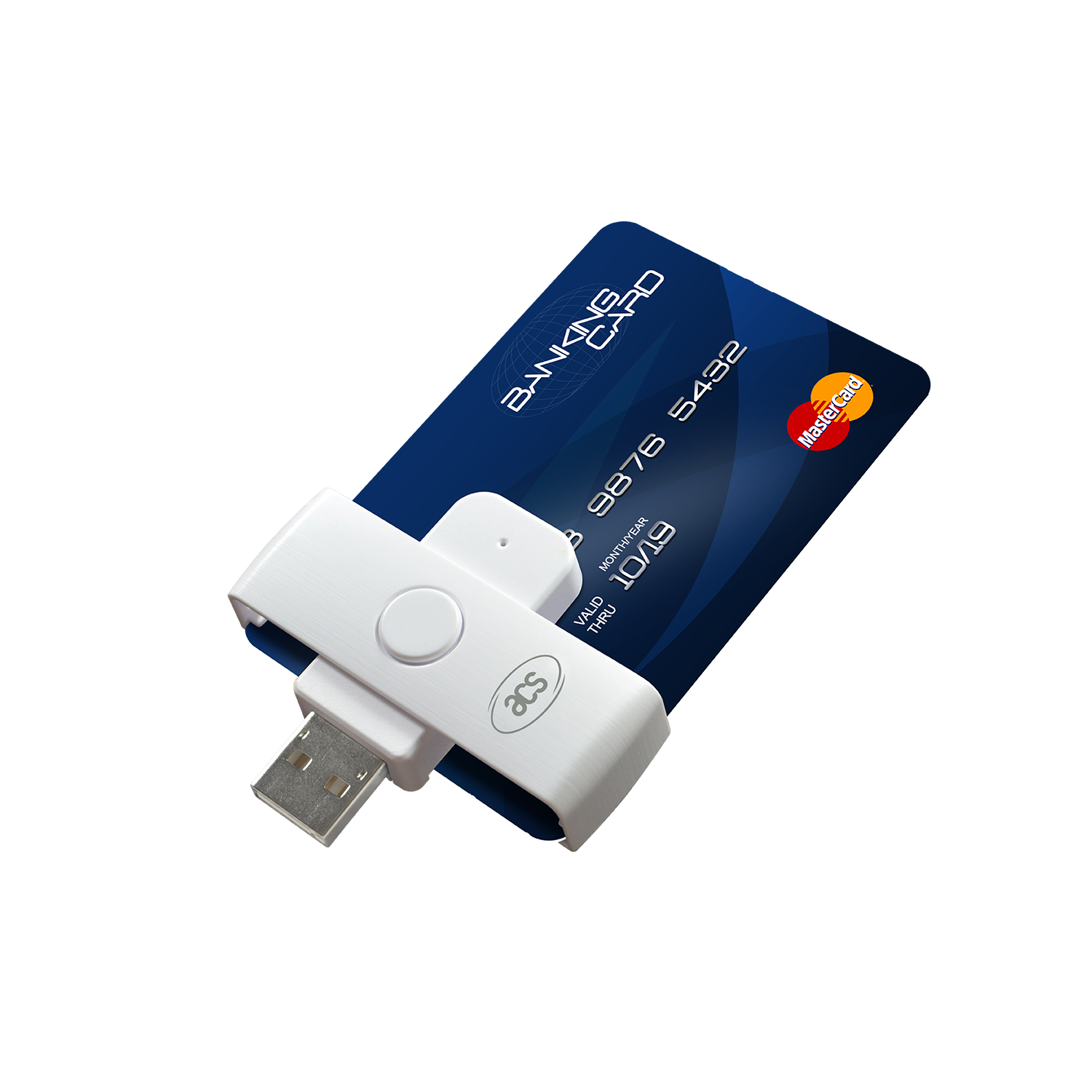

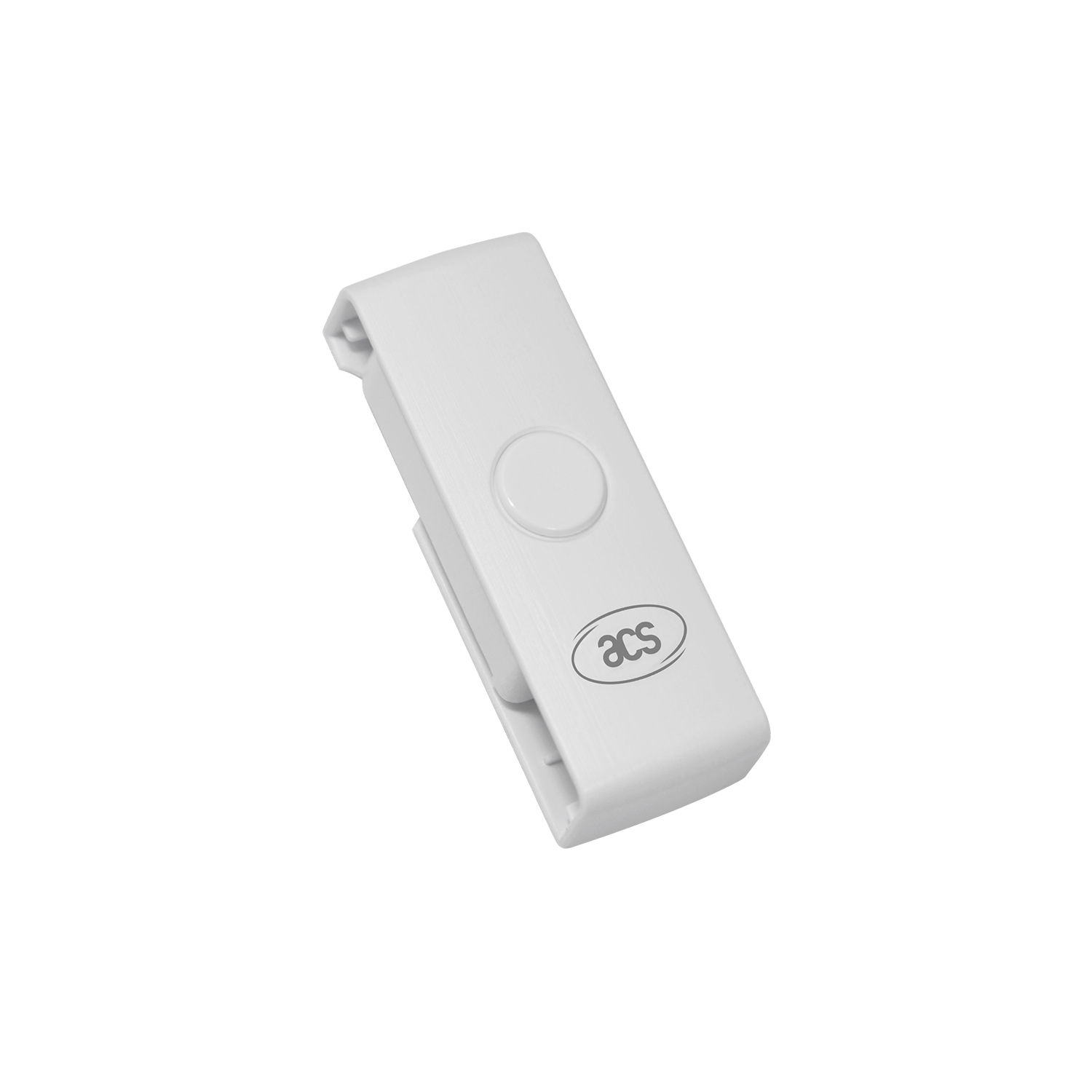

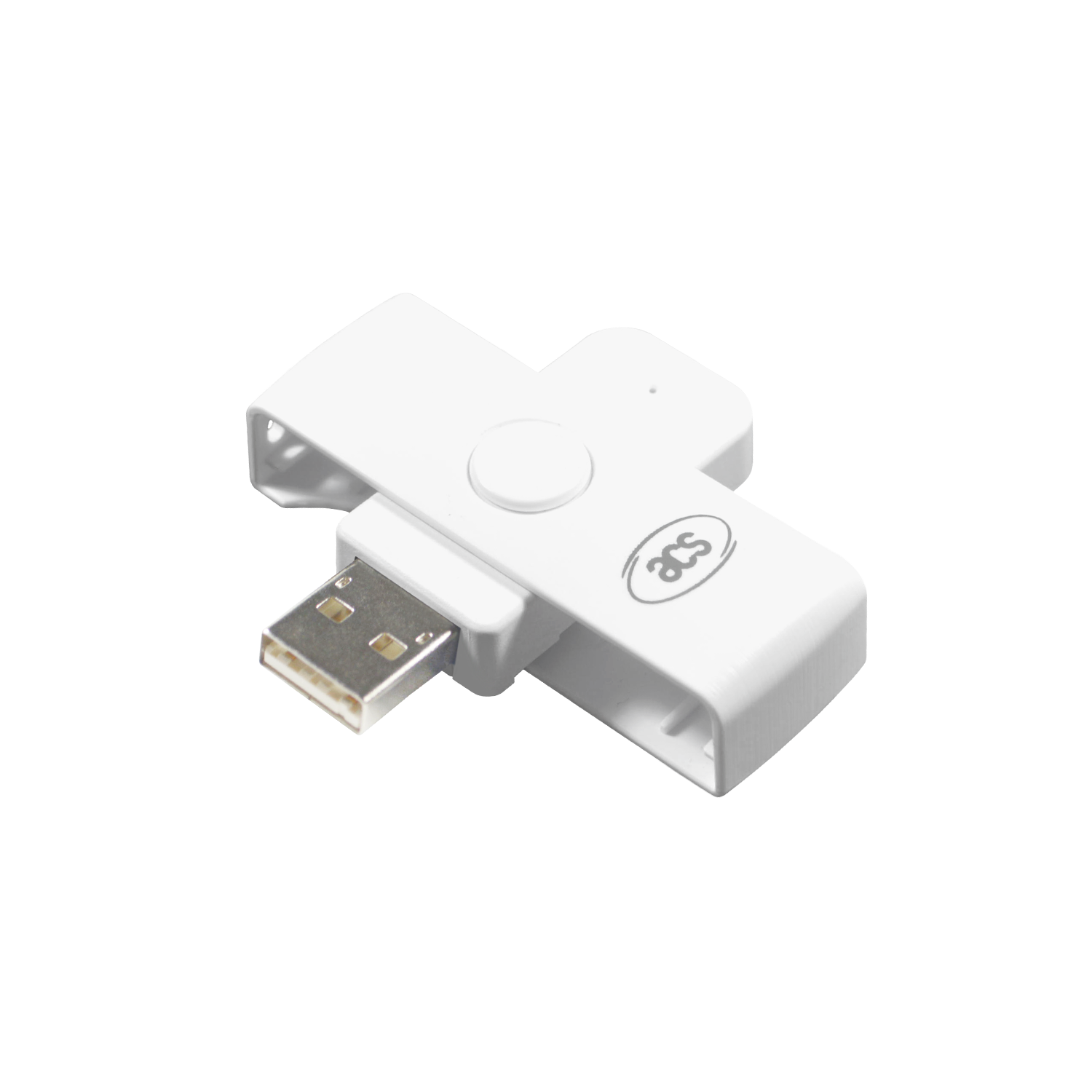

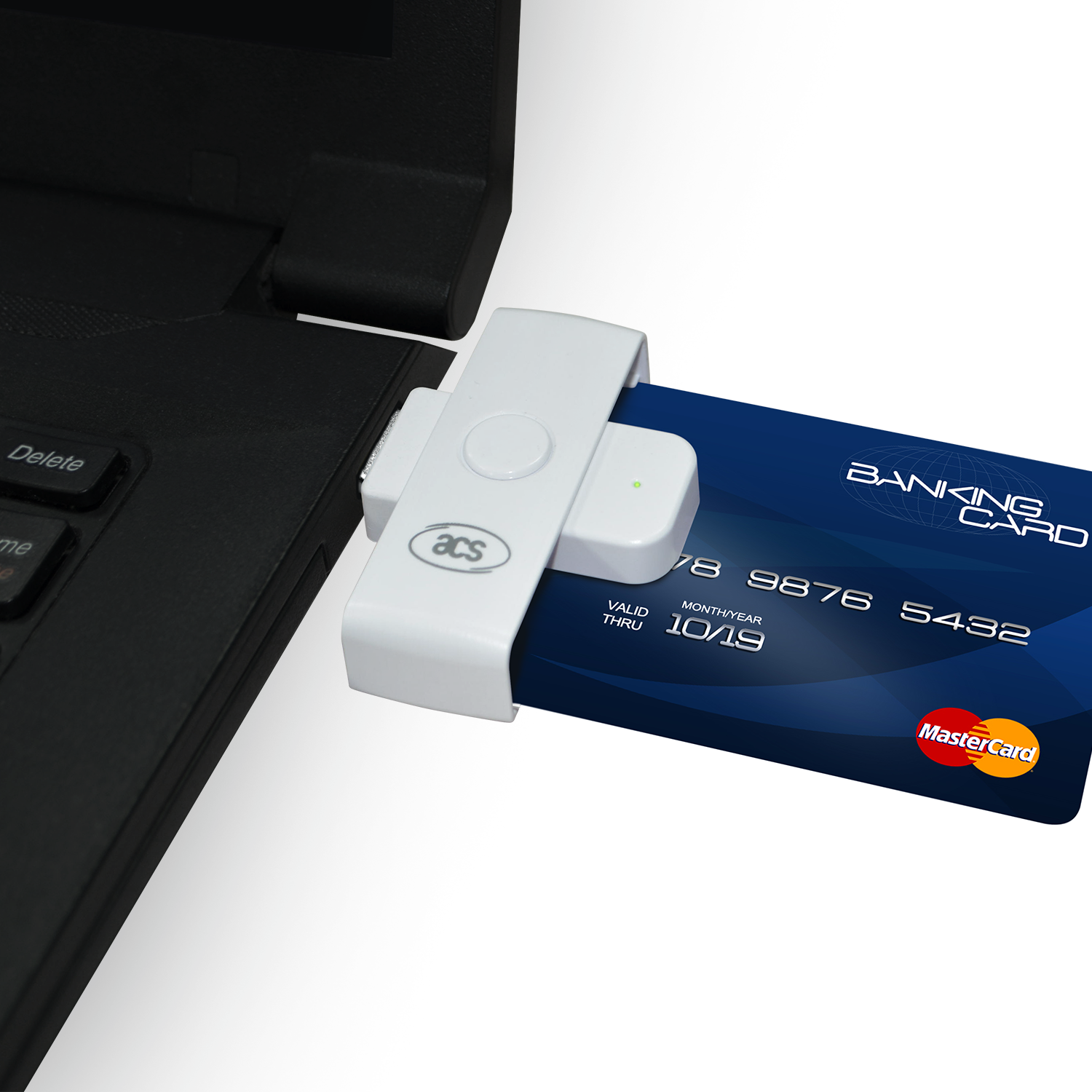

Images

Downloads

TypeTitleSizeUpdated
ManualACS ApduTool (iOS) - Application Note118.31 KB23-Feb-2024
DriverPC/SC Driver Installer (Windows®)5.02 MB11-Dec-2025
DriverPC/SC Driver Installer (Linux®)4.30 MB20-Nov-2025
DriverPC/SC Driver Installer (macOS®)281.65 KB17-Nov-2025
DriverAndroid EVK1.46 MB25-Nov-2025
DriverPC/SC Driver Installer (Solaris 10, 11 and above)available on request—16-Feb-2017
BrochureProduct Presentation of ACR39 Series Smart Card Reader——
DatasheetTechnical Specification of ACR39U-N1 Pocketmate II Smart Card Reader——
ManualReference Manual of ACR39 Series Smart Card Reader——
