PR1023 — Validator with QR Code Scanner · Bluetooth / RS-232
Automatic Fare Collection (AFC) Readers

PR1023

Validator with QR Code Scanner · Bluetooth / RS-232

Validator with QR Code Scanner to facilitate cashless payment in transportation

Manufacturer reference: ACS — ACR330 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • ISO 14443
  • CE
  • FCC
  • REACH
  • RoHS

Primary Applications

  • Mobile Banking & Payment
  • Access Control
  • Transportation

PR1023

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

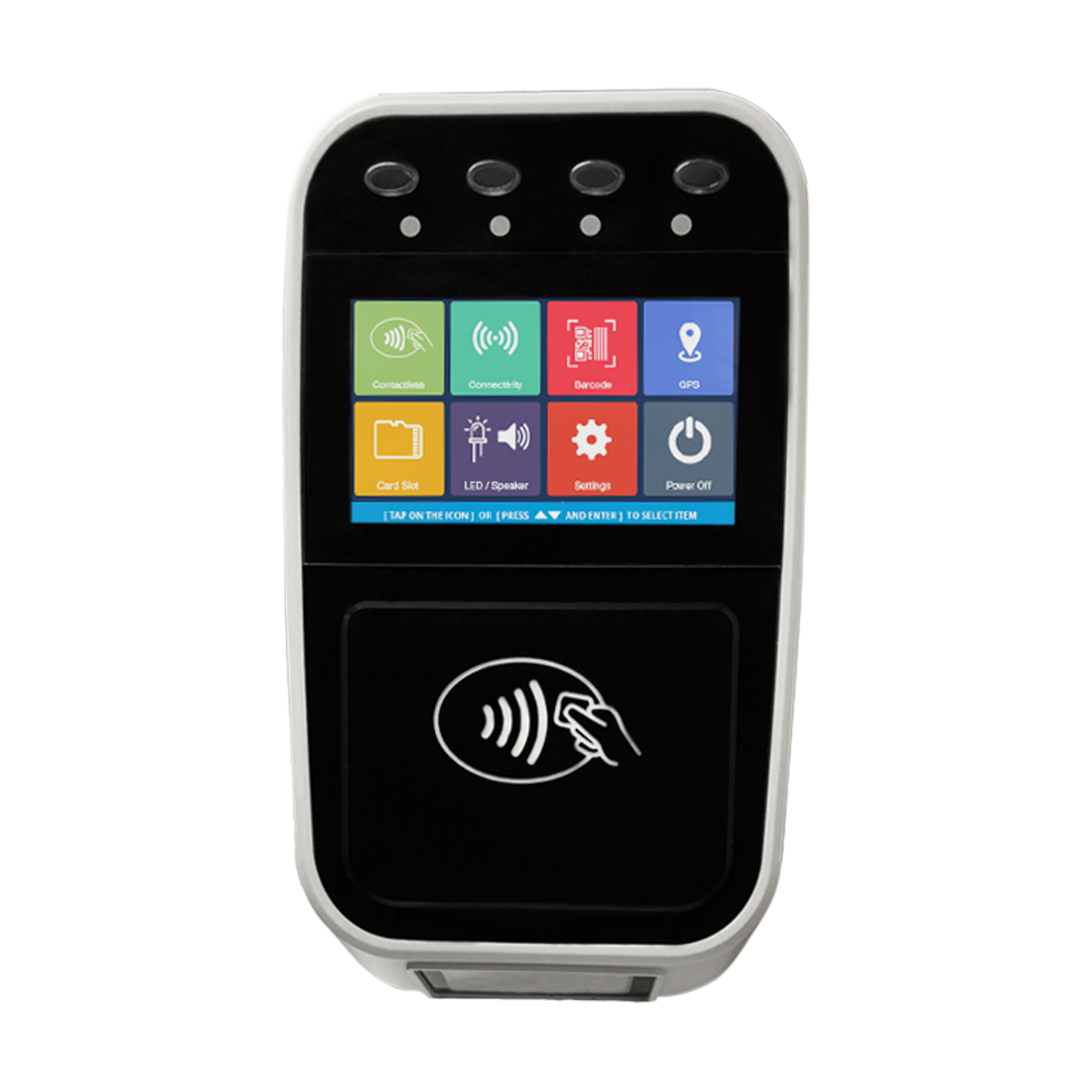

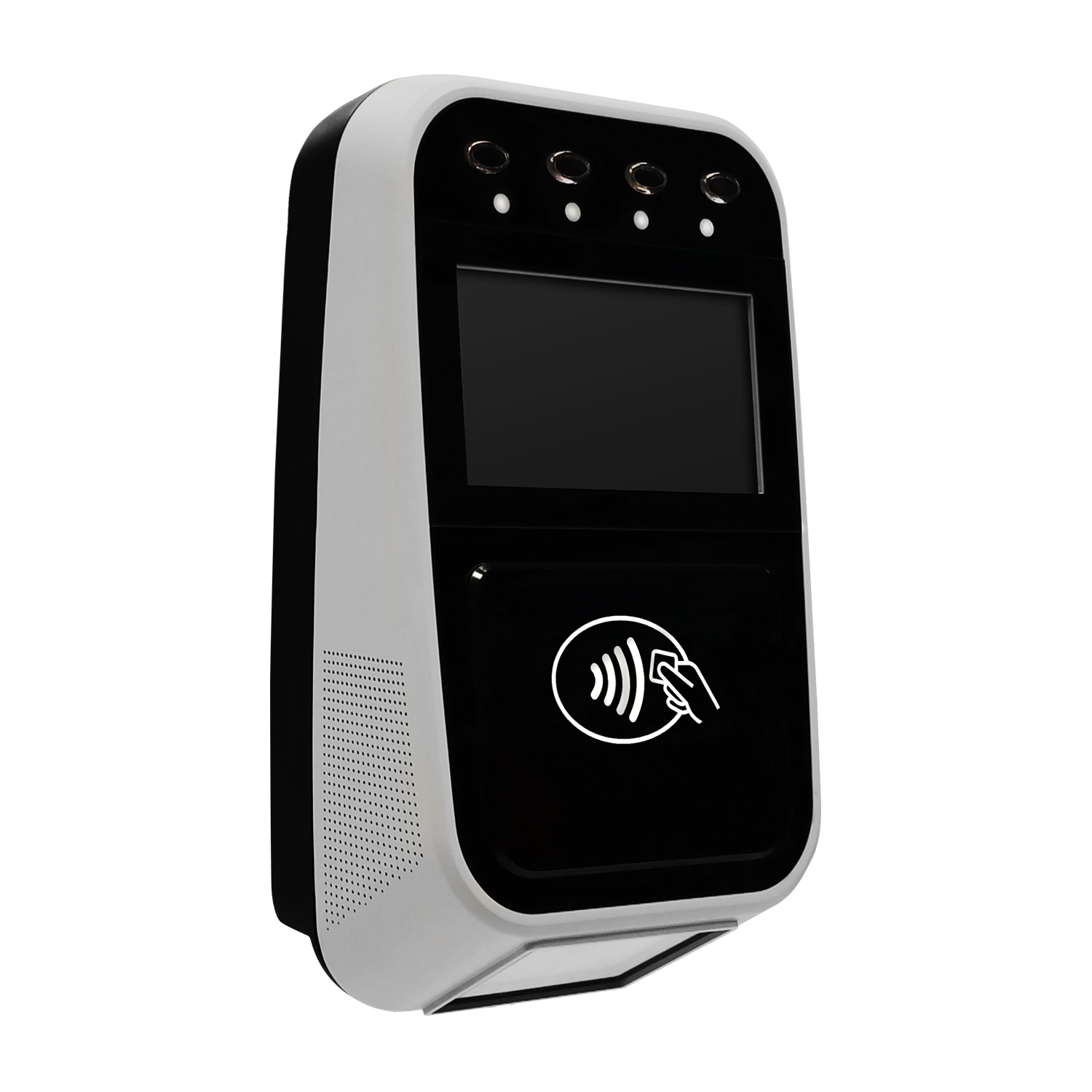

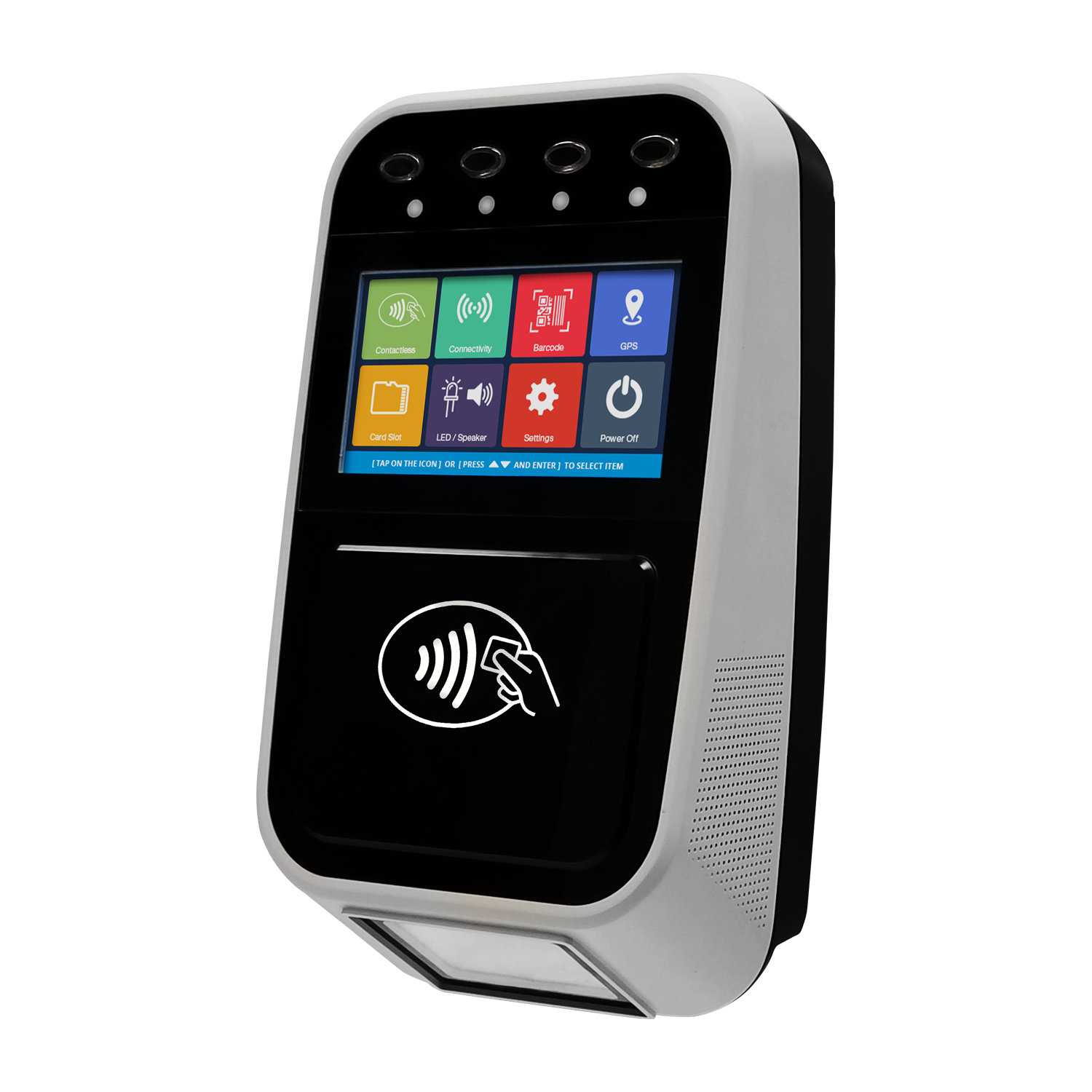

The PR1023 Validator is a reliable and efficient solution for Automatic Fare Collection (AFC) systems that require cashless payment options in various transportation modes such as buses, ferries, trams, and railways.

Using high-speed 13.56 MHz contactless (RFID) technology, the PR1023 supports ISO 14443 Type A and B cards, MIFARE®, and FeliCa. It also features an embedded barcode scanner for transactions using print or mobile barcodes.

The PR1023 offers advanced wireless connectivity options for data transfer such as GSM/GPRS, 3G/4G, and Wi-Fi. It also has an optional GPS feature for fleet management and distance-based fares. The device is built to withstand harsh environments and has an IP54 rating for dust and water protection, as well as Military Standard MIL-STD-810 for Shock and Vibration.

For MasterCard® Contactless and Visa PayWave® support, see the PR1039 Secure Validator with QR code scanner for more information.

It also comes with an optional back mount for support on the pole.

PR1023 Video Demonstration

Features

  • 32-bit Processor running Linux® 4.4
  • 900 MB Flash and 512 MB RAM
  • UPS via SuperCap (5 second interval after primary power source is lost)
  • IP54 Rating for Dust and Water Protection
  • Expandable Micro SD Card support with memory from 1 GB up to 32 GB
  • Connectivity Options — USB Host, Serial Port, Ethernet Port; Wi-Fi, Bluetooth® 4.0 Dual Mode; GPRS/GSM, 3G, and 4G*; GPS**
  • Smart Card Interface — Contactless Interface: Read/Write speed of up to 424 Kbps; Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type); Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, and FeliCa; Built-in anti-collision feature (only one tag is accessed at any time); SAM Interface: Four SAM-sized Card Slots; Supports ISO 7816 Class A, B, and C (5 V, 3 V and 1.8 V) cards; SIM Interface: One SIM-sized Card Slot for GPRS/3G/4G connectivity
  • Built-in Peripherals — 4.3-inch Easy-to-Read, TFT Colored LCD; Capacitive Type Touch Panel; Barcode Scanner (Linear/2D)**; Real-time Clock (RTC) with independent backup battery; 6 LED Status Indicators (Front: Blue, Orange, Green, and Red; Back: Green and Red); User-controllable buzzer

Technical Specifications

Physical Characteristics

Property Value
Dimensions (mm) Main Body: 245.0 mm (L) x 135.0 mm (W) x 91.0 mm (H); Main Body + Back Mount: 245.0 mm (L) x 135.0 (W) x 159.0 mm (H)
Weight (g) Main Body: 1.08 kg; Main Body + Back Mount: 1.88 kg

Standalone Mode

Property Value
Processor ARM Cortex-A8 1GHz Processor

Connectivity

Property Value
Bluetooth Bluetooth® 4.0 Dual Mode
Cellular (Optional) GPRS/3G/4G
USB Host 2.0 Full Speed
Serial Port RS-232, RS-485
GPS (Optional) Supported with internal antenna (external antenna port available)
Wi-Fi IEEE 802.11 b/g/n
Ethernet Built-in 10/100-base-T Ethernet

Contactless Smart Card Interface

Property Value
Standard ISO 14443 A and B Parts 1-4, MIFARE, FeliCa
Protocol ISO14443-4 Compliant Cards, T=CL MIFARE Classic Card Protocol, T=CL FeliCa

SAM Card Interface

Property Value
Number of Slots 4 Standard SIM-sized Card Slots
Standard ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1

SIM Card Interface

Property Value
Standard GSM
Number of Slots 1 Standard SIM-sized Card Slot

Memory

Property Value
Flash Memory Size 900 MB
SD Card Slot Supports up to 32 GB

Built-in Peripherals

Property Value
Barcode Scanner (Optional) Linear, 2D
Audio Speaker 3W Speaker, Buzzer
Temperature Sensor Supported
Buttons 4 backlit buttons
LCD 4.3in. TFT-LCD, 480 x 272 Colors
LED Front: Blue, Orange, Green, Red; Back: Green, Red
Touch Panel Capacitive Type

Other Features

Property Value
Security Tamper Switch (internal anti-intrusion detection and protection)
Firmware Upgrade Supported
Real-time Clock Supported

Certifications/Compliance

Property Value
Certifications/Compliance ISO 14443, CE, FCC, REACH, RoHS

Features tab footnote (applies to the '' and '**' markers used above): "Please see the Technical Specifications document for detailed frequency band support options" () and "Feature is optional" (**).
