PR1008 — USB NFC Reader III (NFC Forum Certified Reader)
Contactless Readers

PR1008

USB NFC Reader III (NFC Forum Certified Reader)

PR1008 lists reader/writer, card emulation and peer-to-peer NFC modes, with a SAM slot.

Manufacturer reference: ACS — ACR1252U ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation
  • P2P Communication

PR1008

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

Confirm the quotation scope

Use this checklist to specify what you want quoted. Manufacturer specifications describe the product; compatibility with your setup still requires evaluation.

Connector and stand
Specify USB Type-A or Type-C. If a stand is needed, list it separately and confirm its inclusion in the quotation.
Reader or development kit
List the PR1008 reader and PR1009 SDK separately. Confirm the quoted cards, accessories and software licence terms.
Existing application
Provide the current driver, application and required card commands. Check the exact configuration before treating this reader as a replacement.

Questions to resolve before ordering

  • Which connector variant is needed: PR1008-M1 (USB Type-A) or PR1008-MF (USB Type-C)? Include the host device, OS version and application.
  • Do you need reader/writer, card emulation or peer-to-peer mode? Specify the card standard and commands. If ISO 15693 or keyboard UID output is required, flag it for model selection because these are not listed in the referenced PR1008 specifications.
  • Will the project use the Class A (5 V) SAM slot, and do you need the optional stand? Specify whether you need the reader, a separate SDK or both; confirm quoted accessories, included items and licence terms.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗
From enquiry to evaluation and order

Use these checkpoints to confirm the configuration and evaluation scope before ordering in volume.

  1. Define the requirement

    Describe the task the product must perform and identify any requirements that still need clarification.

  2. Check the quotation scope

    Match the PR code to the manufacturer variant. Check the quoted hardware, accessories, software and licence terms.

  3. Agree the sample evaluation

    Before arranging evaluation units, agree the test setup and acceptance criteria. Record results and unresolved issues.

  4. Confirm the volume order

    Recheck the configuration and version against the evaluated unit, then confirm the quantity and delivery terms.

Manufacturer specifications describe the product; they do not confirm that your card, host and application have been tested together.

Model specifications at a glance

Based on manufacturer documentation. Confirm the exact model variant and evaluate it with your project before ordering.

USB connector and variant
USB Type-A: PR1008-M1; USB Type-C: PR1008-MF.
Listed contactless standards
ISO 14443 Type A and B; ISO/IEC 18092 NFC; MIFARE; FeliCa. ISO 15693 is not listed in the referenced specifications; this does not establish that it is unsupported.
Maximum card communication rate
Up to 424 kbps; actual results depend on the card and operation.
Listed NFC operating modes
Reader/writer; card emulation; peer-to-peer.
SAM interface
1 SAM slot; ISO 7816 Class A (5 V).
Software and configuration
USB CCID and PC/SC. Check this model's driver and API manual for integration.

Listed standards and modes do not guarantee that a complete card application will work. Evaluate the intended card, commands, keys, middleware and host software before ordering. The quoted maximum card communication rates are not measured application throughput.

Overview

The PR1008 USB NFC Reader III is an NFC Forum-certified PC-linked reader, developed based on 13.56Mhz contactless technology. It has a SAM (Secure Access Module) slot which can be used together with a SAM card for key diversification and mutual authentication, providing high-level security in contactless transactions. Post-deployment firmware upgrade is also supported, eliminating the need for additional hardware modification.

PR1008 is capable of the three modes of NFC, namely: card reader/writer, card emulation and peer-to-peer communication. It supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and ISO 18092–compliant NFC tags. It also supports other NFC devices with an access speed of up to 424 Kbps and proximity operating distance of up to 50mm (depending on tag type used).

Compliant with both CCID and PC/SC, this plug-and-play USB NFC device allows interoperability with different devices and applications. It is thus ideal for unconventional marketing and advertising applications like smart posters.

The PR1008 comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the PR1008 with ease. For more information, click here to download the brochure of this special accessory.

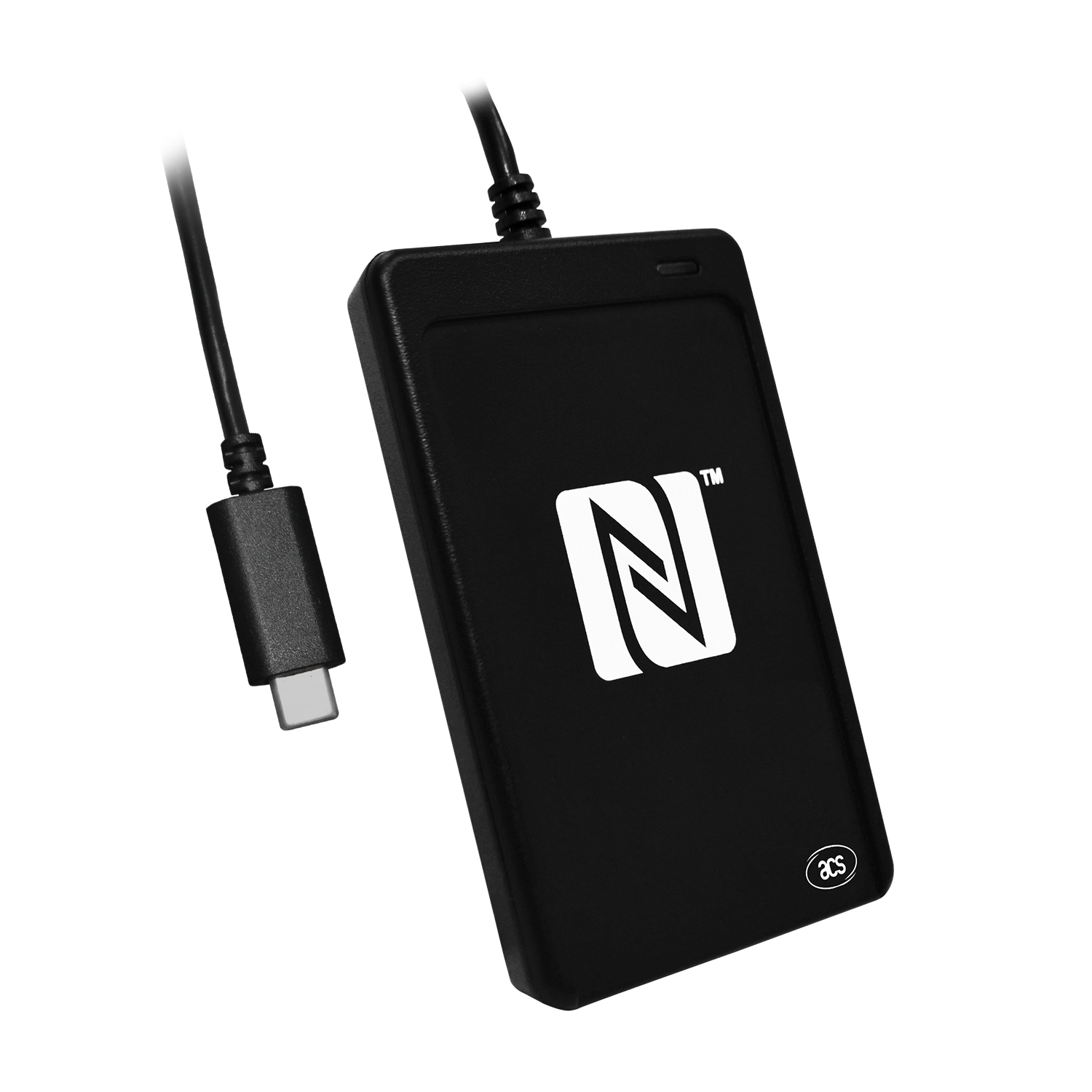

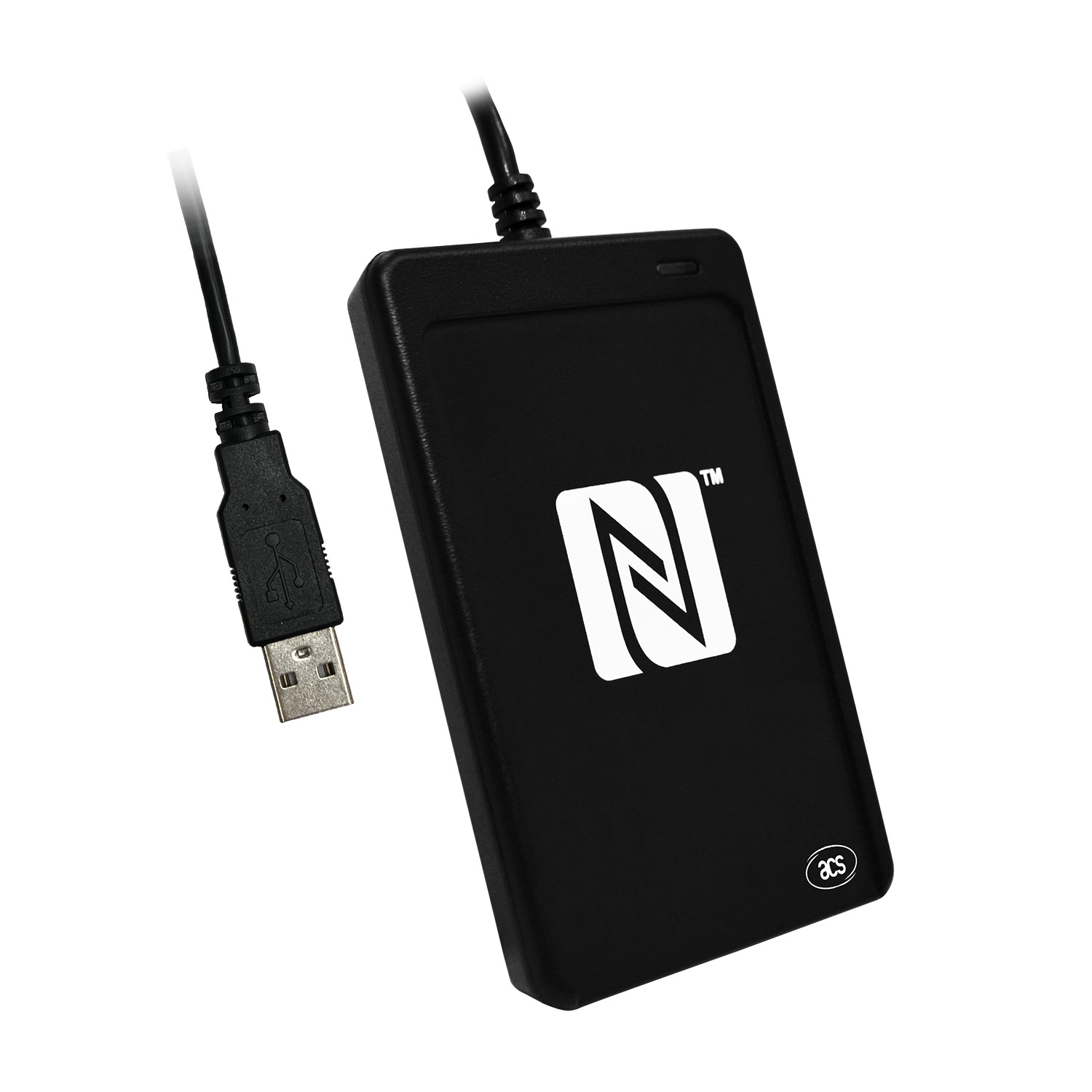

There are two connector type available for order now, USB Type-A (PR1008-M1) & USB Type-C (PR1008-MF).

NFC Forum

Fido Support

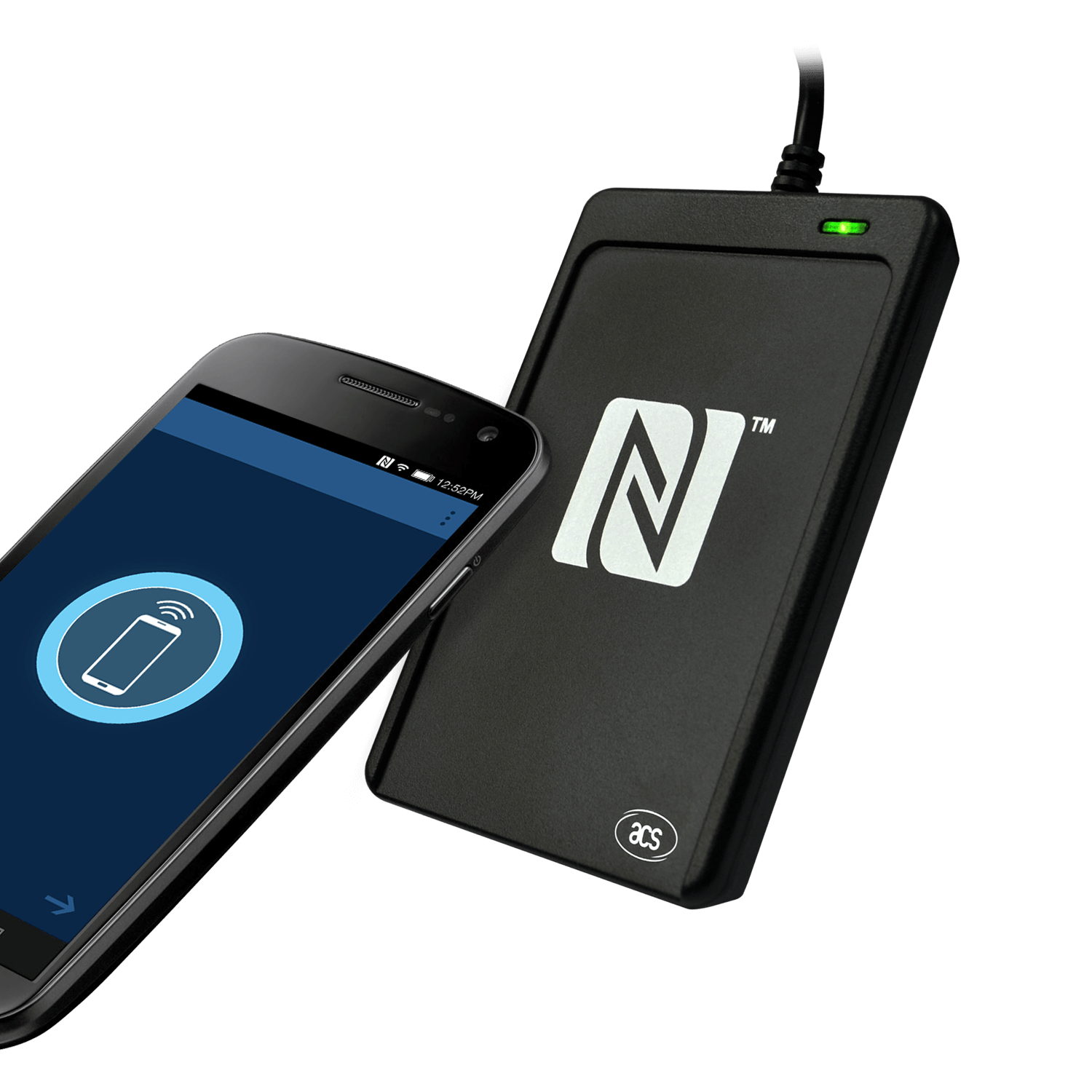

The PR1008 USB NFC Reader III also supports FIDO (Fast IDentity Online) authentication protocols, making it compatible with FIDO-enabled devices such as PR1042 and YubiKey. This enables secure, passwordless login and strong 2FA authentication for online services. By leveraging the NFC capabilities of the PR1008, users can conveniently authenticate themselves by simply tapping their FIDO-enabled NFC device on the reader.

Integrating FIDO support enhances the security of online transactions and access control systems, making the PR1008 an ideal choice for e-Government, banking, e-healthcare, network security, and other applications requiring high-level security.

Key Attributes: PC-Linked, USB, Contactless Reader, NFC Reader, SAM Slot(s), Firmware Upgradeable

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • USB Firmware Upgradeability
  • Smart Card Reader: - Read/write speed up to 424 kbps - Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) - Supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags - Supports MIFARE® 7-byte UID, MIFARE® Plus, and MIFARE® DESfire - Built-in anti-collision feature (only 1 tag is accessed at any time) - One ISO 7816–compliant SAM slot (Class A) - NFC Support: - NFC Reader/Writer Mode - Peer-to-Peer Mode - Card Emulation Mode
  • Application Programming Interface: - Supports PC/SC - Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals: - User-controllable bi-color LED - User-controllable buzzer - SAM Slot
  • Available Model Number: - USB Type-A: PR1008-M1 - USB Type-C: PR1008-MF

Technical Specifications

Physical Characteristics
Dimensions (mm) 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight (g) 81 g
USB Interface
Connector Type USB Type-A (PR1008-M1), USB Type-C (PR1008-MF)
Protocol USB CCID
Speed USB Full Speed (12 Mbps)
Power Source From USB port
Cable Length 1.0 m, Fixed
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO18092, NFC Tags; FeliCa
SAM Card Interface
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A (5V)
Protocol T=0; T=1
Built-in Peripherals
LED 1 bi-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance Standards: USB CCID, PC/SC, NFC Forum Certification Mark, Microsoft® WHQL, J-LIS. Regulatory / Environmental: IEC/EN 62368, CE, UKCA, FCC, VCCI, TELEC, KC, BIS, RoHS, REACH, WEEE
Device Driver Operating System Support
Device Driver Operating System Support Windows® CE, Windows®, Linux®, MAC OS®, Solaris, Android™

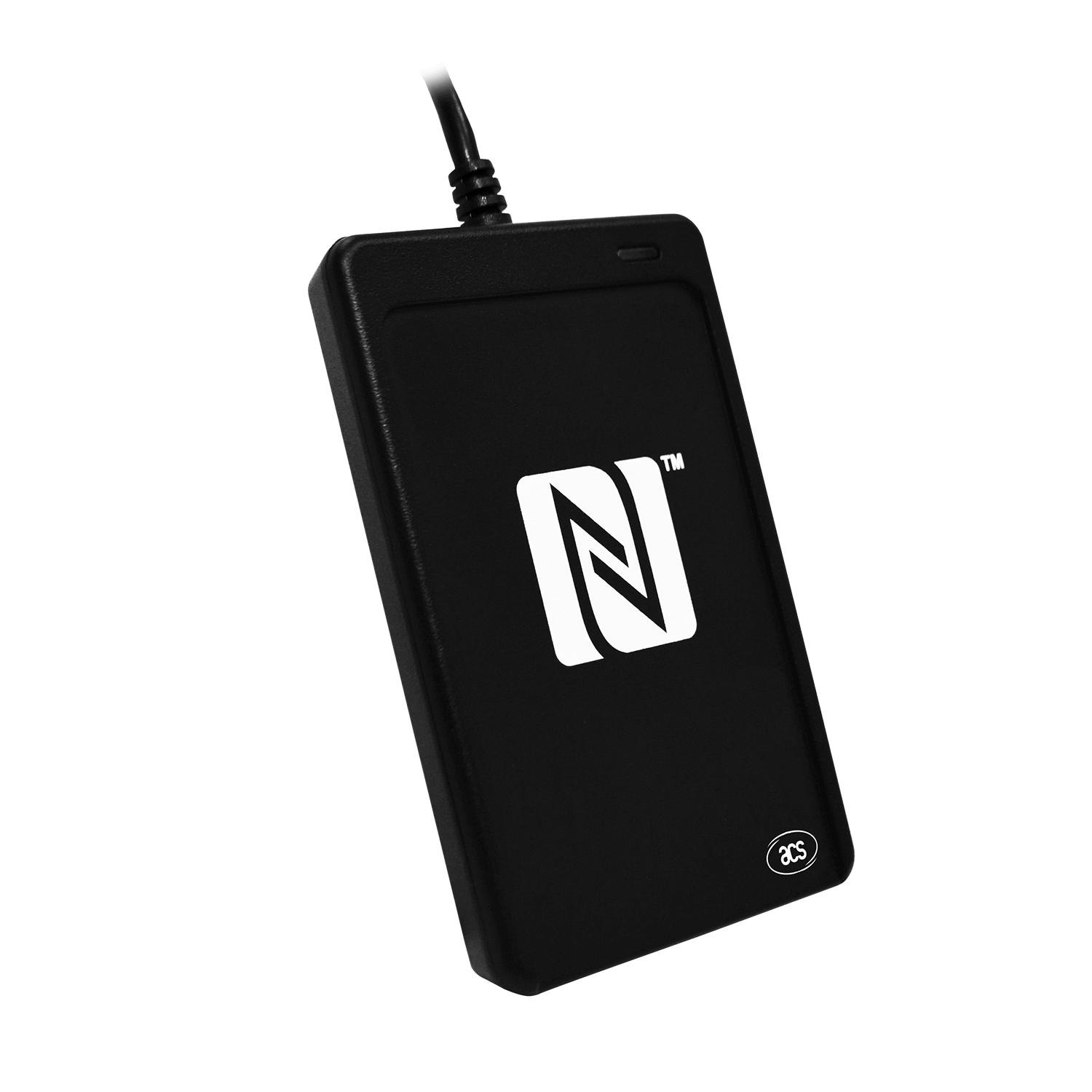

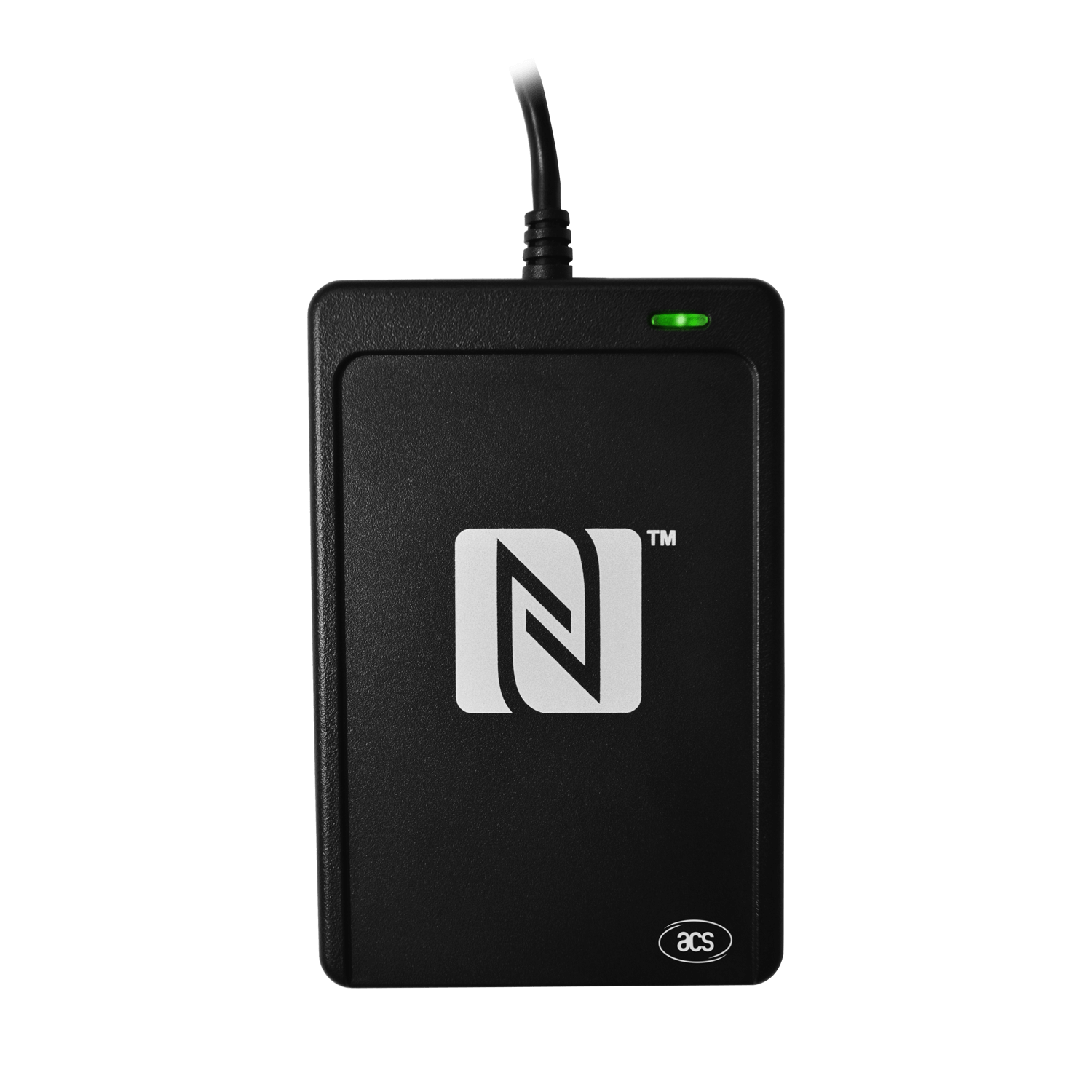

Images
