PR1006 — Smart Card Reader · USB
Contact Smart Card Readers

PR1006

Smart Card Reader · USB

An ISO 7816 Class A/B/C contact reader; the linked manufacturer specification lists PR1006-U1 with USB Type-A and PR1006-UF with USB Type-C.

Manufacturer reference: ACS — ACR39U ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • USB CCID
  • PC/SC
  • Microsoft® WHQL
  • EMV™ Level 1 (Contact)
  • PBOC Level 1 (Contact)
  • J-LIS
  • TAA
  • CE
  • IEC/EN 62368
  • FCC
  • VCCI
  • UKCA
  • RoHS
  • REACH
  • KCC
  • UL
  • BIS

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • Public Key Infrastructure
  • e-Purse & Loyalty

PR1006

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

Confirm the quotation scope

Use this checklist to specify what you want quoted. Manufacturer specifications describe the product; compatibility with your setup still requires evaluation.

Connector and installation
Confirm USB Type-A or Type-C against the manufacturer specification and quotation. Check the fixed 1.5 m cable and full-size card insertion space.
Hardware and SDK scope
Request PR1006 hardware or the separate PR1019 SDK as needed. Confirm supplied cards, accessories and software licences.
Existing card application
Provide the exact card, OS, driver and middleware versions. Verify the required commands with the selected variant before a deployment or replacement.

Questions to resolve before ordering

  • Do you require PR1006-U1 (USB Type-A) or PR1006-UF (USB Type-C)? Confirm the exact variant from the manufacturer specification and quotation, plus host OS, drivers and middleware; other ACR39 models and SDK packages are separate entries.
  • Which contact card and application are involved? Specify the card voltage, T=0/T=1 or memory-card type, and required commands; PC/SC alone does not confirm application compatibility.
  • Will the 72.2 × 69 × 14.5 mm reader, full-size card insertion space and 1.5 m fixed cable fit the installation? Provide evaluation quantity, order quantity and delivery country.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Manufacturer product reference ↗
From enquiry to evaluation and order

Use these checkpoints to confirm the configuration and evaluation scope before ordering in volume.

  1. Define the requirement

    Describe the task the product must perform and identify any requirements that still need clarification.

  2. Check the quotation scope

    Match the PR code to the manufacturer variant. Check the quoted hardware, accessories, software and licence terms.

  3. Agree the sample evaluation

    Before arranging evaluation units, agree the test setup and acceptance criteria. Record results and unresolved issues.

  4. Confirm the volume order

    Recheck the configuration and version against the evaluated unit, then confirm the quantity and delivery terms.

Manufacturer specifications describe the product; they do not confirm that your card, host and application have been tested together.

Contact smart card reader specifications at a glance

Match the exact USB variant, card voltage and protocol, host software and installation space before selecting a contact reader.

Host interface and connector variants
USB 2.0 Full Speed; USB CCID and PC/SC. PR1006-U1: USB Type-A; PR1006-UF: USB Type-C (linked manufacturer specification).
Contact card standard and voltage
ISO 7816 Parts 1–4, Class A/B/C: 5 V, 3 V and 1.8 V.
Card protocols and memory-card scope
T=0 and T=1 microprocessor cards; memory-card support depends on the specific card type and commands.
Card slot
One full-size contact smart card slot.
Reader dimensions
72.2 × 69 × 14.5 mm.
USB cable
1.5 m, non-detachable cable; confirm the connector variant.

PR1006's product page lists USB Type-A; its linked specification also lists the PR1006-UF Type-C variant. Confirm the exact variant in your quotation. These facts describe PR1050 and the specified PR1006 variants; Premium models and SDK packages have separate entries. PC/SC does not guarantee compatibility with your cards, middleware or application. Evaluate the complete workflow before ordering; price, quantity and lead time require a quotation.

Overview

PR1006 Smart Card Reader ushers in new and modern technology to the world of smart card readers. This compact smart card reader brings together sophisticated technology and modern design to meet the rigorous requirements of smart card–based applications.

It also features a USB Full Speed interface and a smart card read/write speed of up to 600 Kbps. Highly durable, PR1006 can withstand up to 200,000 card insertion cycles. PR1006 also has various certifications, such as EMV™ Level 1 (Contact) and PBOC, making it the ideal smart card reader for your e-Banking and e-Payment application needs.

It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows®, Solaris™, Linux®, and macOS. Additionally, PR1006 can be used on mobile devices running on the Android platform, version 3.1 and above.

With its sleek, stylish design and powerful core, the PR1006 is the ideal peripheral for your smart card applications.

Features

  • USB 2.0 Full Speed Interface
  • Compatible with USB 3.0
  • Plug and Play – CCID support brings utmost mobility
  • Smart Card Reader: - Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards - Supports CAC - Supports SIPRNET Card - Supports J-LIS Card - Supports microprocessor cards with T=0 or T=1 protocol - Supports memory cards - Supports Mykad Card - Supports PPS (Protocol and Parameters Selection) - Features Short-Circuit Protection
  • Application Programming Interface: - Supports PC/SC - Supports CT-API (through wrapper on top of PC/SC)
  • Supports Android™ 3.1 and later

Technical Specifications

Physical Characteristics
Dimensions (mm) 72.2 mm (L) x 69.0 mm (W) x 14.5 mm (H)
Weight (g) 65.0 g
USB Interface
Protocol USB CCID
Connector Type USB Type-A
Power Source USB port
Speed USB 2.0 Full Speed (12 Mbps), Compatible with USB 3.0
Cable Length 1.5 m (Non-Detachable)
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1; Memory Card Support
Others Mykad Card, CAC, PIV, J-LIS, SIPRNET Smart Cards
Certifications/Compliance
Certifications/Compliance Standards: USB CCID, PC/SC, Microsoft® WHQL, EMV™ Level 1 (Contact), PBOC Level 1 (Contact), J-LIS, TAA. Regulatory/Environmental: CE, IEC/EN 62368, FCC, VCCI, UKCA, RoHS, REACH, KCC, UL, BIS
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, Solaris™, Android™

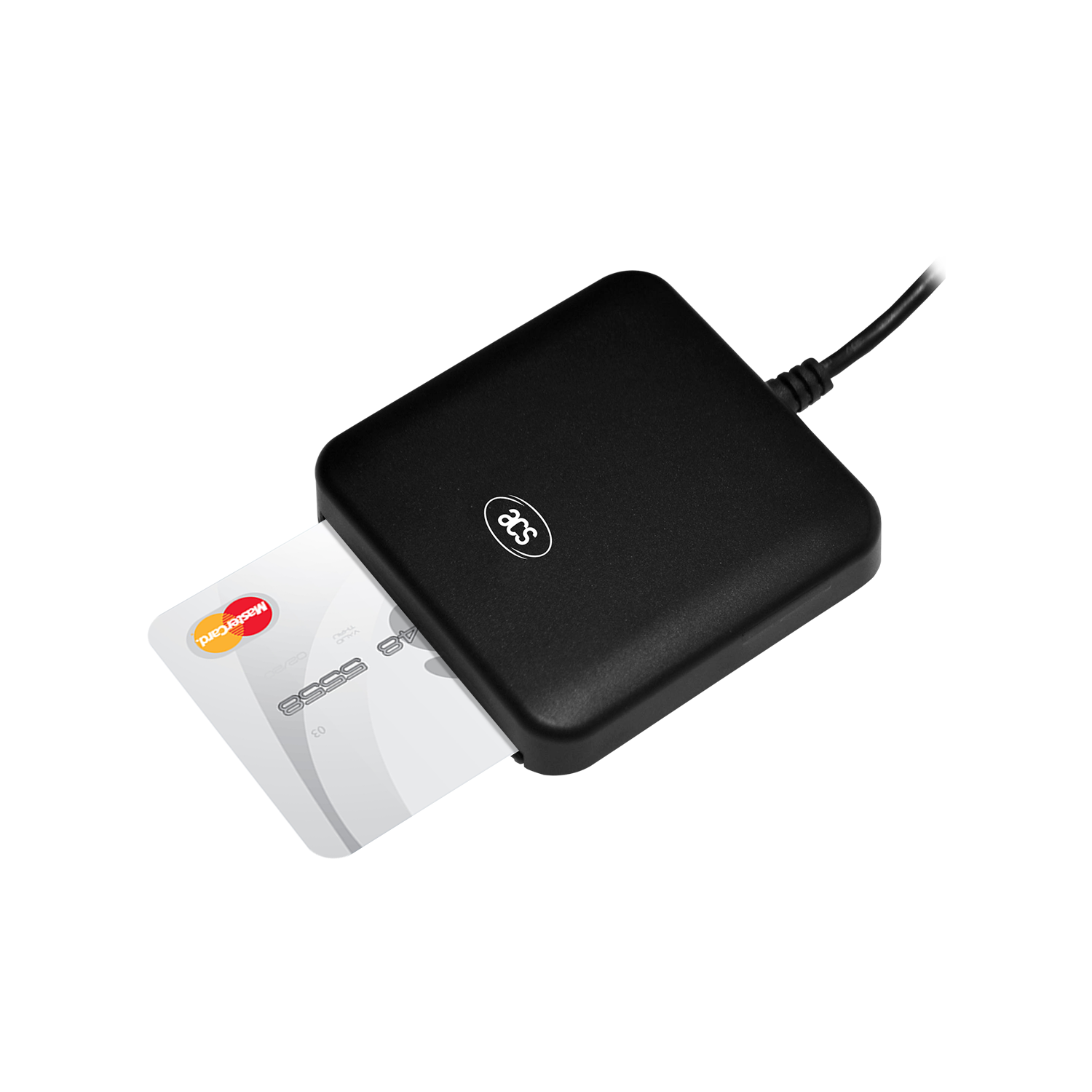

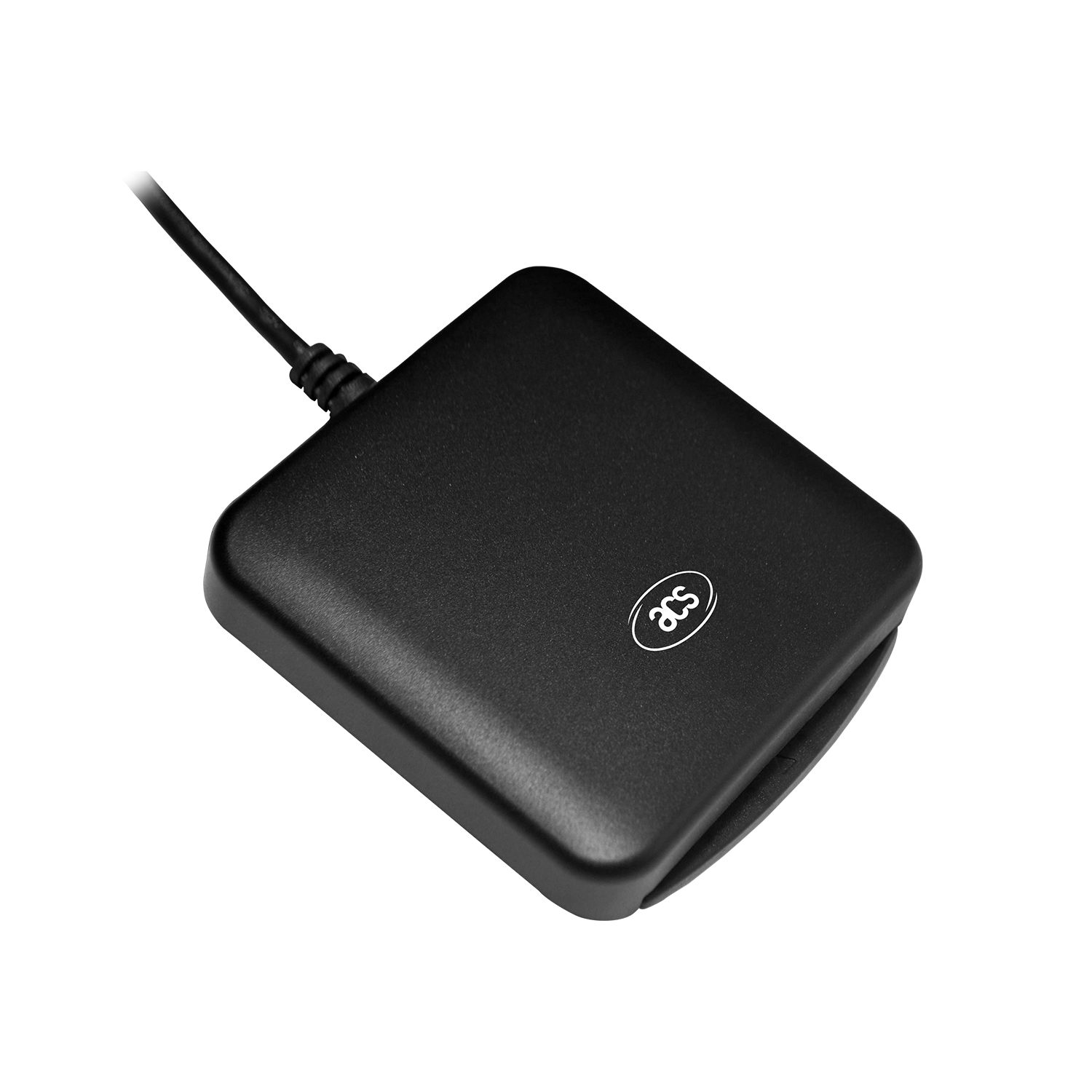

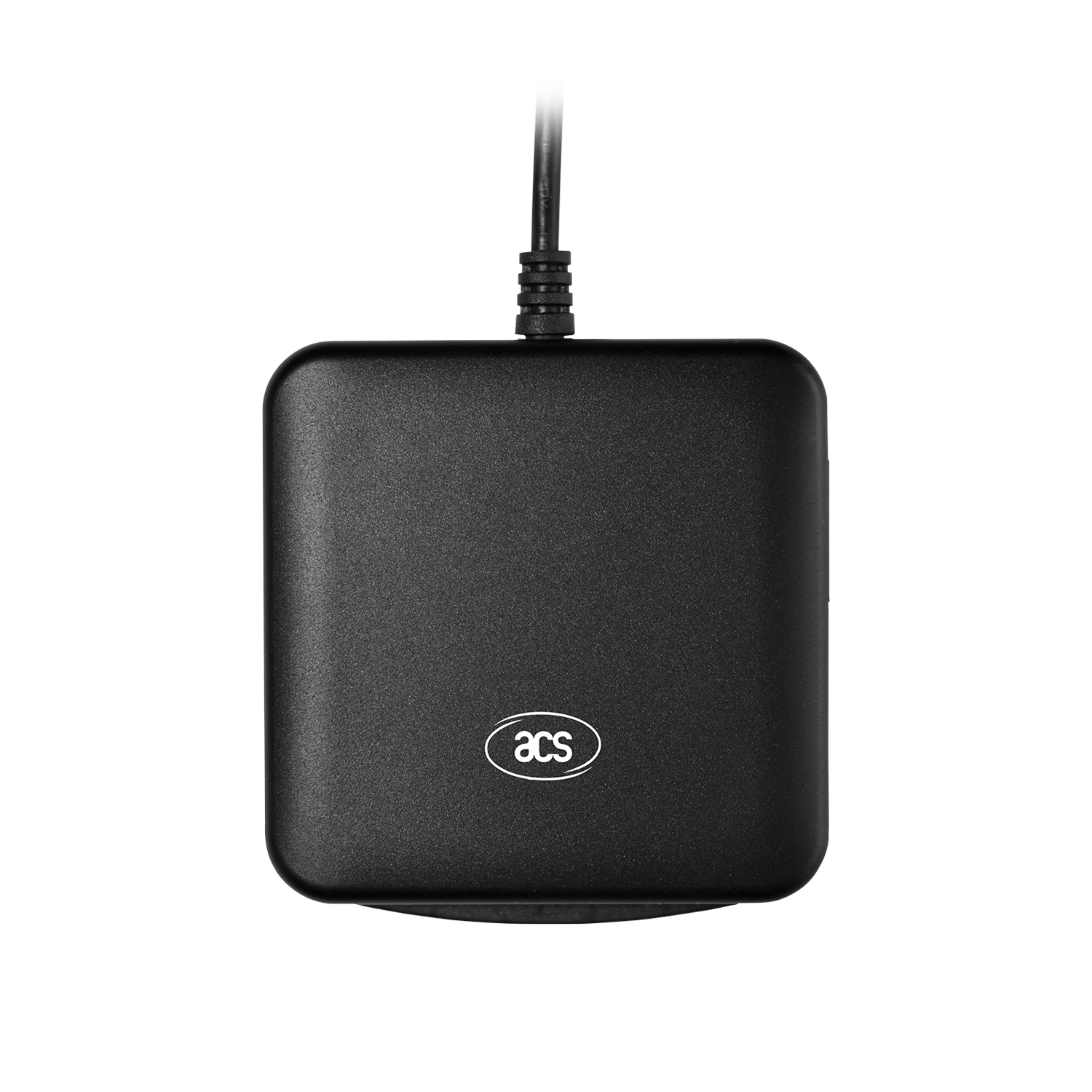

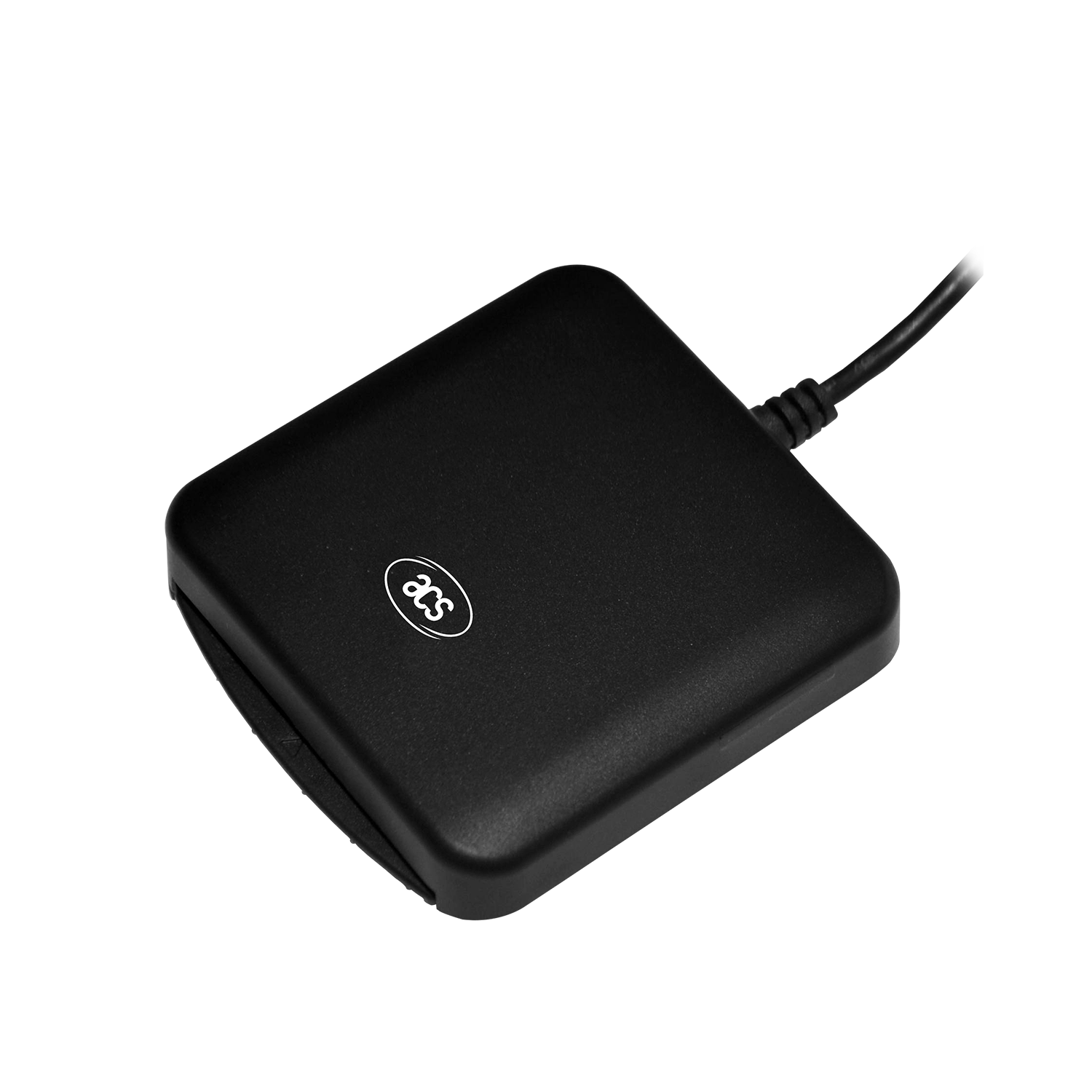

Images

Downloads

TypeTitleSizeUpdated
SoftwareACS ApduTool (iOS) v1.2 — iOS and iPadOS 16.2 or above118.31 KB23-Feb-2024
DriverPC/SC Driver Installer v4.4.2.1 — Windows®5.02 MB11-Dec-2025
DriverPC/SC Driver Installer v1.1.13 — Linux®4.30 MB20-Nov-2025
DriverPC/SC Driver Installer v1.1.13 — macOS®281.65 KB17-Nov-2025
SoftwareAndroid EVK v1.1.8 — Android™ 3.1 or above1.46 MB25-Nov-2025
DriverPC/SC Driver Installer v1.0.8 — Solaris 10, 11 and aboveavailable on request—16-Feb-2017
BrochureProduct Presentation of ACR39 Series Smart Card Reader——
DatasheetTechnical Specification of ACR39U-U1 Smart Card Reader——
ManualReference Manual of ACR39 Series Smart Card Reader——
