Overview
PR1026 is a smart card operating system developed by Advanced Card Systems Ltd. Compliant with GlobalPlatform Card specifications and powered by Java Card Technology, it provides a secure platform for rapid application development of many value-adding applets, including e-banking, e-payment, loyalty, e-government, and public key infrastructure (PKI). PR1026 has a fast read/write speed, is highly durable, and can house multiple secure applications. It comes in module and card options.
PR1026 is equipped with powerful cryptographic capabilities. These enhance the security and performance of cryptographic operations and data management, both of which are essential to fulfilling the security requirements of smart card applications.

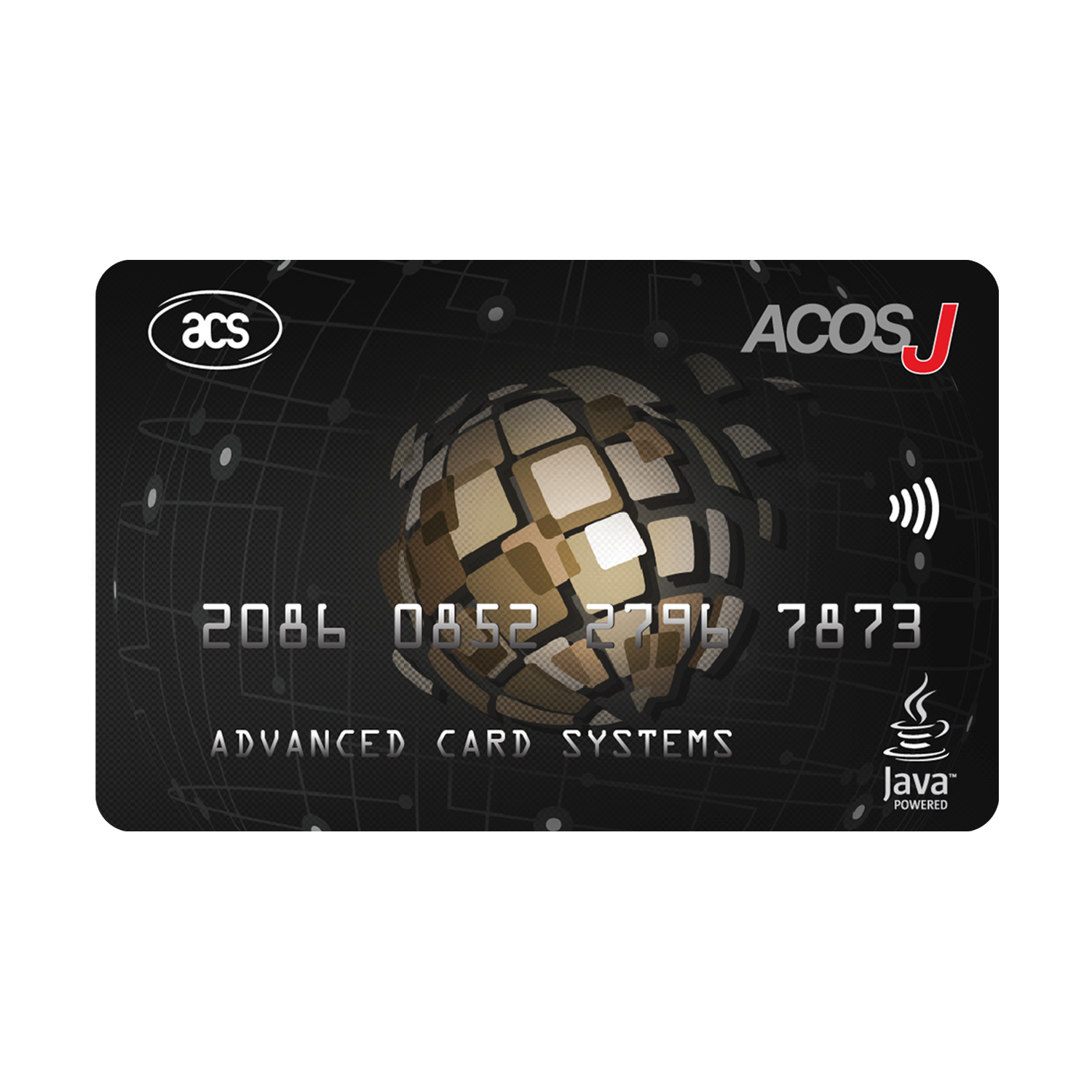

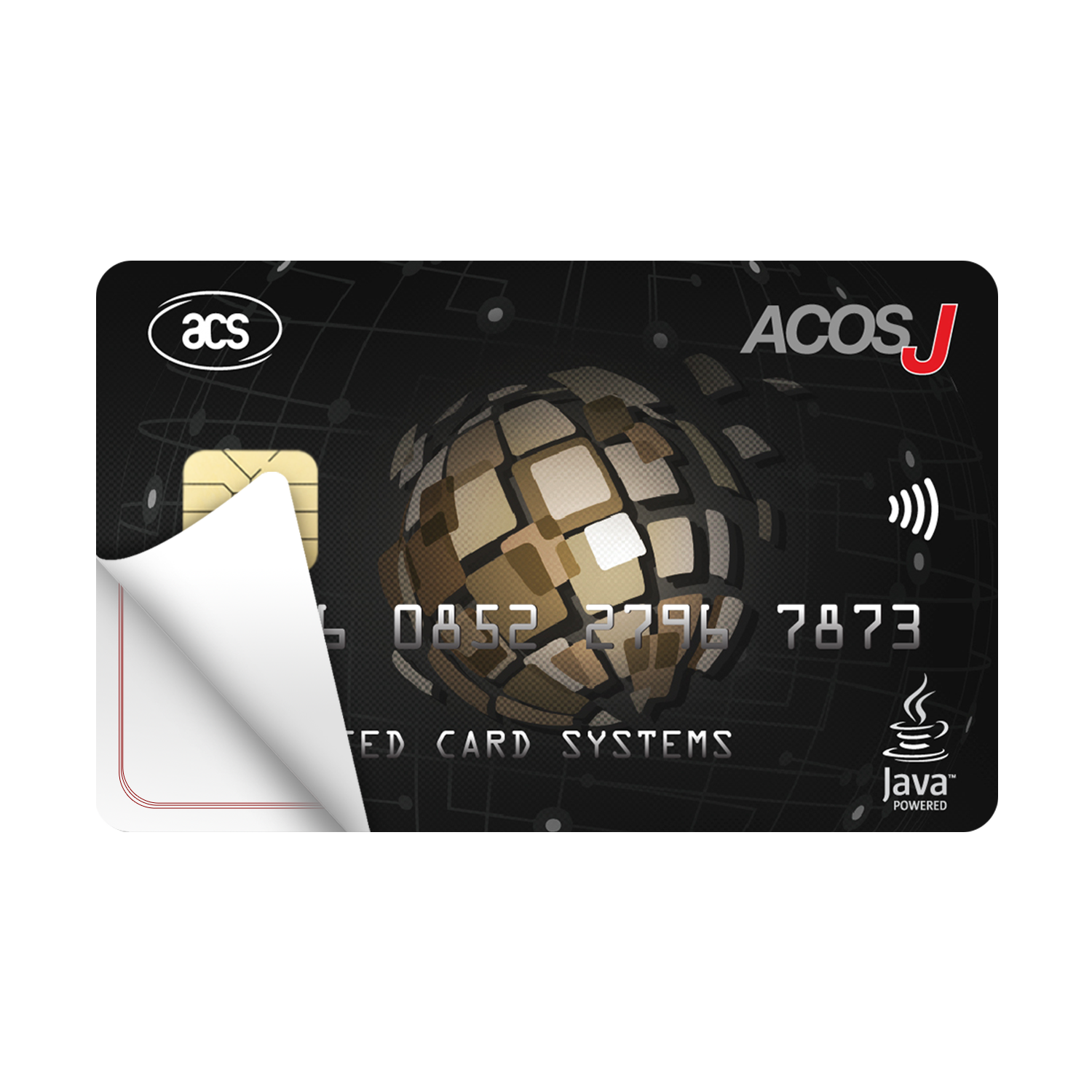

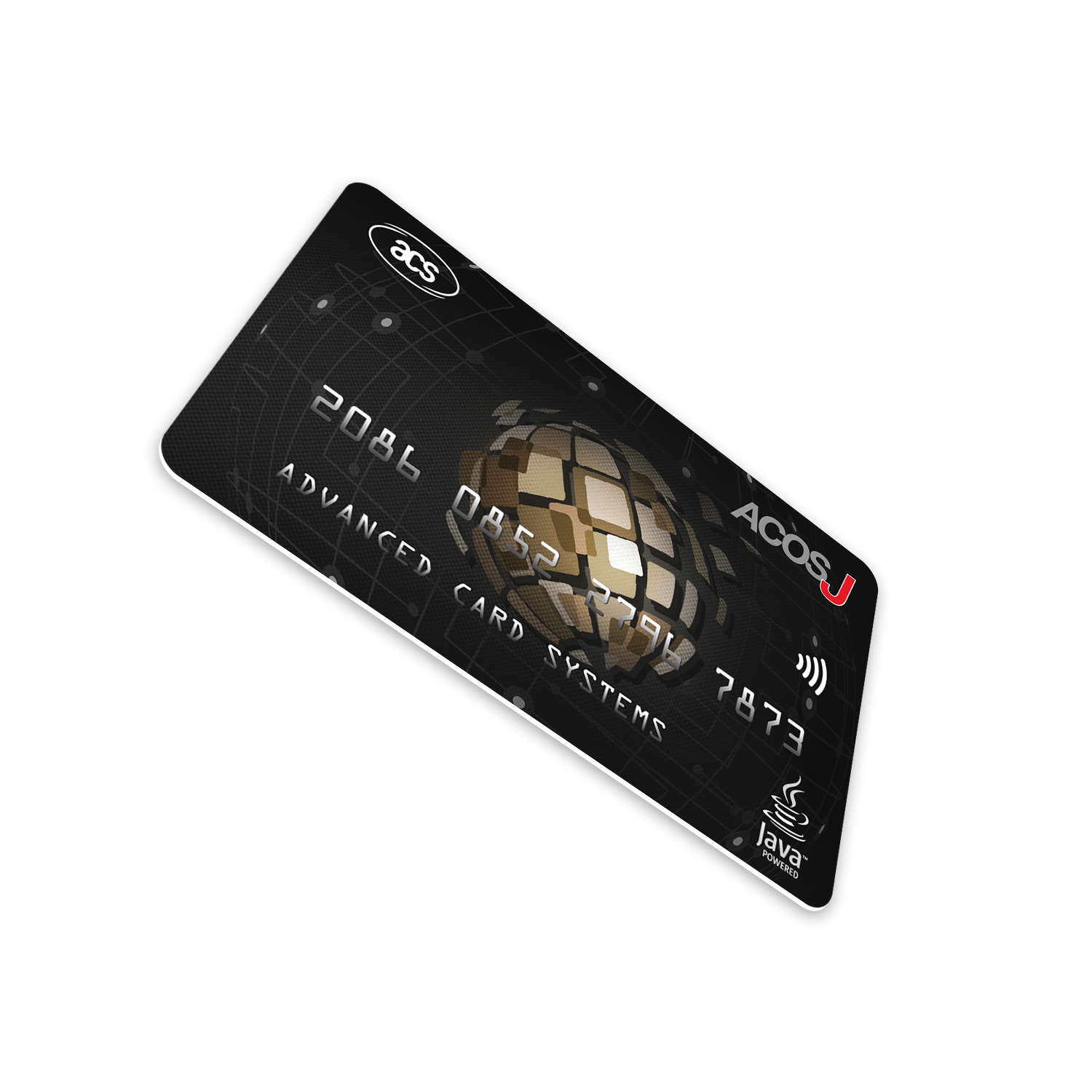

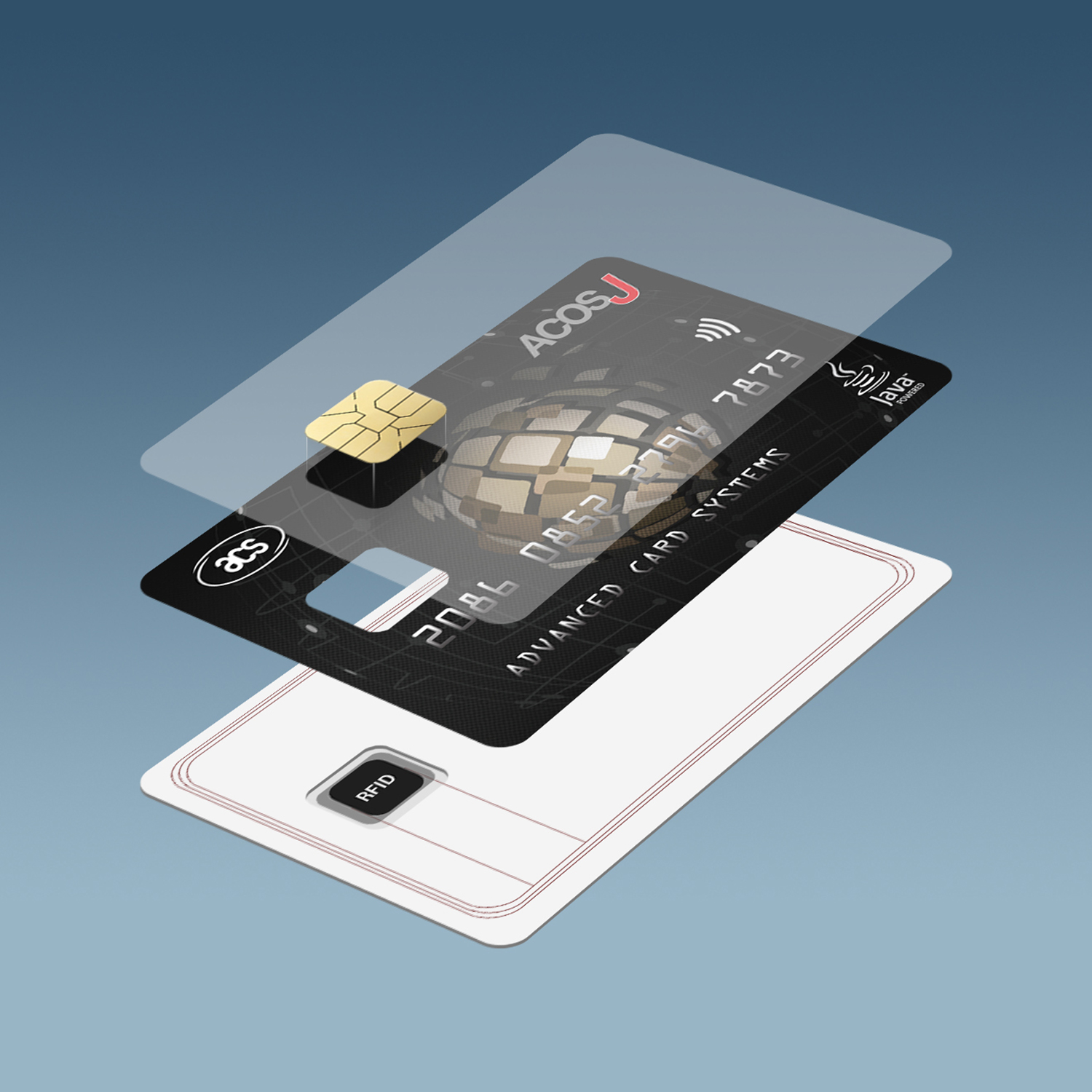

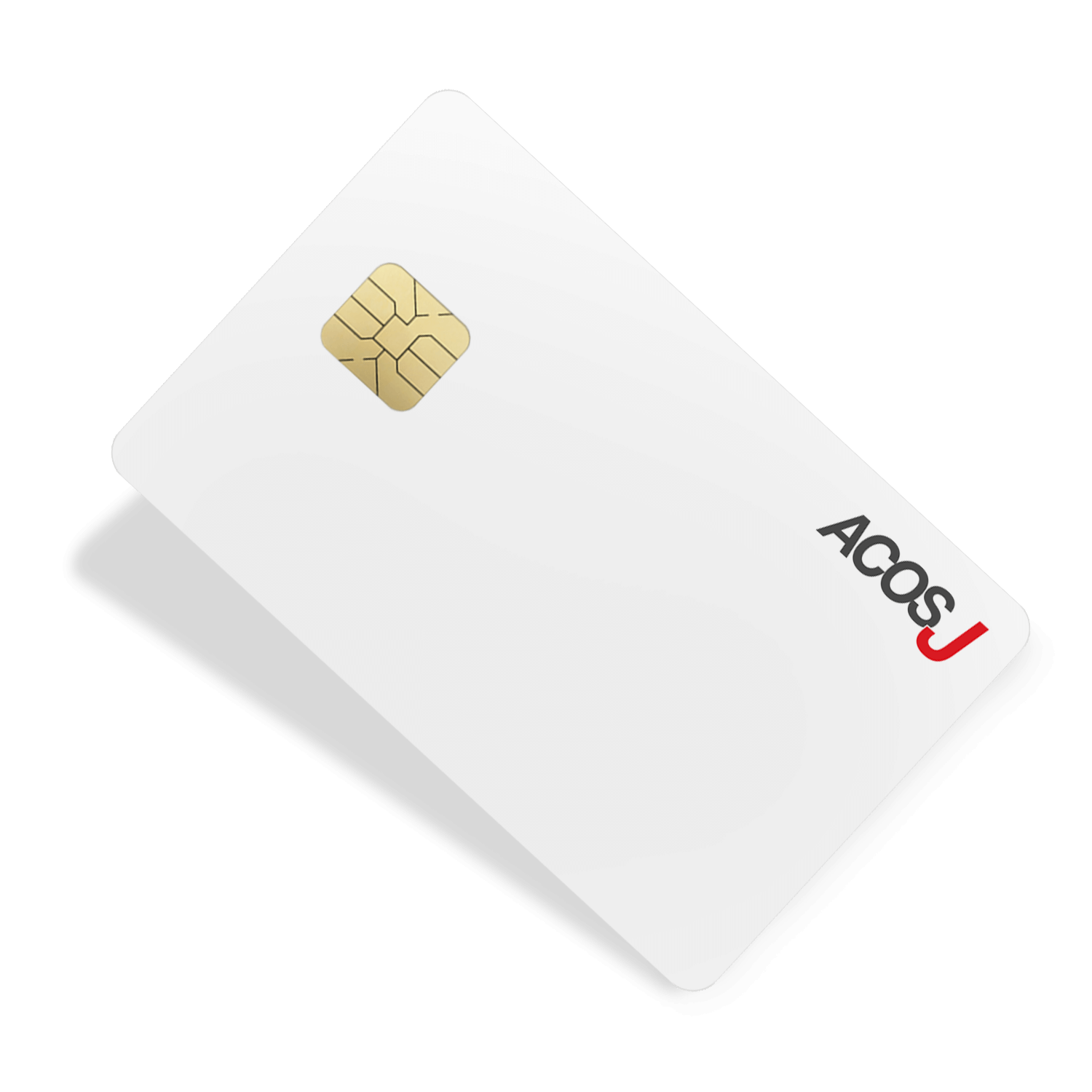

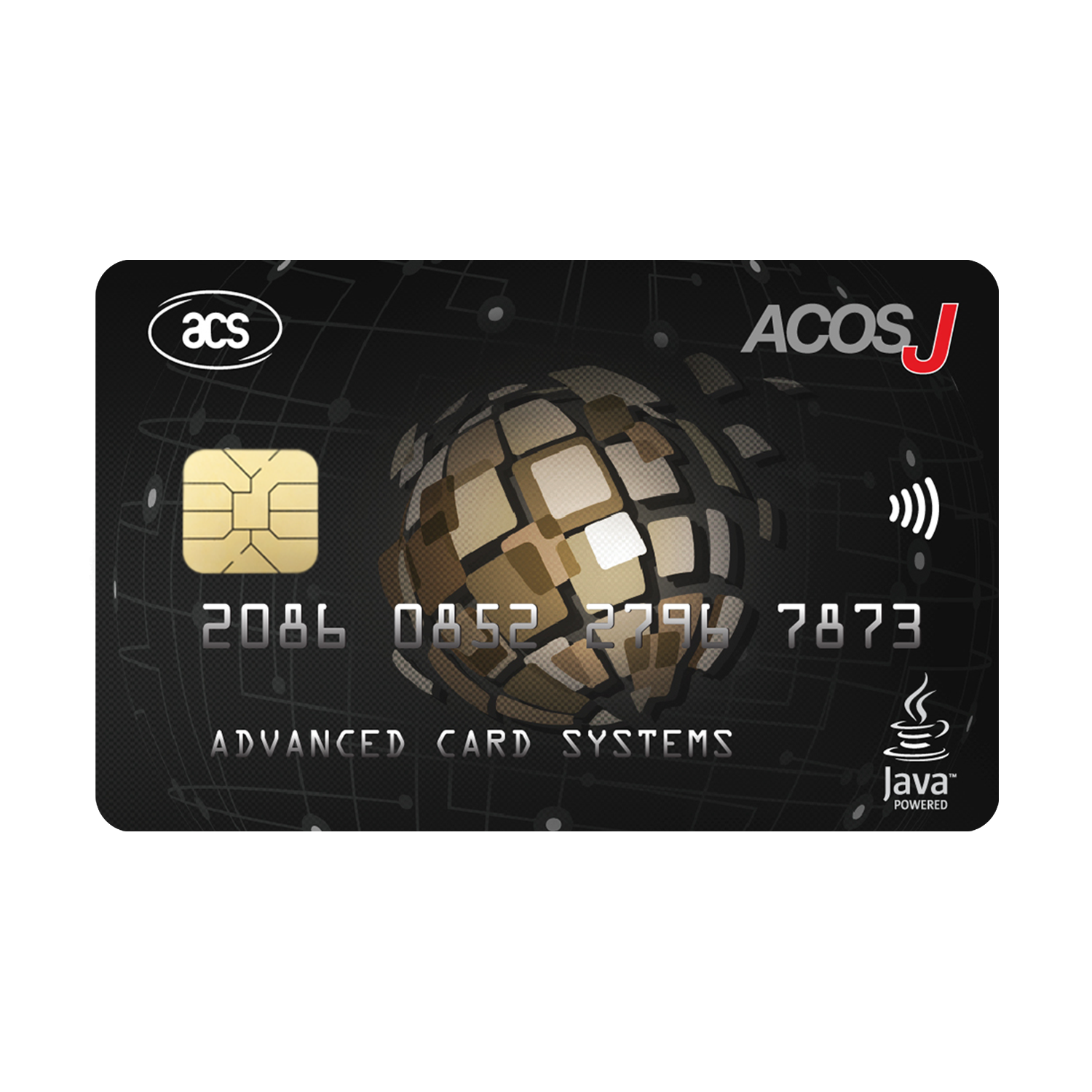

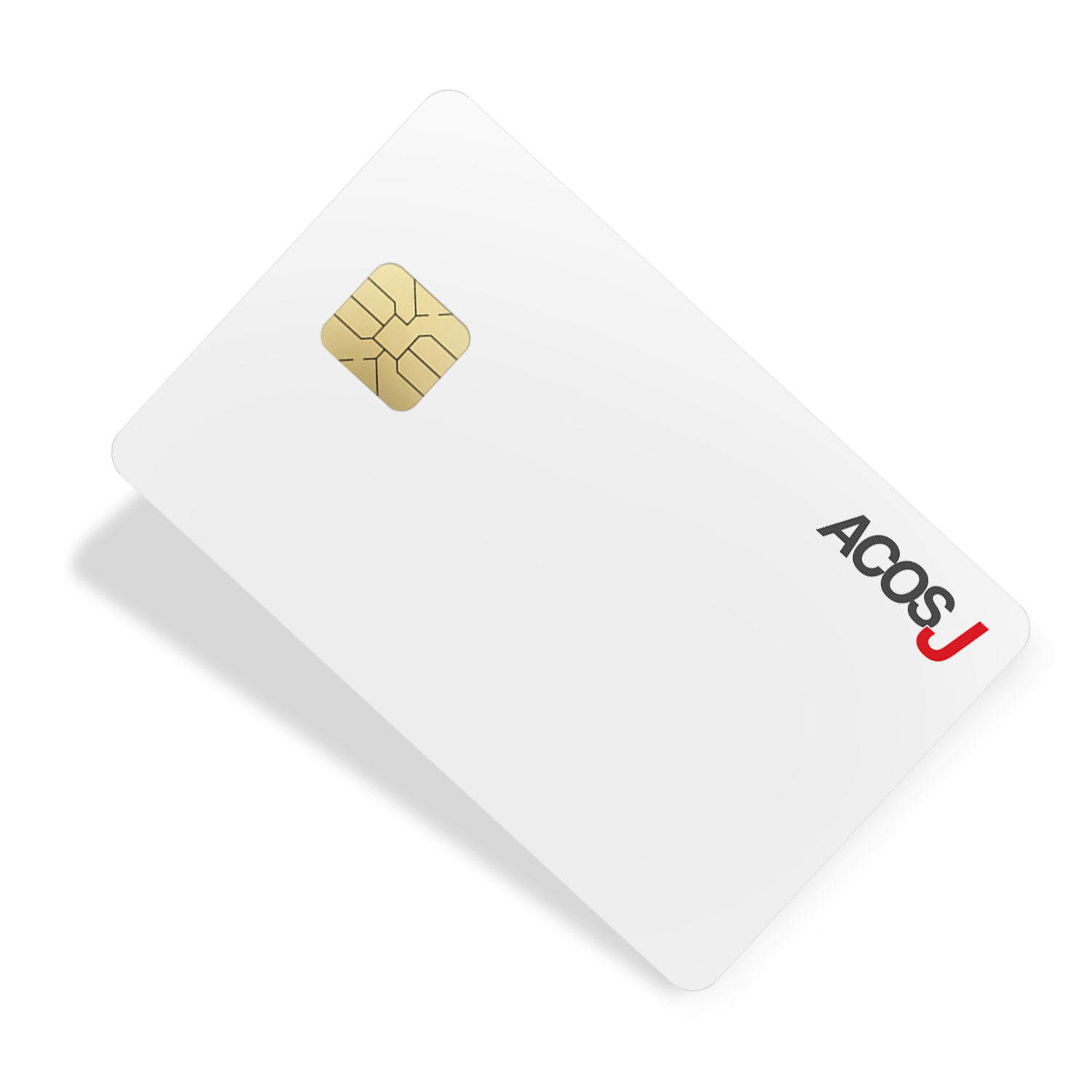

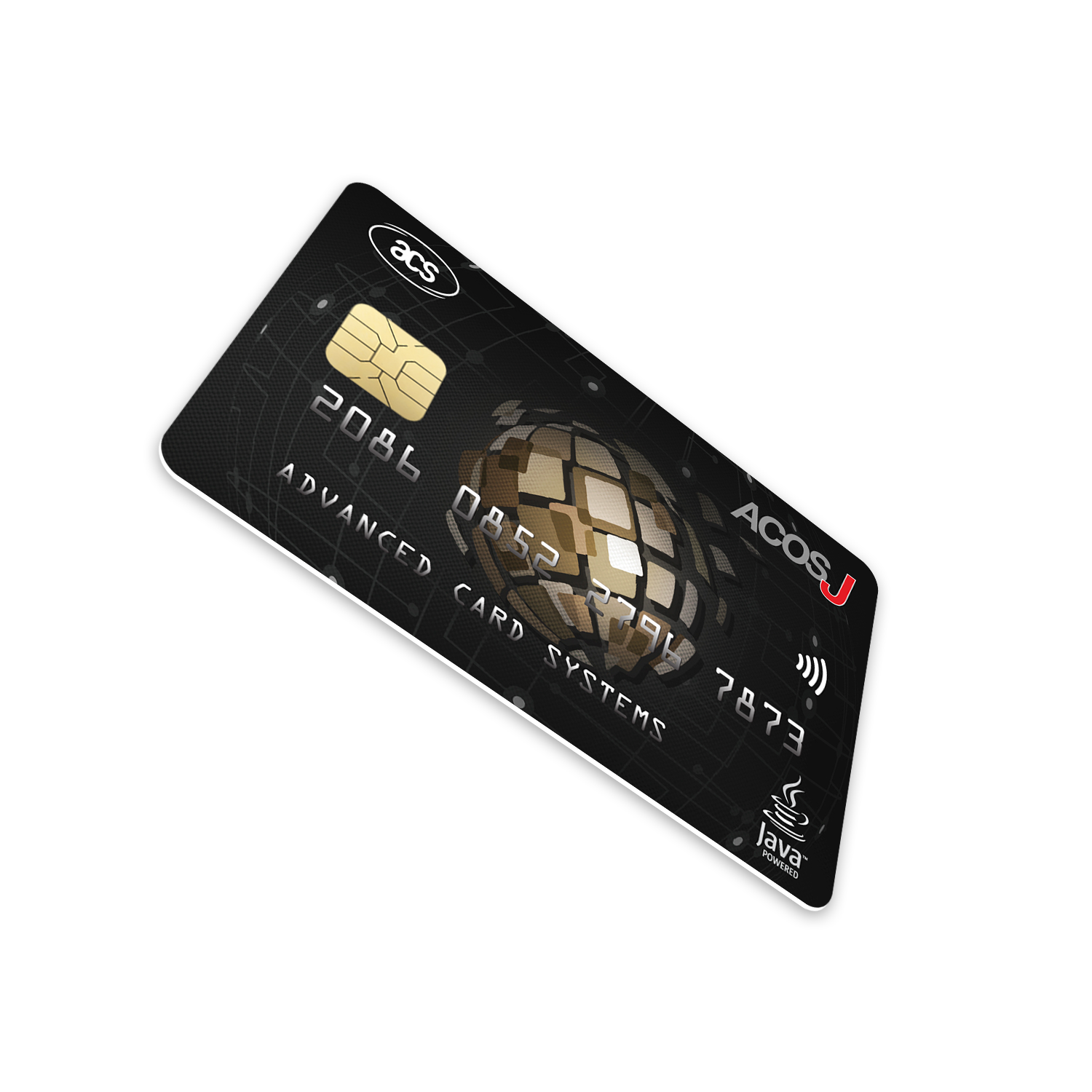

This product is available in three interface variants: Contact, Contactless, and Combi.
Technical Specifications

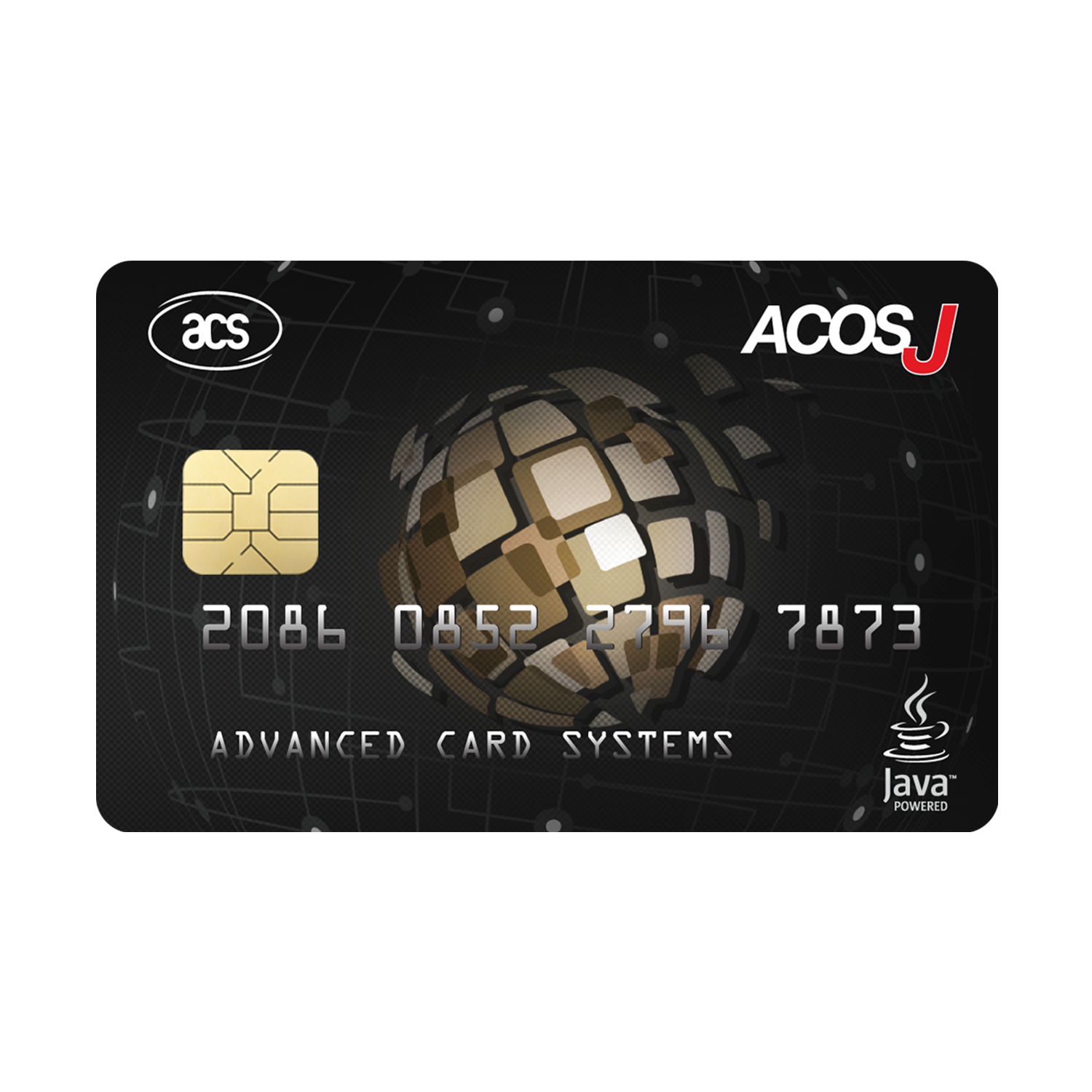

Contact Interface
- Memory
- Capacity: 95 KB
- Contact Smart Card Interface
- Compliance with ISO 7816 Parts 1, 2, 3 and 4
- Supports T=1 and T=0 Protocol
- Supports baud up to 625 kbps
- Cryptographic Features
- DES, 2K3DES, 3K3DES (ECB and CBC)
- AES: 128/192/256 bits (ECB and CBC)
- RSA: 768 to 2048 bits
- ECC: Modulus 112/128/160/192/224/256/384 bits
- Hash: SHA1, SHA224, SHA256, SHA384, SHA512
- SM2/SM3/SM4
- SEED: 128 bits

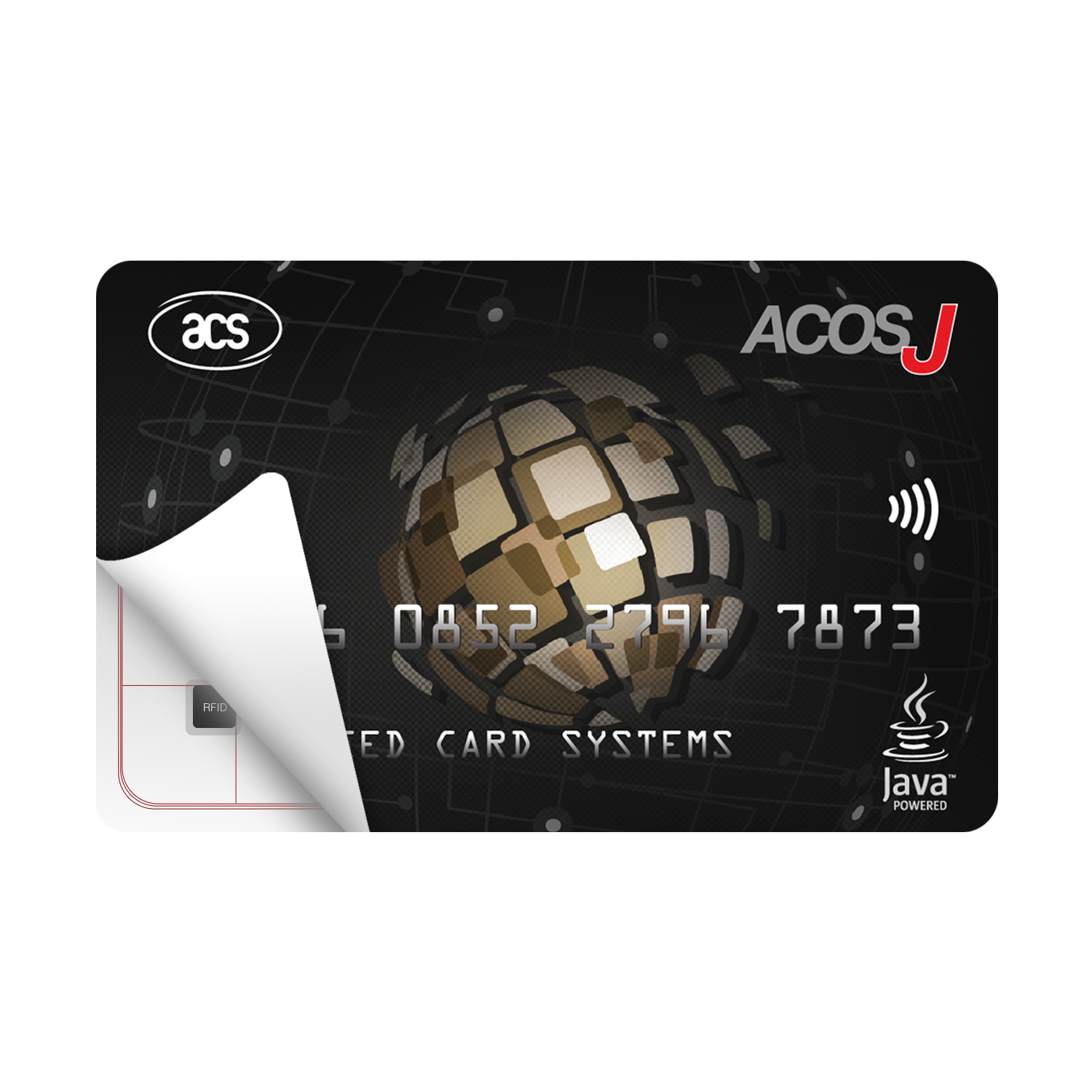

Contactless Interface
- Memory
- Capacity: 95 KB
- Contactless Smart Card Interface
- Compliance with ISO 14443 Parts 1, 2, 3 and 4 (Type A and B)
- Supports T=CL Protocol
- Supports baud up to 848 kbps
- Cryptographic Features
- DES, 2K3DES, 3K3DES (ECB and CBC)
- AES: 128/192/256 bits (ECB and CBC)
- RSA: 768 to 2048 bits
- ECC: Modulus 112/128/160/192/224/256/384 bits
- Hash: SHA1, SHA224, SHA256, SHA384, SHA512
- SM2/SM3/SM4
- SEED: 128 bits
Combi Interface
- Memory
- Capacity: 95 KB
- Contact Smart Card Interface
- Compliance with ISO 7816 Parts 1, 2, 3 and 4
- Supports T=1 and T=0 Protocol
- Supports baud up to 625 kbps
- Contactless Smart Card Interface
- Compliance with ISO 14443 Parts 1, 2, 3 and 4 (Type A and B)
- Supports T=CL Protocol
- Supports baud up to 848 kbps
- Cryptographic Features
- DES, 2K3DES, 3K3DES (ECB and CBC)
- AES: 128/192/256 bits (ECB and CBC)
- RSA: 768 to 2048 bits
- ECC: Modulus 112/128/160/192/224/256/384 bits
- Hash: SHA1, SHA224, SHA256, SHA384, SHA512
- SM2/SM3/SM4
- SEED: 128 bits
(All three variants share the same Certifications/Compliance — see the certifications list.)
