PR1014 — Card UID Reader · USB
Contactless Readers

PR1014

Card UID Reader · USB

USB card reader that reads contactless card unique identifier numbers (UIDs)

Manufacturer reference: ACS — ACR1281U-C2 ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • ISO 14443
  • USB Full Speed
  • USB-HID
  • CE
  • FCC
  • RoHS

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1014

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1014 Card UID Reader is a contactless card reader that automatically and efficiently gets the Unique Identifier number (UID) of any ISO 14443 Parts 1-4 Type A and B-compliant contactless card.

When presented with a contactless card (such as a MIFARE card), the PR1014 retrieves the card's UID and automatically returns it to the PC. The reader enables output of the UID directly to any editor, e.g. Notepad, MS Excel, MS Word, etc. With the UID, cardholders can be identified correctly in different applications, such as identity verification, time & attendance, and access control. PR1014 also has an anti-collision feature that ensures only one card is accessed when multiple cards are presented simultaneously.

Because PR1014 Card UID Reader is compliant with the Human Interface Device (HID) standard, it reduces driver installation issues during integration into PC environments. It can support most operating systems, including Microsoft® Windows, Linux and other embedded systems.

Features

  • USB 2.0 Full Speed Interface
  • USB HID Keyboard Class
  • Contactless Card Support:
  • - Read/write speed of up to 848 kbps
  • - Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
  • - Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series
  • - Built-in anti-collision feature (only one tag is accessed at any time)
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics
Dimensions (mm) 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight (g) 140 g
USB Interface
Protocol USB HID Keyboard Class
Connector Type Standard Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 2.0 m, Fixed
Contactless Smart Card Interface
Standard ISO 14443 A & B Parts 1-4, MIFARE®
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL
Built-in Peripherals
LED 2 single-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance ISO 14443, USB Full Speed, USB-HID, CE, FCC, RoHS
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, MAC OS®, Android™

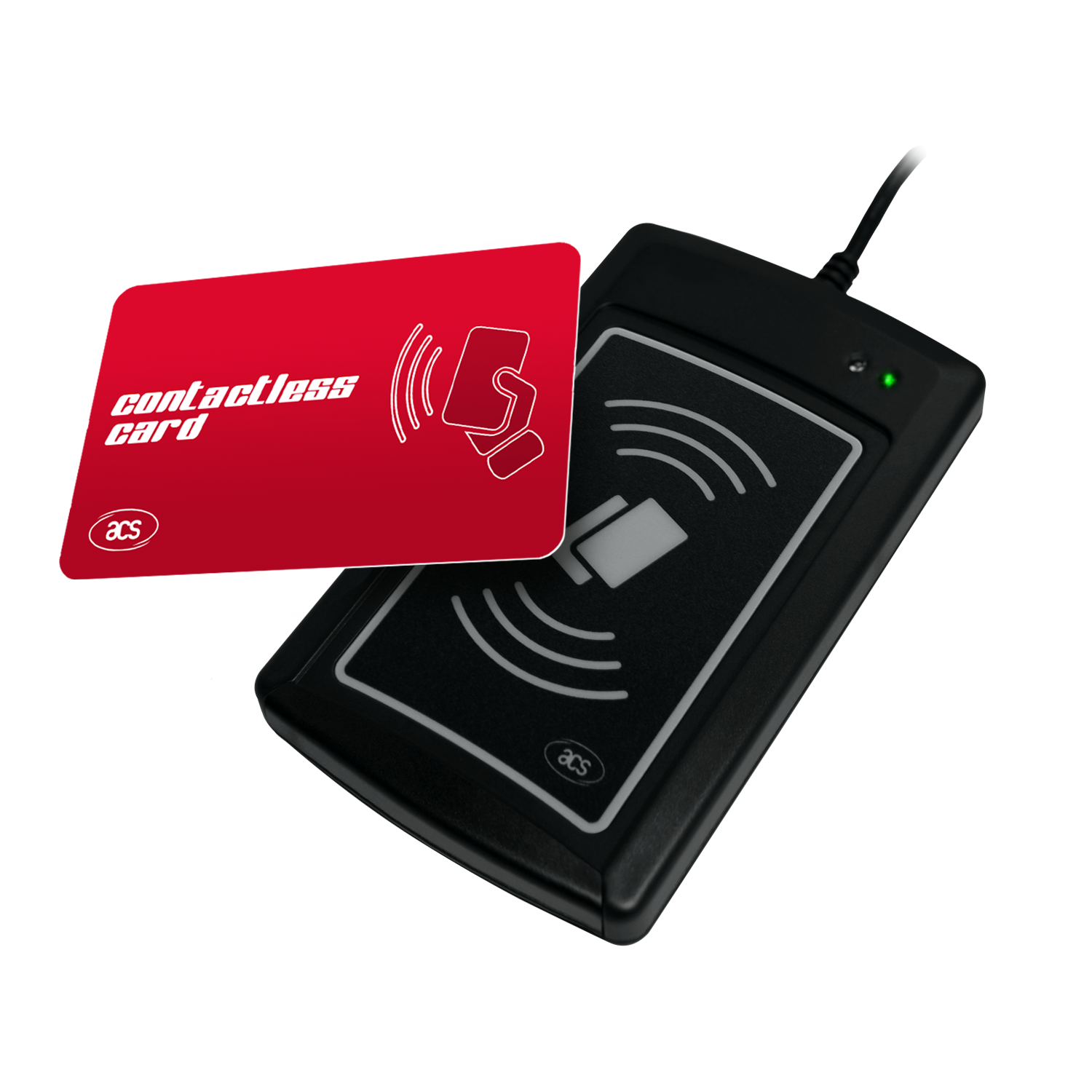

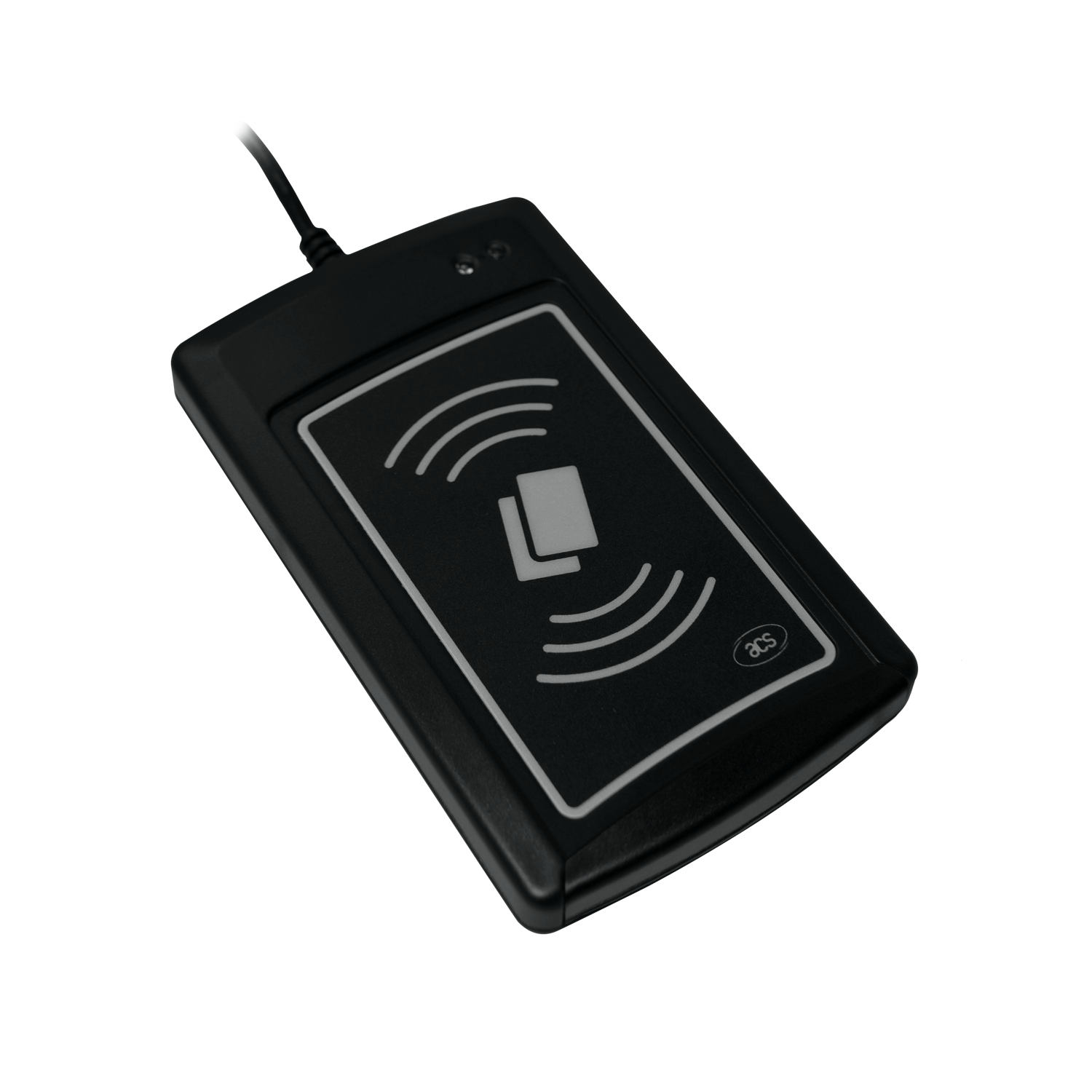

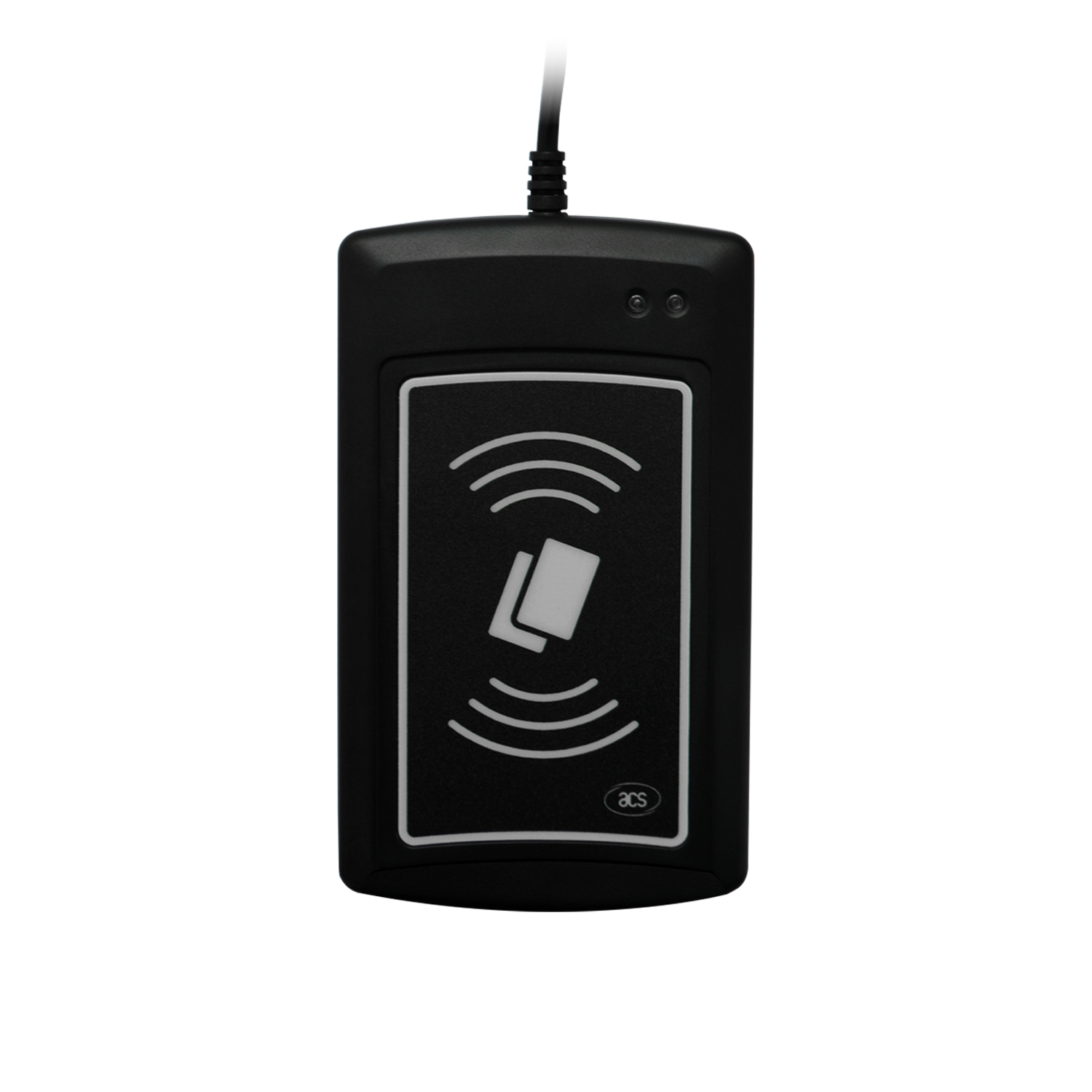

Images

Videos

PR1014 Video Demonstration

Need pricing, samples or integration support for PR1014? Contact our sales teamorask about distribution.
