PR1057 — IP67 USB NFC Reader
Contactless Readers

PR1057

IP67 USB NFC Reader

IP67 USB NFC reader for contactless smart card applications

Manufacturer reference: ACS — AquaGuard ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • USB CCID
  • PC/SC
  • Microsoft® WHQL
  • J-LIS
  • IP67
  • CE
  • UKCA
  • FCC
  • VCCI
  • RoHS
  • REACH
  • WEEE

Primary Applications

  • e-Government
  • Smart Poster/URL Marketing
  • Banking & Payment
  • e-Healthcare
  • e-Purse Application
  • Network Security
  • Access Control
  • Transportation

PR1057

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1057 IP67 USB NFC Reader

The PR1057 USB NFC Reader is a robust fourth-generation device built on 13.56 MHz contactless technology. It operates with contactless cards and devices adhering to ISO 14443 Type A and B, ISO 15693, and ISO 18092 standards. The IP67 rating signifies its exceptional resistance to dust and water, ensuring uninterrupted operation even under challenging conditions, making it versatile and cost-effective hardware for various industries, such as finance, healthcare, outdoor, and government.

Key Features

  • Water and Dust Resistance Design: IP67 rating signifies robust protection against both dust and water, making it ideal for users who require reliable performance in challenging conditions.
  • Smart Card Support: Compatible with ISO 14443 Type A & B, MIFARE®, FeliCa, ISO 18092 NFC, and ISO 15693 cards.
  • High-Speed Communication: Operates at up to 848 kbps with advanced security features like mutual authentication and key diversification.
  • Flexible NFC Modes: Smart Card Reader/Writer, Card Emulation, Keyboard Emulation

Ideal for applications like access control, ticketing, loyalty programs, finance, and smart marketing.

FIDO Support

The PR1057 USB NFC Reader also supports FIDO (Fast IDentity Online) authentication protocols, making it compatible with FIDO-enabled devices such as PR1042, ID-One Key and YubiKey. This enables secure, passwordless login and strong 2FA authentication for online services. By leveraging the NFC capabilities of the PR1057, users can conveniently authenticate themselves by simply tapping their FIDO-enabled NFC device on the reader.

Integrating FIDO support enhances the security of online transactions and access control systems, making the PR1057 an ideal choice for e-Government, banking, e-healthcare, network security, and other applications requiring high-level security.

Features

  • IP67-rated water and dust resistance
  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Contactless Smart Card Reader: - Read/Write speed up to 848 kbps - Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type) - Supports ISO 14443 Type A and B cards, ISO 15693 Cards and ISO18092 NFC - Supports MIFARE® (T=CL), FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card - Built-in anti-collision feature - Supports extended APDU (max. 64 kbytes)
  • Support various NFC modes: - Smart Card Reader/Writer Mode - Card Emulation Mode - Keyboard Emulation Mode
  • Application Programming Interface: - Supports PC/SC - Supports CT-API (through wrapper on top of PC/SC)
  • Peripherals: - User-controllable RGB-color LED (Blue & Green & Red) - User-controllable buzzer (Monotone)
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics

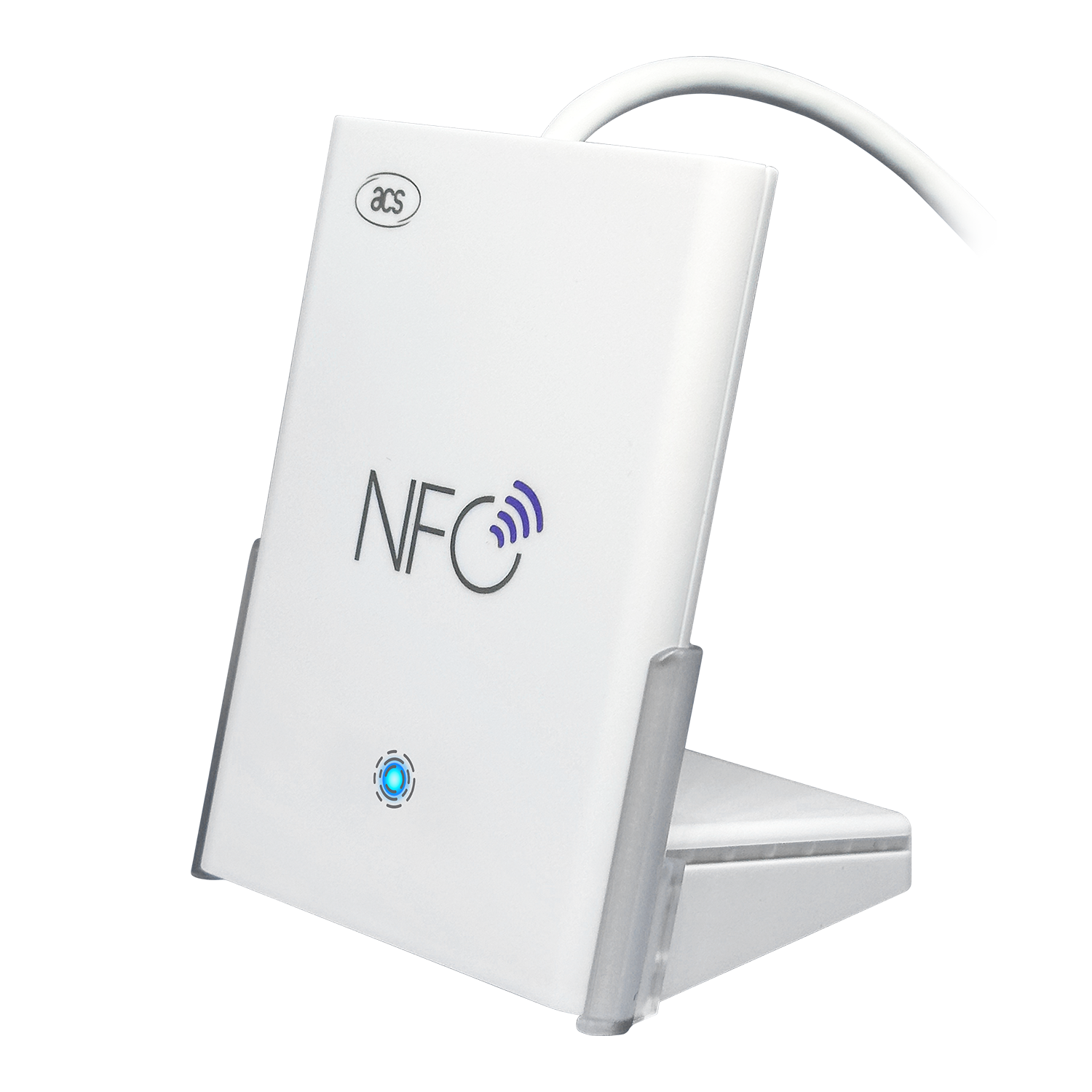

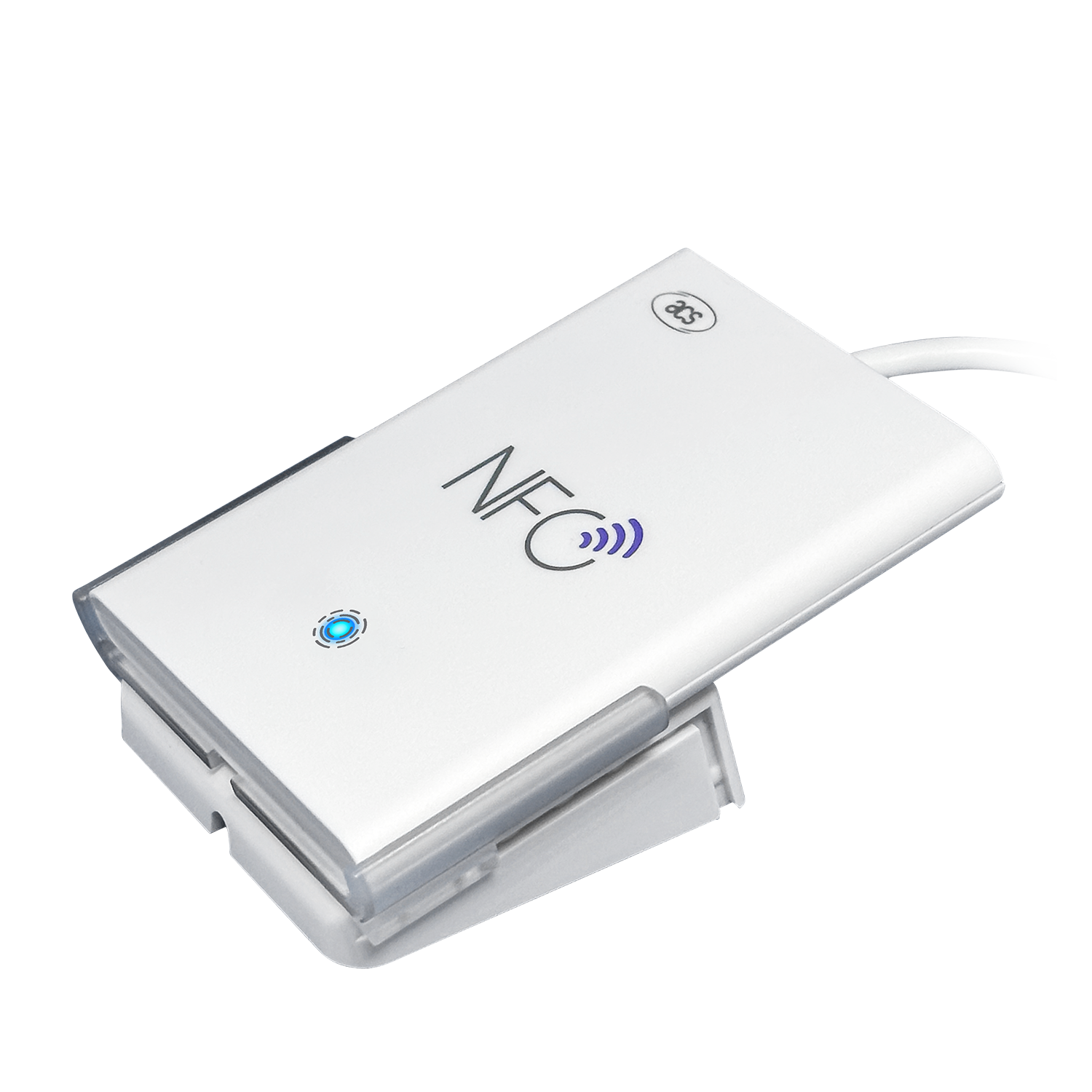

Dimensions (mm) Main Body: 85.0 mm (L) x 60.0 mm (W) x 9.0 mm (H); With Optional Stand: 86.6 mm (L) x 62.6 mm (W) x 62.4 mm (H)
Weight (g) Standard: 67.0 g ± 5.0 g; With Optional Stand: 88.0 g ± 5.0 g
USB Interface
Protocol USB CCID
Connector Type USB Type-A
Speed USB 2.0 Full Speed (12 Mbps), Compatible with USB 3.0
Cable Length 1m, Non-detachable
Contact Smart Card Interface
Standard ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; MIFARE® Classic Card, T=CL; ISO 15693; ISO 18092 NFC Tags; FeliCa
Built-in Peripherals
LED 2 single-color: Red and Green
Buzzer Monotone
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance Standard: USB CCID, PC/SC, Microsoft® WHQL, J-LIS, IP67. Regulatory/Environmental: CE, UKCA, FCC, VCCI, RoHS, REACH, WEEE
Device Driver Operating System Support
Device Driver Operating System Support Windows®, Linux®, macOS, Android™

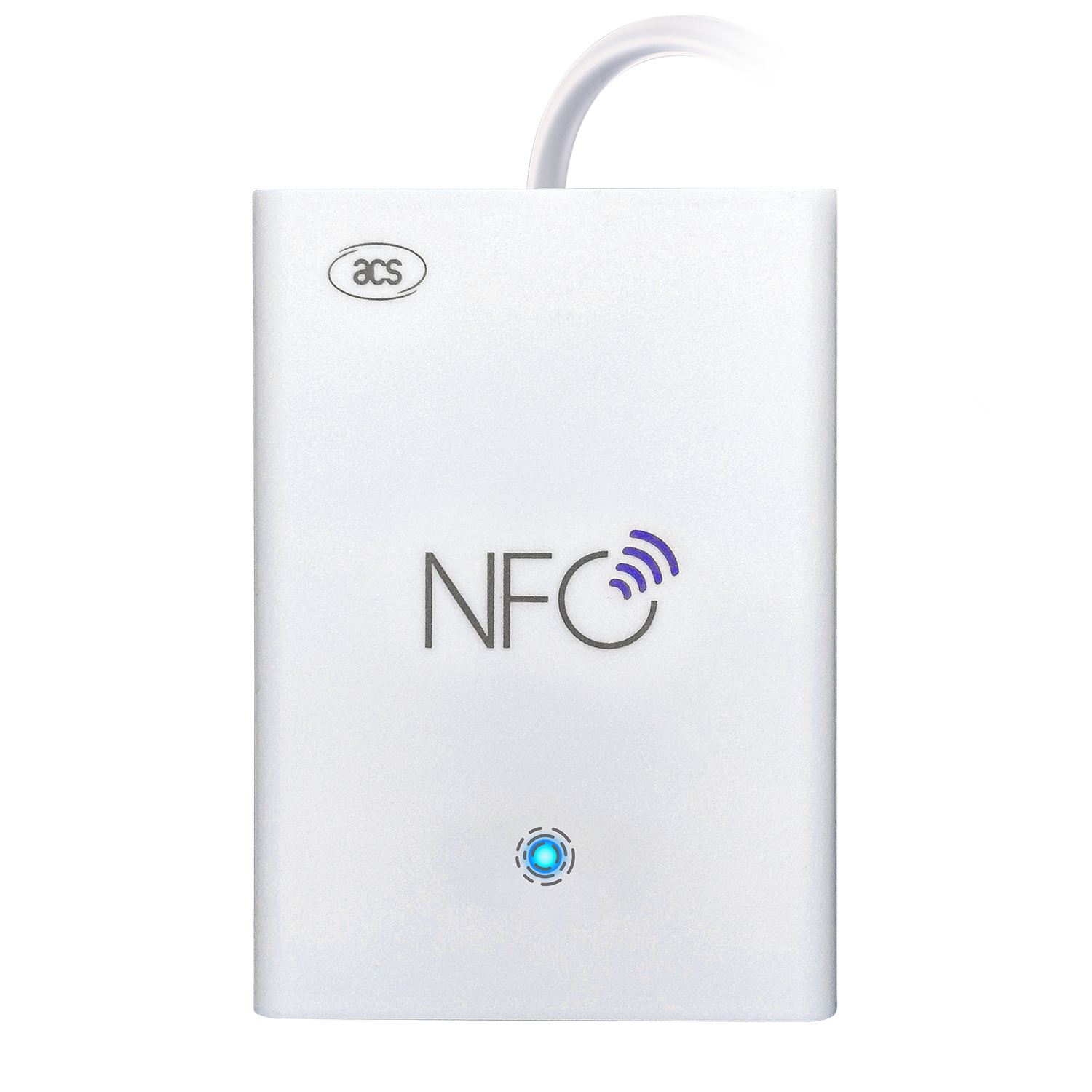

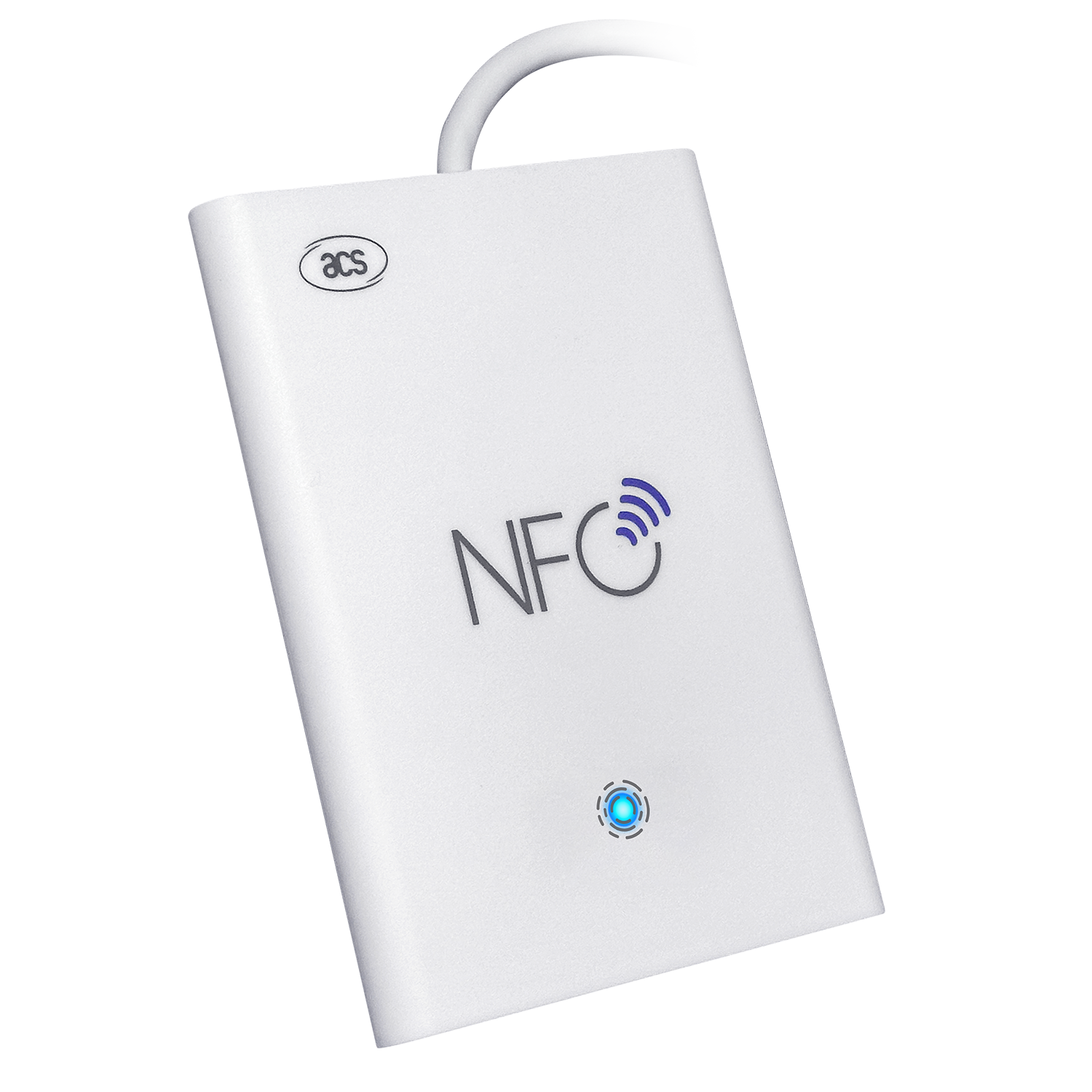

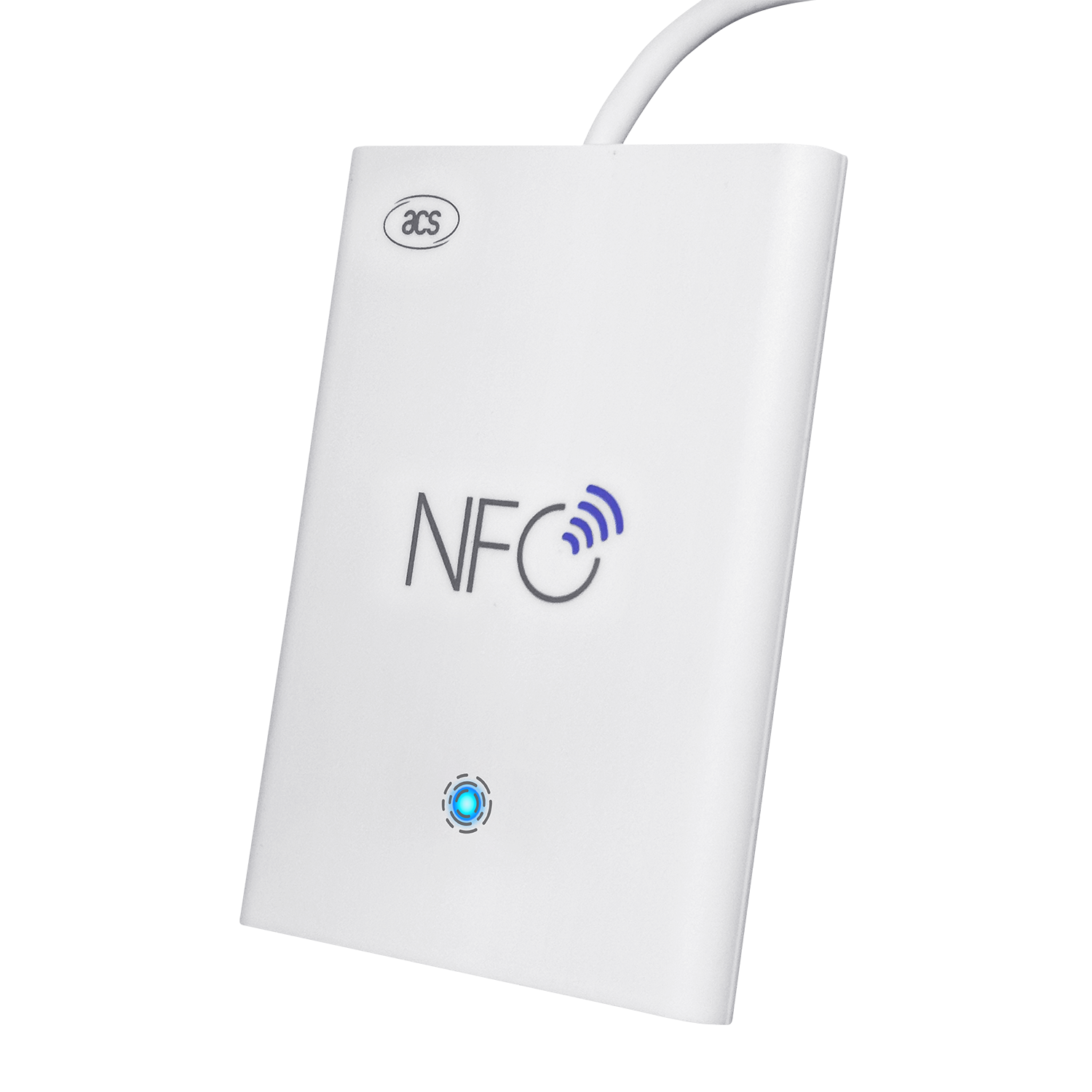

Images
