PR1047 — DualBoost III USB Dual Interface Reader
Contactless Readers

PR1047

DualBoost III USB Dual Interface Reader

Dual-interface smart card reader with one Secure Access Module (SAM) slot

Manufacturer reference: ACS — ACR1581U ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • IEC/EN 62368
  • CE
  • FCC
  • UKCA
  • VCCI
  • RoHS
  • REACH
  • WEEE
  • USB CCID
  • PC/SC

Primary Applications

  • e-Government
  • Mobile Banking & Payment
  • e-Healthcare
  • e-Purse Application
  • Network Security
  • Access Control
  • Transportation

PR1047

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

PR1047 DualBoost III USB Dual Interface Reader

The PR1047 DualBoost III is a highly advanced and versatile smart card reader that can support both contact and contactless smart cards. It is the third generation product in the ACS's DualBoost Reader Series, which has been designed to offer high levels of security and reliability for demanding smart card applications. The reader makes use of USB CCID Class Driver and USB Interface to establish a connection with PCs and accept card commands from computer applications.

One of the main advantages of the PR1047 is its broad support for various types of smart cards, including traditional ISO 7816 MCU Cards, MIFARE® Cards, ISO 14443 Type A and B Contactless Cards, FeliCa, and ISO 15693 Cards. It also has three interfaces, the PICC, ICC, and SAM interface, which all follow the PC/SC specifications. This makes it suitable for use in various industries, such as finance, healthcare, and government.

The PR1047 acts as an intermediary device between the computer and the card, carrying out computer-issued commands for communication with contactless tags, MCU cards, SAM cards, or device peripherals (LED or buzzer). It also offers intelligent support for NFC features:

  • Smart Card Reader/Writer
  • Card emulation
  • Keyboard emulation (Configured by this tool)

NFC technology enables it versatile for various smart card applications. The contact interface makes use of the APDU commands as defined in ISO 7816 specifications, and for contact MCU card operations, the related card documentation and the PC/SC specifications should be referred to.

The PR1047 DualBoost III is a powerful and flexible smart card reader that offers a wide range of advanced features and capabilities. Its ability to support both contact and contactless smart cards, along with its broad support for different types of smart cards, makes it an ideal choice for a wide variety of smart card applications that require high levels of security and reliability.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Contactless Smart Card Reader: Read/Write ISO 14443A/B speed of up to 848 kbps; Clock frequency up to 13.56MHz; Built-in antenna for contactless tag access, with card reading distance of up to 70 mm (depending on tag type); Supports ISO 14443 Type A and B cards, ISO 15693 Cards; Supports MIFARE®, FeliCa, NFC tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
  • Supports extended APDU (max. 64 kbytes)
  • Contact Smart Card Reader: Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V) speed of up to 1,250 kbps; Supports CAC (Common Access Card); Supports PIV (Personal Identity Verification Card); Supports microprocessor cards with T=0 or T=1 protocol; Supports memory cards; ISO 7816-compliant SAM slot (Class A)
  • Application Programming Interface: Supports PC/SC
  • Peripherals: 2 user-controllable single-color LEDs; 1 user-controllable buzzer
  • USB Firmware Upgradability

Technical Specifications

Physical Characteristics

Property Value
Dimensions (mm) 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight (g) 143g

USB Interface

Property Value
Protocol USB CCID
Connector Type USB Type-A (PR1047-C1), USB Type-C (PR1047-CF)
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 2m, Non-detachable

Contact Smart Card Interface

Property Value
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1

Contactless Smart Card Interface

Property Value
Standard ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL; ISO 15693; MIFARE® Classic Card, T=CL; FeliCa

SAM Card Interface

Property Value
Number of Slots 1 Standard SIM-sized Card Slot
Standard ISO 7816 Class A (5V)
Protocol T=0; T=1

Built-in Peripherals

Property Value
LED 2 single color: Blue and Green
Buzzer Monotone

Other Features

Property Value
Other Features Supported Card Types: ISO 14443 Type A & B Parts 1-4, ISO 15693, MIFARE®, FeliCa, NFC Tags, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card. Other NFC Features: Smart Card Reader/Writer, Keyboard Emulation, Card Emulation
Firmware Upgrade Supported

Certifications/Compliance

Property Value
Certifications/Compliance Certifications: IEC/EN 62368, CE, FCC, UKCA, VCCI, RoHS, REACH, WEEE. Compliances: USB CCID, PC/SC

Device Driver Operating System Support

Property Value
Device Driver Operating System Support Windows®, Linux®, macOS, Android™, iOS/iPadOS (16 or above)

SDK

PR1047 DualBoost III is the third generation of ACS's ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816, ISO 14443 Type A & B cards, and ISO 15693 standards. PR1047 DualBoost III enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It also features a Secure Access Module (SAM), which serves the purpose of key diversification and mutual authentication. This SAM feature ensures a high level of security in transactions.

Comprehensive SDK—The PR1048 is a collection of PC/SC-compliant sample codes, for device and card programming. The SDK is designed to help software developers with the necessary tools and guidance to streamline their development process and create applications that effectively utilize the PR1047 DualBoost III.

Card Emulation and Keyboard Emulation Capability—The Smart Card and Reader Tool in this SDK includes NFC and NDEF tools to demonstrate the NFC capability of the PR1047. The card emulation function enables the card reader to simulate the behavior of a contactless smart card, while the keyboard emulation function allows card readers to work with a wide range of software applications that accept keyboard input.

SDK Package Contents

Item Details
Smart Card Reader(s) 1 x PR1047 DualBoost III USB Dual Interface Reader
Test Card(s)/Token(s) 5 x MIFARE 1K Cards; 5 x PR1024 Combi Smart Cards; 1 x PR1029 Secure Access Module Card
Software Installer Reference Manual(s); Tools and Utilities: QuickView 2.08, Script Tool 5.02, Smart Card and Reader Tool, Keyboard Configuration Tool V100, ACS CCID PC/SC Driver; Sample Codes: demonstrates basic commands used to communicate with the cards and readers, available in Java (JDK8), MS Visual Basic (.NET framework 4.7.2), MS Visual C# (.NET framework 4.7.2), MS Visual C++ (.NET framework 4.7.2)
SDK Operating System Support Windows® 10, Windows® 11

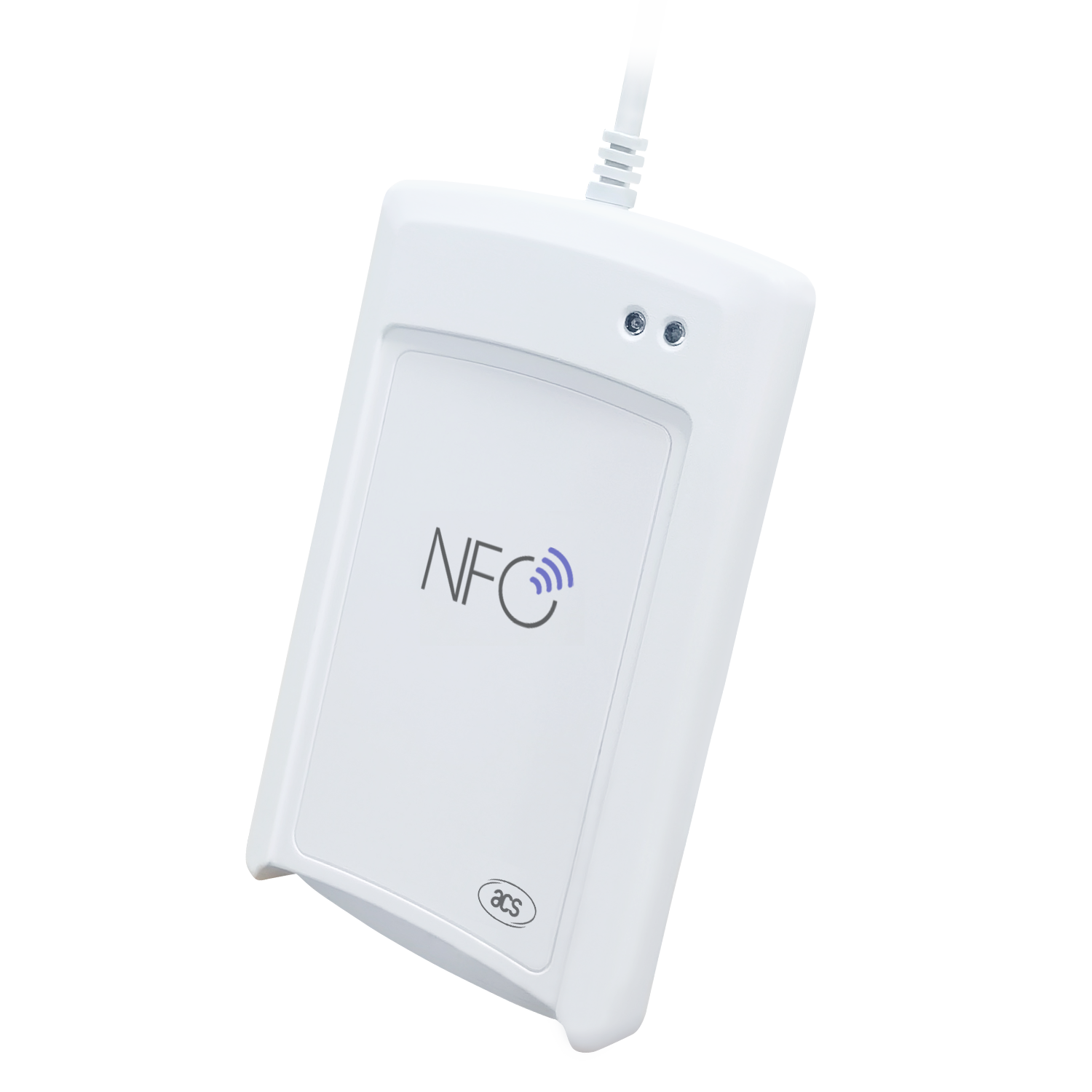

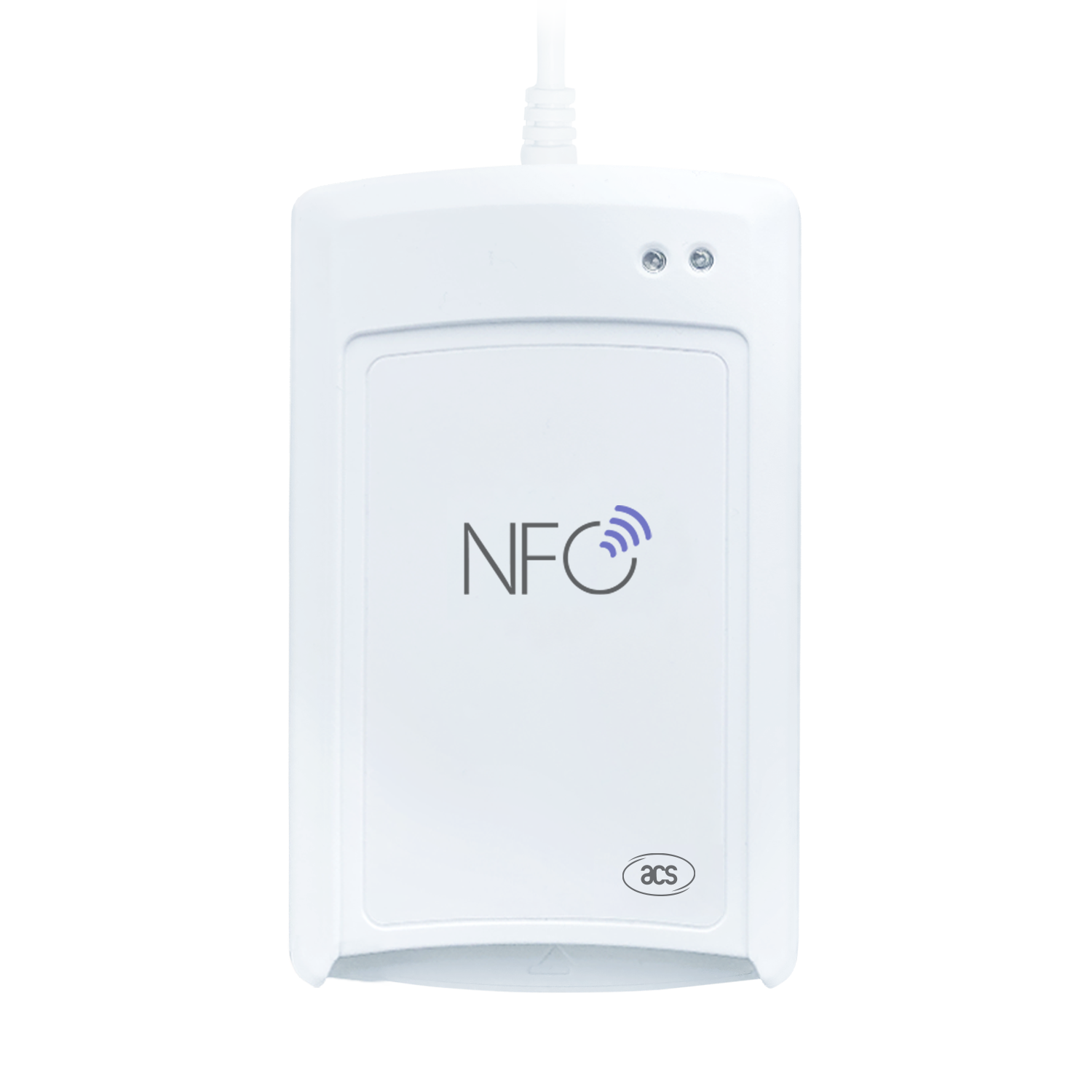

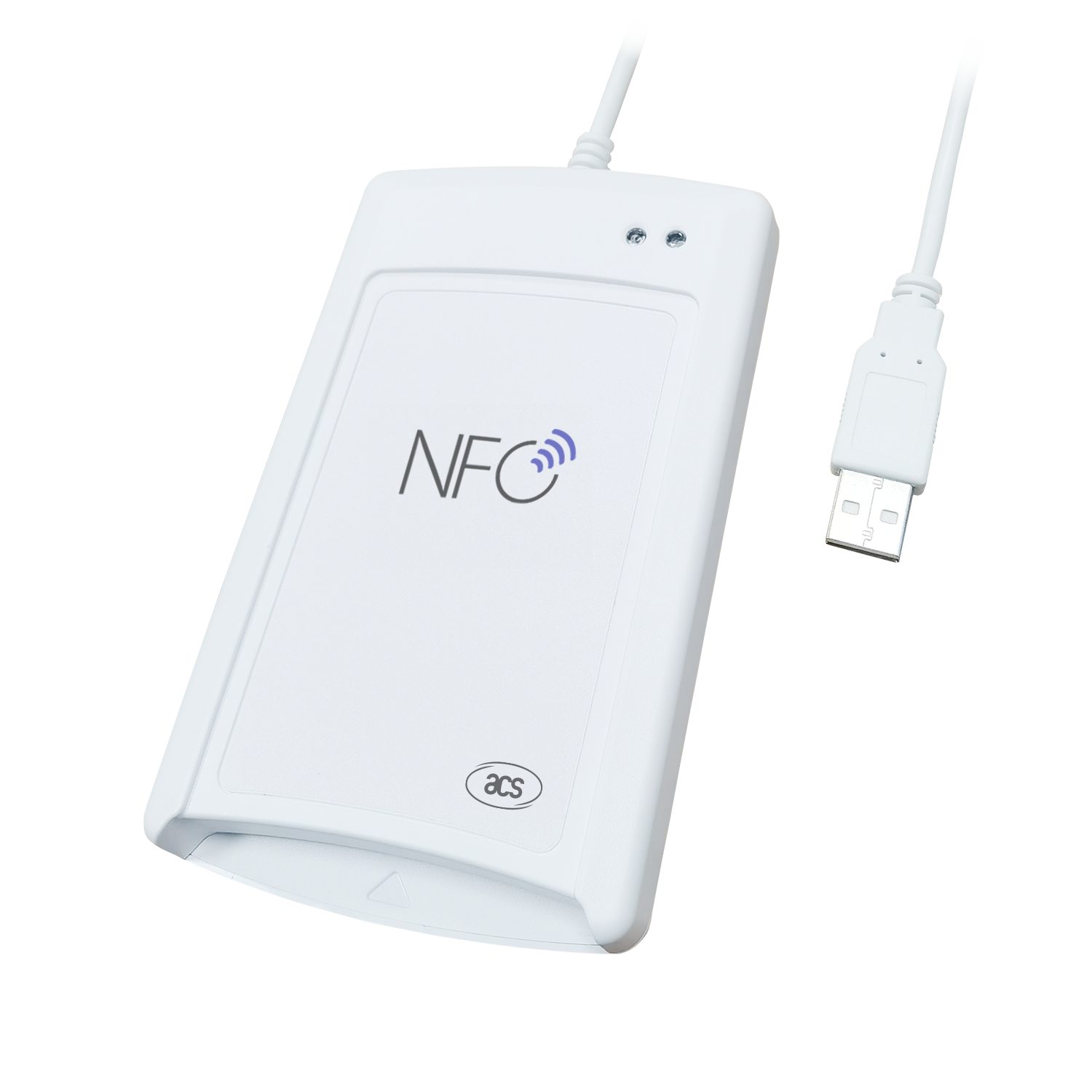

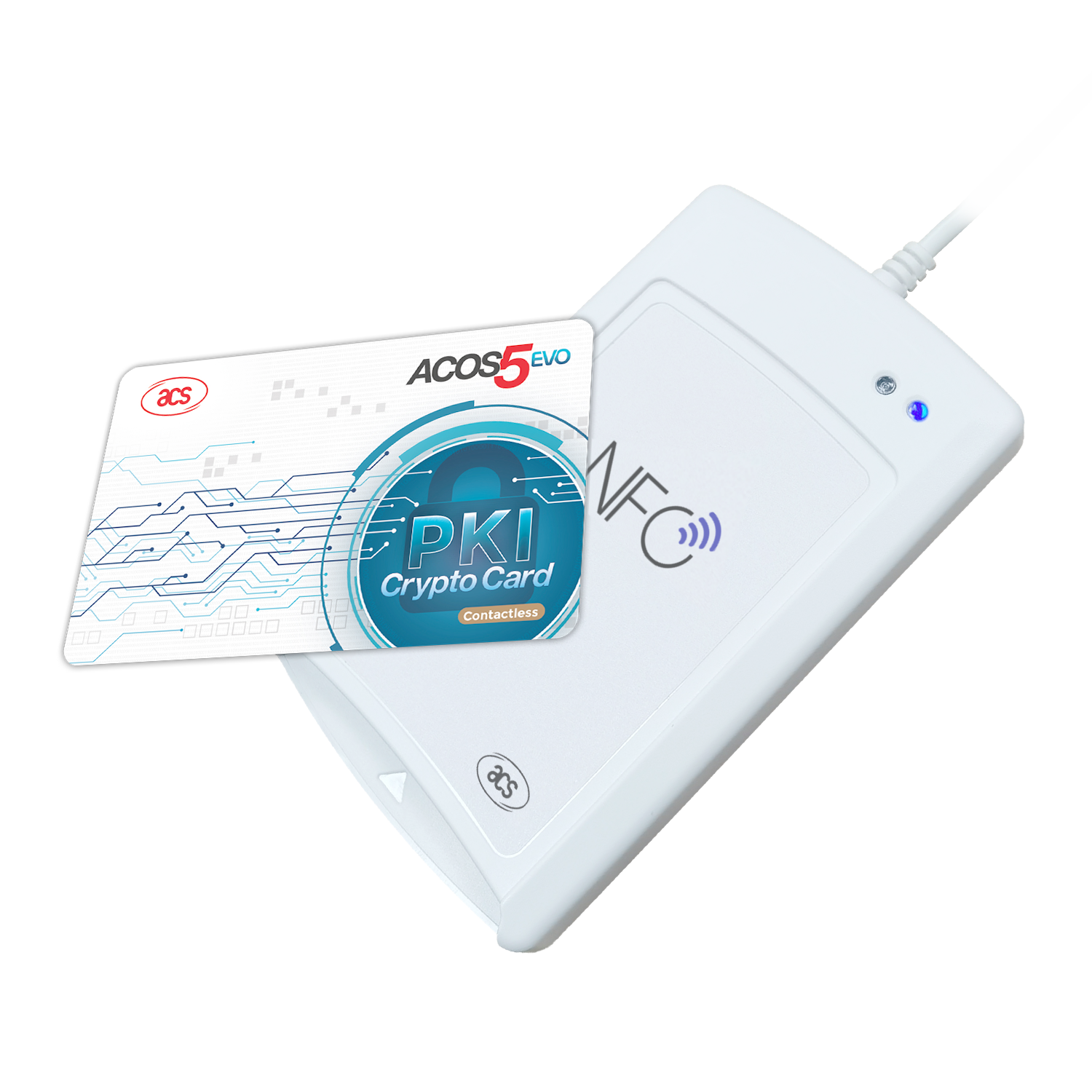

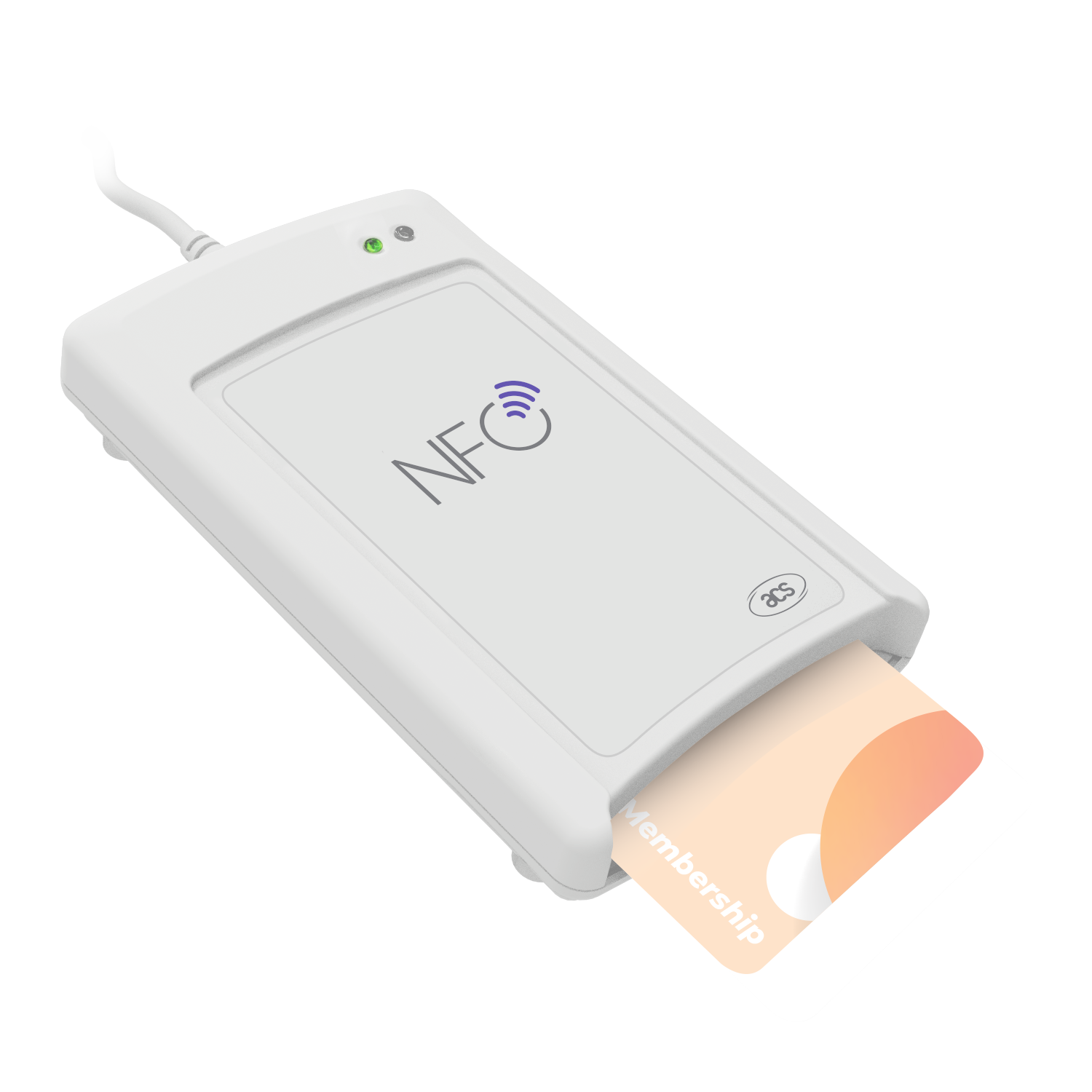

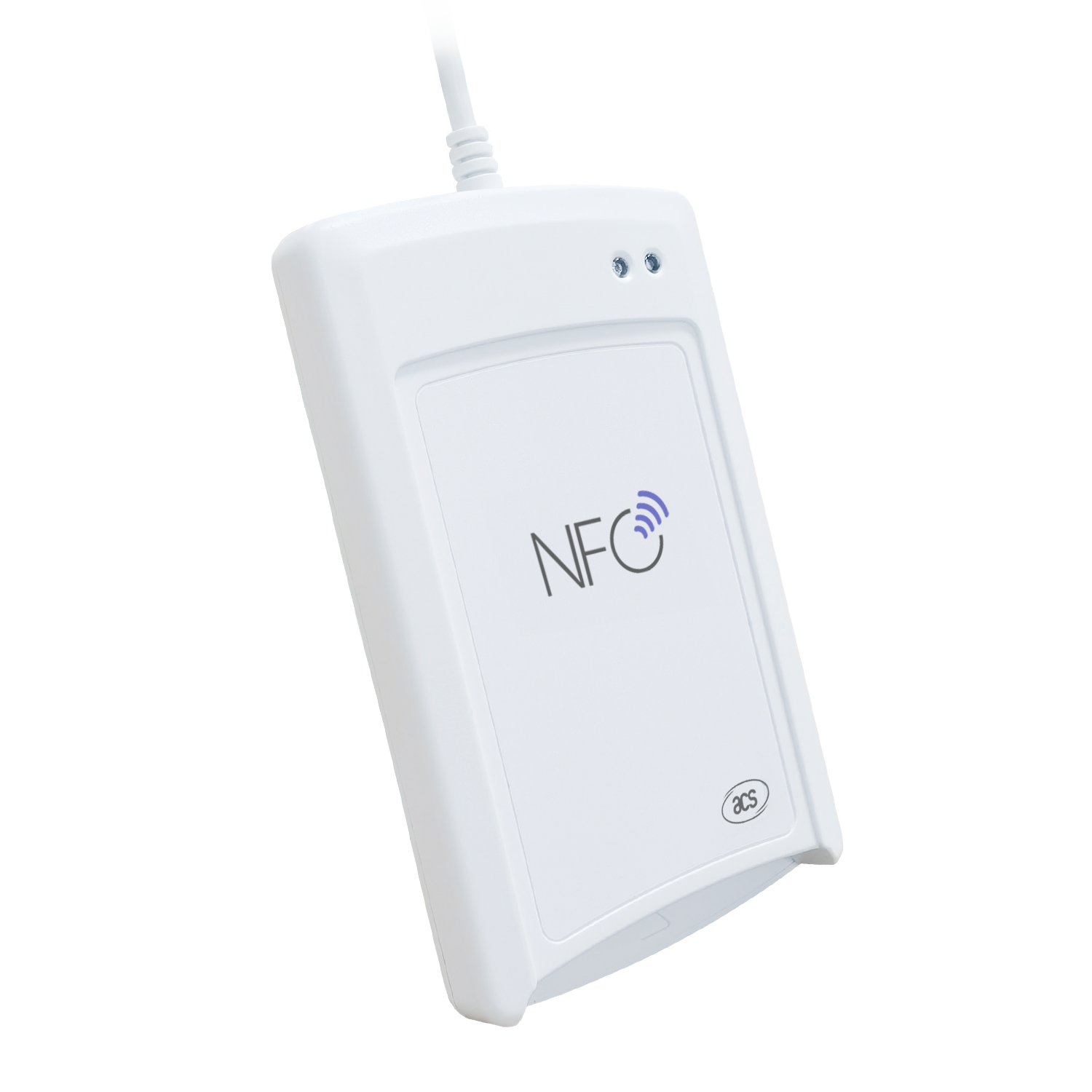

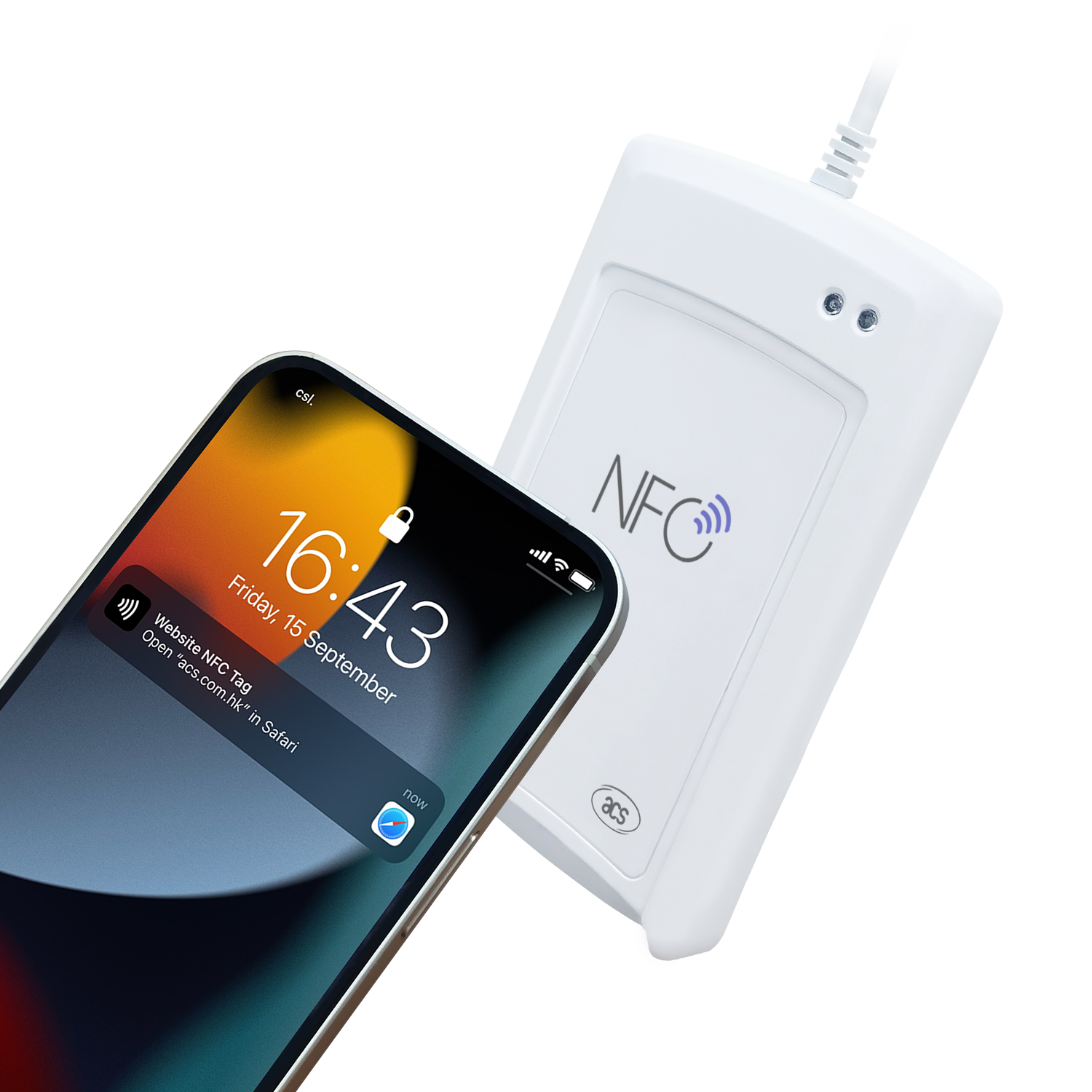

Images

Downloads

TypeTitleSizeUpdated
SoftwareConfiguration Tool (Windows — for UID Keyboard Emulation Mode only)567.78 KB (Version 207)27-Oct-2025
APIACS ApduTool (iOS and iPadOS 16.2 or above)118.31 KB (Version 1.2)23-Feb-2024
DriverPC/SC Driver Installer (Windows — installer v1.0.6.2 contains driver v1.0.6.0)5.83 MB (Version 1.0.6.2)12-Dec-2025
DriverPC/SC Driver Installer (Linux)4.30 MB (Version 1.1.13)20-Nov-2025
DriverPC/SC Driver Installer (macOS)281.65 KB (Version 1.1.13)17-Nov-2025
SoftwareAndroid EVK (Android 3.1 or above)1.46 MB (Version 1.1.8)25-Nov-2025
DatasheetTechnical Specification of ACR1581U——
ManualReference Manual of ACR1581U——
