PR1031 — USB Token NFC Reader II
Contactless Readers

PR1031

USB Token NFC Reader II

USB token NFC reader supporting ISO 14443 and ISO 18092

Manufacturer reference: ACS — ACR1251T ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

  • EN 60950/IEC 60950
  • ISO 18092
  • ISO 14443
  • USB Full Speed
  • PC/SC
  • CCID
  • VCCI (Japan)
  • MIC (Japan)
  • Microsoft® WHQL
  • CE
  • FCC
  • RoHS
  • REACH
  • 電子車検証対応

Primary Applications

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

PR1031

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1031 is the token version of ACR1251U USB NFC Reader II. PR1031 offers advanced features such as firmware upgradeability and support for NFC tags and devices making it ideal for contactless applications with added security functions.

PR1031 is suitable for any contactless smart card application such as personal identity verification, network login, online banking, and micropayment. With its enhanced NFC features, PR1031 is also ideal for non-conventional NFC applications. Such applications include smart posters for advertising, marketing, and communication purposes.

Furthermore, PR1031 is PC/SC-compliant, allowing interoperability across different applications and platforms. PR1031 also supports remote post-deployment firmware update, which eliminates the need for additional hardware modification. With its compact size, portability and rich features, PR1031 enables you to fully enjoy the convenience of using NFC applications.

Device features: PC-Linked, USB, Contactless Reader, NFC Reader, Firmware Upgradeable

Features

  • USB Full Speed Interface
  • CCID Compliance
  • Smart Card Reader:
  • - Contactless Interface:
  • - Read/write speed up to 424 kbps
  • - Built-in Antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
  • - Supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
  • - Built-in anti-collision feature (only 1 tag is accessed at any time)
  • - NFC Support: Card Reader/Writer Mode
  • Built-in Peripherals:
  • - LEDs: User-controllable Bi-color LED
  • Application Programming Interface:
  • - Supports PC/SC
  • - Supports CT-API (through wrapper on top of PC/SC)
  • USB Firmware Upgradeability
  • Supports Android™ 3.1 and later

Technical Specifications

Category Details
Physical Characteristics
Dimensions (mm) 75.0 mm (L) x 30.0 mm (W) x 12.7 mm (H)
Weight (g) 15.8 g
USB Interface
Protocol USB CCID
Connector Type Standard Type A
Power Source From USB Port
Speed USB Full Speed (12 Mbps)
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa
Protocol ISO14443-4 Compliant Cards, T=CL; MIFARE® Classic Card Protocol, T=CL; ISO 18092, NFC Tags; FeliCa
Built-in Peripherals
LED 1 Bi-color: Green and Red
Other Features
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950, ISO 18092, ISO 14443, USB Full Speed, PC/SC, CCID, VCCI (Japan), MIC (Japan), Microsoft® WHQL, CE, FCC, RoHS, REACH, 電子車検証対応
Device Driver Operating System Support
Device Driver Operating System Support Windows® CE, Windows®, Linux®, MAC OS® 10.7 and later, Solaris, Android™ 3.1 and later

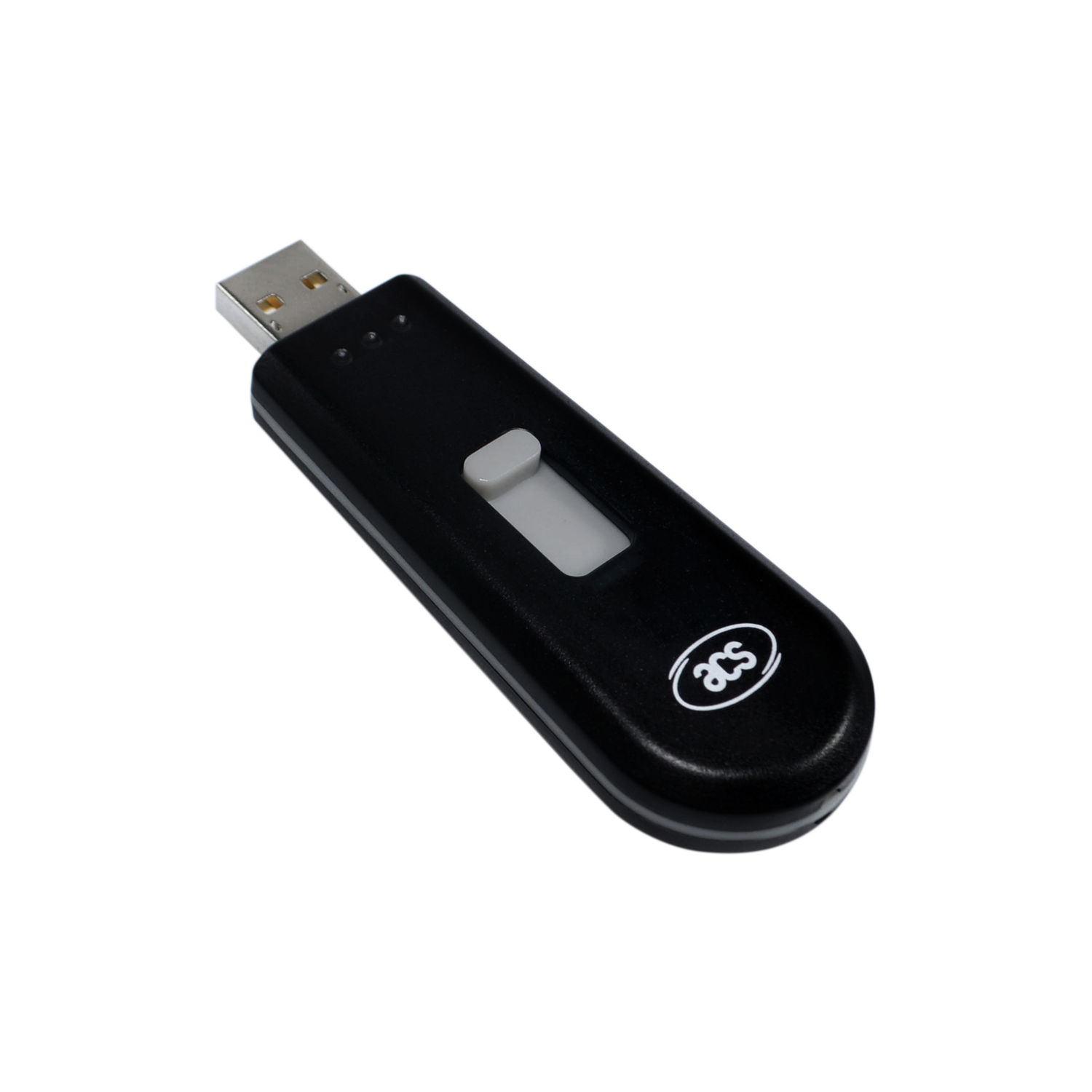

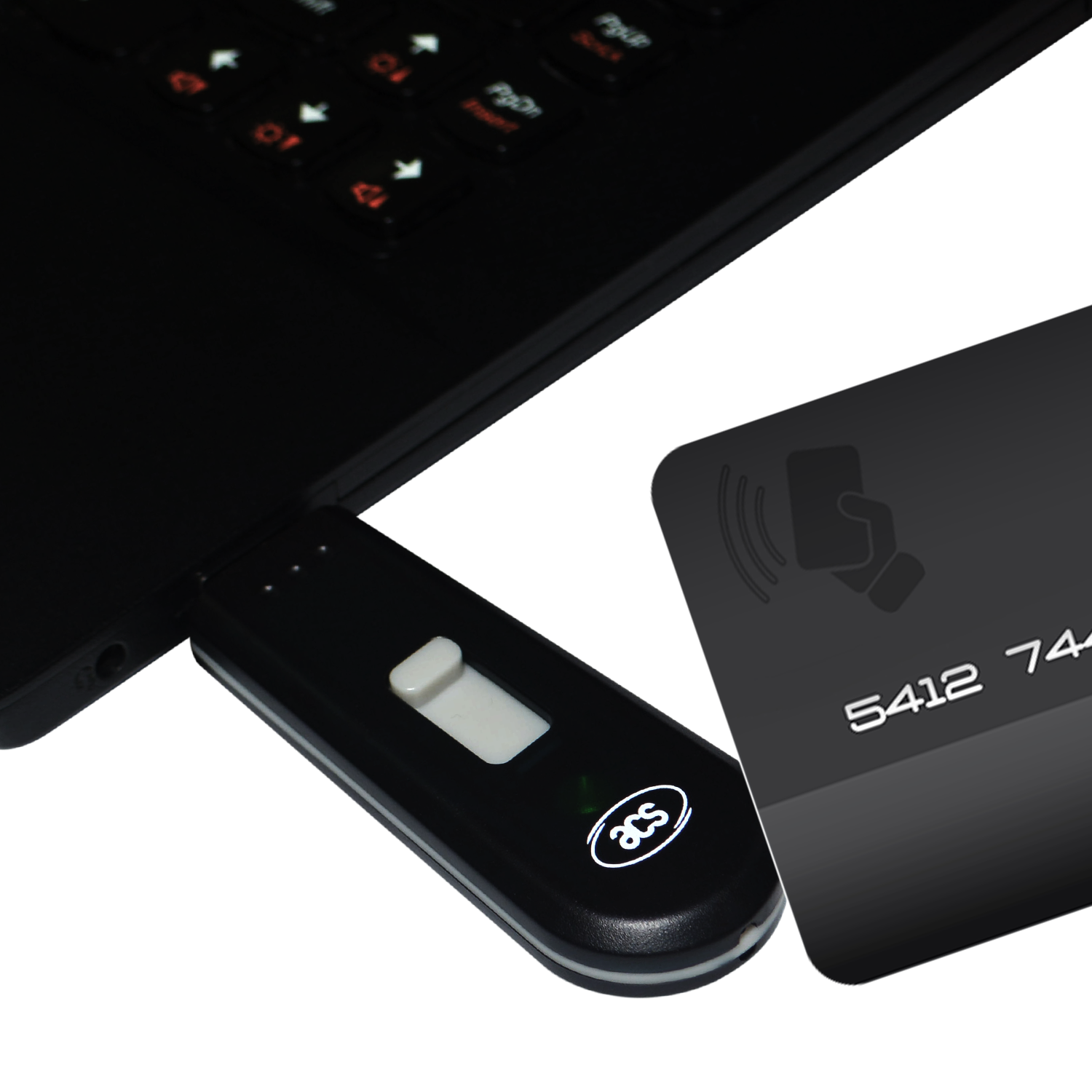

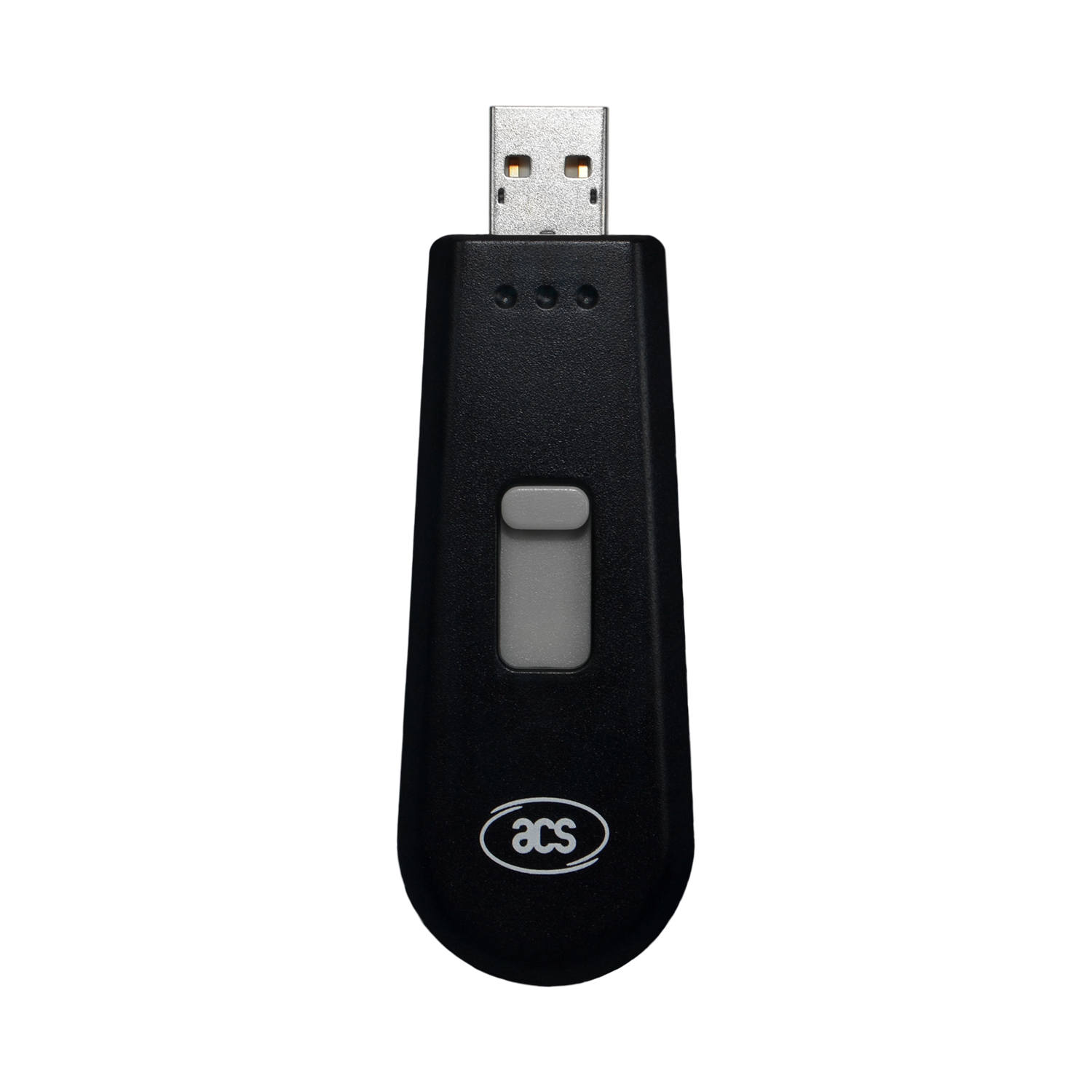

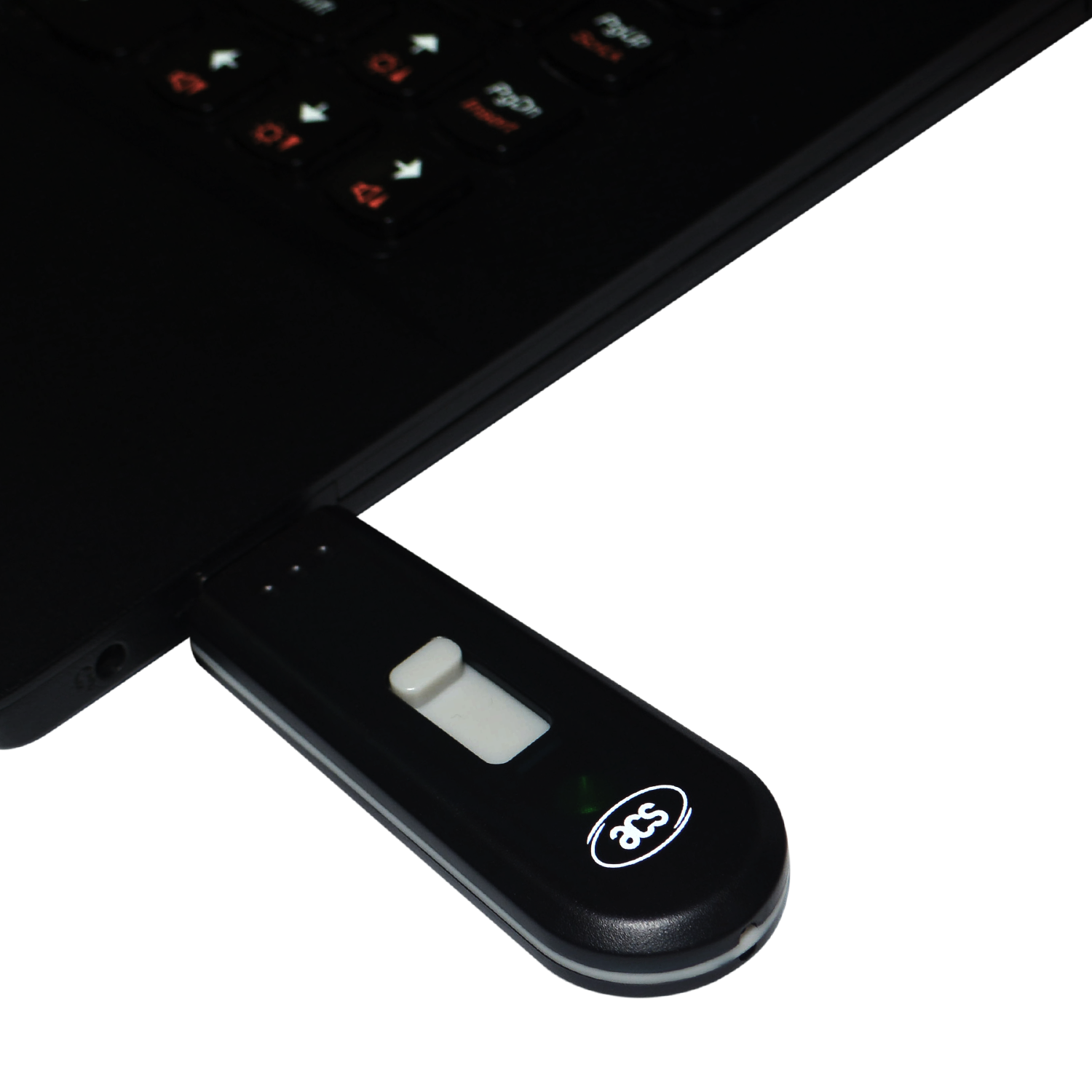

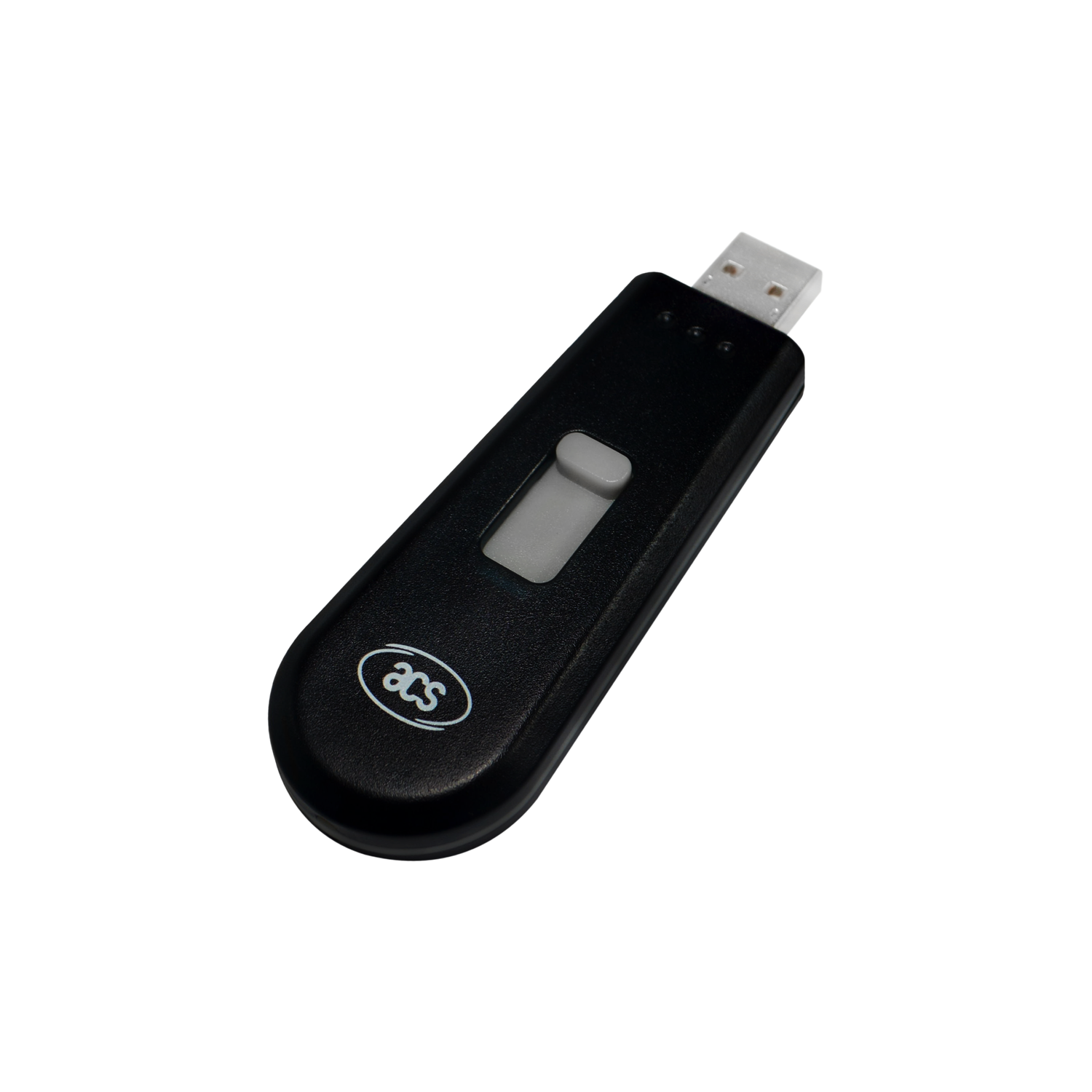

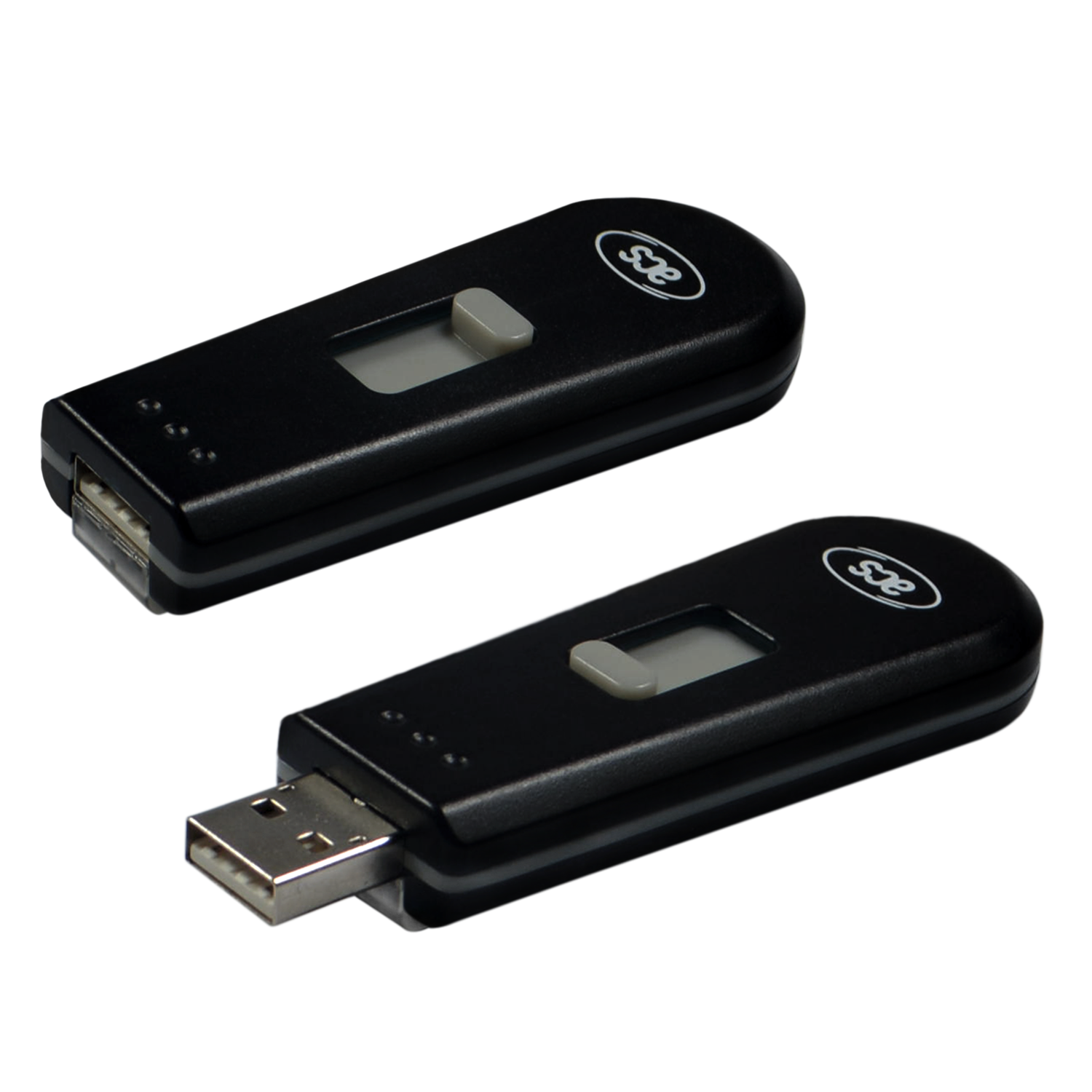

Images
