PR1029 — Secure Access Module Card
Smart Cards & Smart Card OS

PR1029

Secure Access Module Card

Secure Access Module (SAM) card

Manufacturer reference: ACS — ACOS6-SAM ↗. PR codes identify Elvantic catalogue entries. Manufacturer documents and driver identifiers retain their original names.

PR1029

Plan your purchase

Choose the next step for your project. Include your requirements so the enquiry can address the right model and configuration.

Evaluation samples
Paid samples
Warranty
One-year warranty

Confirm sample pricing, the exact configuration, warranty handling and shipping terms in the quotation or order.

What to include in your enquiry

Model and quantity
Specify the model or required function, evaluation quantity and expected order quantity.
Destination and application
Include the delivery country, project use and required delivery date.
Cards and host platform
List the card or tag type, operating system and version, connection and software requirements.

Questions to resolve before ordering

  • Which card, tag or identity document must the product work with, and what data must be read or written?
  • Which host device, operating system and application will use it? Confirm compatibility with your intended setup before ordering.

If you need an SDK or development kit, specify the hardware and software items required, and ask for confirmation of kit contents and licence terms.

Overview

The PR1028 Secure Access Module (SAM) is designed as a general cryptogram computation module or as a security authentication module for ACOS contact client cards - PR1024, PR1028, ACOS7 and ACOS10, and common contactless client cards - DESFire®, DESFire EV1/2, DESFire® Ultralight-C, DESFire® Light and DESFire® Mifare Plus.

The PR1029 card securely stores cryptographic keys and uses these keys to compute cryptograms for other applications or smart cards. Using this, terminals need not know the master key(s) of an application, considering that the keys never leave the PR1029.

The PR1029 card can perform:

  • Mutual Authentication: To guarantee the authenticity of the terminal and the client card
  • Secure Messaging: To ensure that the data transmission between the card and terminal/server is secured and not susceptible to eavesdropping, replay attack and unauthorized modification
  • Purse MAC Computation: To authenticate and ensure data integrity of data and commands that are transferred into the card and vice versa
  • Key Diversification: To enable diversified entry of keys without exposing the master key
  • Secure Key Injection: To ensure the key injection from SAM to client cards for contactless cards with protection of Encryption and Message Authentication Code; key(s) may be changed after injection

Technical Specifications

Category Details
Memory
Capacity 64 KB
Contact Smart Card Interface
Standard Compliant with ISO 7816 Parts 1, 2, 3 and 4
Protocol Supports T=0 Protocol
Speed Supports baud up to 223.2 kbps
Cryptographic Features
AES 128/192-bits (ECB, CBC)
DES/3DES 56/112/168-bits (ECB, CBC)
Random Number Generation FIPS 140-2 compliant hardware based RNG
File Security
File Security Session key based on random numbers; key pair for mutual authentication; Secure Messaging function for confidential and authenticated data transfers; stores and performs all key operations for mutual authentication, encrypted PIN submission, secure messaging, and e-Purse commands; multilevel secured access hierarchy; anti-tearing capability
Secure Access Module Compatibility
Compatible With PR1024, PR1028, ACOS7, ACOS10, MIFARE Ultralight® C, MIFARE® DESFire®, MIFARE® DESFire® EV1, MIFARE® DESFire® EV2, MIFARE® DESFire® Light, MIFARE Plus®

SDK

PR1028 is a high speed and flexible smart card offering cost effective solutions. It is specifically designed to address the requirements of multiple applications and multiple e-purses with secure hierarchy for multiple levels. Providing each independent application with a secure environment, it is suitable for a wide range of applications in government services, payment applications, online top-up, loyalty programs, and more.

The PR1028 Multi-Application & Purse Smart Card Software Development Kit (PR1001) is designed for professional developers who are interested in developing applications on PR1028 and PR1029. It contains tools allowing one to learn the ISO7816-4's file structure on PR1028, as well as a personalization scripting tool, the Scripting Tool Plus, enabling one to personalize a smart card. Further, development of applications is facilitated through the unique ACS Card Tool, which allows users to send direct commands to any PC/SC-compliant smart card readers and cards.

SDK Contents
Smart Card Reader(s) 1 x PR1002 Dual Interface Smart Card Reader
Test Card(s)/Token(s) 5 x PR1028 Multi-Application Smart Cards; 5 x PR1029 Secure Access Module Smart Cards; 5 x PR1024 Microprocessor Smart Cards
Software Installer Reference Manual(s); Tools and Utilities: PCSC Learning Tool, QuickView, Script Tool 5, Smart Card and Reader Tool; Sample Codes demonstrating basic commands, available in Java, MS Visual Basic.NET 2013, MS Visual C#.NET 2013, MS Visual C++.NET 2013
SDK Operating System Support Windows® 7, Windows® 8.1, Windows® 10

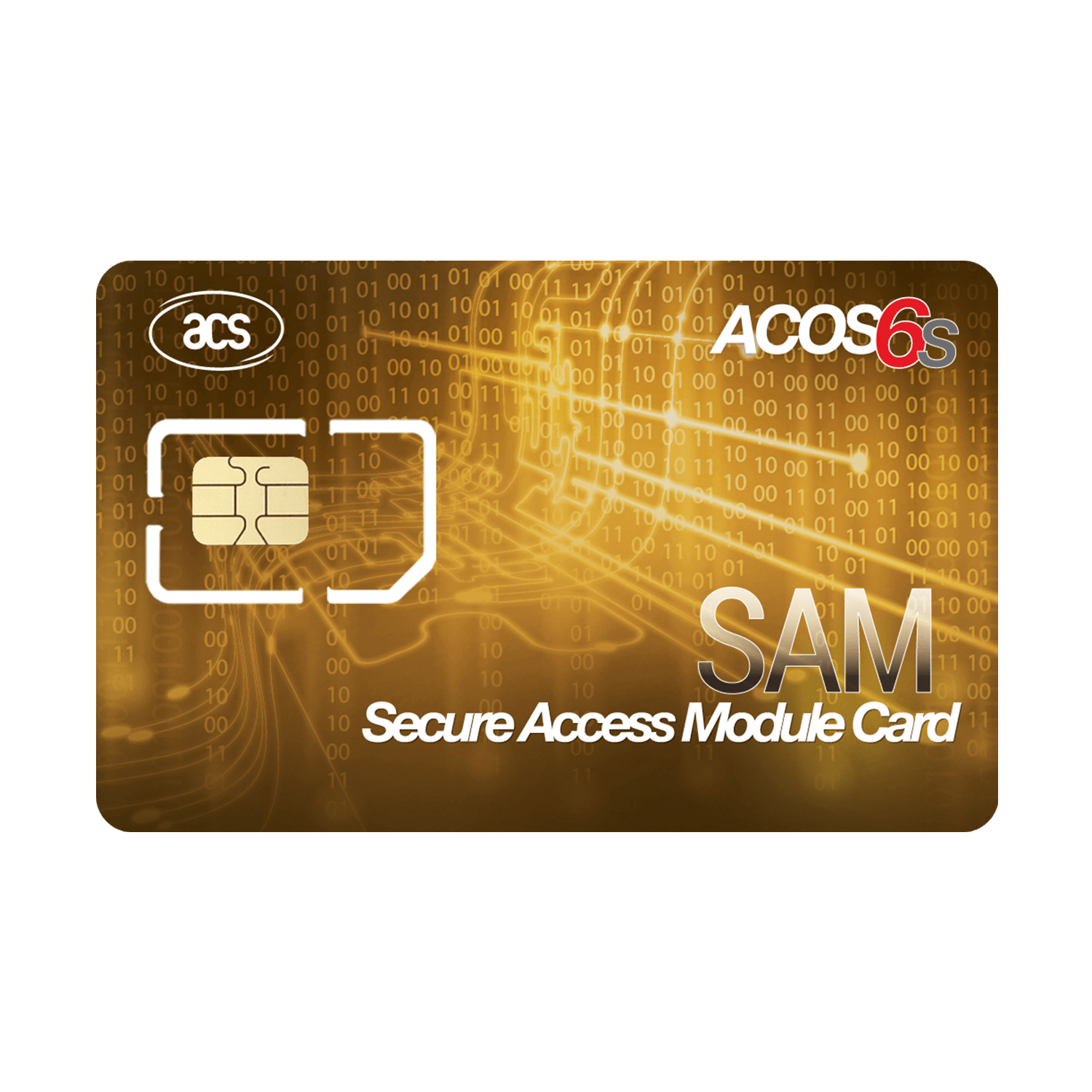

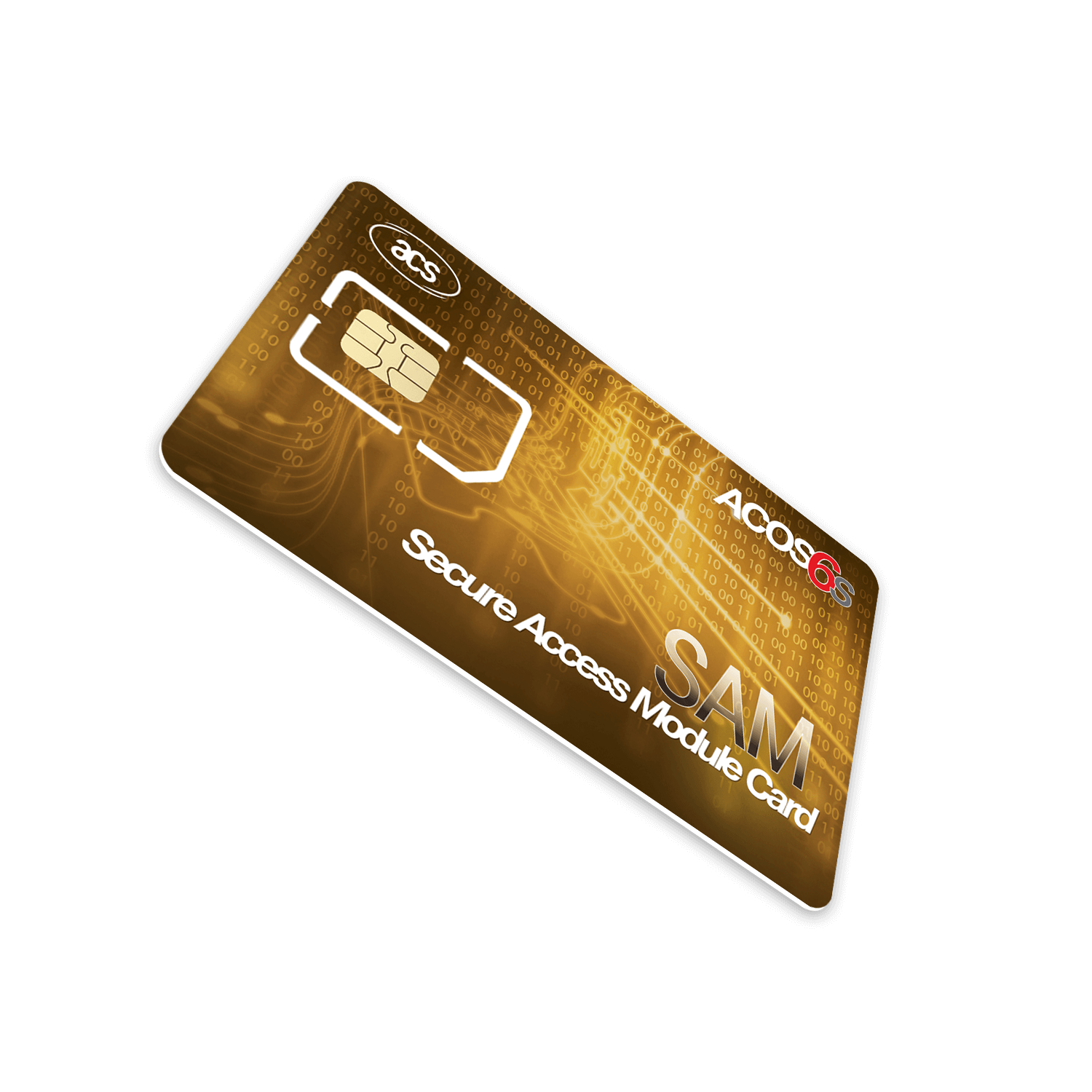

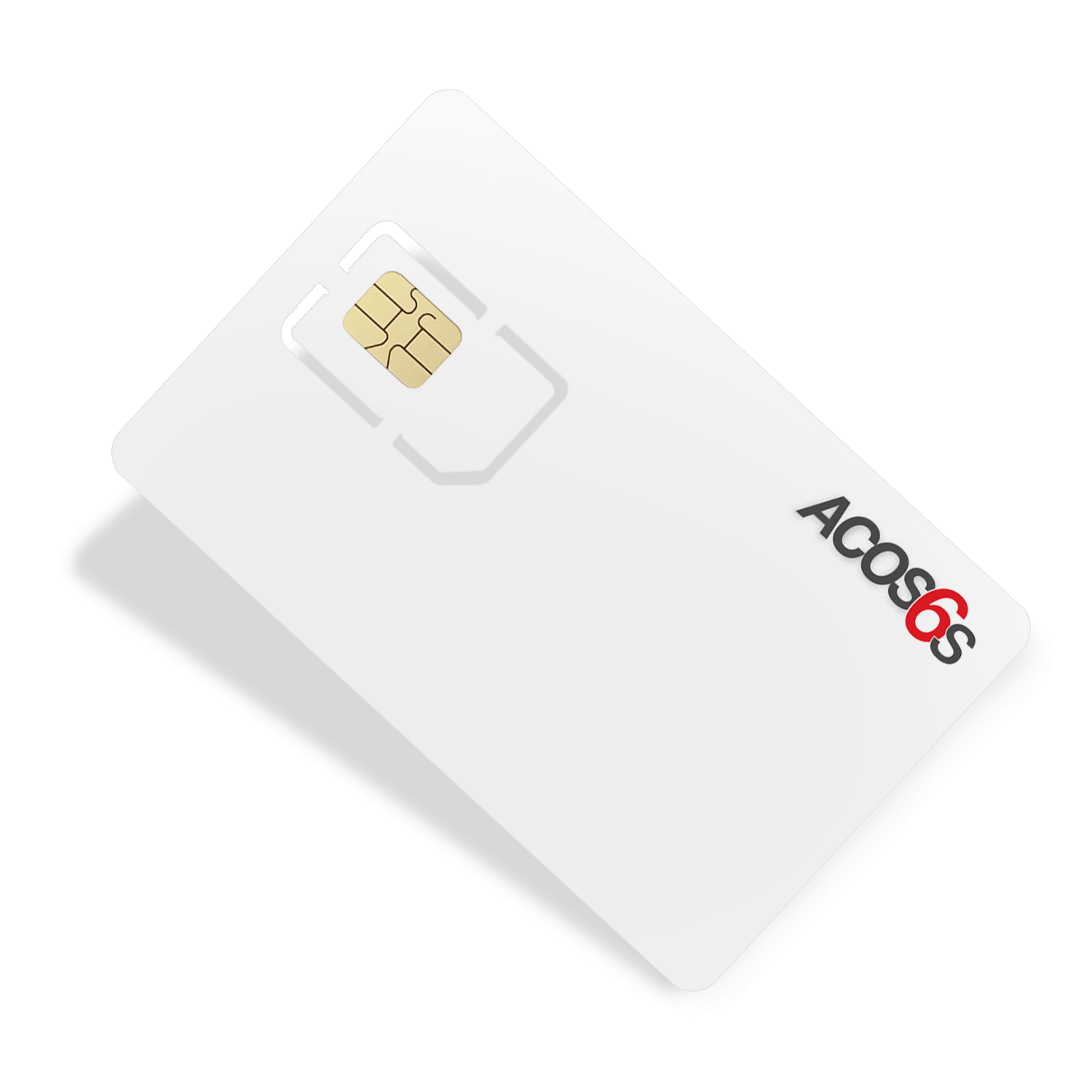

Images
